HOBBYWING FlyFun V5 ESC

Features :

• Advanced 32-bit processor for precise control.




• DEO (Driving Efficiency Optimization) Technology for efficiency.




• Soft Start-up modes for turbine & ducted fan models.




• Multiple protection features ensure system safety.




• Excellent throttle linearity and smooth response.




• Wide input voltage range for versatile use.




• Supports various programming methods for customization.




• Compact size and lightweight for easy installation.




• High-quality components ensure long-term reliability.




• Perfect for advanced fixed-wing aircraft and EDFs.

Technical Specifications:

• Processor: Advanced 32-bit ARM M0+ microprocessor (often running at high frequency)




• Throttle Signal Refresh Rate: Up to 600Hz




• Max RPM (Brushless Motor): 300000rpm (2-poles), 100000rpm (6-poles), 50000rpm (12-poles)




• Programming: Via transmitter stick, LED Program Box, or HOBBYWING WiFi Module (for specific models)




• Active Freewheeling (DEO Technology): Supported for higher efficiency and lower ESC temperature.




• Timing: Auto and 0-30 degree options.




• Start-up Modes: Normal, Soft, Super-Soft (specifically for turbine and ducted fan models).




• Protection Features: Low-voltage cutoff, over-heat, throttle signal loss, motor lock-up.




• Firmware Upgrade: Supported via HOBBYWING USB Link (for specific models).




30A ESC

• Continuous Current: 30A

• Peak Current (10s): 60A

• Input Voltage (LiPo): 3–6S

• BEC Output: No BEC (OPTO)

• Size: 68 × 33 × 12 mm

• Weight: 48.5 g

• Input Wires: 16 AWG

• Output Wires: 18 AWG

• Output Connectors: No Connectors

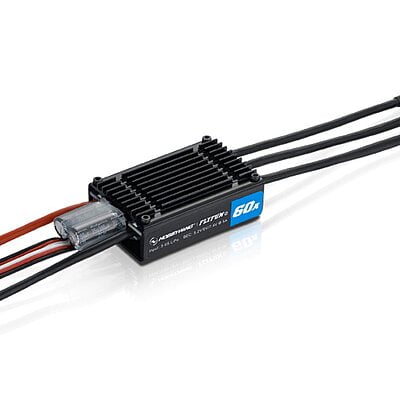

60A ESC

• Continuous Current: 60A

• Peak Current (10s): 80A

• Input Voltage (LiPo): 3–6S

• BEC Output: 5V/6A or 7.4V/6A (Switch Mode)

• Size: 68 × 33 × 12 mm

• Weight: 48.5 g

• Input Wires: 14 AWG

• Output Wires: 16 AWG

• Output Connectors: No Connectors

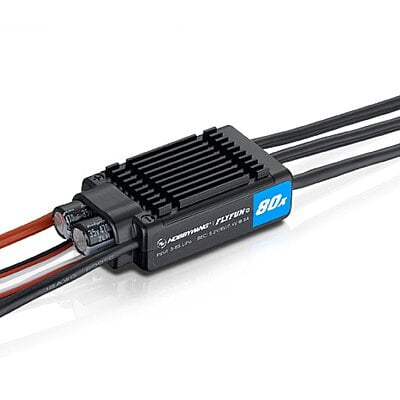

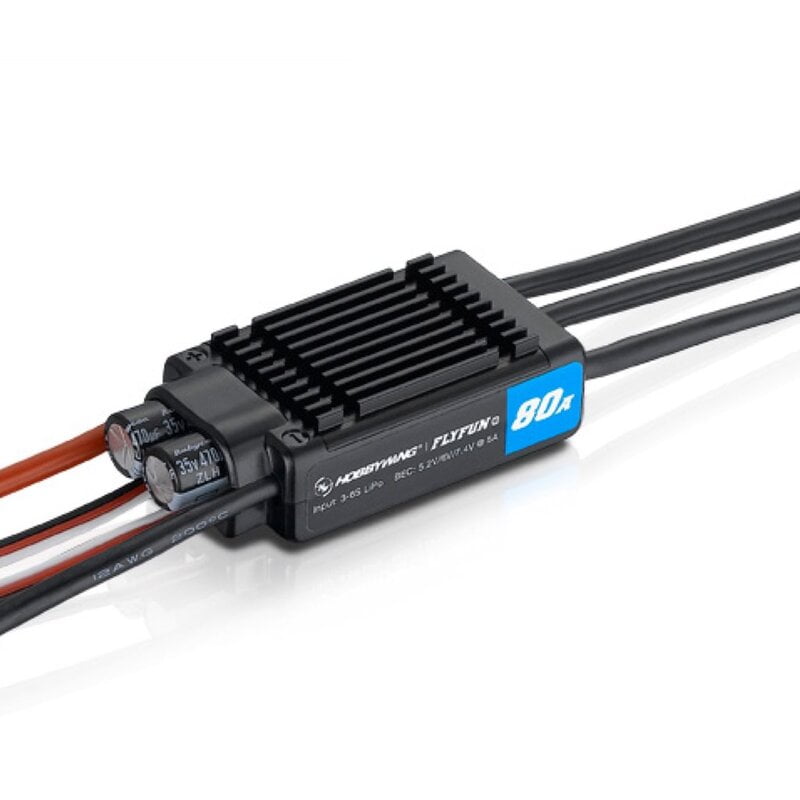

80A ESC

• Continuous Current: 80A

• Peak Current (10s): 100A

• Input Voltage (LiPo): 3–6S

• BEC Output: 5V/7A or 7.4V/7A (Switch Mode)

• Size: 82.5 × 33.5 × 18 mm

• Weight: 92 g

• Input Wires: 12 AWG

• Output Wires: 14 AWG

• Output Connectors: No Connectors

Additional Details:

• Manufacturer: HOBBYWING

• Brand: HOBBYWING

• Generic Name: Electronic Speed Controller || ESC || Brushless ESC || Motor Controller || Speed Controller || RC ESC || Airplane ESC || Fixed Wing ESC || OPTO ESC || Model Aircraft ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: RC Airplanes || Fixed-Wing Aircraft || EDF Jets || Gliders || Sport Planes || Turbine Models (with specific start-up) || High-Performance RC Projects || Electric Propulsion Systems || DIY Aircraft

Package Details:

Includes:

• 1x HOBBYWING FlyFun V5 Brushless Electronic Speed Controller (specific amperage model)

• 1x User Manual / Instruction Guide

Frequently Asked Questions:

Q1. What is DEO Technology and how does it benefit the FlyFun V5 ESC?

Ans. DEO (Driving Efficiency Optimization) Technology, also known as Active Freewheeling, significantly improves the ESC's efficiency and lowers its operating temperature. It allows the motor to continue rotating freely when the throttle is reduced, leading to better throttle linearity, more precise control, and longer flight times for your RC aircraft.

Q2. Is the HOBBYWING FlyFun V5 ESC suitable for both propeller and ducted fan (EDF) aircraft?

Ans. Yes, the HOBBYWING FlyFun V5 ESC series is highly versatile and suitable for both propeller-driven and ducted fan (EDF) aircraft. It features advanced "Soft Start-up" modes specifically designed to handle the high current demands and unique starting characteristics of EDF and even turbine models, ensuring smooth and controlled acceleration.

Q3. Can I program the FlyFun V5 ESC without a separate program box?

Ans. Yes, you can program the HOBBYWING FlyFun V5 ESC using your radio transmitter stick, by following specific sequences of throttle movements and listening to the motor's beeps. However, for more comprehensive and easier parameter adjustments, it's highly recommended to use an optional HOBBYWING LED Program Box or, for certain models, the HOBBYWING WiFi Module.
