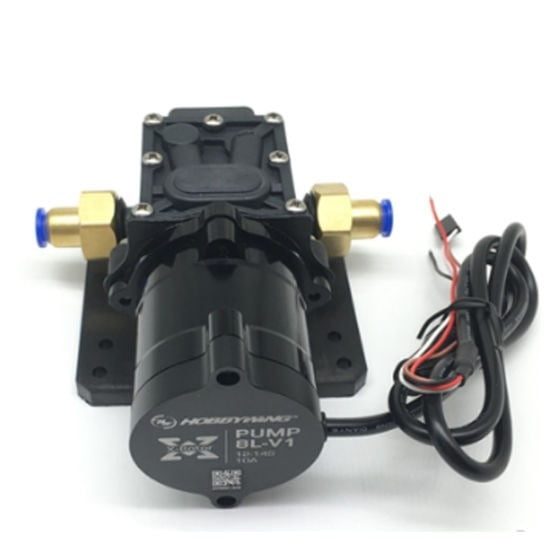

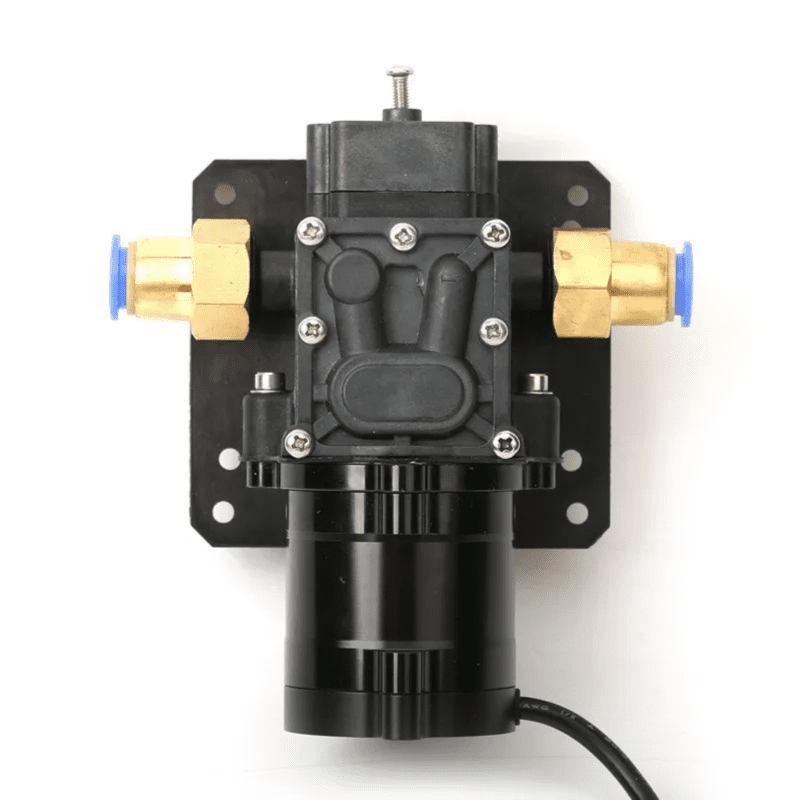

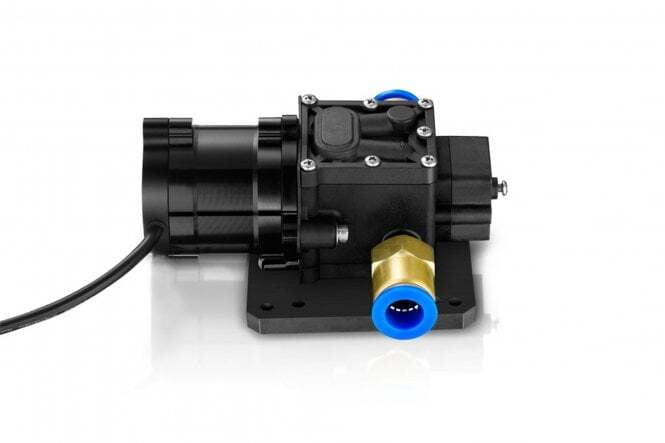

HOBBYWING 8L Brushless Water Pump

Features:

• Efficient and durable brushless motor technology.




• High flow rate of 8 liters per minute.




• Provides consistent and reliable liquid pressure.




• Lightweight and compact design.




• Long lifespan and minimal maintenance required.




• Ideal for a variety of agricultural chemicals.




• Low power consumption.




• Ensures uniform spray distribution.




• High-quality Hobbywing original part.




• Sealed housing for protection against water.

Technical Specifications:

• Model: Hobbywing 8L Brushless Water Pump

• Operating voltage: 12-14S (DC44-60.9V)

• Working current: <2A

• Weight: 685g

• water inlet diameter: 10.5mm

• water outlet diameter : 6.5mm

• Amount power: 60W

• Opening flow: 8L/min

• Size: 140*95*70mm

• Working pressure: 0.5Mpa

• Protection level: IP67

• Fixed PWM throttle stroke: 110-1940US

Additional Details:

• Manufacturer: Hobbywing

• Brand: Hobbywing

• Generic Name: Drone Water Pump || Brushless Pump || UAV Pump || Liquid Pump || Agricultural Drone Part || Spraying System Pump || Drone Accessory || Water Pump || Drone Gear || UAV Equipment

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Crop Spraying || Industrial Drones || Drone Builders || Precision Farming || Liquid Fertilizer Application || Drone Upgrades || UAV Retrofitting || Drone Maintenance || Professional Drone Pilots

Package Details:

• Includes:

  • 1x Hobbywing 8L Brushless Water Pump

Frequently Asked Questions:

Q1. What is the main advantage of a brushless water pump over a brushed one?

Ans. A brushless pump is more efficient, has a longer lifespan, and requires less maintenance. Unlike a brushed motor, it has no carbon brushes to wear out, meaning it can run for thousands of hours without needing replacement. This makes it ideal for professional, high-demand drone applications.

Q2. What voltage is required to operate this pump?

Ans. This pump is typically designed to run on a 12S LiPo battery (50.4V nominal voltage), which is a standard power source for large agricultural drones. It's crucial to use a compatible power source to ensure the pump operates correctly and to prevent damage.

Q3. Does this pump include a speed controller (ESC)?

Ans. Yes, the Hobbywing 8L pump has an integrated brushless ESC which is why it is listed as a brushless water pump. The pump can be connected to the flight controller for automated flow control, but it does not require a separate external ESC.
