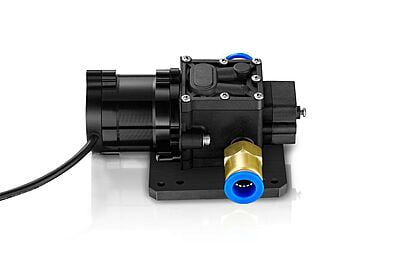

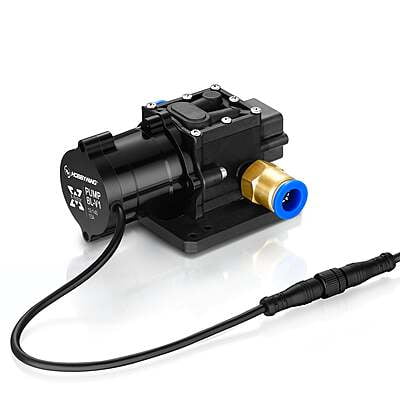

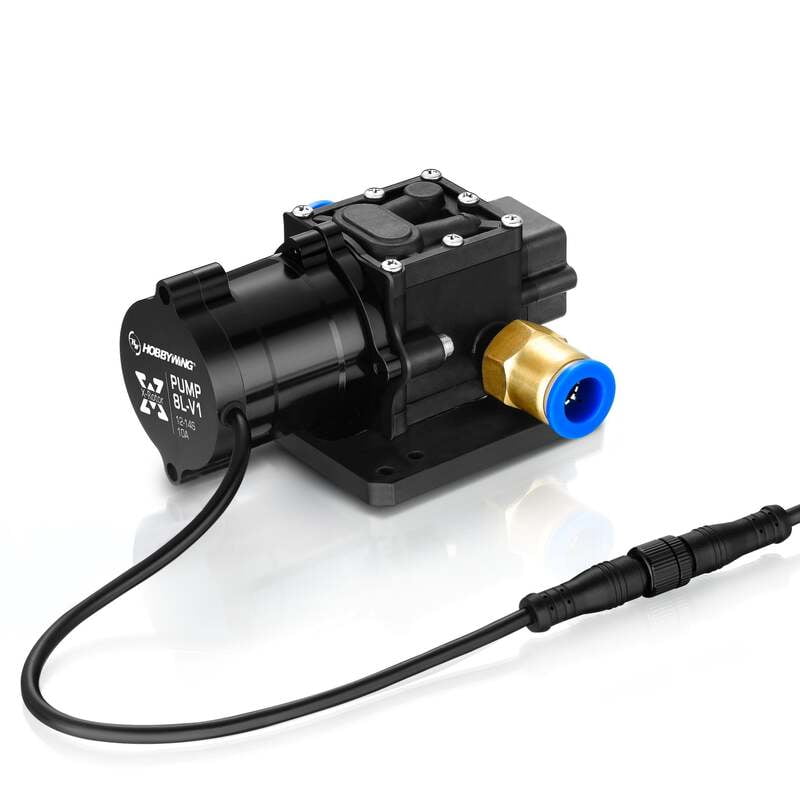

HOBBYWING 8L Brushless Water Pump

Features:

• Dual protection with over-temperature and over-current safety.

• Automatic restart when overheating or overload occurs.

• Long service life of 500+ hours, 3–5 times longer than regular pumps.

• High water flow and spraying speed for efficient coverage.

• Supports up to 12 nozzles, suitable for 20–30L heavy-duty drones.

• IP67 waterproof rating for reliable outdoor use.

• Pluggable cable design for easy installation and replacement

Specifications

• Working Voltage: 12-14S（DC44.4-60.9V）/18S（DC66.6-78.3V）

• Rated Power: 120W

• Working Pressure: 0.8-1.0Mpa

• Working Current: ≤2.5A

• Maximum Flow: 8L/min

• Protection Class: IP67

• Weight: 698g

• Size: 139*95*70mm

• Inner Diameter of Water Inlet Pipe: Outside diameter 14mm

• Inner Diameter of Water Outlet Pipe: Outside diameter 14mm

• Operating PWM Width: 1050-1950μS

Additional Details:

• Manufacturer: HOBBYWING Technology Co., Ltd.

• Brand: HOBBYWING

• Generic Names: Drone water pump, brushless pump, agricultural drone pump, liquid sprayer pump

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural spraying drones, industrial drones, drone-based cleaning systems, custom drone projects

Package Details:

• Includes:

• 1 x HOBBYWING 8L Brushless Water Pump

Frequently Asked Questions:

Q1: What type of liquid can this pump handle?

ANS: It is designed to handle water and many common agricultural chemicals. Always check compatibility with the manufacturer.

Q2: Is this pump waterproof?

ANS: The pump is splash-proof but not fully submersible. It should be mounted in a location protected from direct water submersion.

Q3: What is the recommended power source?

ANS: The pump is designed to run on a 14S LiPo battery
