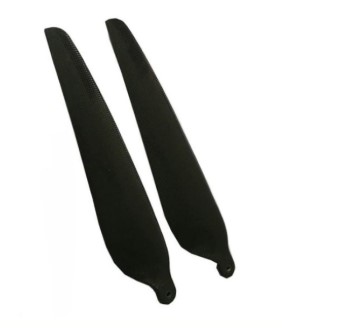

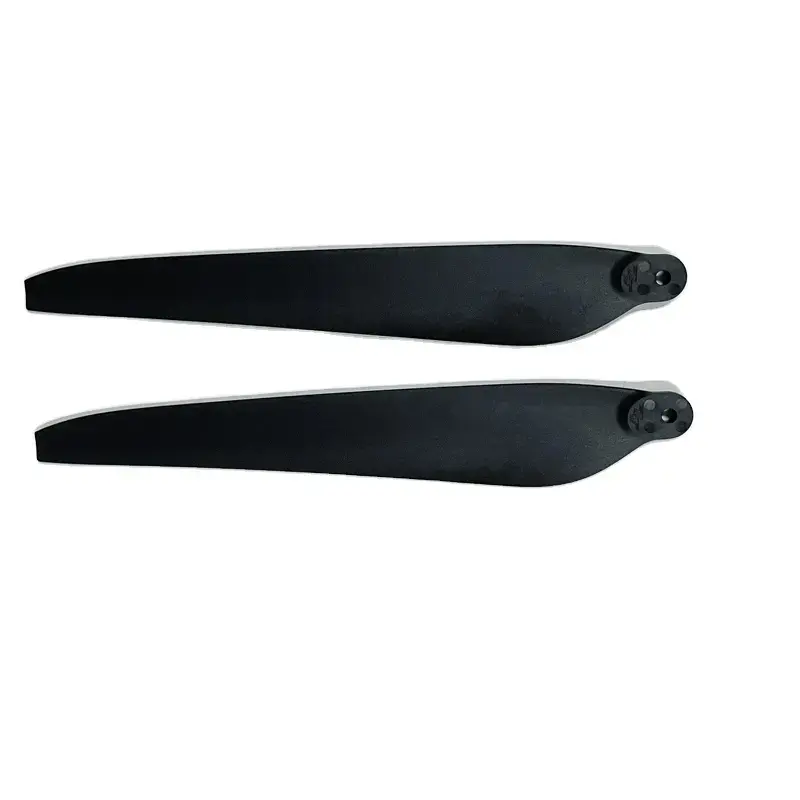

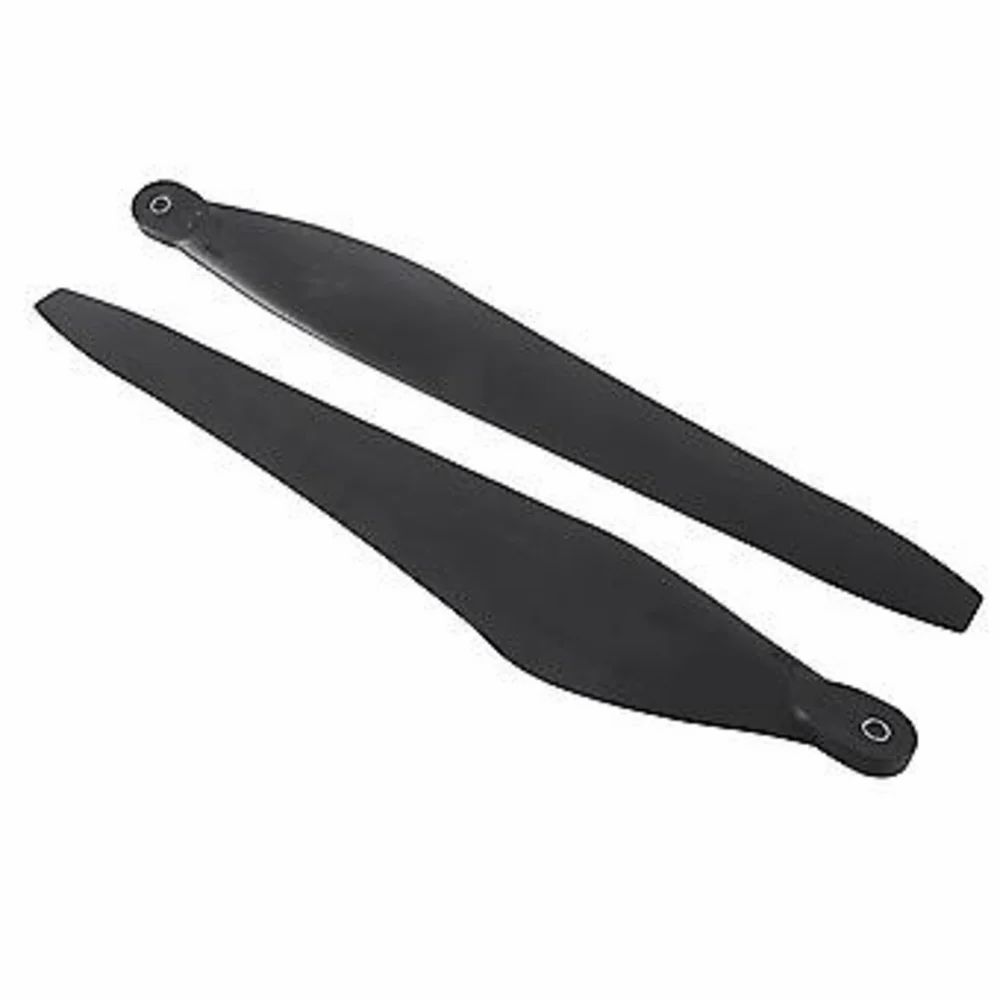

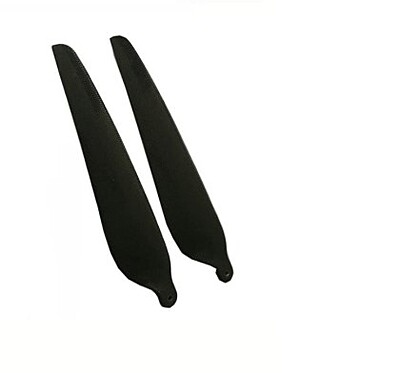

HOBBYWING 2480 Propeller CW without Clamp – Lightweight CW Drone Propeller for Agriculture UAVs

The HOBBYWING 2480 Propeller CW without Clamp is the benchmark replacement wing designed for industrial drone operators who need to restore single-side flight balance without purchasing a full dual-blade or clamped assembly.

Advanced Carbon Composite Chemistry :

Unlike standard plastic props that flex under extreme load, the 2480 model uses a specialized matrix of high-modulus carbon fiber blended with premium structural polymers. This layout provides extreme tensile rigidity, maintaining a perfect airfoil shape even when lifting heavy liquid payloads at high RPMs, reducing energy losses and maximizing flight times.

Aerodynamic Optimization for X6 Power Packs :

Every curve, taper, and sweep on this blade has been designed to operate harmoniously alongside Hobbywing X6 brushless motors. The fine-tuned foil profile lowers profile drag across your quadcopter or hexacopter fleet, ensuring a linear throttle response, cooler motor temperatures, and a very quiet acoustic signature in the field.

Cost-Effective Standalone Maintenance Layout :

Accidents happen during tight field maneuvers, but a single clipped tip shouldn't force you to scrap your entire mounting assembly. This component is shipped without the aluminum folding clamp blocks, allowing you to unscrew the damaged blade from your existing X6 holder and bolt this fresh, factory-balanced blade straight on in minutes.

High Strength Resistance to Agricultural Abuse :

The exterior surfaces are coated with a protective layer that actively resists degradation from UV rays, harsh morning humidity, and corrosive concentrated chemical mixtures. This finish simplifies clean-ups and ensures that micro-abrasions from field dust do not lead to premature blade splitting or structure cracking.

Specification :

• Brand: Hobbywing

• Model Variant: 2480 Standalone Propeller Blade (Single Blade Only)

• Rotation Direction: Clockwise (CW / Standard Rotation)

• Clamp Inclusion: No (Aluminum folder clamp assembly sold separately)

• Propeller Diameter Profile: 24 Inches

• Thread Pitch Rating: 8.0 Inches

• Material Composition: Carbon-Fiber-Reinforced Advanced Polymer Composite

• Weight Profile: 48g (Per individual single blade block)

• Compatibility Target: Hobbywing X6 Power System / 30mm Motor Mount Assemblies

• Application Focus: Commercial Spraying Drones and Heavy-Lift Industrial UAVs

• Payload Class Suitability: 10L to 16L Agricultural Multirotors

Frequently Asked Questions :

Q1: Can I use this standalone 2480 blade if my current propeller folder is cracked?

Ans: No, this specific product listing is for the carbon composite blade only and does not include the aluminum clamp. If your central metal holder assembly is cracked or bent, you must buy the complete Hobbywing X6 folding prop adapter assembly separately.

Q2: Is it safe to replace just one damaged blade on my X6 folding propeller hub?

Ans: Yes, absolutely. Hobbywing maintains tight manufacturing tolerances, ensuring that every individual replacement blade matches strict weight and balance limits. Simply bolt it onto your matching CW hub, check that the pivot torque is correct, and you are ready to fly.

Q3: How can I distinguish between the CW and CCW versions of the 2480 propeller blades?

Ans: Check the physical text markings engraved near the root mounting hole or inspect the blade's leading-edge direction. A CW blade spins clockwise when viewed from above, drawing air downward over its specific curved trailing edge layout.

Q4: What torque value should I use when bolting this blade into the aluminum clamp?

Ans: Tighten the mounting bolts down until the blade is held securely but can still swing open smoothly via centrifugal force when the motor spins up. Never over-tighten the pivot bolts to a point where the blade becomes completely locked in place, as this can cause motor bearing damage.
