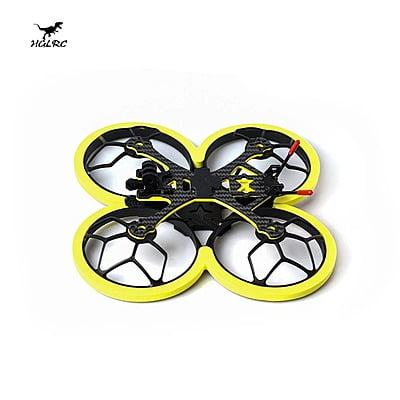

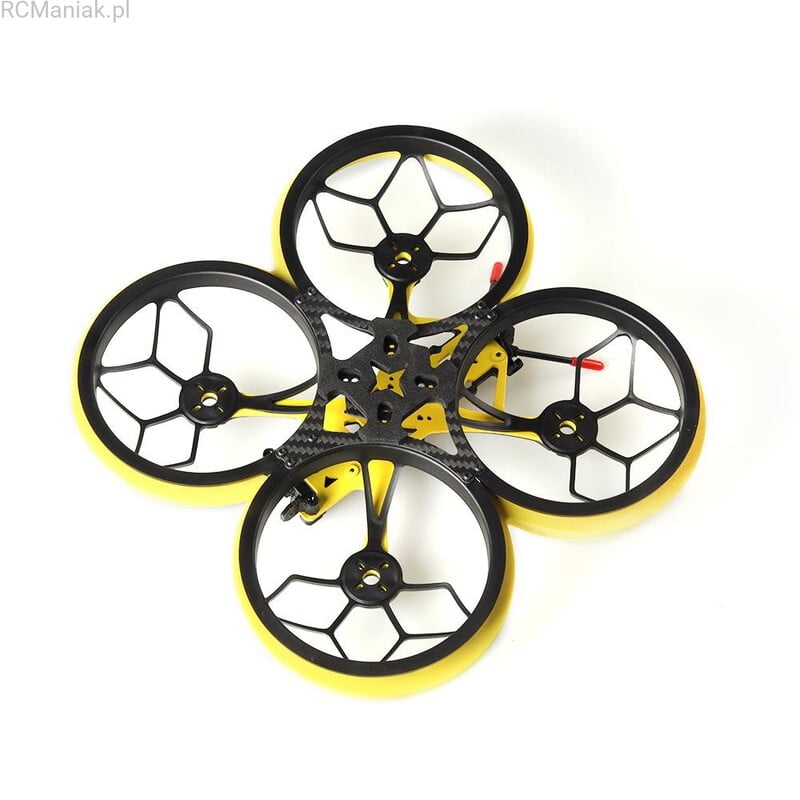

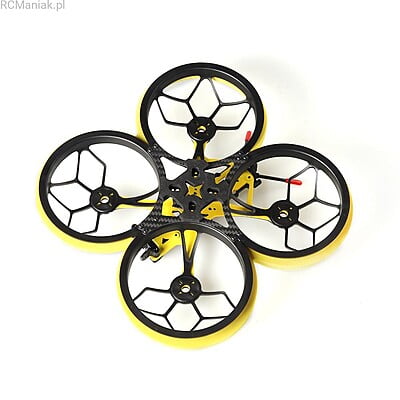

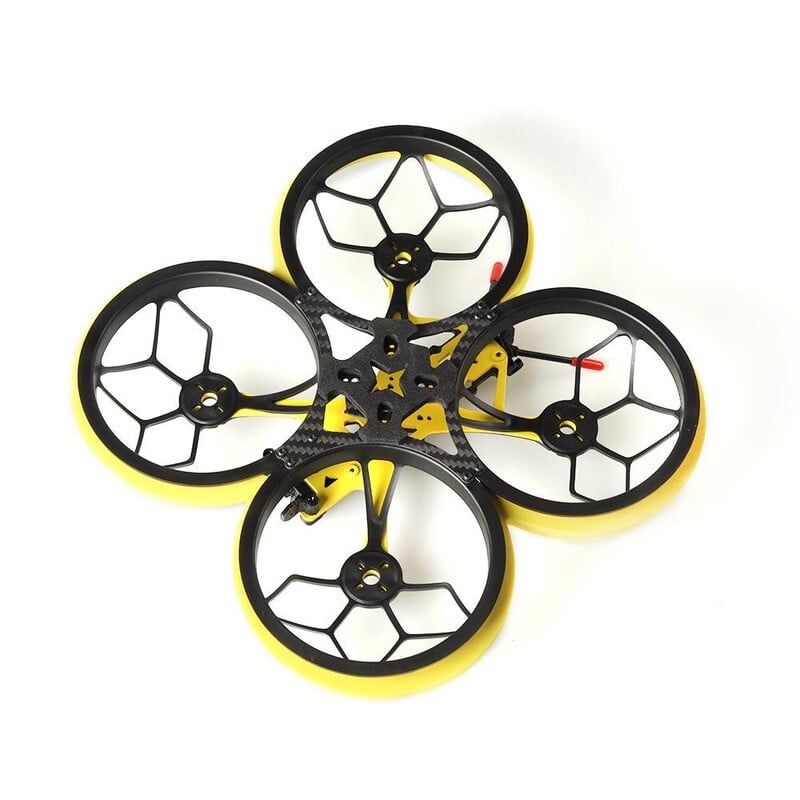

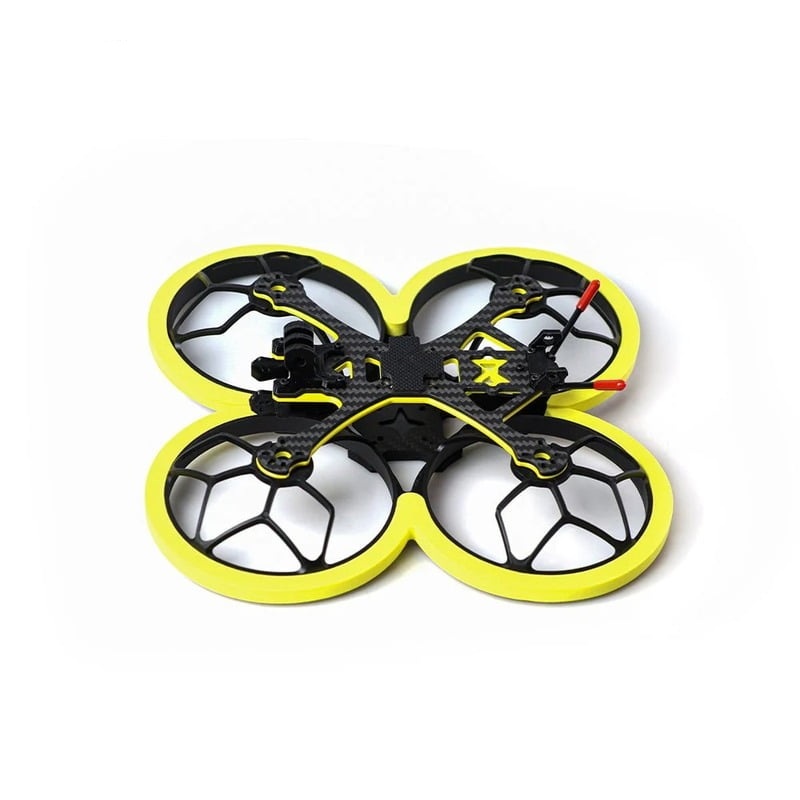

HGLRC Veyron35CR 3.5″ CineWhoop Frame Kit

Features

• Ultra-light and lasts super long in flying
• Colorful EVA Foam Protection Guards
• 20x20-25.5x25.5mm mounting holes
• Pusher-style Frame

Specifications

• FC mounting hole: 20x20mm/25.5x25.5mm
• Motor mounting hole:12x4/16x4mm
• Model: Veyron35CR Pusher frame
• Supported camera:19*19mm
• Material: 3K carbon fiber
• Brand Name: HGLRC
• Type:3.5 inch frame
• Wheelbase: 155mm
• Base plate: 1.5mm
• Size:131*131mm
• Top plate: 2.5mm
• Mid plate: 2.5mm
• Weight: 113.4g
• Space: 28mm

Additional detail:

• Manufacturer: HGLRC
• Brand: HGLRC
• Generic Name: FPV Drone Frame Kit, Cinewhoop Frame, Quadcopter Frame
• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
• Ideal For: Cinematic FPV pilots, Aerial videography, Indoor and outdoor proximity flying, DIY FPV drone builders
• What camera size does the Veyron35CR frame support?
• The frame is designed to support a micro-sized FPV camera with a 19×19mm mounting dimension, and it also includes TPU mounts for full and 'naked' GoPro cameras for HD recording.

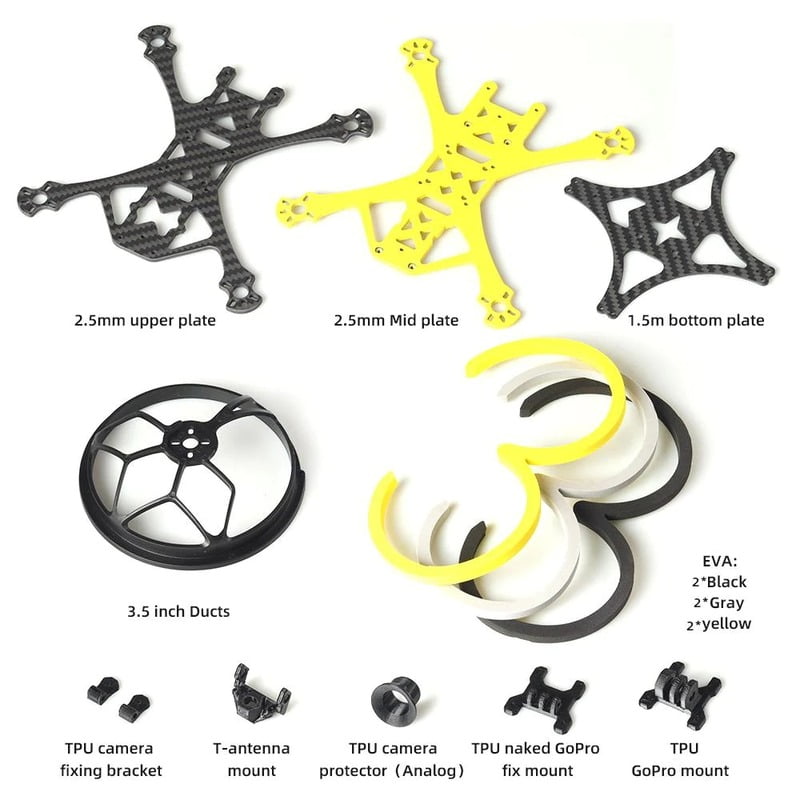

Includes

• 6x EVA Foam protection guard (2 black, 2 gray, 2 yellow)
• 2x M2*28mm black mesh Aluminum pillar
• 2x M2*8mm black Aluminum column
• 4x M2*O type shock-absorbing ring
• 4x M3*8 shock absorbing ball
• 1x TPU bare GOPRO holder
• 1x TPU GOPRO seat holder
• 4x 3.5-inch propeller guard
• 2x Battery tie 15x200mm
• 1x Battery non-slip mat
• 5x M3 self-locking nuts
• 4x M2 self-locking nuts
• 1x TPU camera mount
• 1x TPU lens protector
• 1x M5 self-locking nut
• 1x TPU antenna base
• 1x 1.5mm base plate
• 1x EVA landing gear
• 1x 2.5mm Mid plate
• 1x 2.5mm top plate
• 4x Screw M3*25
• 1x Screw M3*20
• 4x Screw M2*18
• 10x Screw M2*5
• 1xScrew M5*20
• 4x Screw M2*9
• 2x Screw M2*7
• 2x Screw M2*4

Frequently Asked Questions:

Q1: Is this frame suitable for carrying a full-size action camera?

ANS: Yes, the pusher-style, inverted design and robust structure are specifically engineered to easily and stably carry a full-size action camera like a GoPro for professional cinematic footage.

Q2: What is the recommended battery size for this frame?

ANS: It is generally recommended to use a 4S or 6S battery with a capacity between 1000mAh to 1300mAh to achieve a good balance of power and flight time.

Q3: What camera size does the Veyron35CR frame support?

ANS: The frame is designed to support a micro-sized FPV camera with a 19×19mm mounting dimension, and it also includes TPU mounts for full and 'naked' GoPro cameras for HD recording
