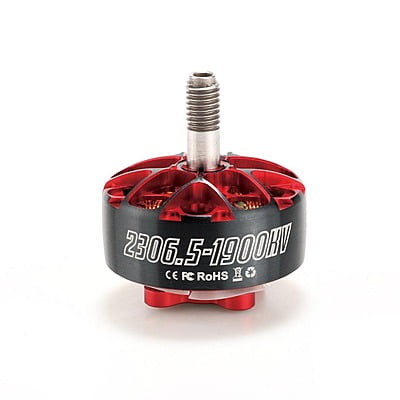

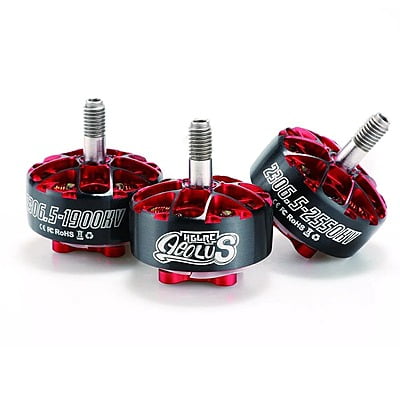

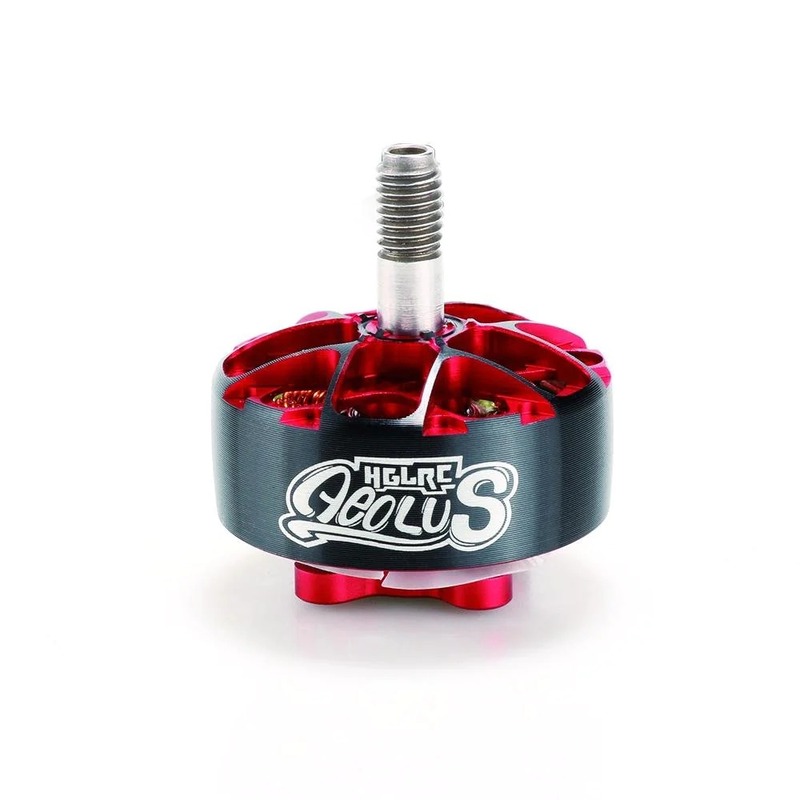

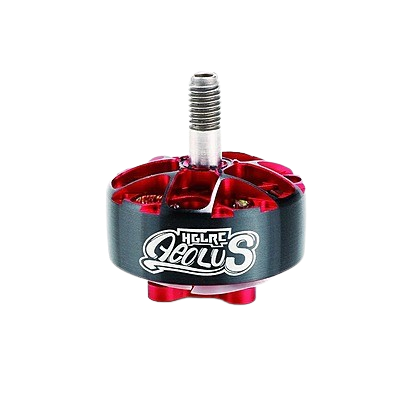

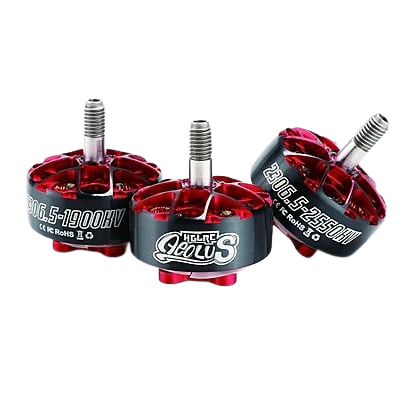

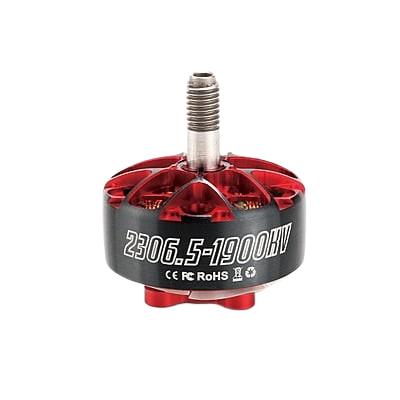

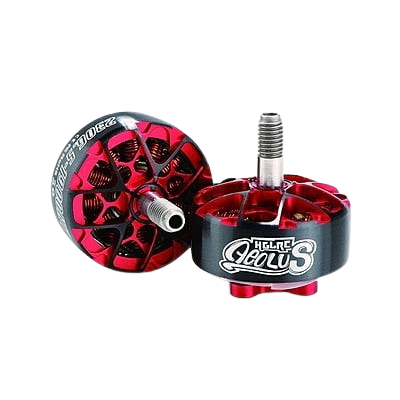

HGLRC Specter 2306.5 6S Brushless Motor
₹1,789.00 - ₹1,799.00
Unleash extreme power with the HGLRC Specter 2306.5 6S Brushless Motor. Engineered for aggressive freestyle and high-speed racing, it delivers explosive thrust and rapid response. Built with premium materials for maximum durability and heat dissipation, this motor ensures consistent, reliable performance even under intense flight conditions. Elevate your FPV experience.
KV
Choose Quantity
Product Details
Features:
- High-performance motor optimized for 6S LiPo power.
- Delivers powerful thrust for aggressive freestyle and racing.
- Advanced cooling design for efficient heat dissipation.
- Durable construction with high-quality materials.
- Precision-balanced rotor for smooth, vibration-free operation.
- Responsive and quick throttle control.
- Built to withstand demanding FPV flight conditions.
- Excellent power-to-weight ratio.
- Standard mounting for easy integration.
- Available in various KV options to suit different pilot preferences.
- Brand new rotor appearance design, anodized two-color process
- 7075 aviation aluminum material, high-strength one-piece rotor
- Customized N52H curved magnetic steel, strong magnetism, large torque
- Super high temperature resistant 260° copper wire winding, the motor runs more stably
- Imported Kawasaki silicon steel sheets, low loss stator, reduce heat generation and improve efficiency
- New optimized adjustment and calibration, maintain high torque at low speed, linear power output when the throttle changes rapidly, precise and quick response when turning
- Titanium alloy shaft, high strength and reduce the weight of the drone
Technical Details:
- Model: HGLRC Specter 2306.5
- KV: 1900KV, 2550KV
- Magnetic pole: 12N14P
- Input Voltage: 6S LiPo
- Stator: Kawasaki 1200
- Stator Diameter: 23mm
- Stator Height: 6.5mm
- Magnet Type: N52H Arc Magnets
- Bearing Type: High-quality, durable bearings (often NMB or similar)
- Shaft Diameter: 5mm (hollow)
- Wire Gauge: 20AWG
- Mounting Pattern: 16x16mm
- Weight: Approximately 32-35g (depending on KV)
- Bell Material: 7075 Aluminum
- Shaft Material: Titanium Alloy (Hollow)
- Outlet specification: 20AWG-150mm
- Motor size: 28.97x32.15mm
- Mounting hole: 16x16 (M3)
- Weight: 34.2g (including wire)
Additional Details:
- Manufacturer: HGLRC
- Brand: HGLRC
- Generic Name: FPV Motor || Brushless Motor || Drone Motor || Racing Motor || Freestyle Motor || Quadcopter Motor || RC Motor || Electric Motor || 2306.5 Motor || Performance Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Racing Drones || Freestyle FPV Drones || 5-inch FPV Drones || 6S FPV Builds || Aggressive Piloting || Competitive FPV || DIY Drone Builds || High-Speed UAVs || Custom FPV Setups || Advanced Drone Pilots
Package Details:
- Includes: 1x HGLRC Specter 2306.5 6S Brushless Motor, M5 anti-loosening nut x 1, M3x8mm screw x 5
Frequently Asked Questions:
Q1. What propeller size is recommended for the HGLRC Specter 2306.5 6S motor?
Ans. For 6S power, common propeller sizes range from 5 to 5.1 inches (e.g., 5x4.3x3, 5.1x4.5x3) to balance thrust and efficiency with the motor's KV.
Q2. Is this motor designed for durability during crashes?
Ans. Yes, the HGLRC Specter 2306.5 motor is constructed with durable 7075 aluminum for the bell and a robust titanium alloy hollow shaft, enhancing its resilience against impacts.
Q3. What are the benefits of a 6S battery setup with this motor?
Ans. A 6S setup provides higher voltage, allowing the motor to achieve more power and efficiency with lower current draw, which can result in less heat generation and more sustained performance.
