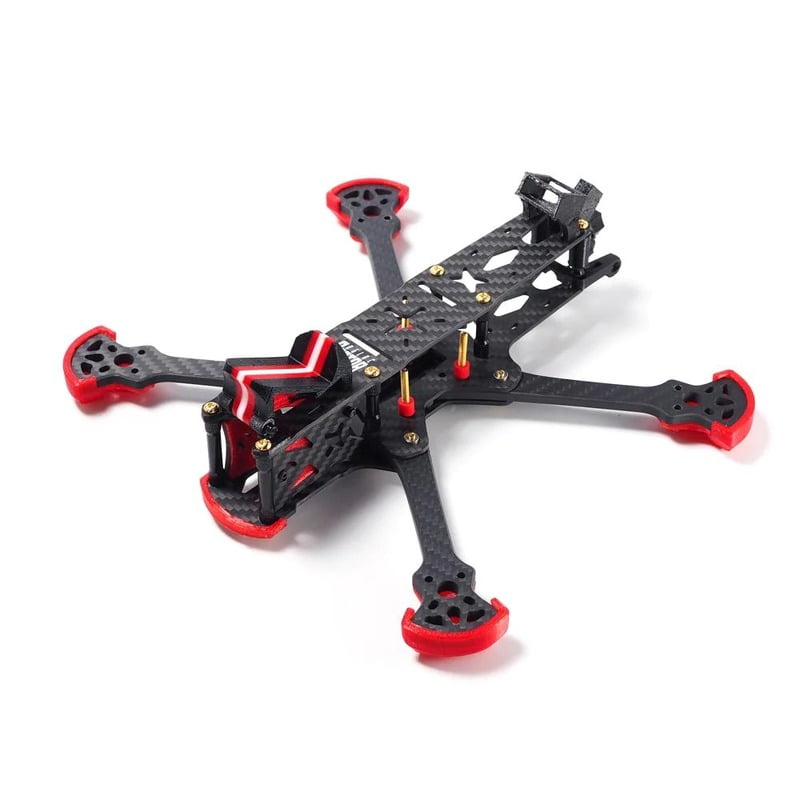

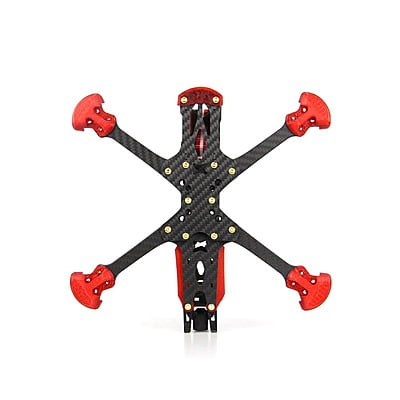

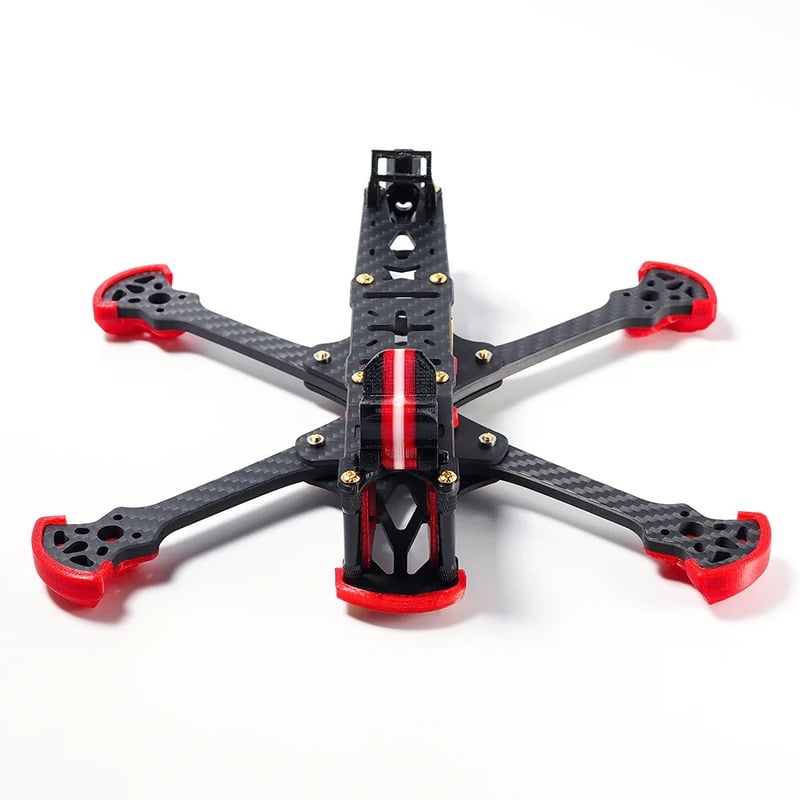

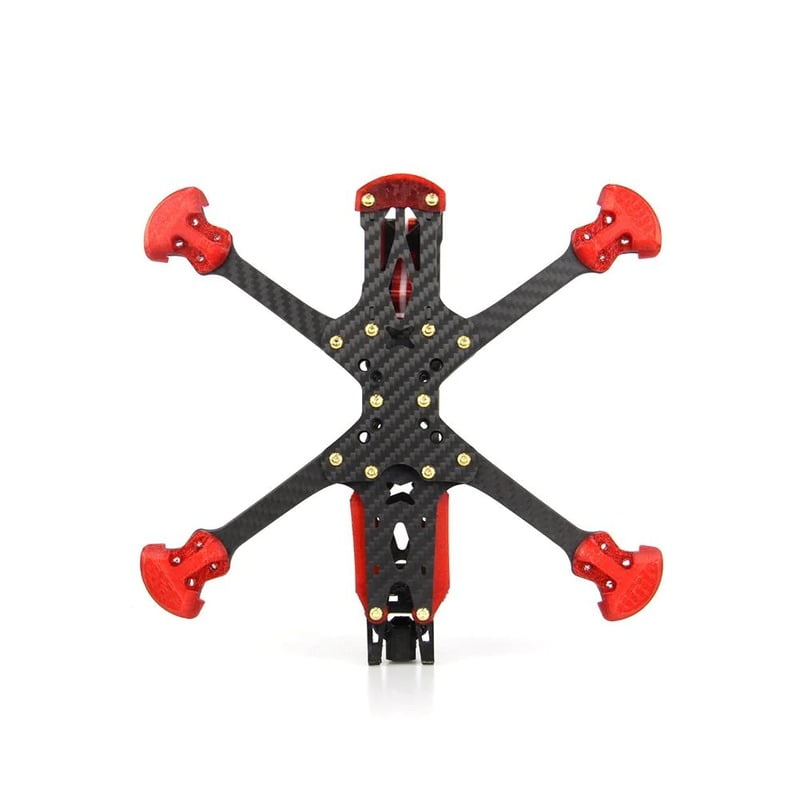

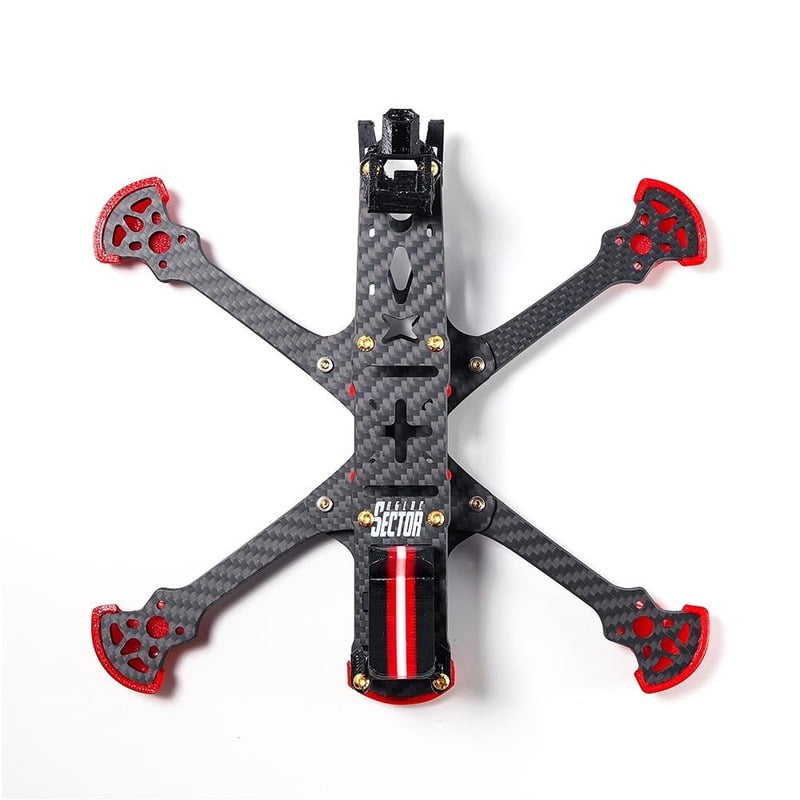

HGLRC Sector FPV V3 HD Freestyle Drone Kit

FEATURES:

• Flight control installation damping system
• Gopro Universal Mount
• Gopro fixied bracket
• Gopro Mount
• Gopro lens protector
• Motor protector Mount
• T shaped antenna Mount
• GPS Mount
• SMA antenna Mount
• DJI ANT antenna Mount
• Base plate protector Mount
• DJI Air Unit Mount
• DJI FPV camera lens protector
• Power cord fixed Mount
• Capacitor mounting slot

SPECIFICATIONS:

• Brand Name:HGLRC
• Model:Sector 7 V3 Frame Kit
• Material:3K Carbon Fiber
• Top plate thickness:2mm
• Bottom plocte thickness:2mm
• Middle plate thickness2mm
• Camera side panel thickness:2mm
• Arm Thickness:5mm
• Top and middle plate spacing:25mm
• Installation holes:20×20/30.5×30.5mm
• Support camera:19×19/22x22mm
• Type: 7″ frame
• Wheelbase: 290mm

PACKAGE INCLUDED:

• 1x 2mm top plate
• 1x 2mm bottom plate
• 1x 2mm middle plate
• 4x 5mm arm
• 2x 2mm side plate
• 2x M3*32mm black aluminum column
• 6x M3*25mm black aluminum column
• 3x M3*23mm black aluminum column
• 5x round head screw M3*25
• 4x round head screw M3*16
• 4x round head screw M3*12
• 12x round head screw M3*8
• 2x round head screw M3*6
• 1x round head screw M2*30
• 4x round head screw M2*25
• 4x round head screw M2*12
• 2x round head screw M2*6
• 2x round head screw M2*4
• 4x M2*5 black nylon column
• 6x M3 Self-tightening nut
• 10x M2 Self-tightening nut
• 4x antenna protection tube
• 12x M3*6.6 shock absorber ball
• 8x M2*6 shock absorber ball
• 2x Battery cable tie 20x200mm
• 2x Battery cable tie 20x250mm
• 1x Battery Anti-slip tape
• 1x Gopro Universal Mount
• 1x Gopro lens protector
• 1x Motor protector Mount
• 1x T shaped antenna Mount
• 1x GPS Mount
• 1x SMA antenna Mount
• 1x Base plate protector
• 1x DJI Air Unit Mount
• 1x DJI FPV camera lens protector
• 1x DJI ANT antenna Mount
• 1x Power cord fixed Mount
