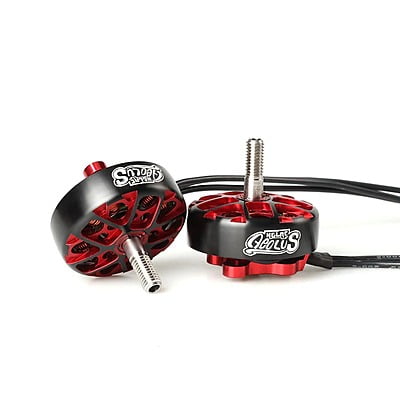

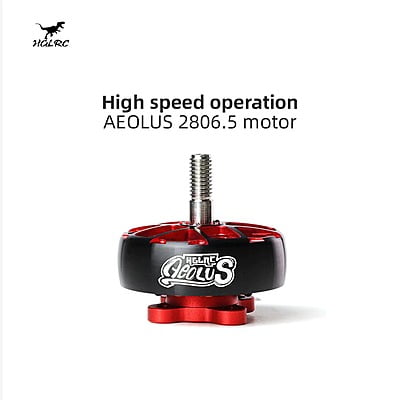

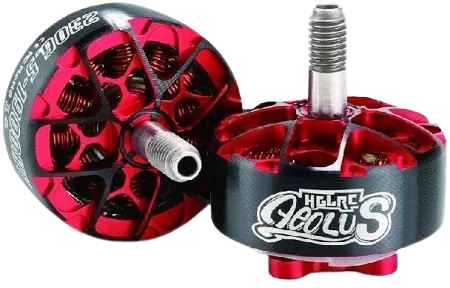

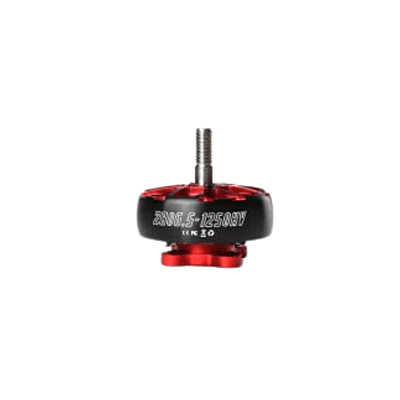

HGLRC Aeolus 2806.5 Brushless Motor
₹2,749.00
Unleash the full potential of your long-range FPV drone or cinelifter with the HGLRC Aeolus 2806.5 Brushless Motor. Engineered for maximum efficiency and powerful thrust, this motor is ideal for carrying heavy payloads and achieving extended flight times. Its robust construction ensures reliability, making it a top choice for serious FPV pilots.
KV
Product Details
Features :
- High-grade N52H arc magnets for superior torque and efficiency.
- Durable 7075 aluminum bell for enhanced strength and impact resistance.
- Thickened hollow titanium alloy shaft for high strength and lighter weight.
- High-temperature resistant copper windings ensure consistent performance.
- Premium Japanese NMB bearings provide smooth, reliable operation.
- Optimized bell and stator design for efficient power delivery.
- Excellent heat dissipation for sustained high-performance flights.
- Designed for 6-inch to 8-inch propellers, perfect for larger drones.
- Available in multiple KV options to match diverse build requirements.
- Precision balanced for reduced vibrations and increased durability.
Technical Details:
- Motor Type: Brushless Outrunner DC Motor
- Model: Aeolus 2806.5
- No. of Cells (LiPo): 1250KV: 4-6S
- Stator Diameter: 28mm
- Stator Height: 6.5mm
- Configuration: 12N14P
- Propeller Mounting: M5 Prop Shaft Nut
- Motor Dimensions (approx.): 33.7 x 32.5mm (excluding shaft)
- Shaft Diameter: 5mm (hollow)
- Weight (approx.): 47g (without silicone wire)
- Shaft Material: Titanium Alloy (Hollow)
- Max Continuous Current: 34.9A
Maximum Power :838W
Additional Detail:
- Manufacturer: HGLRC
- Brand: HGLRC
- Generic Name: Long-Range Drone Motor || Cinelifter Motor || FPV Motor || Brushless Outrunner Motor || High Torque Motor || Large Drone Motor || RC Motor || Electric Motor || 2806.5 Motor || Quadcopter Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Long-Range FPV Drones, Cinelifter Drones, X-Class Drones, Heavy Lift Drones, 6-inch Propeller Drones, 7-inch Propeller Drones, 8-inch Propeller Drones, Large Freestyle Drones, Mapping Drones, Industrial Drones
Package Details:
- Includes: 1 x HGLRC Aeolus 2806.5 Brushless Motor (with selected KV), 1 x M5 Propeller Nut, 4 x M3 Screws (for motor mounting)
Frequently Asked Questions:
Q1. What type of drone is the HGLRC Aeolus 2806.5 motor best suited for?
Ans. This motor is primarily designed for long-range FPV drones, cinelifters, and other larger quadcopters that require high thrust, efficiency, and the ability to carry heavier payloads, typically running 6-8 inch propellers.
Q2. What battery voltage should I use with the HGLRC Aeolus 2806.5 motors?
Ans. For the 1350KV variant, 4-6S LiPo batteries are recommended. For the 1900KV variant, 4S LiPo batteries are generally ideal to achieve optimal performance and efficiency.
Q3. What makes the Aeolus 2806.5 motor good for long-range flights?
Ans. The Aeolus 2806.5 is excellent for long-range flights due to its large stator size, which provides higher torque and efficiency, especially with larger propellers. This allows for lower RPMs while generating significant thrust, resulting in less power consumption and longer flight times.
