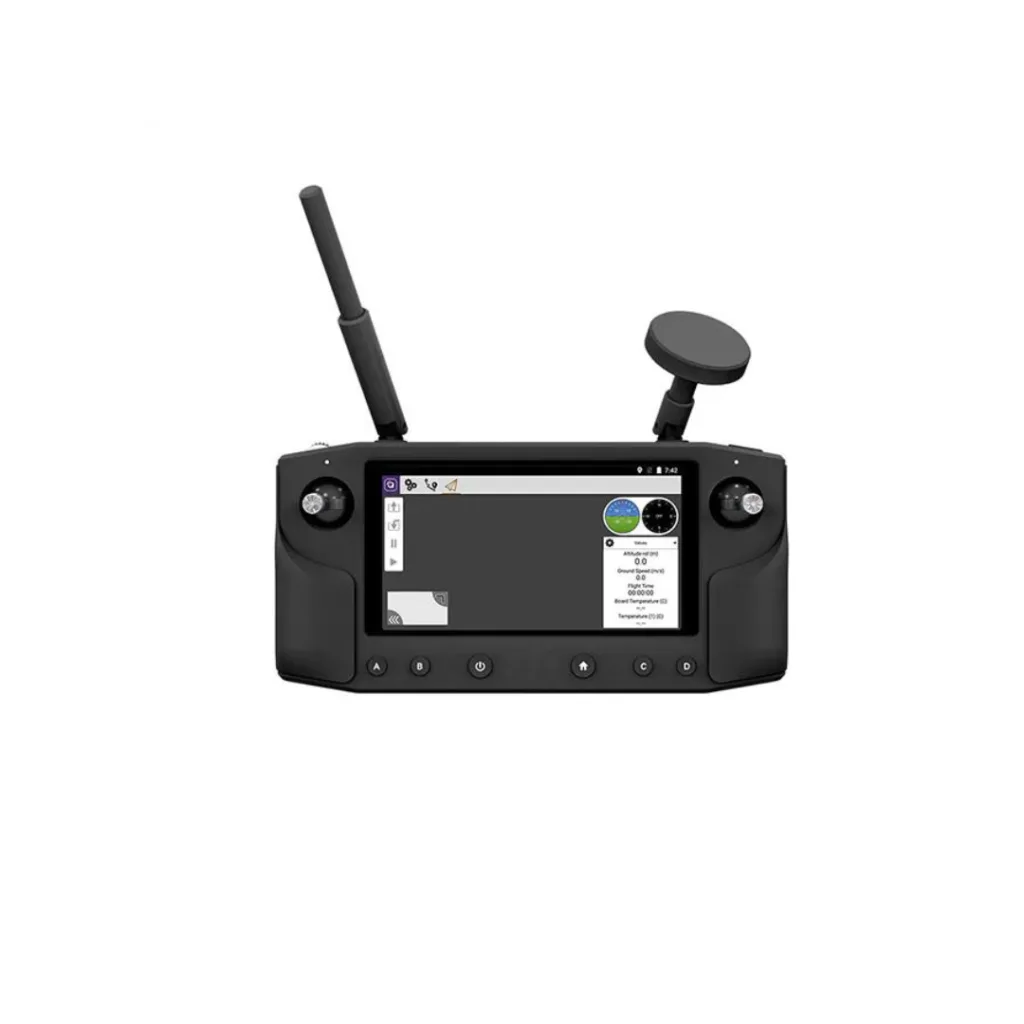

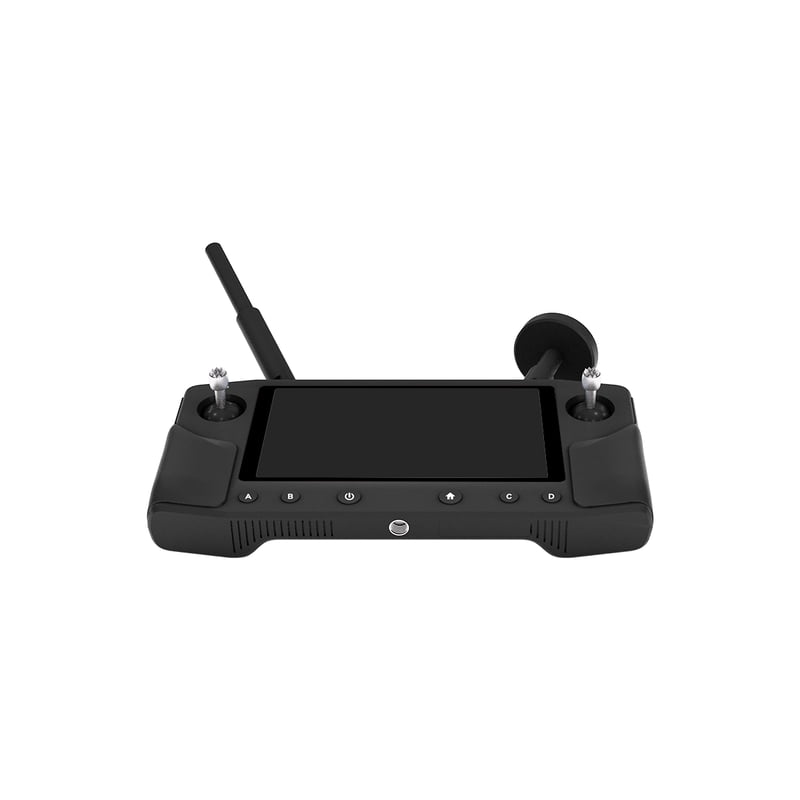

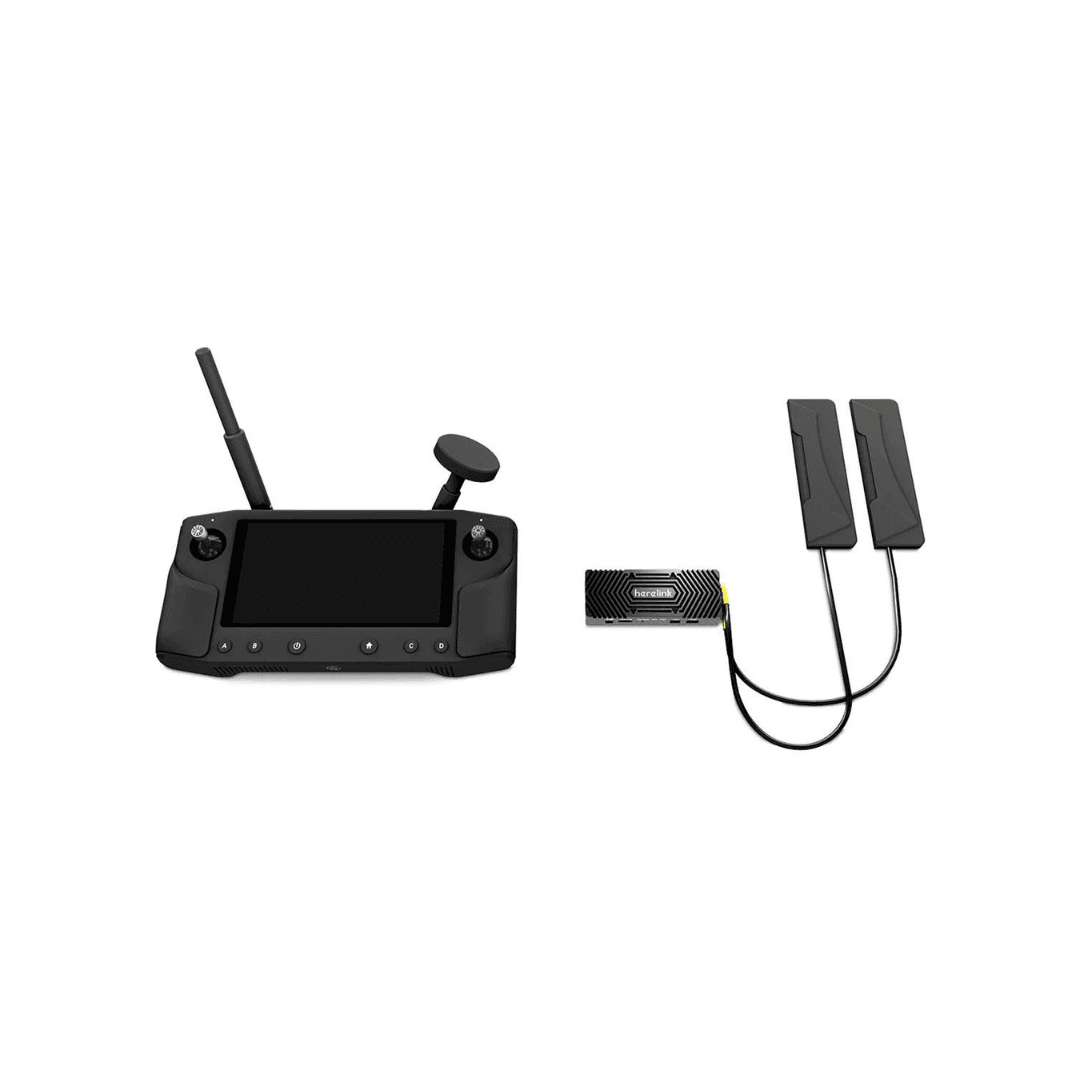

Herelink HD Video Transmission System v1.1 Combo
₹94,999.00
Out of stock
The Herelink HD Video Transmission System v1.1 Combo is an integrated remote controller, ground station, and wireless digital transmission system. It delivers long-range HD video, telemetry, and control for UAVs and robotics. Featuring a bright 1000-nit screen, dual HDMI inputs, and an 8-core SOC, it's a powerful and versatile solution for professional and enthusiast applications.
Product Details
Features:
- Integrated remote control, ground station, digital transmission.
- Long-range HD video, telemetry, control link.
- Bright 1000-nit display for clear viewing.
- Dual HDMI inputs for versatile camera options.
- Powerful 8-core SOC for custom applications.
- Compatible with Ardupilot, PX4, Cube autopilots.
- Low latency video transmission for real-time.
- Built-in speaker and dual microphones.
- Integrated Wi-Fi, Bluetooth, and GPS.
- Durable hall effect gimbals for control.
Technical Details:
- Frequency (GHz): 2.4
- Model Name: HereLink HD Digital Video Transmitter
- SoC: 4 *Cortex A53, 2.2GHz / 4 * Cortex A53, 1.4GHz
- GPU: 4 Core, Mali-T860
- Memory:Airunit LPDDR3 1GB | Controller LPDDR3 2GB
- Storage: Airunit EMMC: 4GB|Controller EMMC：8G
- Distance: Ranging FCC 20km , CE / SRRC / MIC 12km
- Resolution: 720p@30fps , 1080p@30/60fps
- Receiver Sensitivity: -99dBm@20MHz BW
- Shipping Weight: 1.712 kg
- Shipping Dimensions: 37 × 30 × 17 cm
Additional Detail:
- Manufacturer: HEX TECHNOLOGY LIMITED
- Brand: Herelink (by CubePilot)
- Generic Name: HD Digital Video Transmission System, Drone Controller with Integrated Screen, UAV Data Link, FPV System
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Professional drone pilots, aerial photographers, videographers, surveyors, industrial inspectors, search and rescue operations, DIY drone builders, robotic vehicle control, researchers, and anyone requiring reliable long-range HD video, telemetry, and control for unmanned systems.
Package Details:
- Includes: 1 x Herelink HD Video Transmission System v1.1 Combo
Frequently Asked Questions:
Q1: What is the maximum transmission range of the Herelink v1.1?
Ans: The Herelink v1.1 offers a transmission range of up to 20km (FCC) and 12km (CE/SRRC/MIC).
Q2: Can I use the Herelink v1.1 with any drone flight controller?
Ans: The Herelink v1.1 is designed to be used with Cube Autopilot, Ardupilot, or PX4, but is also compatible with other MAVLink-supported flight controllers.
Q3: Does the Herelink controller have a built-in screen?
Ans: Yes, the Herelink controller features a bright 5.46-inch 1080P capacitive touch screen with 1000 nits brightness.
