HAPPYMODEL ES24TX Slim 2.4GHz ELRS TX Module

This Slim TX module is designed by Happymodel and based on the open source- ExpressLRS which is a very popular low latency and high re-flashed rate RF module for RC Airplane and FPV Racing drone. Its main hardware architecture is ESP32, ESP8285 and SX1280 RF chip. The ES24TX Slim module is a complete solution which is already pre-load the Expresslrs firmware and it’s plug and play for Frsky X-lite/X-lite pro/X9 Lite , TBS Tango2.

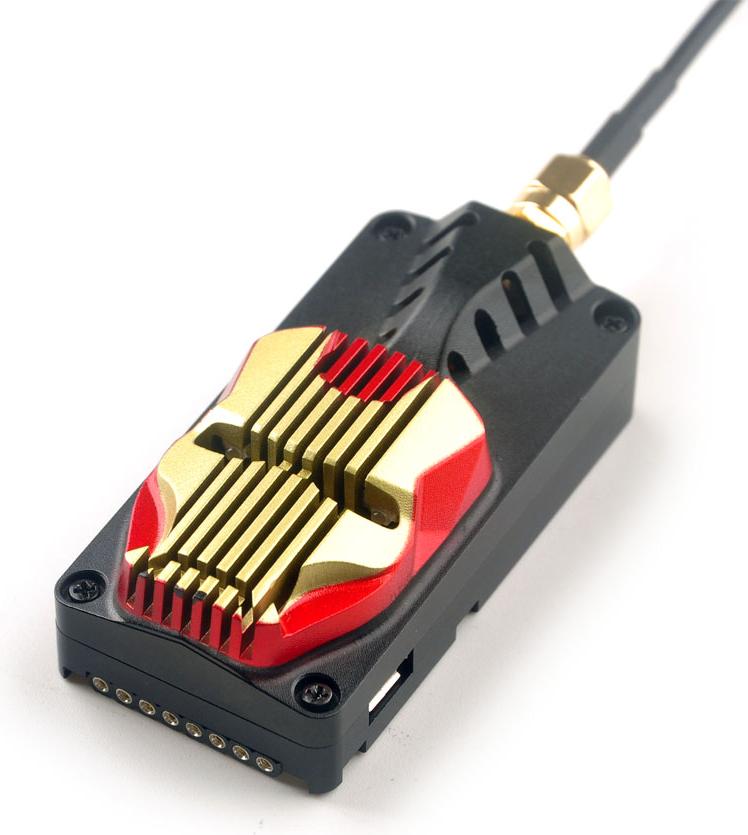

This Slim module comes with an aluminum alloy shell and is equipped with a cooling fan that automatically works when the module is working at 250mw.

Features:

• Open source ExpressLRS
• Long range, low latency and High re-flashed Rates
• Supports up to 250mw RF power
• Telemetry data transmission supported
• Cooling fan provide
• CNC aluminum protective shell



Specifications:

• Regulatory Domain: ISM2400

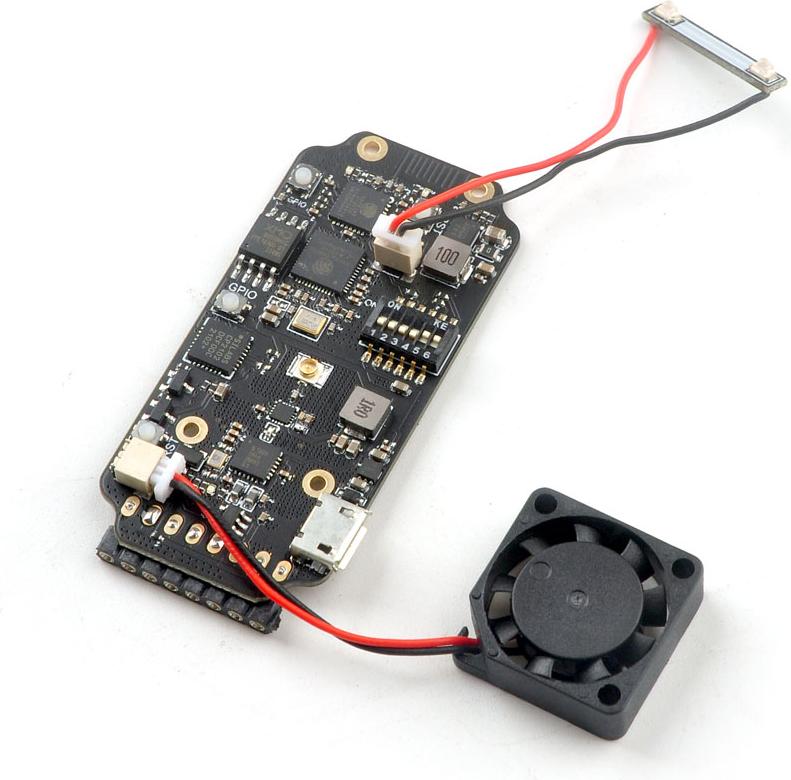

• MCU:ESP32(main),ESP8285(aux,as espbackpack)
• RF chip:SX1280IMLTRT
• Lite Frsky 8pin socket
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 10dBm~24dBm
• Power supply voltage: 5v~10v
• Weight: 48gram(with antenna and case）
• Dimension: 60mm*30mm*20mm(With CNC case)
• Antenna gain:1.87dBi

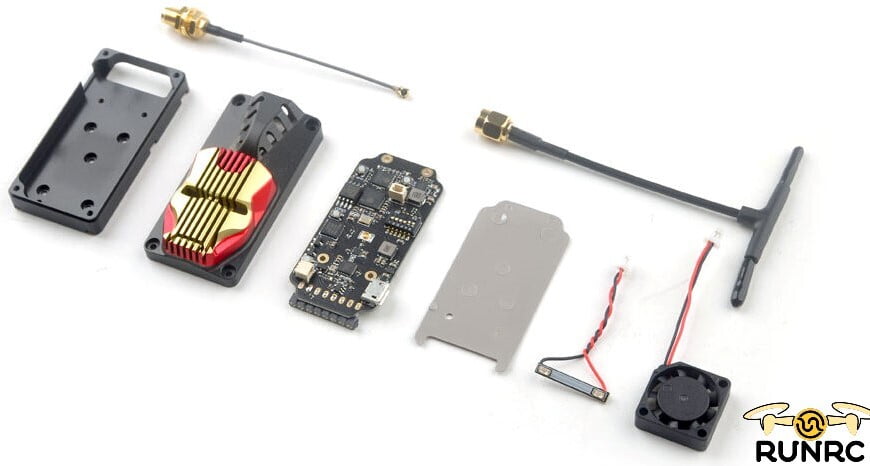

Package include:
ES24TX Slim TX module *1
24TX80 antenna *1
CNC Aluminum alloy case *1
Cooling Fan *1
LED board *1
Antenna adapter cable *1
