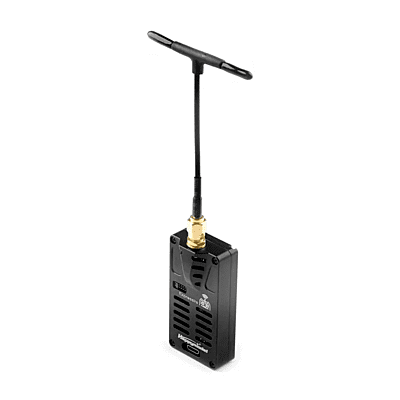

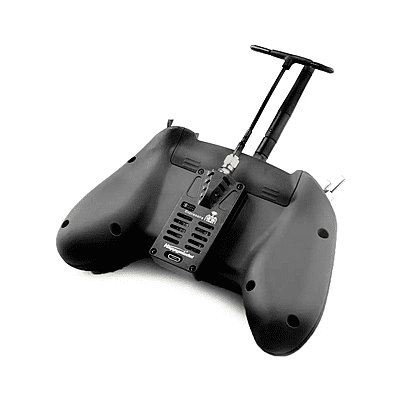

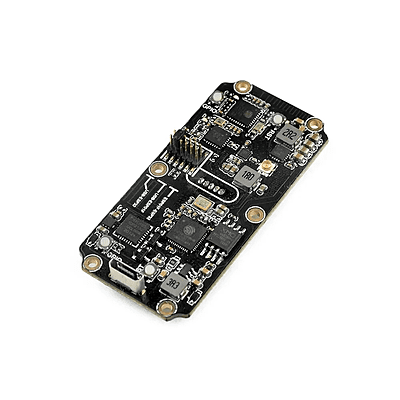

HAPPYMODEL ES24TX Lite 2.4GHz ELRS TX Module

Specifications:

• MCU:ESP32(main),ESP8285 (aux, as espbackpack)
• Dimension: 57x27x12mm (Without CNC Case)
• Frequency Range: 2400 MHz to 2500 MHz
• Maximum receive refresh rate: 500Hz
• Minimum receiver refresh rate: 25Hz
• RF Output Power: 10dBm~24dBm
• Weight: 7.5g (without antenna and case)
• Power supply voltage: 3v~4.5v
• Regulatory Domain: ISM2400
• RF chip:SX1280IMLTRT
• JR standard 5pin socket
• Antenna gain:1.87dBi

Firmware

Since the official ExpressLRS perfect program has not been released yet, the pre-installed program is a beta version. You can download the out of factory firmware from the website. There are two kinds out of factory firmware of ES24TX, one is to match Happymodel PP RX receiver (program version identification code 6cb8152d) and the other is to match Happymodel EP1 and EP2 RX receivers (program version identification code aec8ad82), The default factory firmware is aec8ad82 which matching EP1 and EP2 RX

You can download the firmware from the website, and then update the firmware via connect the Wifi hot spot of the ES24TX, visit “10.0.0.1” by browser (password:expresslrs)

Download Firmware

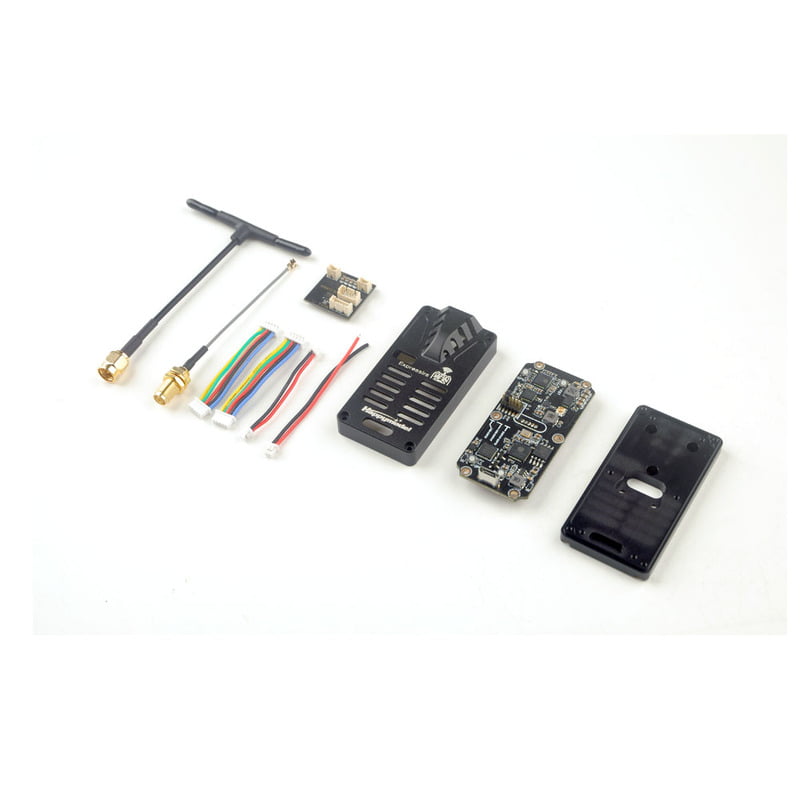

Package Includes:

• 1x Happymodel EX24TX-Lite module

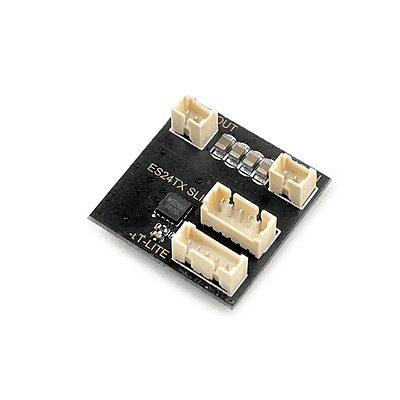

• 1x T-Lite EXTCONV power module
• 1x CNC Aluminum alloy case
• 1x Antenna adapter cable
• 1x 24TX80 antenna
• 1x Connection wire
