HAPPYMODEL EP1 2.4GHz ExpressLRS Nano Series Receiver
₹1,599.00
Out of stock
The HappyModel EP1 2.4GHz ExpressLRS Nano Series Receiver is an ultra-compact, lightweight receiver designed for FPV racing and long-range drones. Utilizing the open-source ExpressLRS protocol, it offers incredibly low latency and high refresh rates, ensuring precise and reliable control. Its tiny size makes it perfect for micro drones and whoops where space is critical.
Product Details
Features:
- Ultra-lightweight and compact nano size receiver.
- Open-source ExpressLRS protocol for high performance.
- Low latency and high refresh rate control.
- Ideal for FPV racing and long-range applications.
- Supports convenient Wi-Fi firmware updates.
- Omnidirectional antenna for reliable signal reception.
- ESP8285 MCU for efficient processing.
- SX1280IMLTRT RF module for strong signal.
- Easy binding procedure for quick setup.
- Perfect for tiny whoops and micro drones.
Technical Details:
- Type: ISM (Industrial, Scientific, Medical)
- MCU: ESP8285
- RF Chip: SX1280IMLTRT

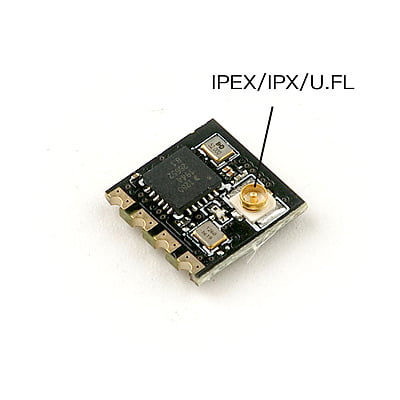

- Antenna: Omnidirectional antenna (IPEX connector)
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum Receive Refresh Rate: 500Hz
- Minimum Receive Refresh Rate: 25Hz
- Working Voltage: 5V
- Weight: 0.42g (without antenna)
- Dimension: 10mm x 10mm x 3mm
- Peak Gain: 2.23dB
- Firmware Upload: Wi-Fi or Betaflight Pass-through
Additional Detail:
- Manufacturer: Happymodel
- Brand: HappyModel
- Generic Names: RC Receiver, FPV Receiver, ExpressLRS Receiver, Nano Receiver, Drone Receiver, Radio Receiver
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Racing Drones, Long-Range FPV Drones, Tiny Whoops, Micro Drones, RC Airplanes, Custom Drone Builds
Package Details:

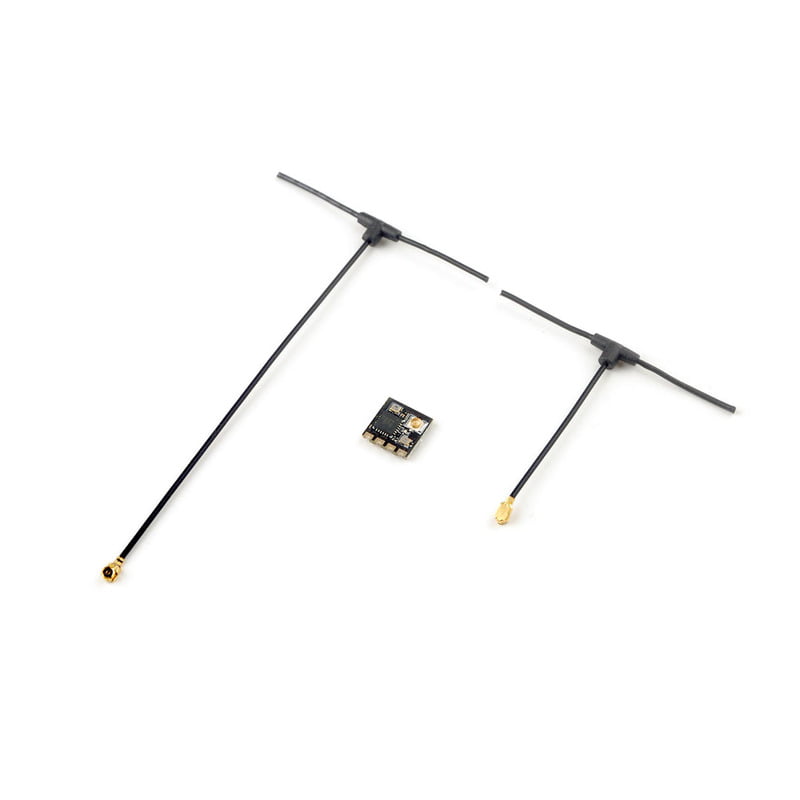

- include: 1 x HappyModel EP1 2.4GHz ExpressLRS Nano Series Receiver
Frequently Asked Questions:
Q1. How do I bind the HappyModel EP1 receiver to my transmitter?
Ans: To bind, power on the receiver, wait for the LED to turn off, then power off immediately. Repeat this cycle twice. On the third power-up, the LED will double-flash, indicating binding mode. Then, initiate binding from your ExpressLRS compatible transmitter.
Q2. Can I update the firmware on the HappyModel EP1 wirelessly?
Ans: Yes, the HappyModel EP1 receiver supports convenient firmware updates via Wi-Fi. When the receiver doesn't detect a signal, it will enter Wi-Fi hotspot mode, allowing you to connect and update the firmware through a web browser (usually by visiting 10.0.0.1).
Q3. What kind of drones is the HappyModel EP1 best suited for?
Ans: Due to its ultra-compact size, low latency, and high refresh rate, the HappyModel EP1 is ideally suited for FPV racing drones, long-range FPV drones, tiny whoops, and other micro drones where weight and size are critical factors for performance.
