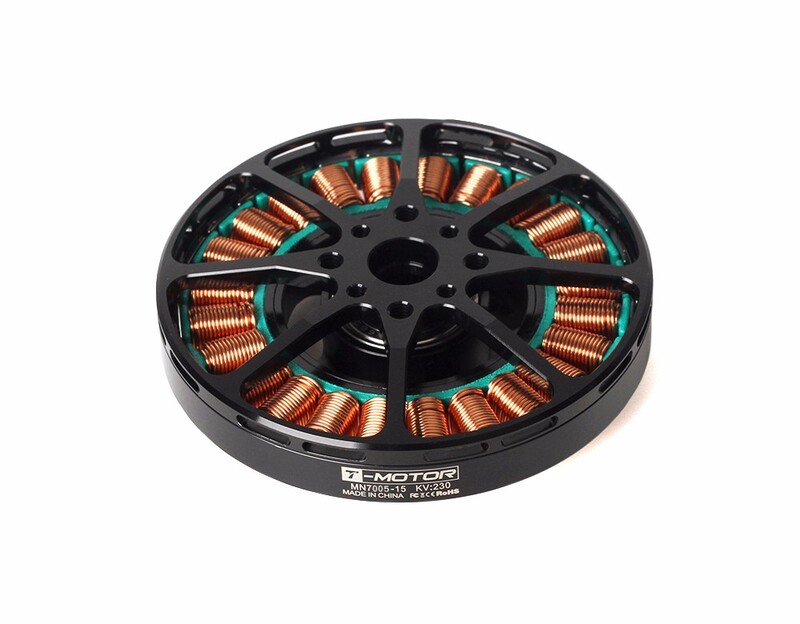

T-Motors MN7005-KV230
- Imported German 7075 aviation aluminum
- Ultra Lightweight 188g only

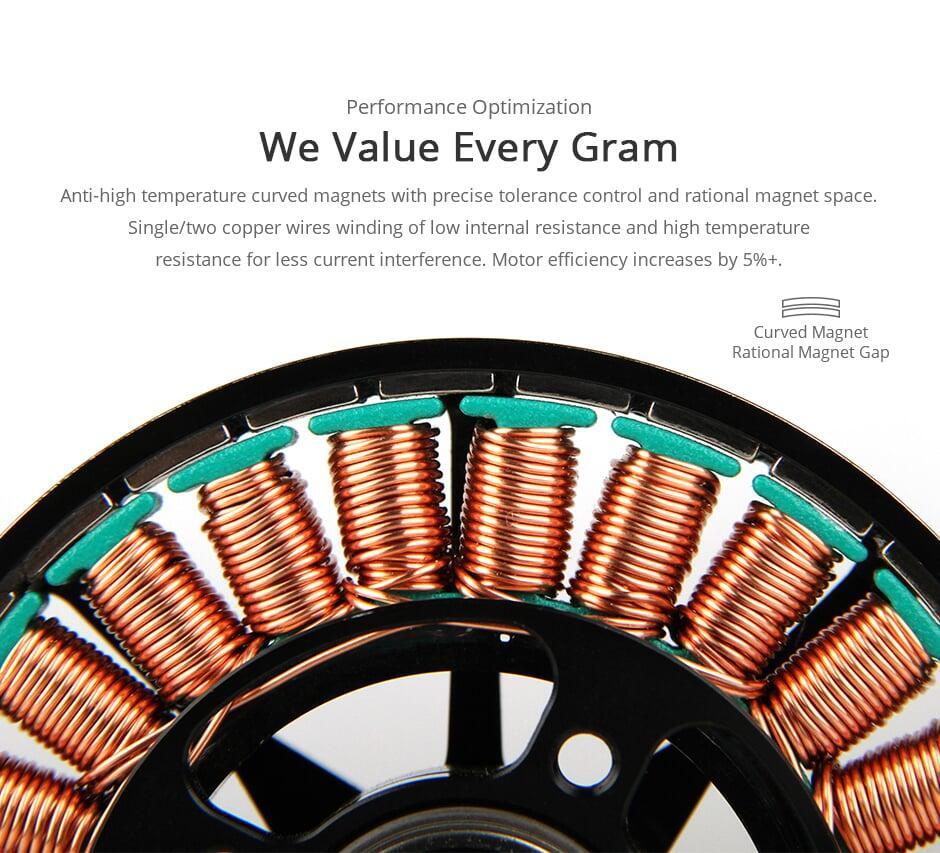

- Anti-high temperature curved magnet with precise
- Motor performance increase by 5%
- ATA01123 prop adapter for P22inch prop
- MN7005 is for thrust requirement

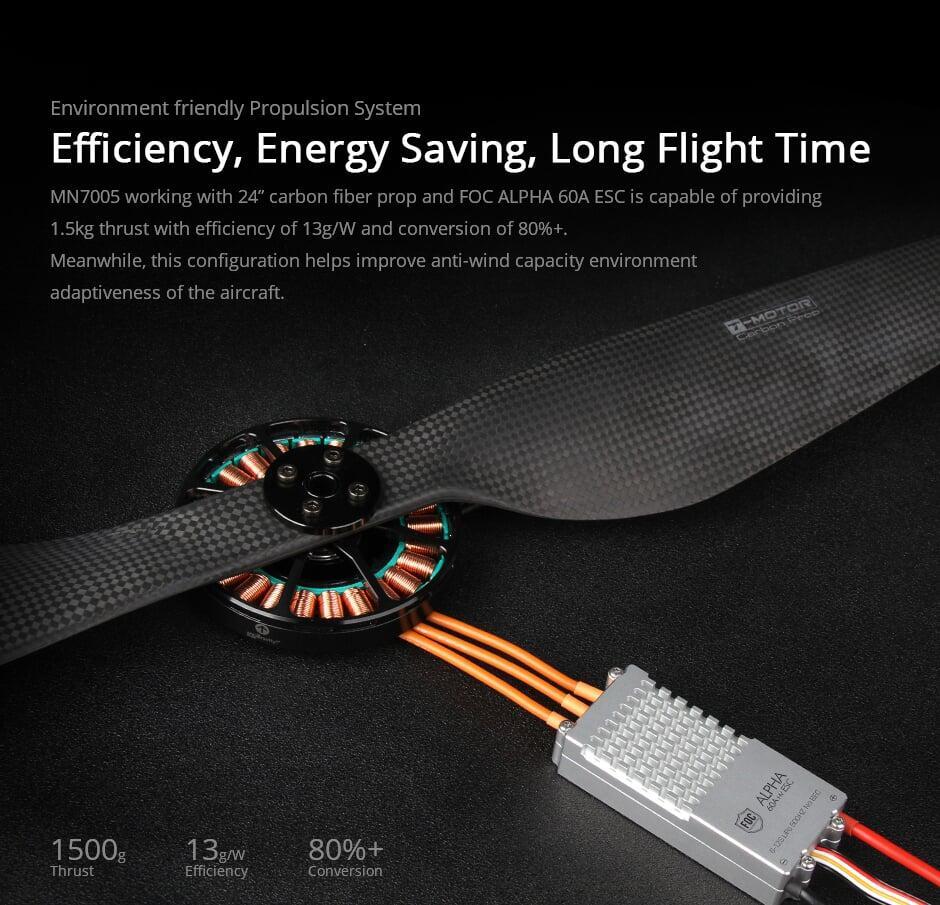

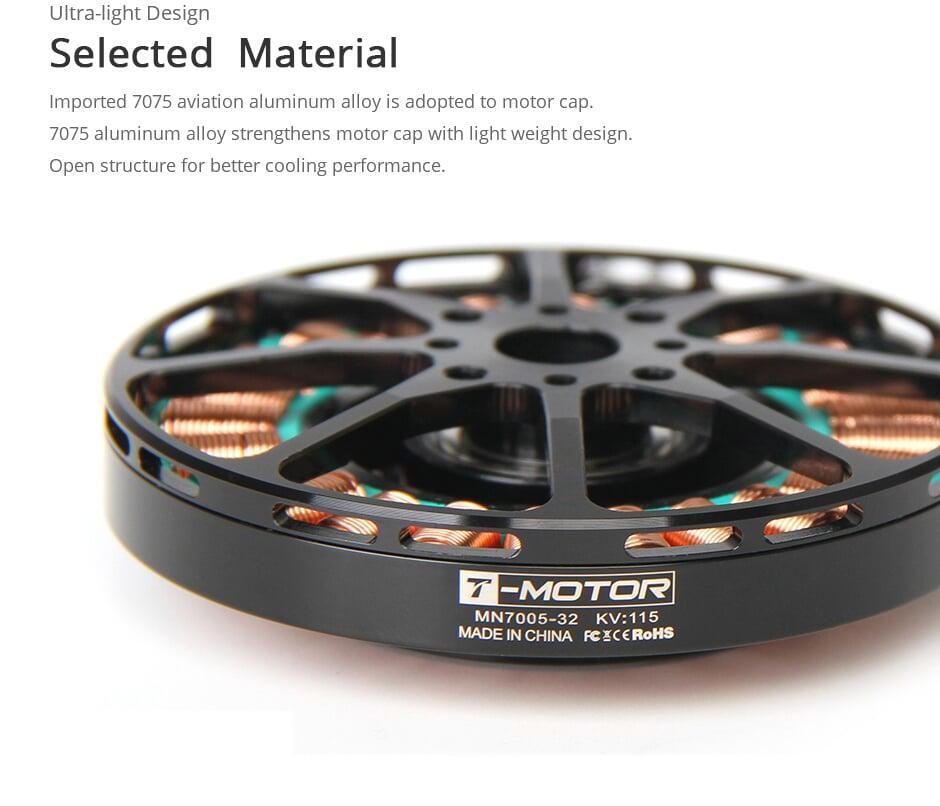

Ultra light weight Antigravity 7005 T-Motors are available with anti-high temperature curved magnet which increases motor performance by 5%. Energy saving Antigravity type Tiger motors having 1.5kg thrust with efficiency of 13g/W. This type of T motors are made with specially imported German 7075 aviation aluminum alloy, strengthens motor cap with light weight design. Contains open structure for better cooling performance.
Specification:-

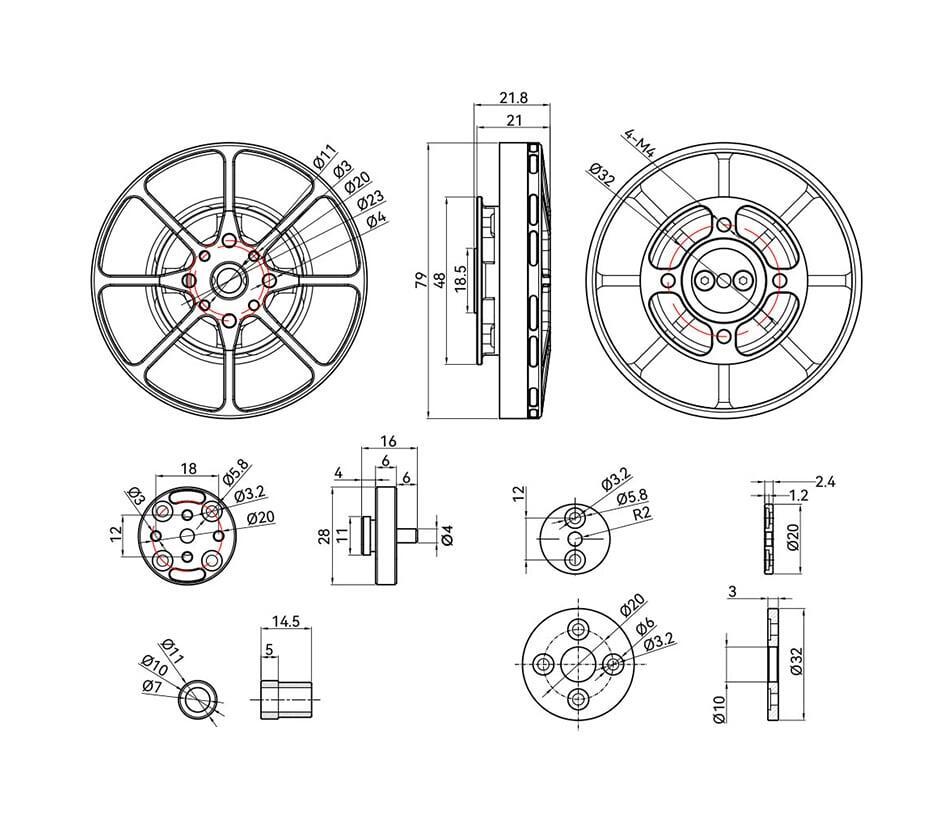

Motor Size | Φ79*21mm |
Stator | Imported silicon steel sheet; Anti-rust treatment; 180℃high temperature-resisting coatings |
Configuration | 24N28P |

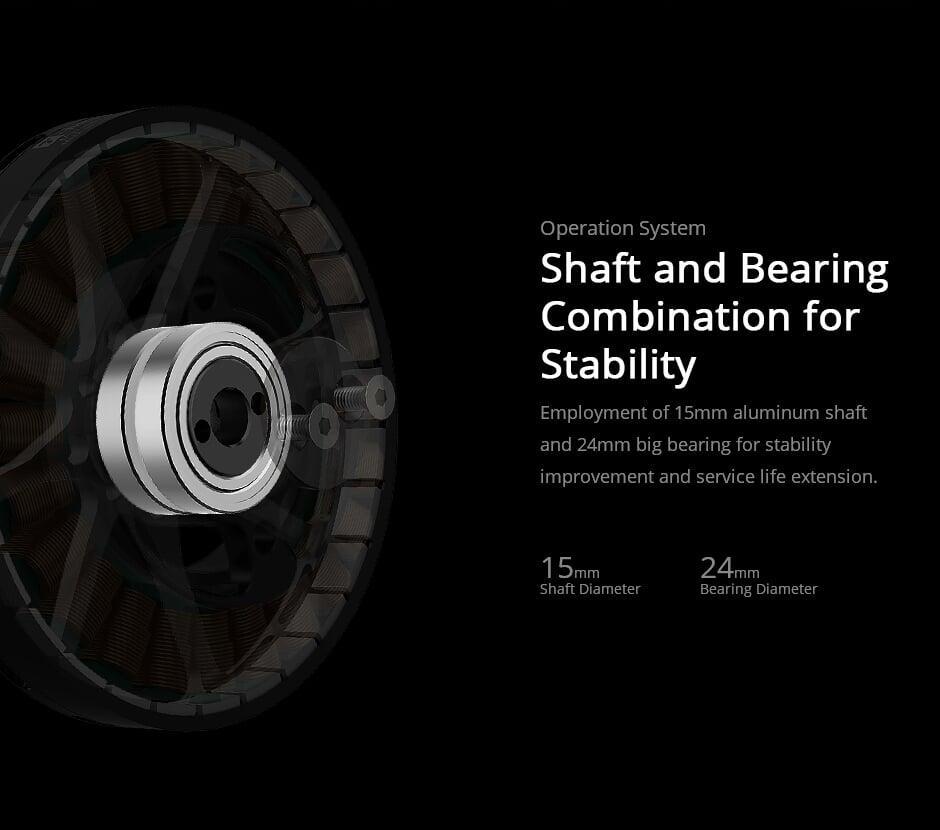

Shaft Diameter | IN：15mm |
Bearing | Imported 6802ZZ |
Magnet Level | 150℃high temperature resistance: Level E |
Lead Cable | 60mm |
Copper Wire | 180℃high temperature resistance: Level H |
Coil Insulation Test | 500V |
Centrifugal Cooling Design | YES |
Rotor Dynamic Balance Standard | ≤15mg |
Motor Dynamic Balance Standard | ≤10mg |
Packing Size | 144*114.5*35mm |
KV | 230 |
Idle Current(22V) | 0.9A |
Peak Current(180s) | 28A |
Max. Power(180s) | 700W |
Internal Resistance | 71mΩ |
Rated Voltage(Lipo) | 6S |
Motor Weight (Incl. Cable) | 188g |
Package Weight | 320g |
