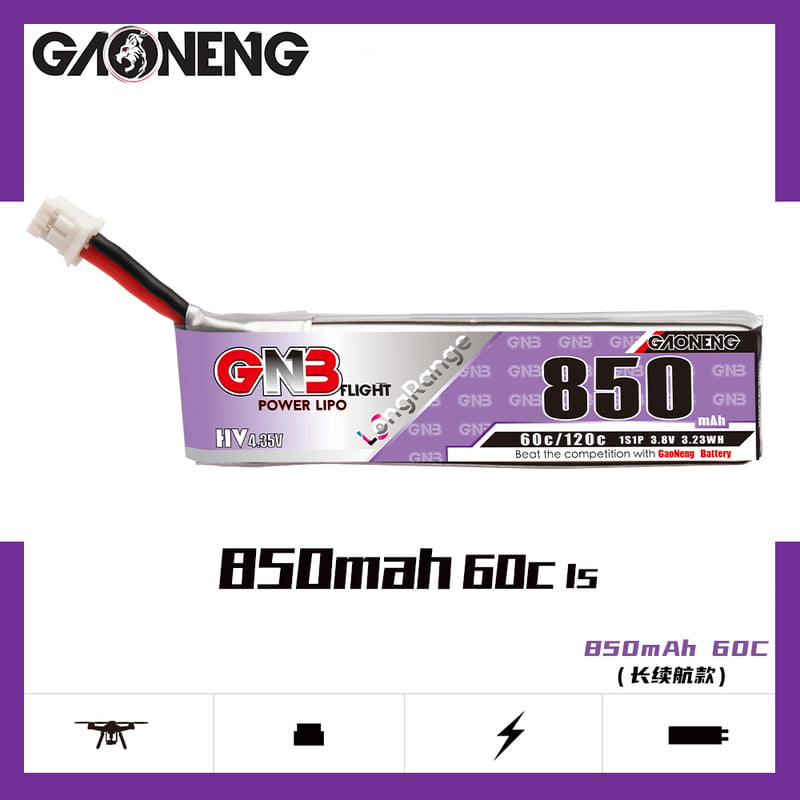

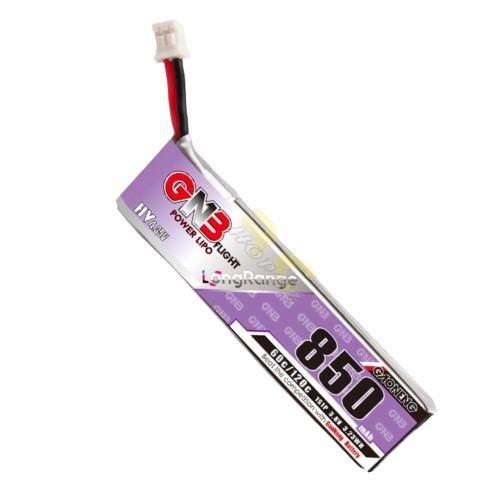

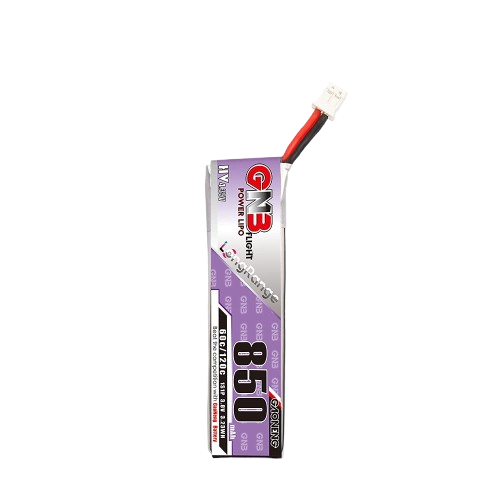

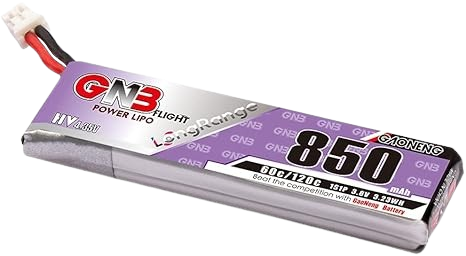

GNB 850mAh 1S1P 3.8V HV 60C PH2.0 Long Type Lipo Battery
- Model No-GNB8501S60WHV
- Capacity-850mAh
- Configuration-1S1P
Suitable Application
It is compatible with 75mm FPV Drone, Emax Tinyhawk S, NanoHawk, EZ Pilot Pro, Kingkong LDARC, BetaFPV Beta75X, Happymodel Mobula6 Mobula7 Snapper, GEPRC Cinewhoop, Yinywhoop Tiny7, NewBeeDrone Cockroach, HGLRC Petrel 75Whoop, Crazypony Moblite7, Indoor FPV Kit, Spare RC Parts, RC Toy, Airplane, Racing FPV, Brushless Drones, Mini Micro Whoops, PowerWhoop, Quads, Quadcopter, Helicopter etc.
Model No. | GNB8501S60WHV |
Capacity | 850mAh |
Configuration | 1S1P |
Nominal Voltage | 3.8V |
Dimension | 7.8*18*66mm Appr. |
Weight | 16.5g (+/-0.5g) |
Max cont. discharge (C-rate/current) | 60C |
Max Burst (C-rate/current) | 120C |
Charge Connector | PH2.0 |
Discharge Connector | PH2.0 |
Working Temperature Charge | 0~45°C |
Working Temperature Discharge | (-20~60°C) |
Working Humility | 65%RH +/-20% |
Storage Temperature | (-20~35°C) |
Storage Humility | 65%RH +/-20% |
Life Cycle | 300+ times |
