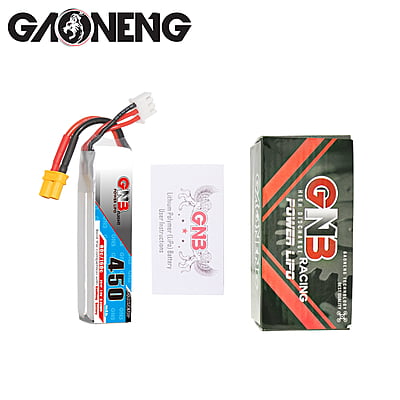

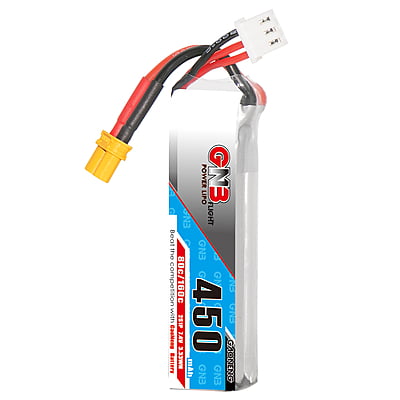

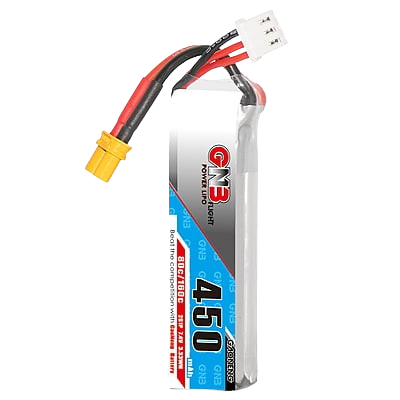

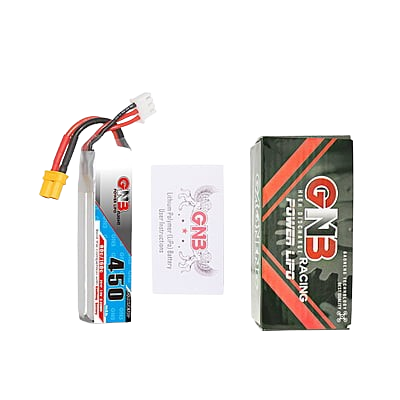

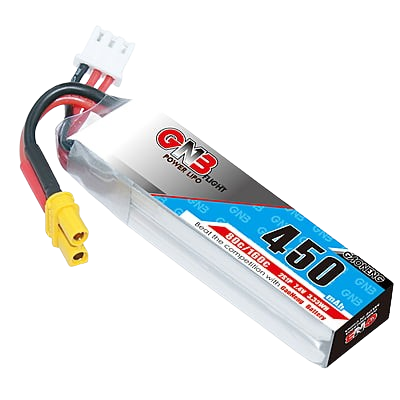

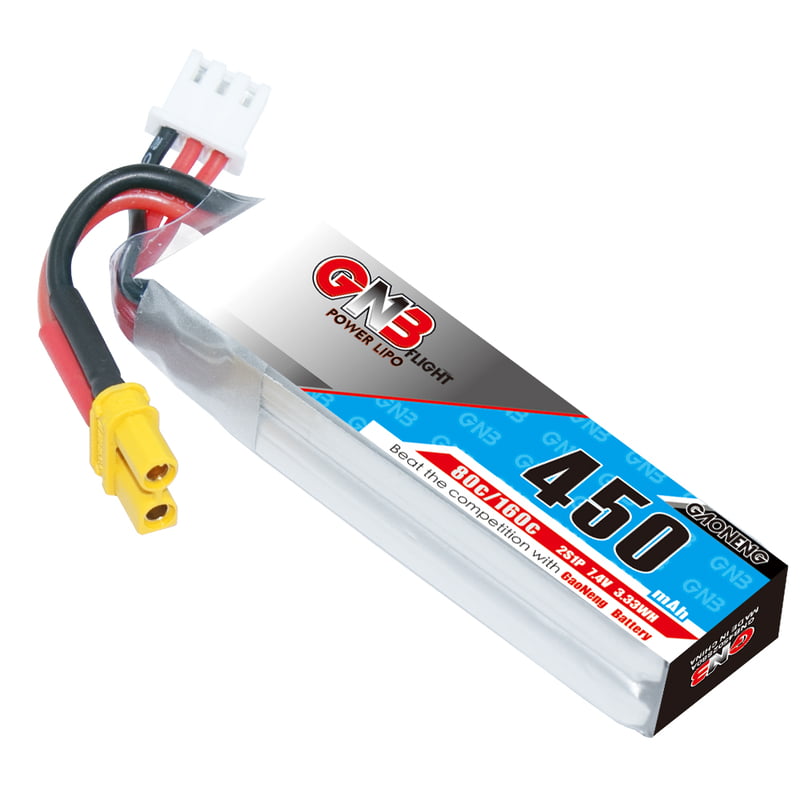

GNB 450mAh 2S1P 7.4V 80C Long Type Lipo Battery
- Model No- GNB4502S80A
- Capacity-450mAh
- Configuration-2S1P
Suitable Application
It is compatible with 60-130mm Brushless FPV Drone, Emax Tinyhawk II, GEPRC TinyGo, iFlight CineBee, TurboBee, Cine Whoop, Happymodel Crux3, BetaFPV Beta75X Beta75 Pro, E-flite UMX J-3 Cub BL, UMX Carbon Cub SS, UMX Pitts S-1S, UMX P3 Revolution, RC Toy, Small Heli, Airplane, Quads, Quadcopter, Helicopter, Multiroter, Mini Micro FPV, Freestyle Drone, RC Car, RC Boat, Aerial Model, DIY FPV etc.
Model No. | GNB4502S80A |
Capacity | 450mAh |
Configuration | 2S1P |
Nominal Voltage | 7.4V |

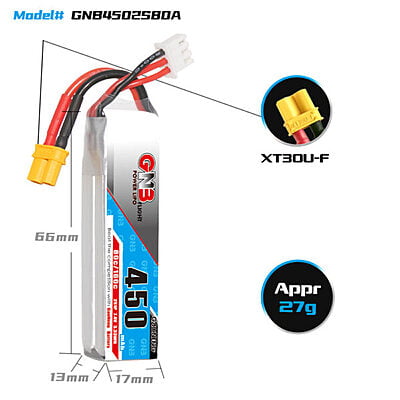

Dimension | 13*17*66mm Appr. |
Weight | 27g (+/-1g) |
Max cont. discharge (C-rate/current) | 80C |
Max Burst (C-rate/current) | 160C |
Charge Connector | XH-JST 3P |
Discharge Connector | XT30, JST or Molex 51005 2P |
Working Temperature Charge | 0~45°C |
Working Temperature Discharge | (-20~60°C) |
Working Humility | 65%RH +/-20% |
Storage Temperature | (-20~35°C) |
Storage Humility | 65%RH +/-20% |
Life Cycle | 300+ times |
