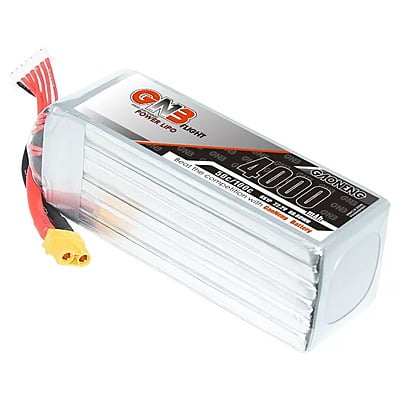

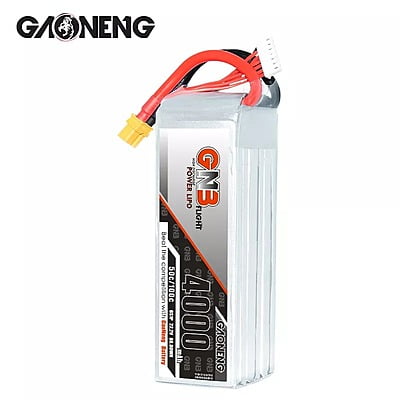

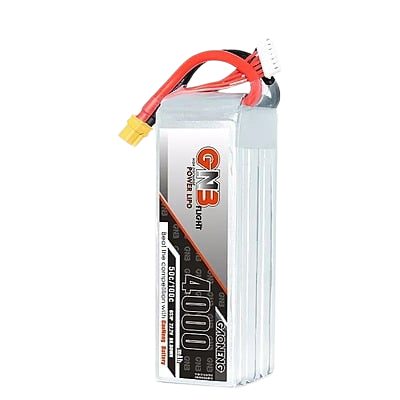

GNB 4000mAh 6S1P 22.2V 50C Lipo Battery High Discharge FPV UAV Power Pack
The GNB 4000mAh 6S1P 22.2V 50C Lipo Battery is a high-performance lithium polymer power pack engineered by Gaoneng (GNB) for long-range FPV quadcopters, commercial mapping UAVs, and medium-payload multirotors. It solves voltage sag, sudden power drop-offs, and short flight times by delivering a continuous 50C discharge rate with minimal internal resistance. Designed for 7-inch to 10-inch FPV drones, fixed-wing RC planes, and custom robotic platforms operating on 22.2V systems, it provides a balanced ratio of high capacity to optimal pack weight. Drone pilots and commercial operators choose this GNB pack for its reliable energy density, low heat generation under sustained loads, and steady voltage maintenance during long-distance missions.
The GNB 4000mAh 6S1P 22.2V 50C Lipo Battery is a high-capacity power pack designed for long-range FPV pilots and UAV operators who require dependable, continuous flight times. It exists to solve premature voltage drops and thermal buildup during sustained high-throttle cruises. Compatible with 6S-rated electronic speed controllers (ESCs), standard XT90/XT60 power harnesses, and 22.2V power distribution boards, it ensures consistent energy delivery throughout the full discharge curve. Manufactured with high-density cell stacking technology, this battery helps operators in aerial videography, surveying, and custom drone projects maximize operational airtime without compromising platform stability.
Key Features :
High continuous 50C discharge rating supplies reliable energy for long-range flights and heavy-payload cruises.
Optimized capacity-to-weight ratio helps keep overall UAV takeoff mass within safe efficiency limits.
Built with low internal resistance cells to reduce heat accumulation and prolong overall cycle life.
Factory-fitted with thick silicon lead wires and standard balance plugs for efficient power transfer and safety.
Use Cases :
The GNB 4000mAh 6S1P 22.2V 50C Lipo Battery is widely used in long-range FPV quadcopters by pilots who need extra capacity to cover extended distances safely. In commercial UAV operations, mapping and surveying crews rely on its steady voltage supply to ensure uniform power during automated grid missions. Drone builders and robotics developers across India integrate this 6S pack into custom 7-inch to 10-inch multirotor platforms and vertical takeoff and landing (VTOL) fixed-wing aircraft. Additionally, intermediate to advanced RC airplane enthusiasts use this battery to power high-thrust electric ducted fan (EDF) jets and large scale models.
Technical Specifications :
| Specification | Details |
| Product Name | GNB 4000mAh 6S1P 22.2V 50C Lipo Battery |
| Brand | Gaoneng (GNB) |
| Nominal Capacity | 4000 mAh |
| Voltage / Configuration | 22.2V / 6S1P (6 Cells in Series) |
| Continuous Discharge Rate | 50C |
| Max Burst Discharge Rate | 100C |
| Total Energy | 88.8 Wh |
| Dimensions (L × W × H) | Approx. 138 mm × 44 mm × 48 mm (±3 mm) |
| Net Weight | Approx. 545 g (±15 g) |
| Discharge Connector | XT90 / XT60 (Depending on Batch) |
| Balance Connector | JST-XHR |
| Wire Gauge | 10AWG / 12AWG High-Flex Silicone Wire |
| Recommended Charge Rate | 1C to 3C |
| Package Contents | 1 × GNB 4000mAh 6S1P 22.2V 50C Lipo Battery |
5. Frequently Asked Questions :
Q1) What is this product used for?
Ans: The GNB 4000mAh 6S1P 22.2V 50C Lipo Battery is used to power long-range FPV quadcopters, commercial survey drones, RC airplanes, and 22.2V multirotor systems that require steady high-capacity power.
Q2) Which drones, systems, or devices is it compatible with?
Ans: It is compatible with 7-inch, 8-inch, 9-inch, and 10-inch long-range FPV frames, 6S ESC power systems, fixed-wing UAVs, and custom robotics setups operating on 6S (22.2V) power.
Q3) Is this product suitable for beginners or professionals?
Ans: It is suitable for intermediate to professional drone pilots and UAV developers. Users should have a basic understanding of 6S LiPo battery handling, safe balance charging, and storage care.
Q4) How does this product improve performance or solve problems?
Ans: It solves premature flight endings caused by low-capacity packs and prevents voltage sag under moderate throttle demands. Its high energy density provides longer airtime while maintaining cell balance.
Q5) What should buyers check before purchasing this product?
Ans: Buyers should check their drone frame's battery tray dimensions, ensure their power connector matches (XT90 or XT60), and verify that their ESCs and motors support 6S (22.2V) input.
