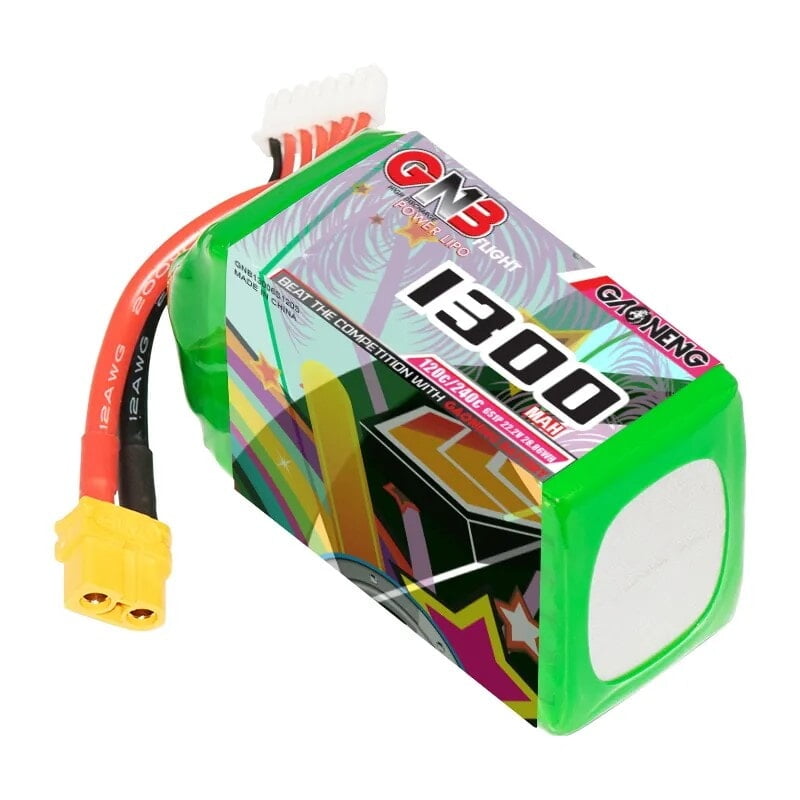

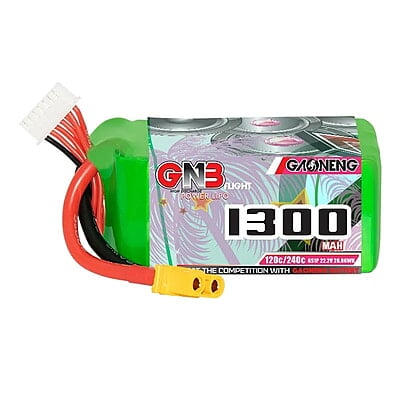

GNB 1300mAh 6S1P 22.2V 120C Lipo Battery
Suitable Application
This Graphene LiPo is compatible with 180-330mm Brushless FPV, 5 to 6 inch Drone, GEPRC MARK5, MARK4, Crocodile5 Baby, DJI FPV, Nazgul5, TITAN XL5, Chimera5, Evoque F5D/F5X, Nazgul Evoque F6X/F6D, Racing Pilot FPV, Airplane, Quads, QuadCopter, HeliCopter, MultiCopter Freestyle Drone, UAV, Aerial Model, DIY FPV etc.
Model No. | GNB13006S130A |
Capacity | 1300mAh |
Configuration | 6S1P |
Nominal Voltage | 22.2V |
Dimension | 42*35*90mm Appr. |
Weight | 234g (+/-6g) |
Max cont. discharge (C-rate/current) | 130C |
Max Burst(3Sec) (C-rate/current) | 260C |
Charge Connector | JST-XH 7P |
Discharge Connector | XT60U or other |
Working Temperature Charge | 0~45°C |
Working Temperature Discharge | (-20~60°C) |
Working Humility | 65%RH +/-20% |
Storage Temperature | (-20~35°C) |
Storage Humility | 65%RH +/-20% |
Life Cycle | 300+ times |
