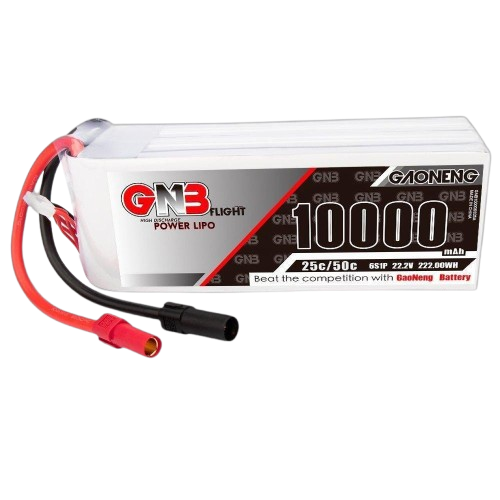

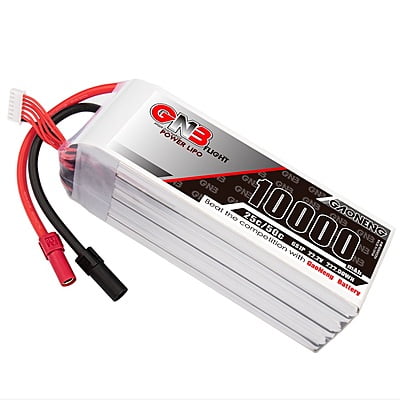

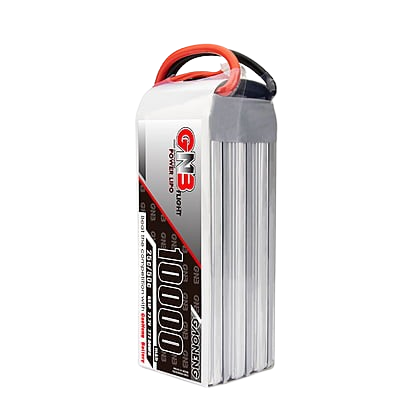

GNB 10000mAh 6S1P 22.2V 25C Lipo Battery
₹16,899.00
Out of stock
The GNB 10000mAh 6S1P 22.2V 25C LiPo Battery is built for endurance, power delivery, and long flight times in demanding aerial and industrial RC applications. Designed for compatibility with large drones, agricultural UAVs, 1/5 scale RC cars, and other high-capacity platforms, this battery offers stable performance with a high energy density.
Product Details
Features
- High capacity 10000mAh ideal for long-endurance applications
- Stable 25C discharge rate with 50C burst for peak loads
- Built with high-quality lithium polymer cells for consistent voltage
- Rugged and durable design for demanding field use
- XT150 discharge connector supports high-current output
- JST-XH 7P balance plug for precise charging and monitoring
- Over 300 cycles lifespan with proper maintenance
- Supports safe operating and storage conditions
Technical Specifications
- Model No.: GNB100006S25A
- Capacity: 10000mAh (10Ah)
- Voltage: 22.2V (6S)
- Configuration: 6S1P

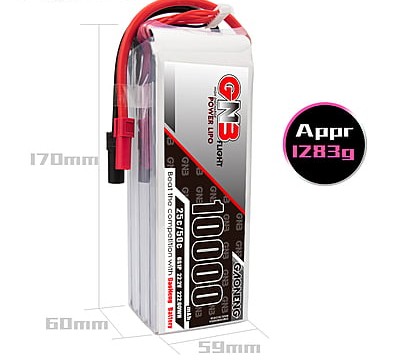

- Dimension (H x W x L): 60 × 59 × 170mm
- Weight: 1283g (±30g)
- Continuous Discharge Rate: 25C
- Max Burst Discharge Rate (3 sec): 50C
- Charge Connector: JST-XH 7P
- Discharge Connector: XT150 (or compatible)
- Working Temperature (Charge): 0°C to 45°C
- Working Temperature (Discharge): -20°C to 60°C
- Working Humidity: 65%RH ±20%
- Storage Temperature: -20°C to 35°C
- Storage Humidity: 65%RH ±20%
- Life Cycle: 300+ cycles
Additional Details
- Suitable for large drones, multirotors, RC boats, RC aircraft, agricultural sprayers, and electric vehicles
- Excellent choice for industrial or commercial UAV operations
- Delivers consistent performance during long-duration flights or heavy-duty driving
- Can be charged at 1C to 5C using a compatible LiPo balance charger
- Maintain storage voltage (~3.8V/cell) to maximize lifespan
- Requires LiPo-safe charging practices and storage precautions
Package Includes
- 1 x GNB 10000mAh 6S1P 22.2V 25C Lipo Battery
Frequently Asked Questions (FAQ)
Q1: What applications is this battery best suited for?
A. This battery is ideal for agricultural drones, heavy-lift UAVs, RC aircraft, electric vehicles, and long-range FPV systems.
Q2: How many amps can this battery continuously discharge?
A. At 25C, it can discharge 250A continuously (10000mAh × 25C = 250A).
Q3: What charger should I use?
A. Use a LiPo charger that supports 6S (22.2V) packs and a balance charging function via JST-XH 7P.
Q4: Is this battery safe to store long-term?
A. Yes. Store at 3.8V per cell in a cool, dry place at -20°C to 35°C with ~65% relative humidity.
