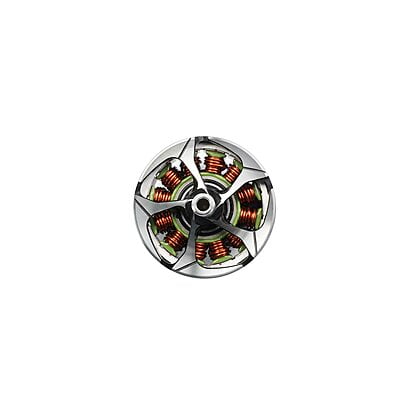

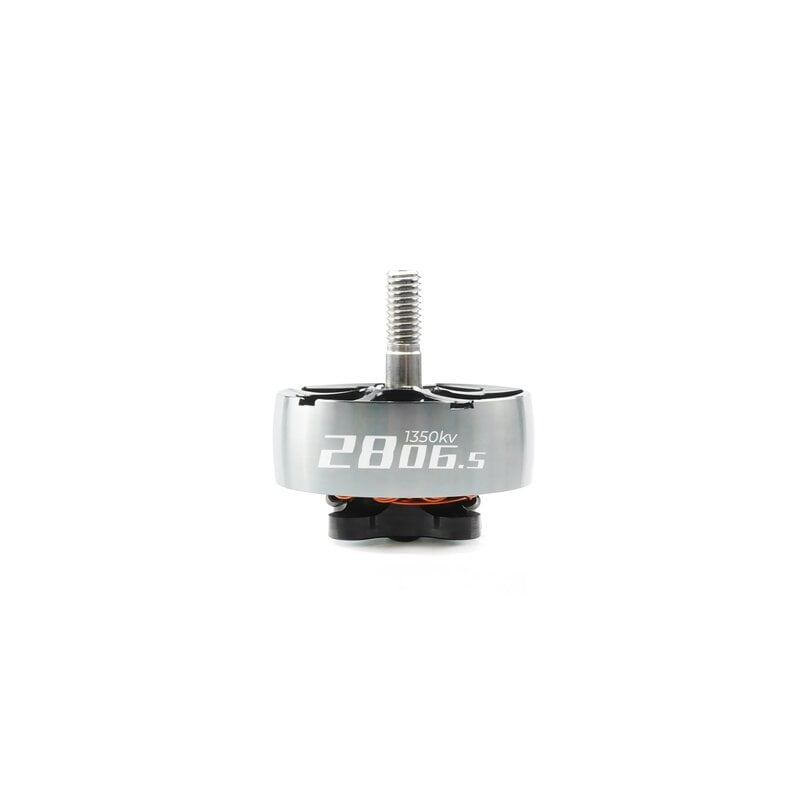

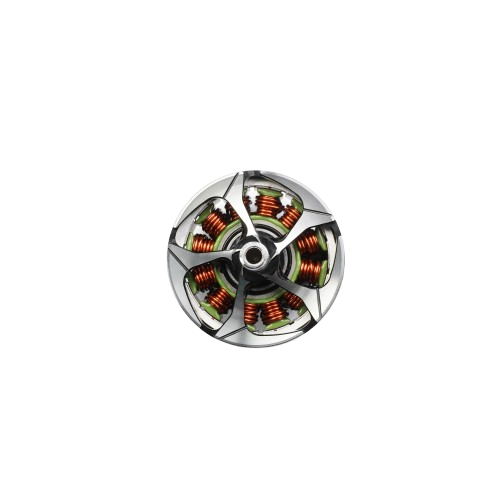

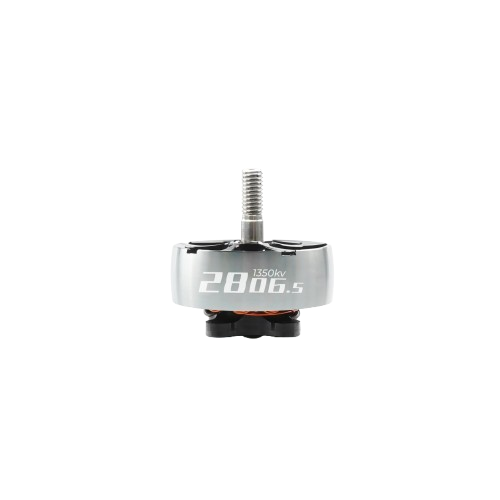

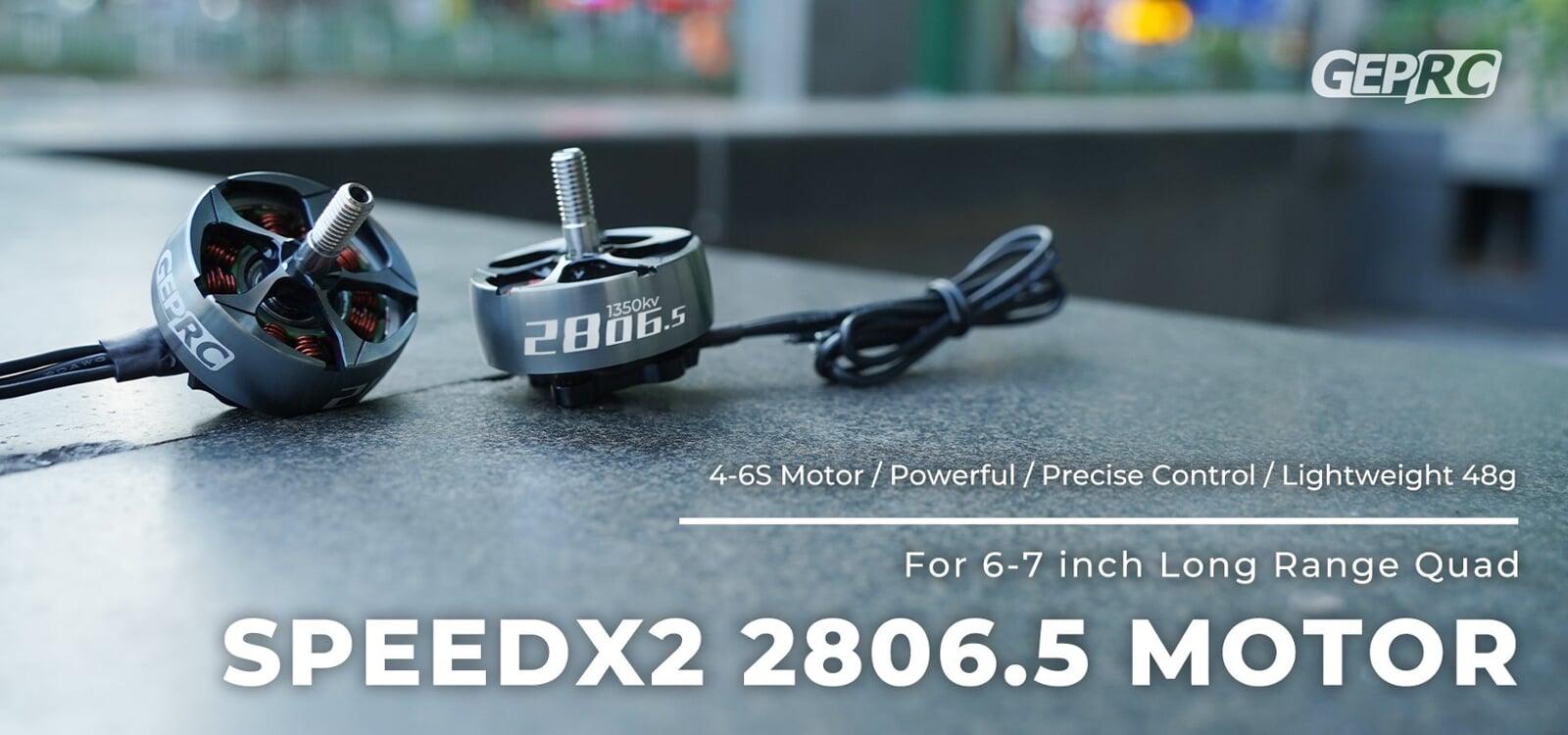

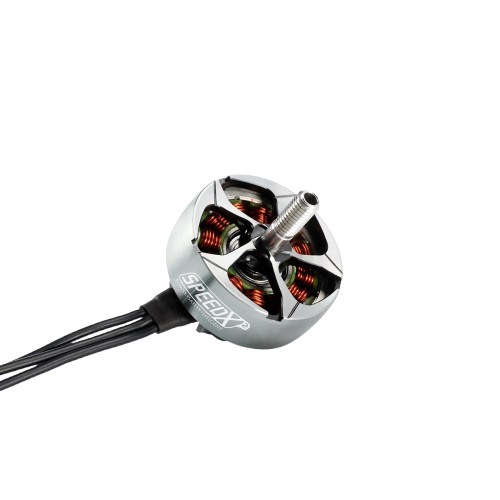

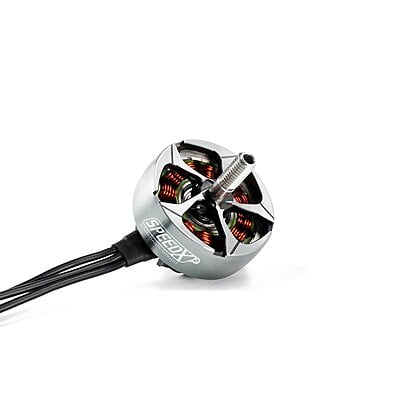

GEPRC SPEEDX2 2806.5 1350KV Motor

Features:

• Ultra-light weight, only 48.0g.

• Excellent magnetic design, stable power output.

• Strong power and prompt response speed.

• Delicate and precise throttle control, smooth flight experience.

• Good structural design with high strength shell and excellent heat dissipation efficiency.

• New optimized design for 6-7 inch propellers, perfectly suitable for 6-7 inch long range FPV models.

Technical Details:

Model:SPEEDX2 2806.5-1350KV:

• KV: 1350KV

• Configuration: 12N14P

• Magnet: N52H ARC

• Stator Diameter: 28mm

• Stator Length: 6.5mm

• Shaft Diameter: Φ4.0mm

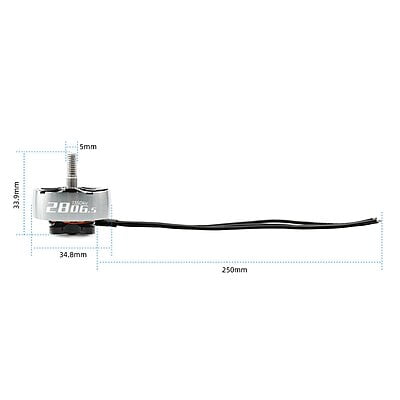

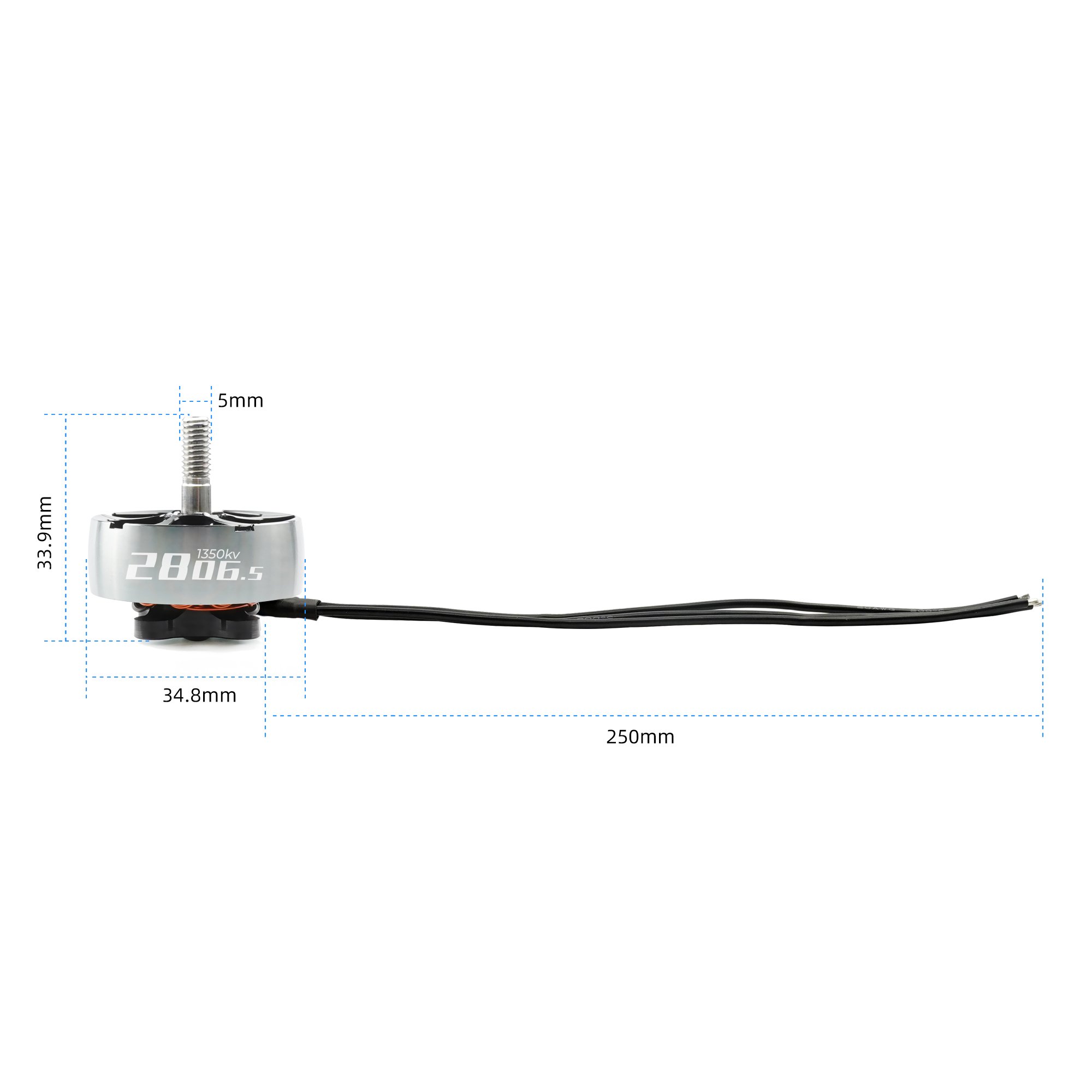

• Dimension: Φ34.8mm*33.9mm

• Lead wire size: 20#AWG 250mm

• Idle current (10V) : 1.25A

• No. of Cells (LiPo) : 4-6S

• Max Continuous Power(W) (5S): 960

• Max Current (5S) : 40A

• Internal Resistance: 58mΩ

• Mounting Holes: 19x19mm

• Weight: 48.0g

• Suitable for: 6-7″ Long Range Quadcopter

Model:SPEEDX2 2806.5-1760KV:

• KV: 1760KV

• Configuration: 12N14P

• Magnet: N52H ARC

• Stator Diameter: 28mm

• Stator Lenght: 6.5mm

• Shaft Diameter: Φ4.0mm

• Dimension: Φ34.8mm*33.9mm

• Lead wire Size: 20#AWG 250mm

• Idle Current(10V): 1.7A

• No. of Cells (LiPo): 4-6S

• Max Continuous Power(W) (5S): 1200

• Max Current (5S)：50A

• Internal Resistance: 47mΩ

• Mounting Holes: 19x19mm

• Weight: 48.0g

• Suitable Quadcopter: 6-7″ Long Range Quadcopter

Additional Details:

• Manufacturer: GEPRC

• Brand: GEPRC

• Generic Name: FPV Motor || Long-Range Motor || Cinematic Motor || Drone Motor || Brushless Motor || Quadcopter Motor || RC Motor || Electric Motor || 2806.5 Motor || Heavy Lift Motor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Long-Range FPV Drones || Cinematic FPV Drones || 7-inch FPV Drones || 8-inch FPV Drones || Heavy Lift Drones || Professional FPV Filming || Endurance Drone Builds || DIY Drone Builds || Large Quadcopters || Custom FPV Platforms

Package Details:

• Includes:

• 1x GEPRC SPEEDX2 2806.5 Motor, 1x Propeller Nut, Mounting Screws

Frequently Asked Questions:

Q1. What type of drone is the GEPRC SPEEDX2 2806.5 motor best suited for?

Ans: This motor is primarily designed for larger FPV drones, specifically long-range and cinematic builds, due to its size, power, and efficiency for heavier payloads.

Q2. What battery voltage is recommended for this motor?

Ans: The GEPRC SPEEDX2 2806.5 motor is typically optimized for 6S LiPo battery setups to provide the best balance of power, efficiency, and consistent performance for its intended use.

Q3. How does this motor contribute to extended flight times?

Ans: Its efficient design, combined with lower KV options suitable for larger propellers, allows the GEPRC SPEEDX2 2806.5 motor to generate significant thrust with less current draw, leading to longer flight durations.
