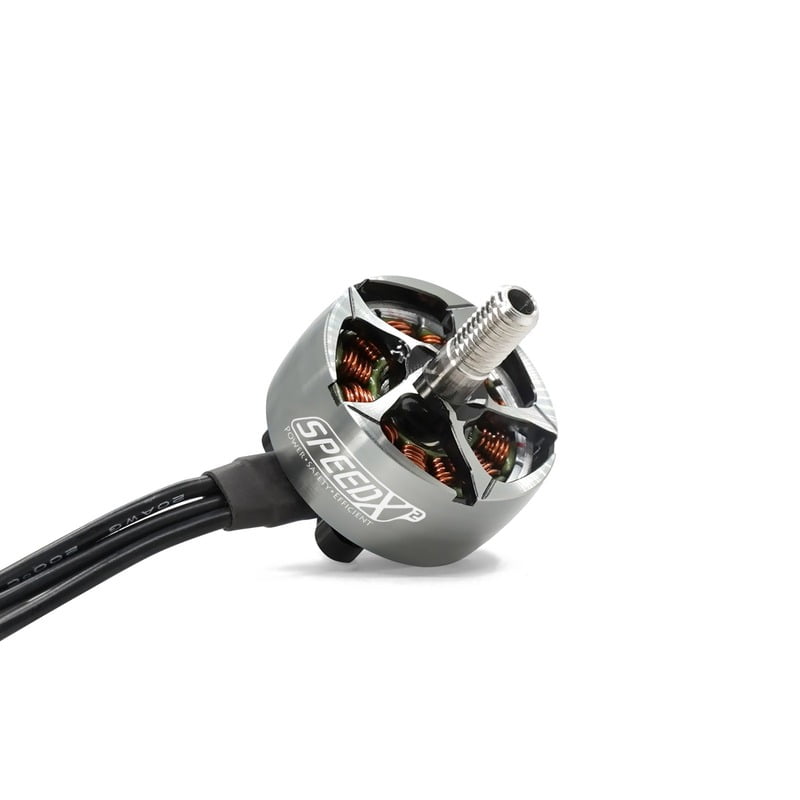

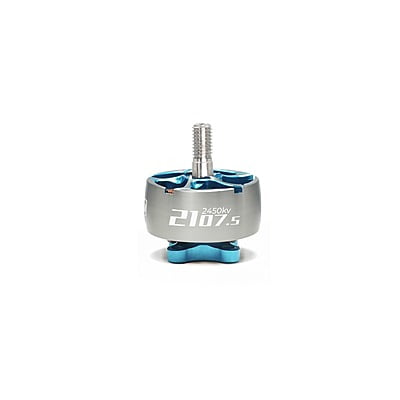

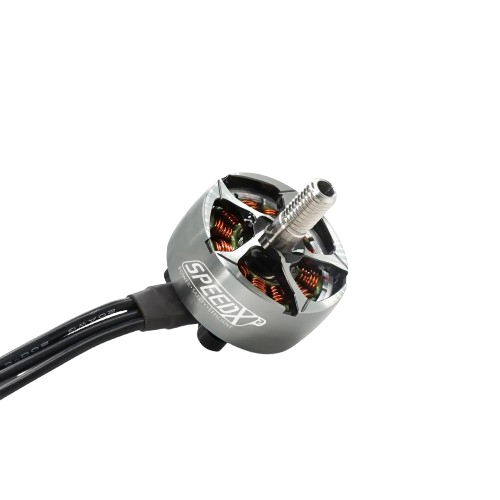

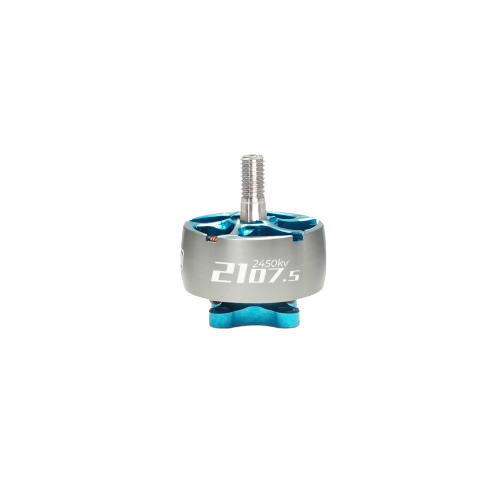

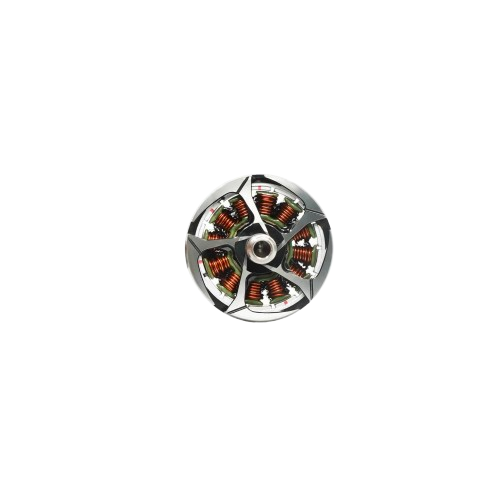

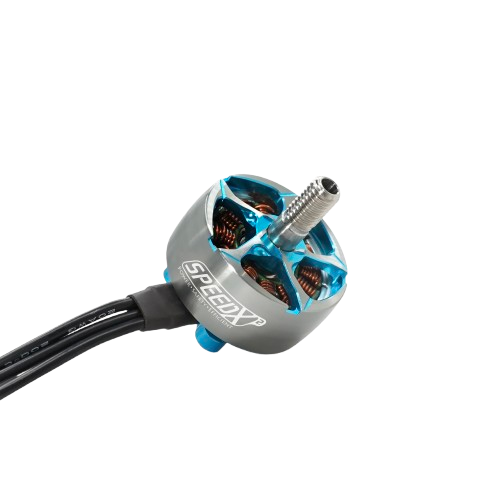

GEPRC SPEEDX2 2107.5 Motor

Features:

• High-performance motor optimized for 5-inch FPV drones.

• Crafted from ultra-durable 7075-T aviation aluminum.

• Delivers explosive power and rapid throttle response.

• Optimized magnetic circuit for superior efficiency.

• Excellent heat dissipation for sustained performance.

• Precision-balanced rotor for smooth, vibration-free flight.

• Designed for aggressive freestyle and competitive racing.

• Robust construction ensures long-term reliability.

• Standard mounting pattern for easy integration.

• Available in various KV options for versatile setups.

Technical Specifications:

• Model: SPEEDX2 2107.5

• KV: 1960KV/2450KV

• Configuration: 12N14P

• Stator Diameter: 21mm

• Stator Height: 7.5mm

• Shaft Diameter: Φ4.0mm

• Size: Φ26.83mm*30.85mm

• Rotor: N52H ARC

• Weight: 29.5g

• Color:Orange/Green/Titanium/Blue

• Target: Freestyle & Racing FPV

• Recommend the battery: 6S 1050mAh-1550mAh LiPo

Additional Details:

• Manufacturer: GEPRC

• Brand: GEPRC

• Generic Name: FPV Motor || Brushless Motor || Drone Motor || Quadcopter Motor || RC Motor || Electric Motor || 2107.5 Motor || Racing Motor || Freestyle Motor || Performance Motor

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: 5-inch FPV Racing Drones || Freestyle FPV Drones || 4S/6S FPV Builds || Aggressive Piloting || Competitive FPV || DIY Drone Builds || High-Performance UAVs || Custom FPV Setups || Drone Upgrades || Advanced Drone Pilots

Package Details:

Includes:

• 1 x SPEEDX2 2107.5 motor

• 1 x M5 Nut

• 5 x M3*8 Screw

• 5 x M3*10 Screw

Frequently Asked Questions:

Q1. What propeller sizes are recommended for the GEPRC SPEEDX2 2107.5 motor?

Ans. This motor is primarily designed for 5-inch propellers, providing optimal thrust and efficiency for both racing and freestyle FPV drone applications.

Q2. Is this motor designed for aggressive FPV flying and crashes?

Ans. Yes, its construction from strong 7075-T aviation aluminum and robust design make it highly durable and capable of withstanding the impacts common in aggressive FPV flying.

Q3. What are the benefits of the N52H ARC magnets in this motor?

Ans. N52H ARC magnets provide stronger magnetic flux, leading to higher efficiency, more torque, and a quicker, more responsive throttle feel, essential for high-performance FPV.
