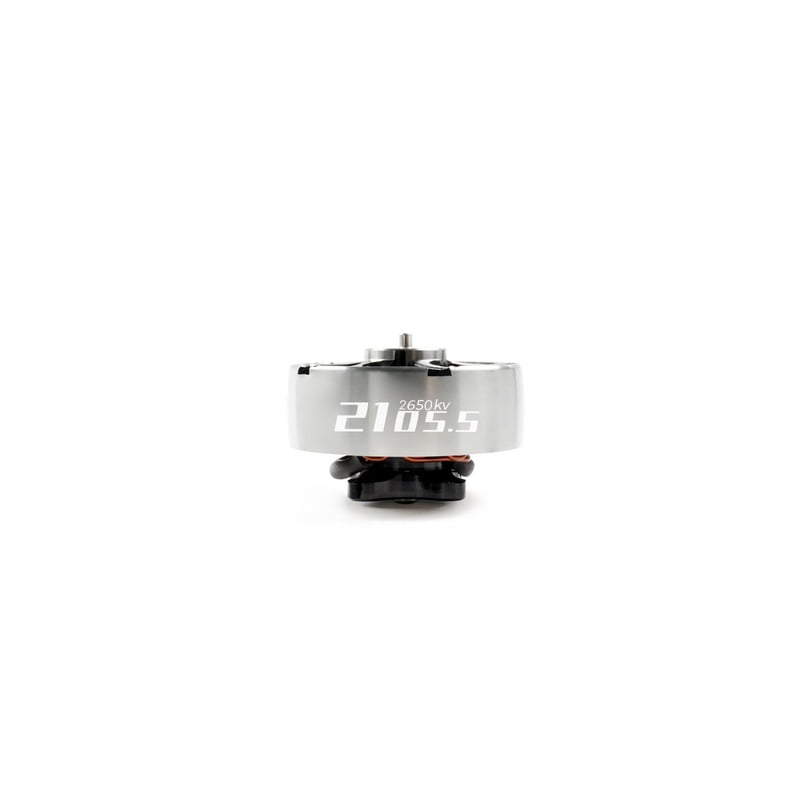

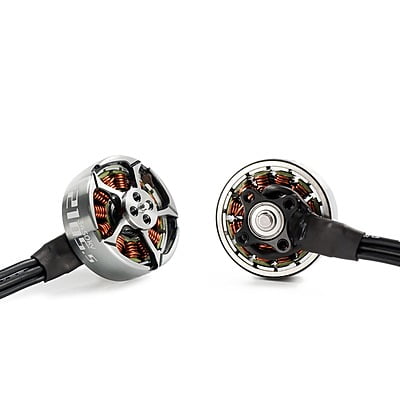

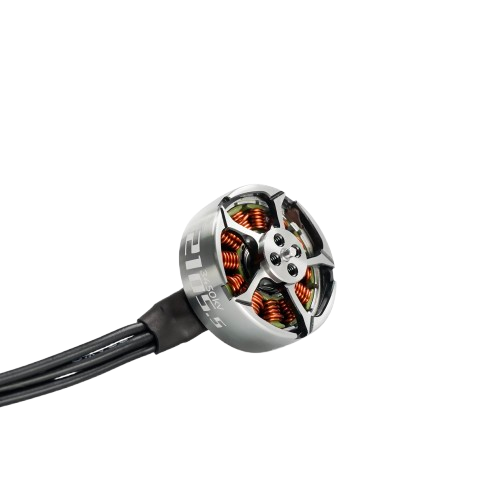

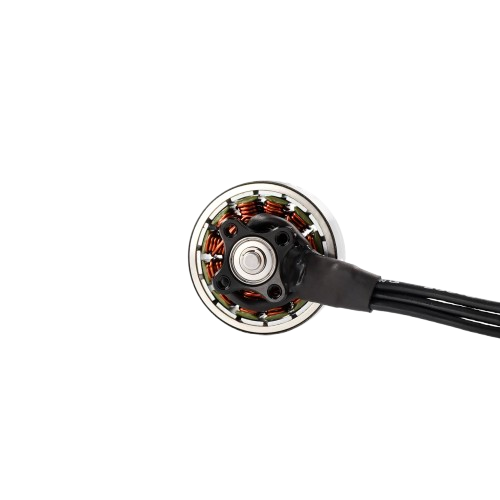

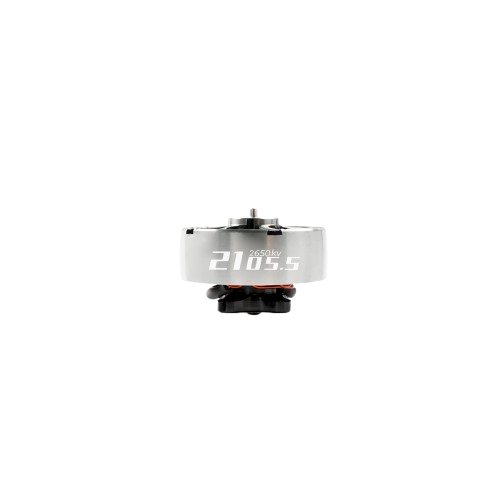

GEPRC SPEEDX2 2105.5 2650KV Motor

FEATURES:

• Lightweight design, only 21.0g.
• High-quality arc magnetic steel, professional magnetic field design, strong magnetic force, stable motor power output.
• The flat design motor is very prominent in Freestyle & Racing. Large motor torque, strong explosive force, and extremely fast response speed.
• Good handling and stable power output bring a super smooth flying experience.

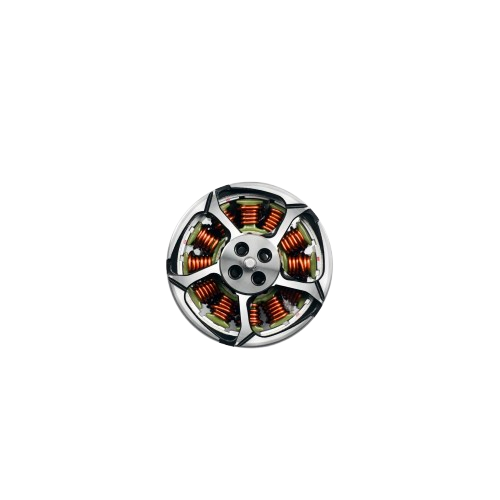

• The Exquisite “Hollow out” design in the top of the rotor can be used in improving the efficiency of heat dissipation.
• High-strength motor structure, good durability and crash resistance.
• The 1.5mm shaft is quite suitable for most of the conventional 3-5 inch FPV quad propellers on the market.
• Suitable for 3-4 inch FPV quads and 4-5 inch long range FPV quads.

SPECIFICATIONS:

Item: SPEEDX2 2105.5-2650KV

• KV: 2650KV
• Configuration: 12N14P
• Magnet: N52H ARC
• Stator Diameter: 21mm
• Stator Height: 5.5mm
• Shaft Diameter: Φ3.0mm(in)Φ1.5(out)
• Size: Φ25.65mm*15.7mm
• Lead Wires: 22#AWG 150mm
• No. of Cells (LiPo) : 2-6S
• Max Continuous Power(W) (5S): 559
• Max Current (5S) : 34.9A
• Mounting Holes:12mm x 12mm(M2 Screw)
• Color: Titanium, black
• Weight: 21.0 g
• Suitable Quadcopter:3-4”whoop FPV, 4-5″Toothpick & Long Range FPV
