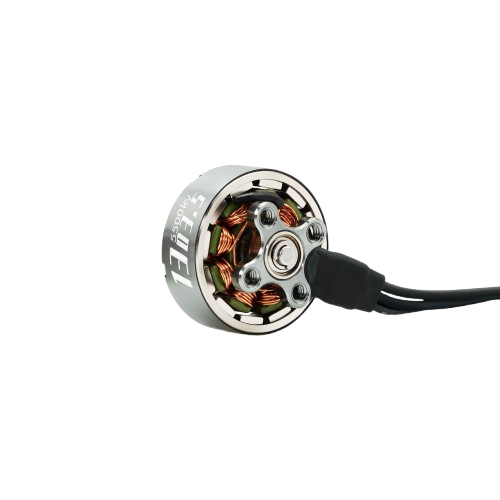

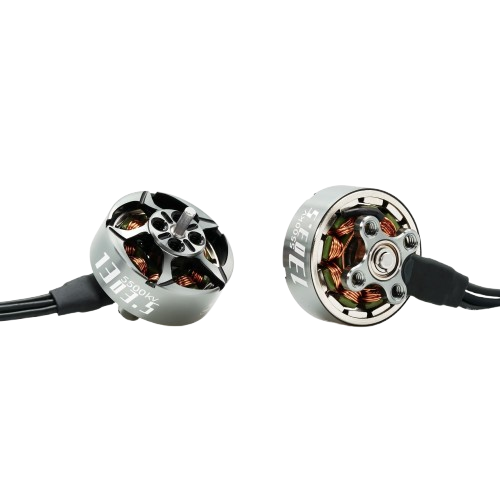

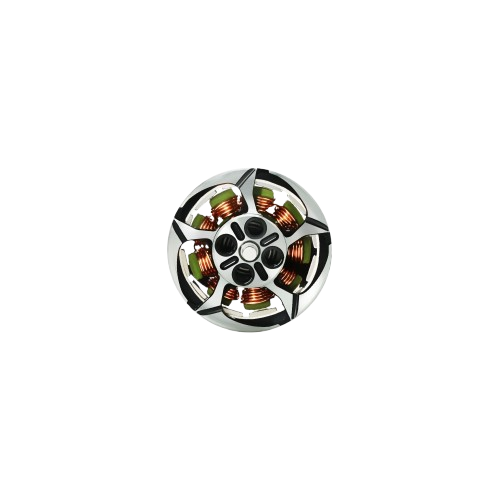

GEPRC SPEEDX2 1303.5 5500KV Motor
₹1,899.00 ₹1,900.00
Out of stock
The GEPRC SPEEDX2 1303.5 5500KV motor delivers agile power for 2-3 inch micro and toothpick FPV drones. With high RPMs and quick response, it's perfect for exhilarating freestyle and precise indoor flights. Its lightweight yet durable construction ensures reliable performance, making your compact drone fly with unmatched responsiveness and efficiency.
Product Details
Features:
- High 5500KV for aggressive 2-3 inch micro drones.
- Crafted from durable 7075-T aviation aluminum.
- Delivers agile power and rapid throttle response.
- Optimized magnetic circuit for peak efficiency.
- Excellent heat dissipation in a compact form.
- Precision-balanced rotor for smooth, high-RPM operation.
- Designed for nimble freestyle and indoor flying.
- Ultralight design minimizes overall drone weight.
- Standard mounting for easy micro build integration.
- Ideal for 2S-4S LiPo battery setups.
Technical Specifications:
- Configuration：9N12P
- Magnet: N52H ARC
- Stator diameter: 13mm
- Stator height: 3.5mm
- Shaft diameter: Φ1.5mm(in)2mm(out)

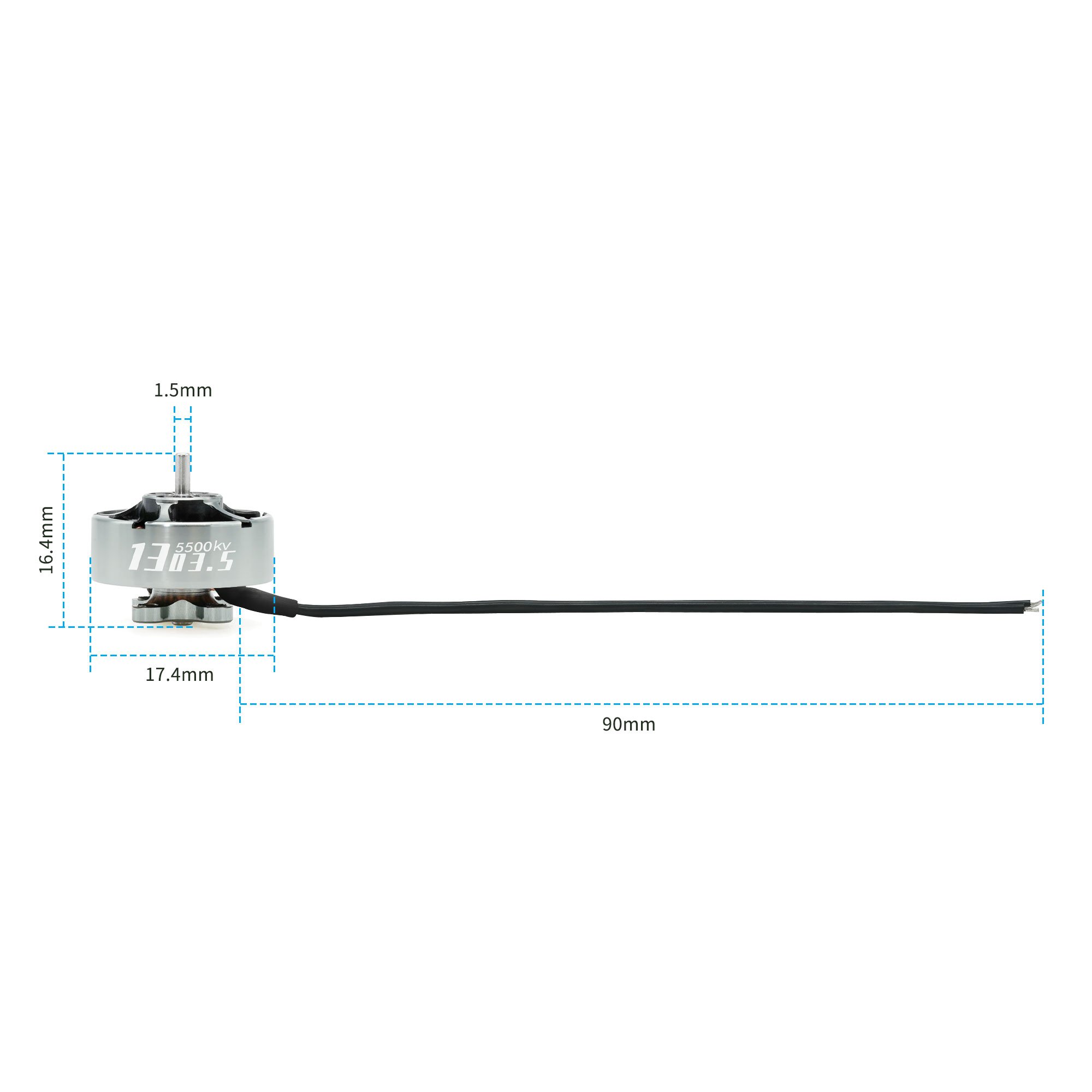

- Dimension: Φ17.35mm*11.7mm
- Lead wires: 28#AWG 90mm
- Rated voltage (LiPo): 2-4S
- Maximum power: 128.8W
- Maximum current: 8.7A
- Recommended ESC: 35A
- Mounting hole: 9mmx9mm(M2)
- Color: titanium color
- Weight: 6.5g (90MM wire length)
- Suitable models: 2 inch with propeller guard drones or 2.5 inch freestyle drones
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: FPV Motor || Brushless Motor || Micro Motor || Toothpick Motor || Drone Motor || Quadcopter Motor || RC Motor || Electric Motor || 1303.5 Motor || Tiny Whoop Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: 2-inch Toothpick Drones || 3-inch Toothpick Drones || Micro FPV Drones || Tiny Whoops || Indoor FPV Racing || Lightweight FPV Builds || Cinematic Micro Drones || DIY Micro Drone Builds || Efficiency-focused FPV || Agile Micro FPV
Package Details:
Includes:
- 1 x SPEEDX2 1303.5 motor
- 6 x M2*6mm screws
- 6 x M2*8mm screws
Frequently Asked Questions:
Q1. What propeller sizes are recommended for the GEPRC SPEEDX2 1303.5 5500KV motor?
Ans. This motor is best suited for propellers in the 2-inch to 3-inch range, providing optimal thrust and efficiency for micro and toothpick FPV drone builds.
Q2. Is this 5500KV motor suitable for a 4S battery setup?
Ans. While it might spin on 4S, 5500KV is generally optimized for 2S or 3S LiPo batteries to avoid overheating and ensure optimal performance and longevity for this motor size.
Q3. What benefits does the 7075-T aviation aluminum bell provide for such a small motor?
Ans. Even for micro motors, the 7075-T aviation aluminum bell significantly enhances its durability and crash resistance, ensuring the motor can withstand impacts common in micro FPV flying.
