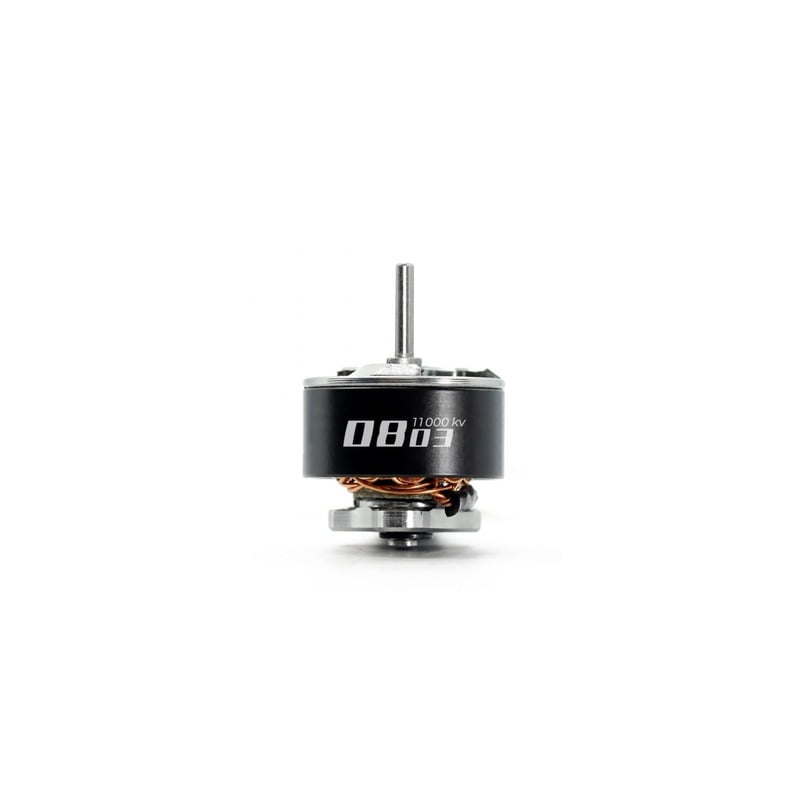

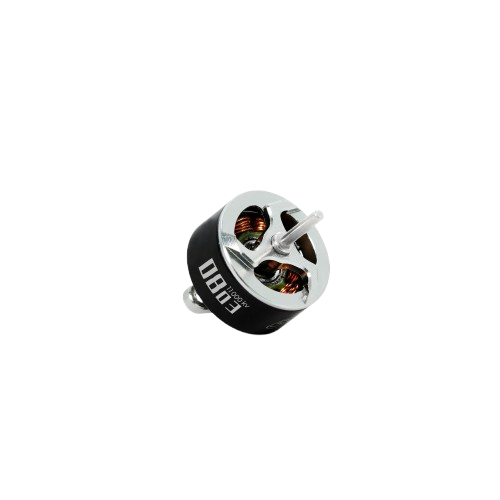

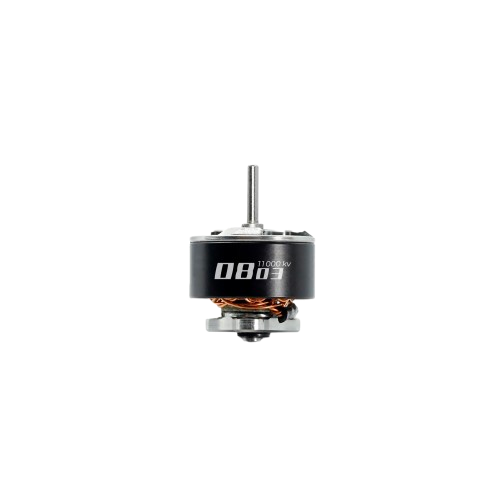

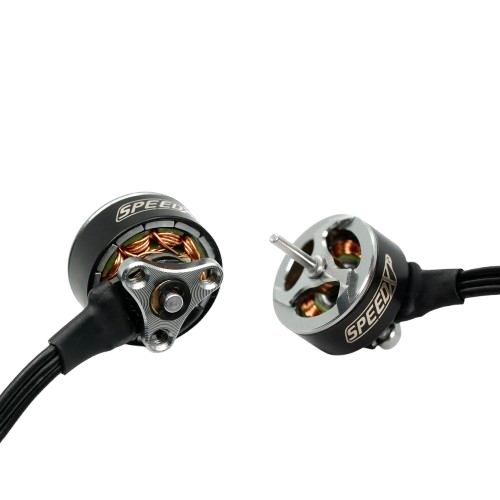

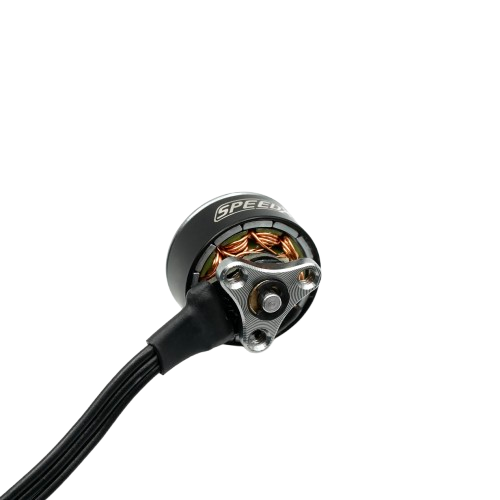

GEPRC SPEEDX2 0803 11000KV Brushless Motor
₹989.00 ₹4,999.00
Unleash extreme power in your micro drone with the GEPRC SPEEDX2 0803 11000KV brushless motor. Designed for tiny whoops and compact FPV builds, it delivers incredible RPMs for agile, high-speed flight. Its lightweight yet durable construction ensures reliable performance, making your micro drone fly with unmatched responsiveness and excitement.
Choose Quantity
Product Details
Features:
- Ultra-high 11000KV for extreme micro drone speed.
- Designed specifically for tiny whoops and micro FPV.
- Delivers powerful and rapid thrust for agile flight.
- Super lightweight design minimizes overall drone weight.
- Durable construction for long-lasting performance.
- Excellent heat dissipation in a compact form.
- Precision-engineered for smooth, high-RPM operation.
- Easy to install with standard micro motor mounts.
- Provides quick throttle response for precise control.
- Optimized for exhilarating indoor and outdoor flights.
Technical Specifications:
- Model: SPEEDX2 0803
- KV: 11000KV
- Configuration: 9N12P
- Stator Diameter: 8.4mm
- Stator Height: 2.8mm
- Shaft Diameter: Φ1.0mm

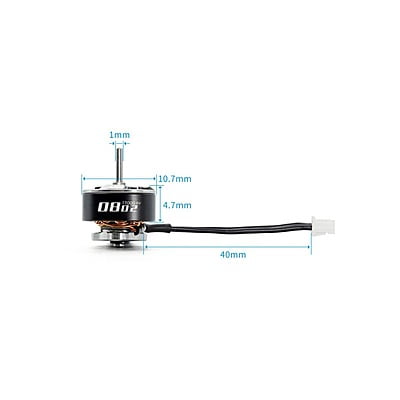

- Size: Φ10.7mm*15mm
- Rotor: N52H
- Weight: 2.4g
- Target: Tiny & Whoop FPV
- Recommended battery: 2S 380mAh-530mAh LiPo
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: FPV Motor || Brushless Motor || Whoop Motor || Micro Motor || Drone Motor || Quadcopter Motor || RC Motor || Electric Motor || 0803 Motor || Tiny Whoop Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Tiny Whoop Drones || Micro FPV Drones || Indoor FPV Racing || Small Brushless Whoops || Ultralight FPV Builds || DIY Micro Drone Builds || Efficiency-focused FPV || Agile Micro FPV || Beginner/Intermediate Micro FPV Pilots || High-Speed Micro Drones
Package Details:
Includes:
- 1 x SPEEDX2 0803 motor
- 1 x Spare screw set
Frequently Asked Questions:
Q1. What battery voltage is best for the GEPRC SPEEDX2 0803 11000KV motor?
Ans. This 11000KV motor is primarily designed and optimized for 1S (single cell) LiPo batteries to achieve peak performance in tiny whoops.
Q2. What propeller sizes should I use with this 0803 motor?
Ans. For 0803 motors, propellers typically range from 31mm to 40mm (1.2 to 1.6 inches), commonly friction-fit onto the 1mm shaft.
Q3. Is this motor durable enough for tiny whoop crashes?
Ans. Yes, despite its small size, the GEPRC SPEEDX2 0803 is built with durable 7075-T aviation aluminum, providing good resistance to the impacts common in tiny whoop flying.
