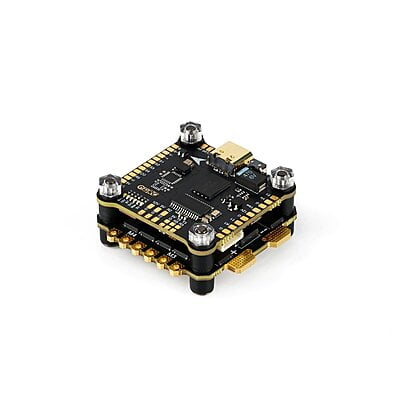

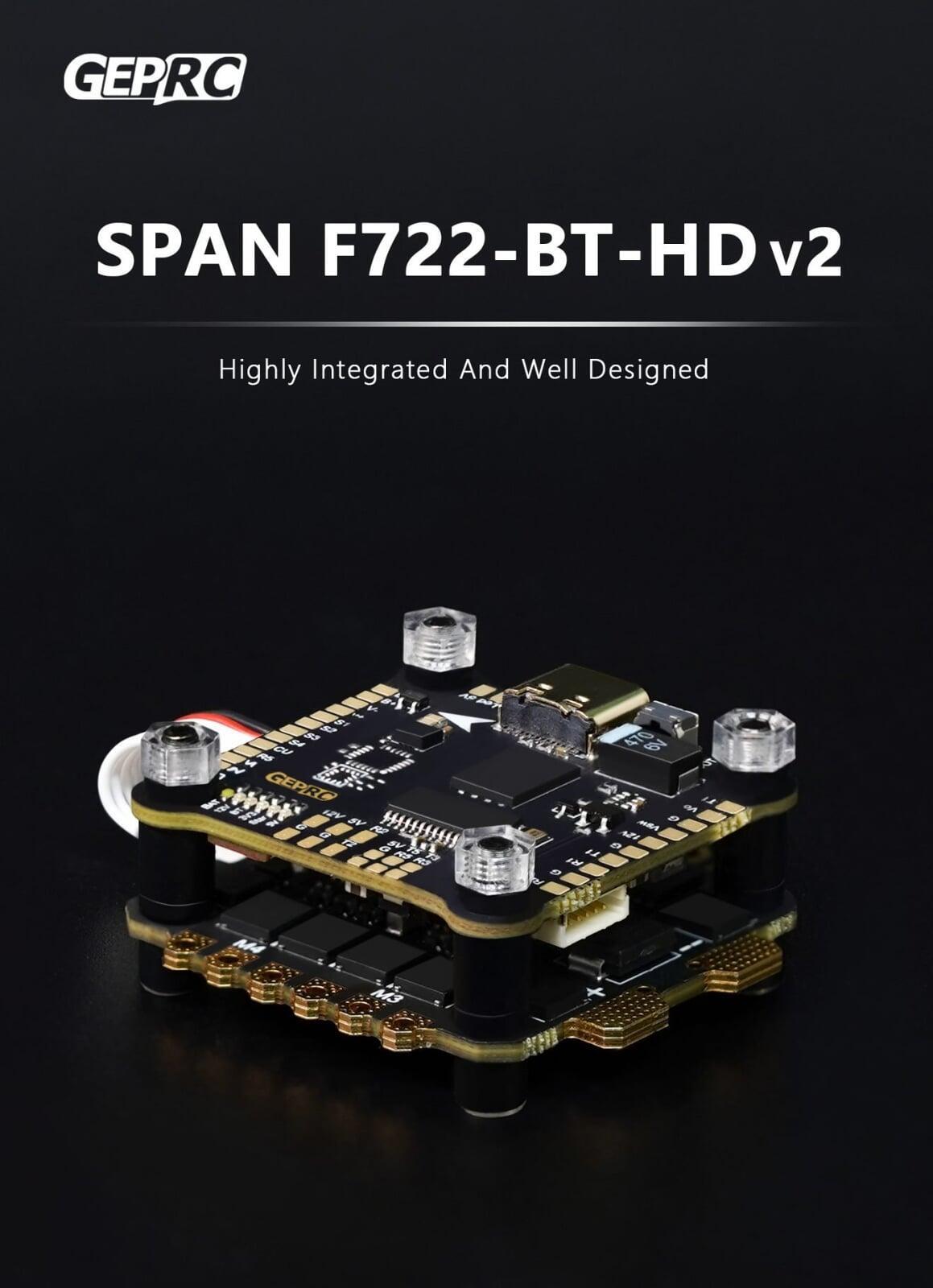

GEPRC SPAN F722 50A BT HD V2 FC+ESC

Features:

• Powerful STM32F722 flight controller.




• Robust 50A 4-in-1 ESC.




• Integrated Bluetooth for wireless configuration.




• Optimized for digital HD FPV systems.




• Includes barometer for altitude hold.




• Built-in Blackbox for data logging.




• Support for 3-6S LiPo battery.




• Fast processing for smooth flight.




• Dedicated plugs for peripherals.




• Enhanced V2 design.

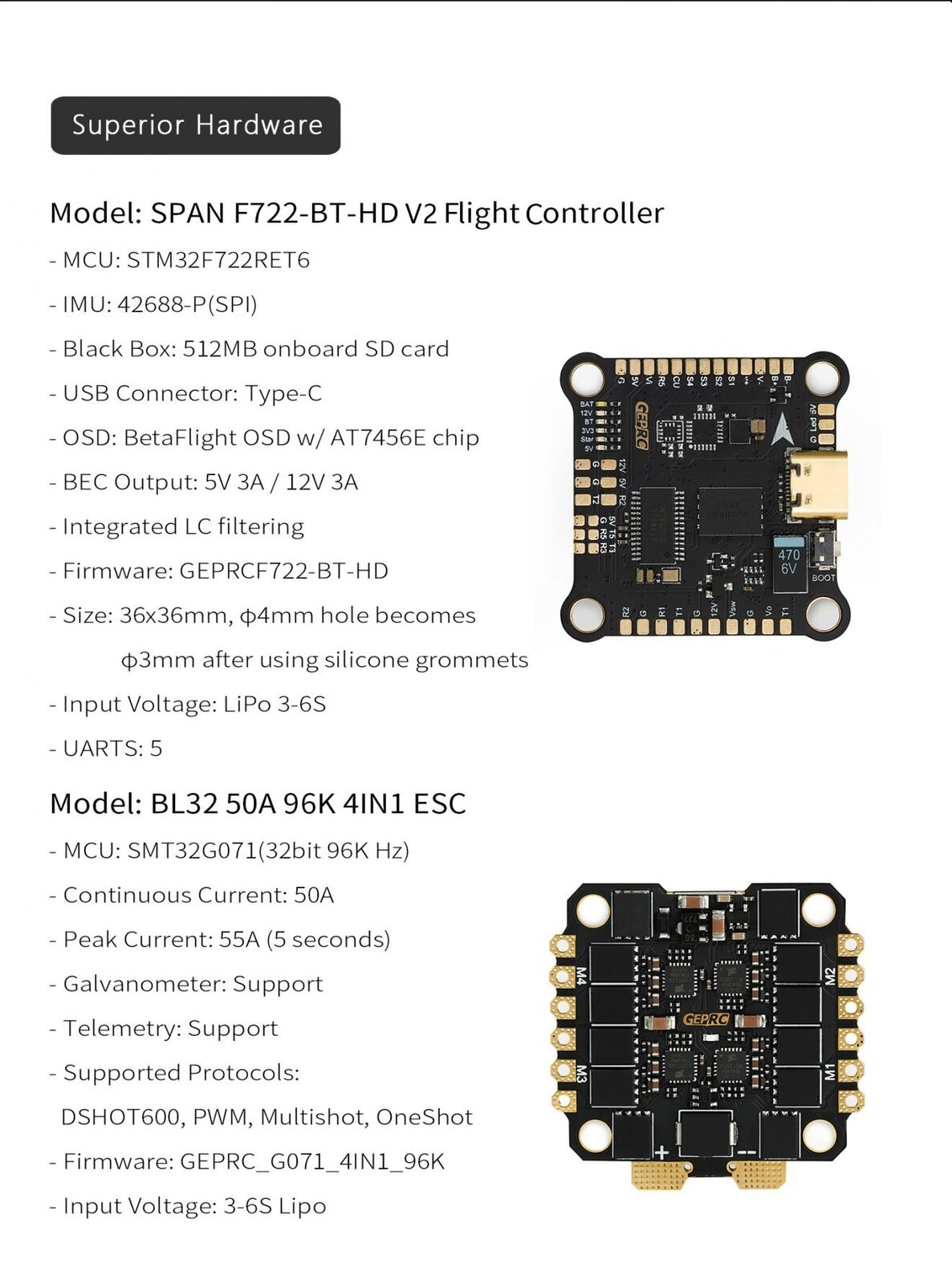

Technical Specifications:

• Model: GEPRC SPAN F722 50A BT HD V2 FC+ESC Stack

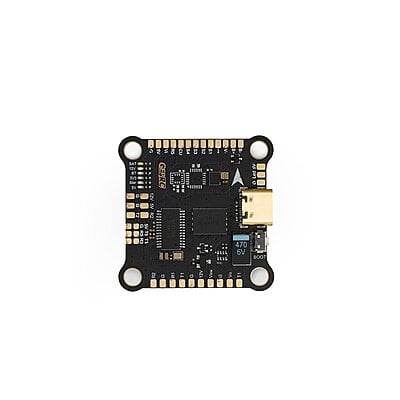

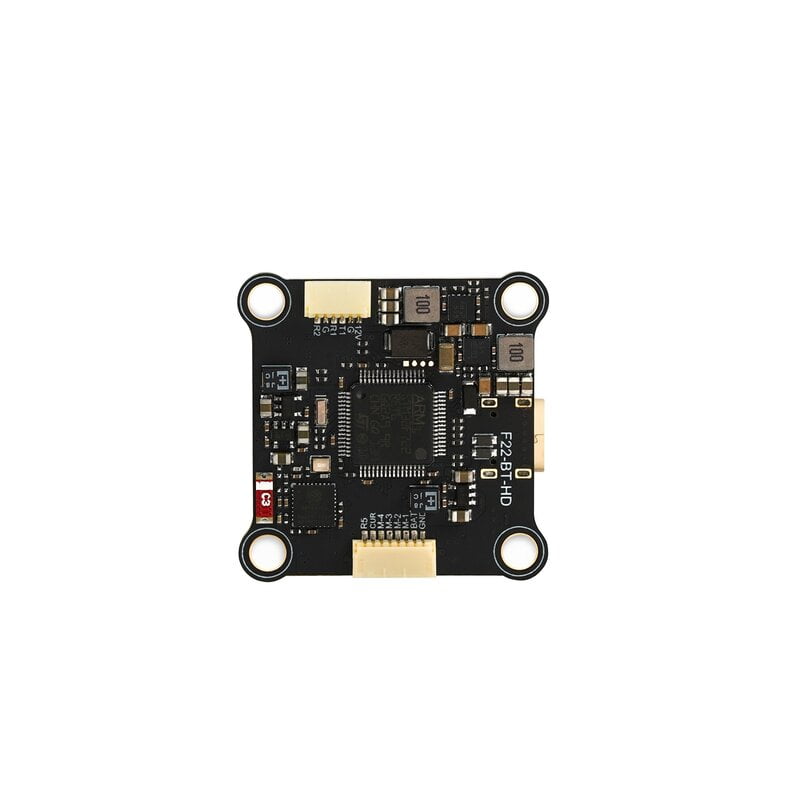

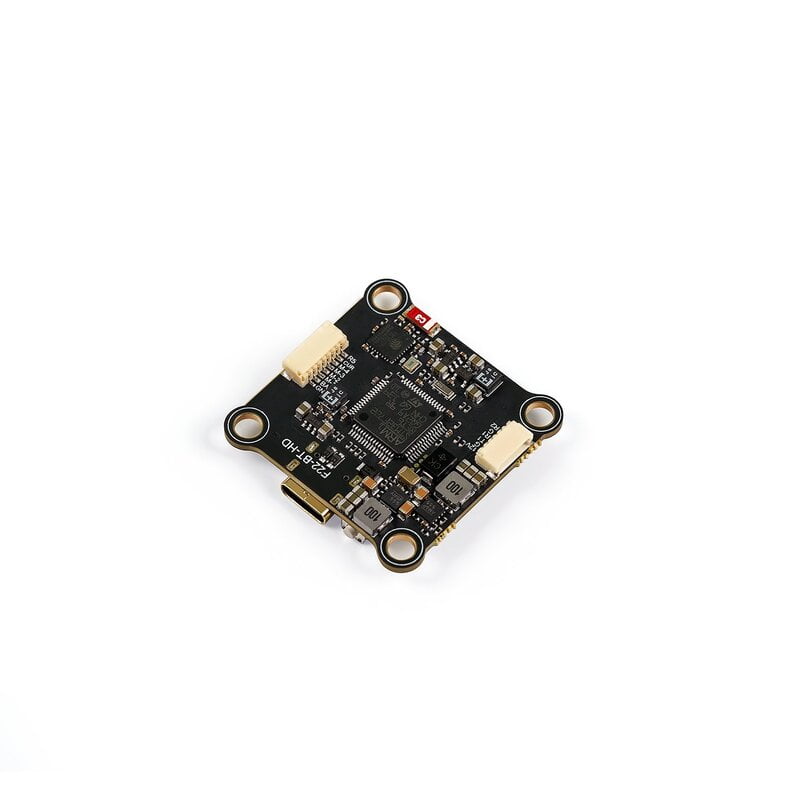

• Flight Controller (FC)

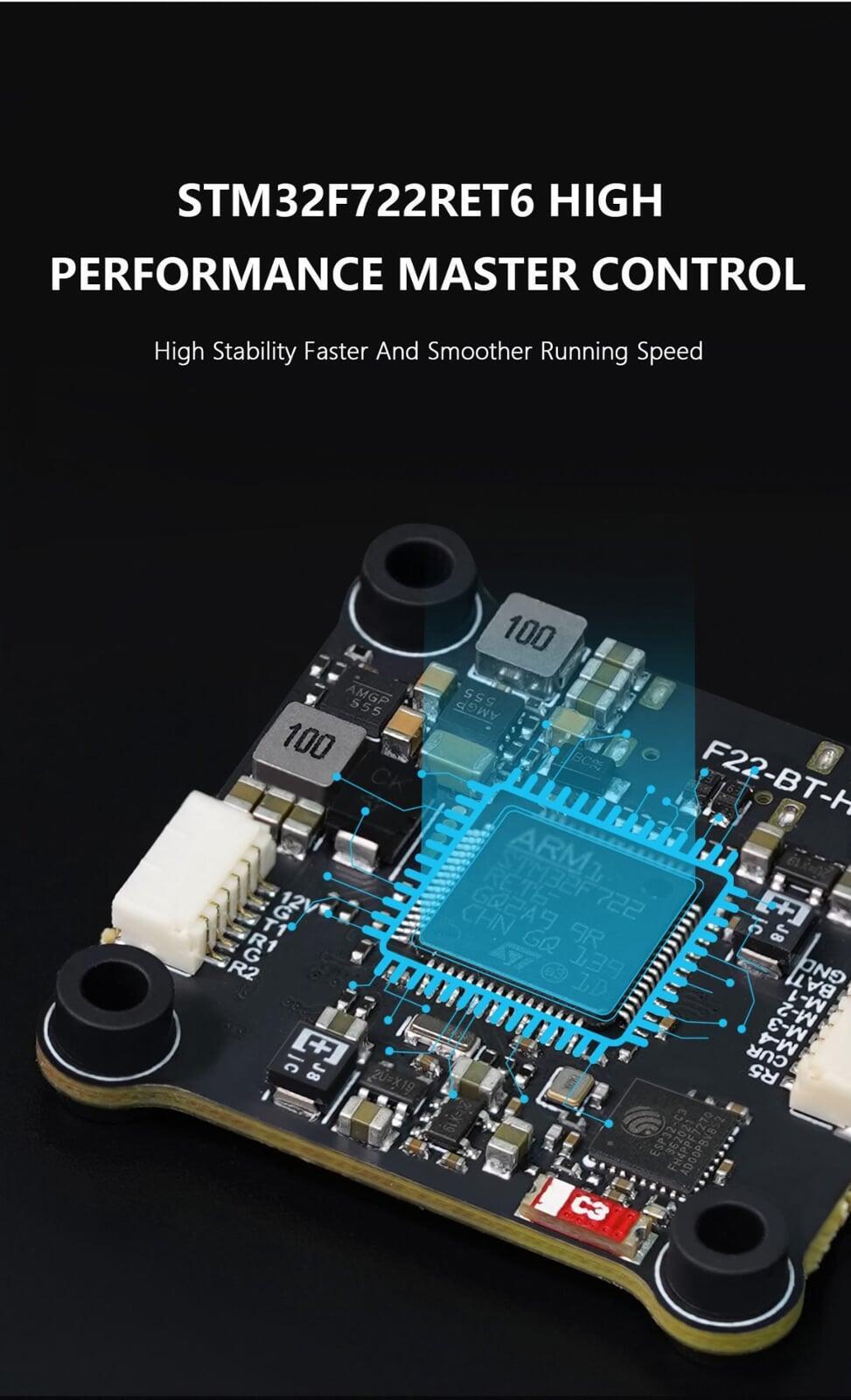

  • MCU: STM32F722RET6

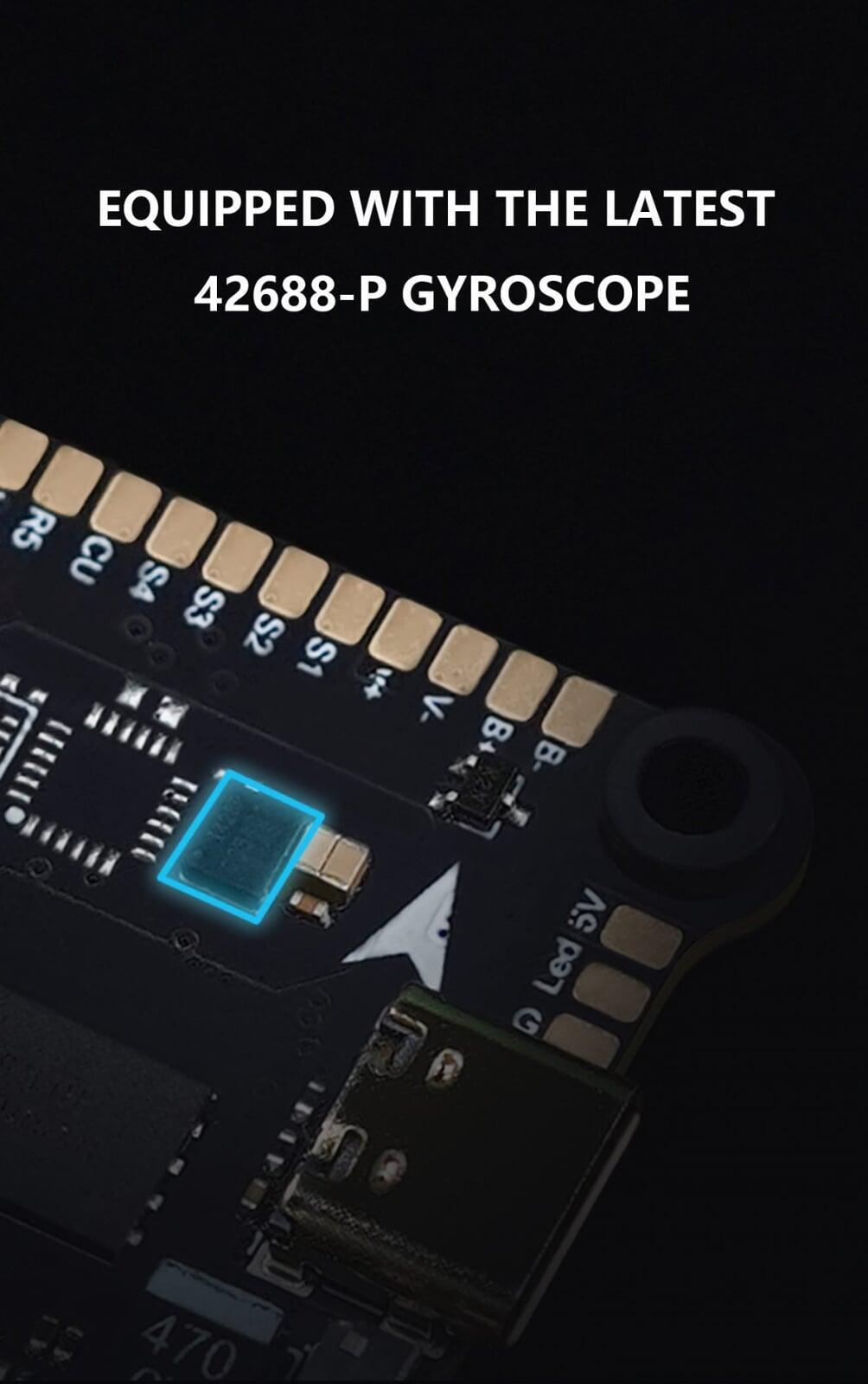

  • IMU (Gyro/Accelerometer): ICM42688P (SPI)

  • OSD: Betaflight OSD with AT7456E chip

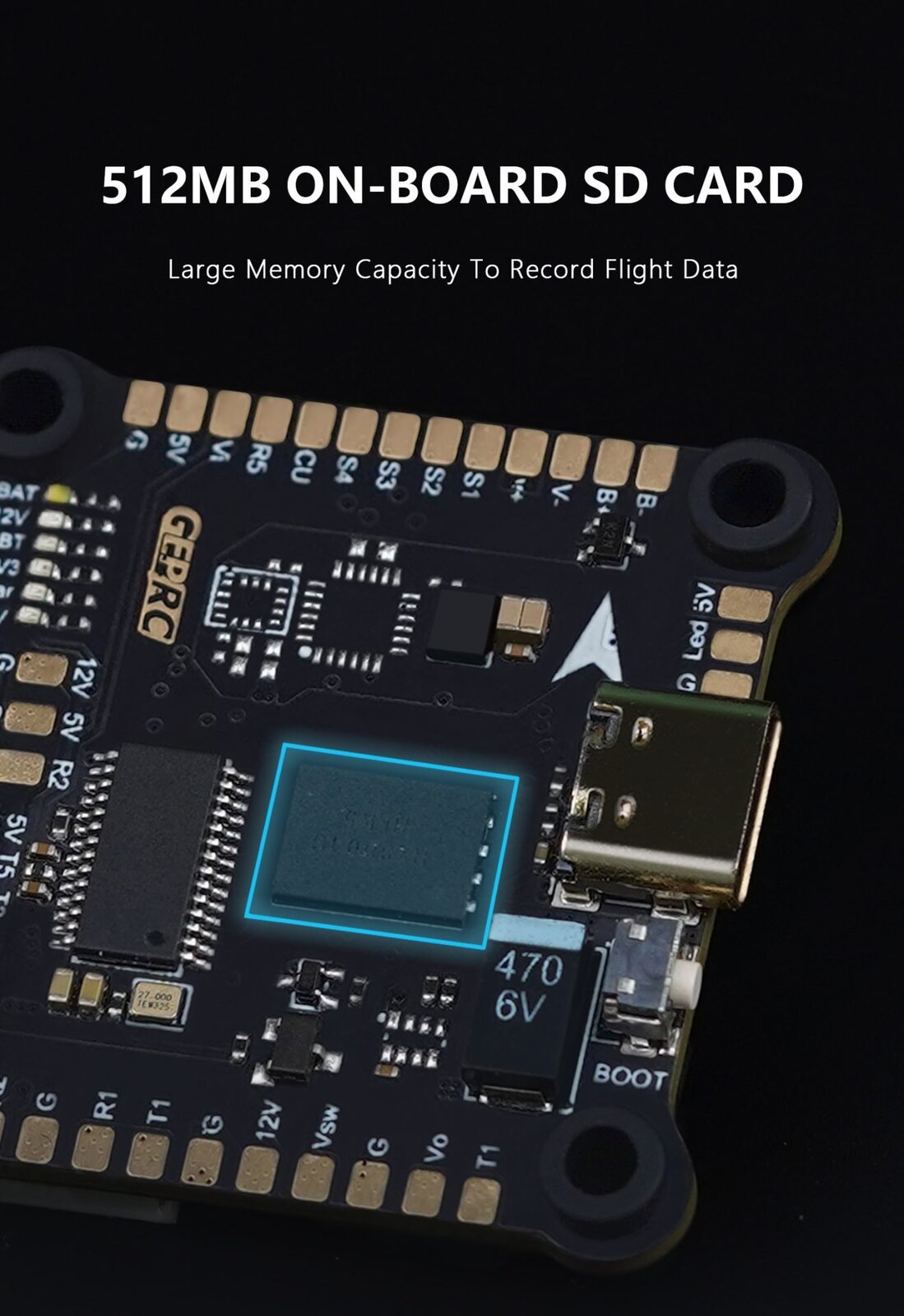

  • Blackbox: 512MB onboard SD card

  • Barometer: BMP280

  • UARTs: 5

  • BEC Output: 5V/3A, 12V/3A (with integrated LC filtering)

  • Target Firmware: GEPRCF722-BT-HD

  • Input Voltage: 3–6S LiPo

  • USB Connector: Type-C

  • Mounting Pattern: 30.5×30.5mm (M3 holes; reduces to M2 with silicone grommets)

  • Dimensions: 36×36mm

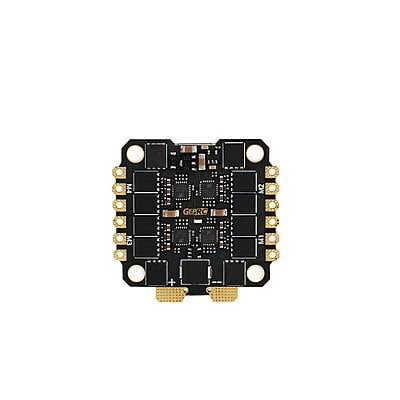

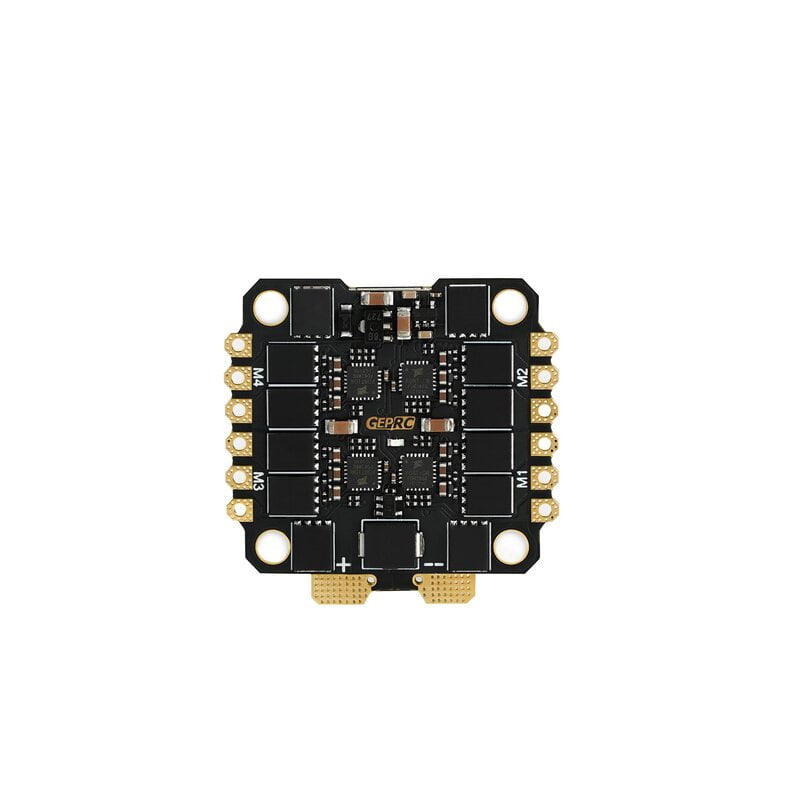

• Electronic Speed Controller (ESC)

  • Model: BL32 50A 96K 4-in-1 ESC

  • MCU: STM32G071 (32-bit, 96KHz)

  • Continuous Current: 50A

  • Peak Current: 55A (5 seconds)

  • Supported Protocols: DSHOT600, PWM, Multishot, OneShot

  • Firmware: GEPRC_G071_4IN1_96K (BLHeli_32)

  • Input Voltage: 3–6S LiPo

  • Galvanometer (Current Sensor): Supported

  • Telemetry: Supported

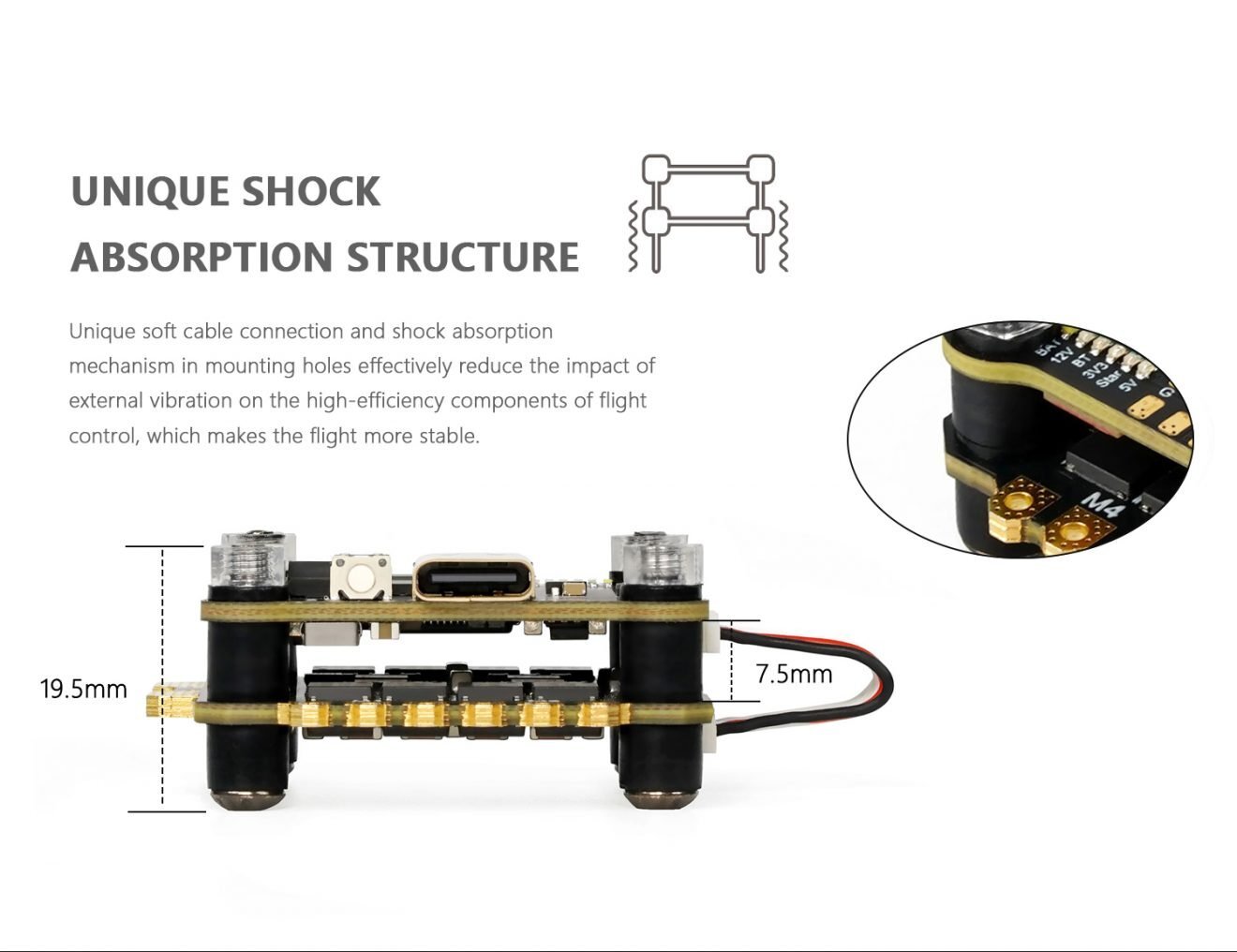

• Stack (Combined FC + ESC)

  • Approx. Dimensions: 37×45mm (typical for 30.5×30.5mm stack)

  • Weight: ~18–25g (combined)

Additional Details:

• Manufacturer: GEPRC

• Brand: GEPRC

• Generic Name: FPV Stack || FC+ESC Stack || Drone Electronics || FPV Flight Controller || 50A ESC || FPV Brain || FPV Board || Multirotor Controller || FPV Combo || Quadcopter Stack

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Freestyle FPV Drones || Cinematic FPV Drones || Long Range FPV Drones || Professional FPV Builds || DJI and HD FPV Builds || Custom 5-inch to 7-inch Drones || Competitive FPV Pilots || FPV Drone Builders || Advanced FPV Enthusiasts || FPV Filming

Package Details:

Includes:

• 1x GEPRC SPAN F722 V2 Flight Controller

• 1x GEPRC 50A 4in1 ESC

Frequently Asked Questions:

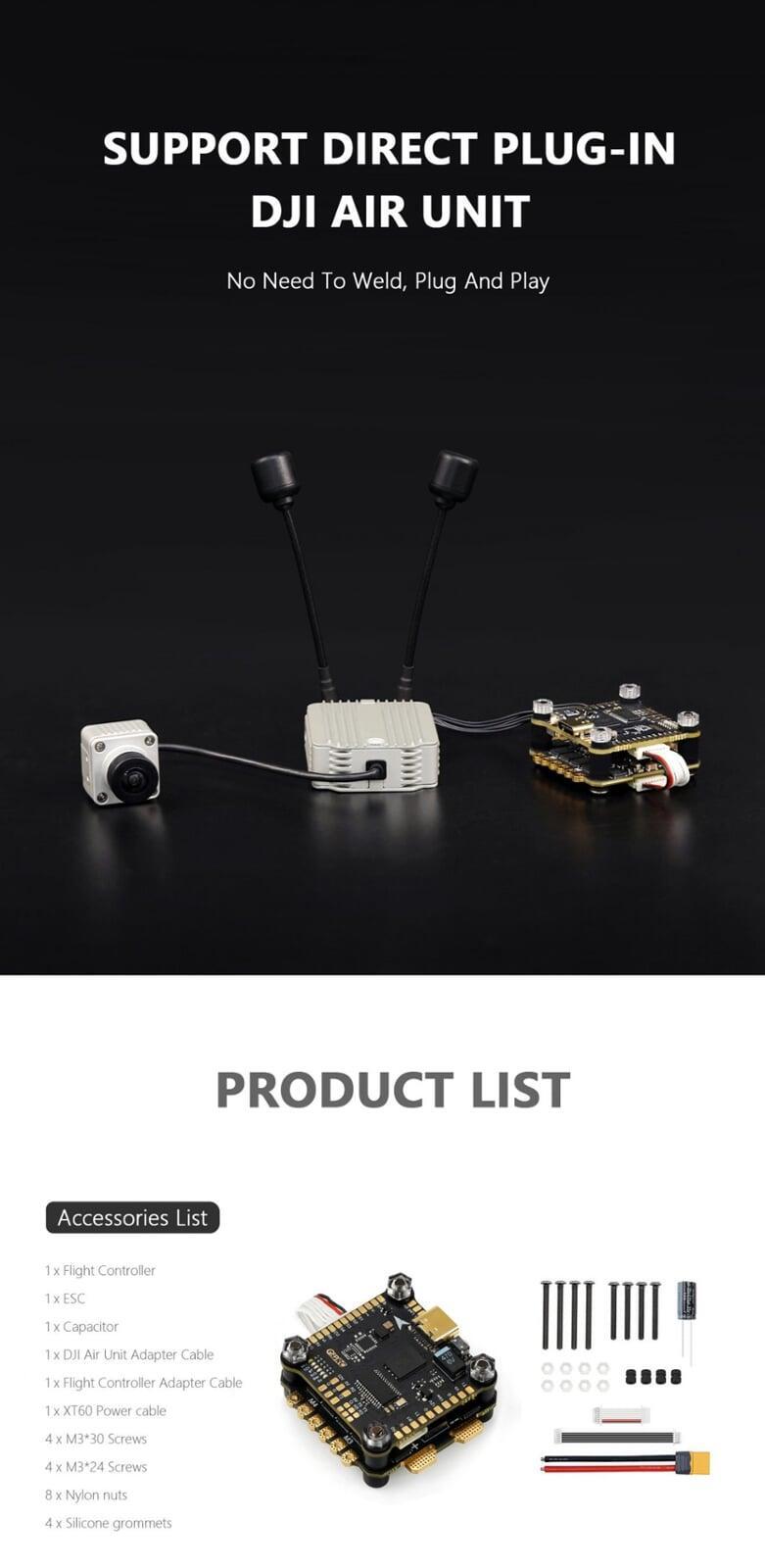

Q1. What is the benefit of the "HD" feature in the GEPRC SPAN F722 50A BT HD V2 stack?

Ans. The "HD" feature means this stack is specifically designed and optimized for digital FPV systems like DJI Air Unit or Walksnail. It often includes a dedicated plug and robust power filtering on the FC's BEC, which provides a clean and stable power supply to the HD VTX. This minimizes electrical noise and ensures a reliable, clear digital video feed, which is essential for a high-quality FPV experience.

Q2. How does the integrated Bluetooth on this stack simplify drone configuration?

Ans. The integrated Bluetooth on the GEPRC SPAN stack allows you to wirelessly connect your drone to a mobile app (such as the SpeedyBee app). This eliminates the need to plug in a USB cable to your computer for basic tuning, PID adjustments, or changing settings in Betaflight. This feature is a significant convenience, making quick configuration changes at the flying field much easier and more efficient.

Q3. What kind of drone builds are best suited for this 50A FC+ESC stack?

Ans. The GEPRC SPAN F722 50A stack is best suited for high-performance 5-inch, 6-inch, or 7-inch FPV drone builds. The powerful F7 processor and high 50A current rating of the ESC can handle the demands of powerful motors and larger propellers used for aggressive freestyle, long-range endurance, or cinematic builds that carry heavier cameras.
