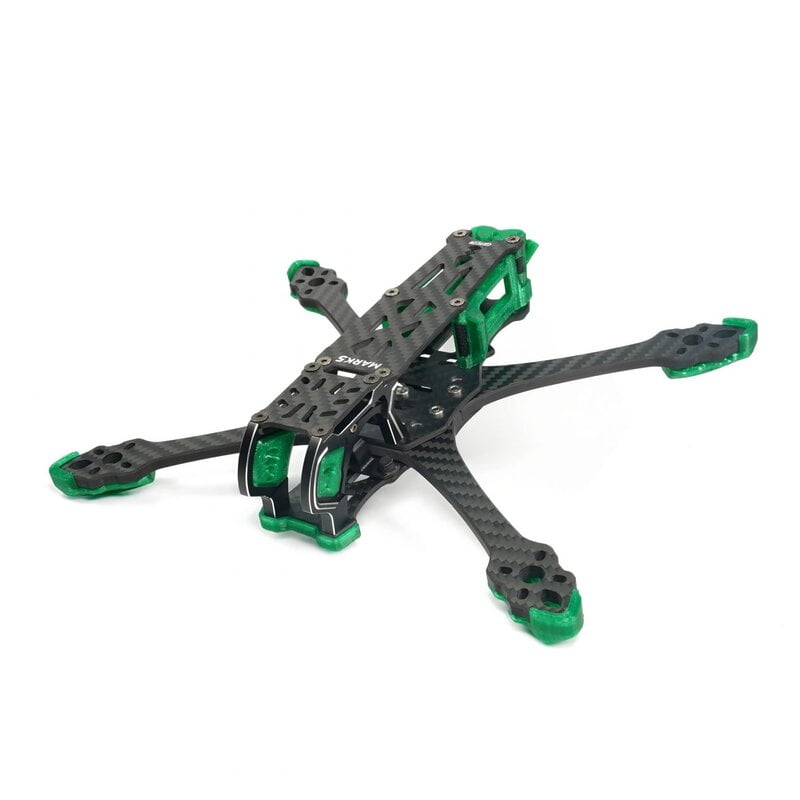

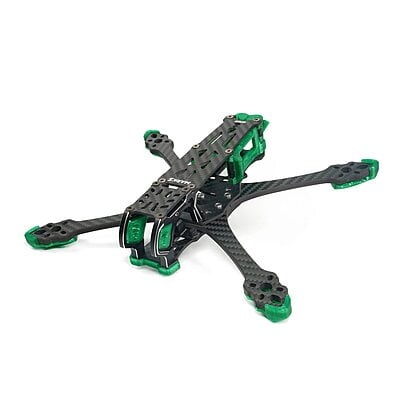

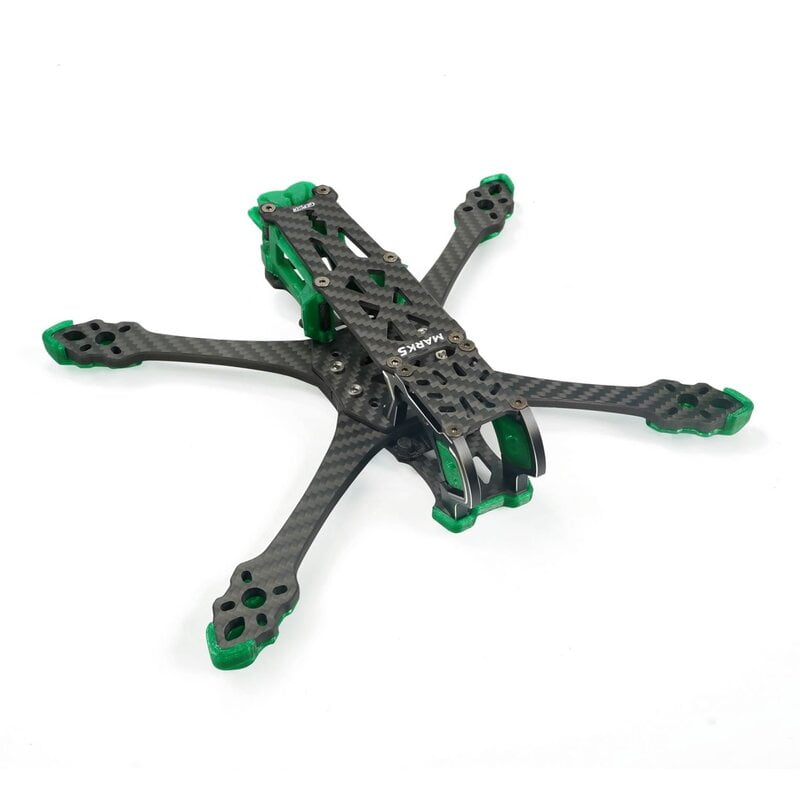

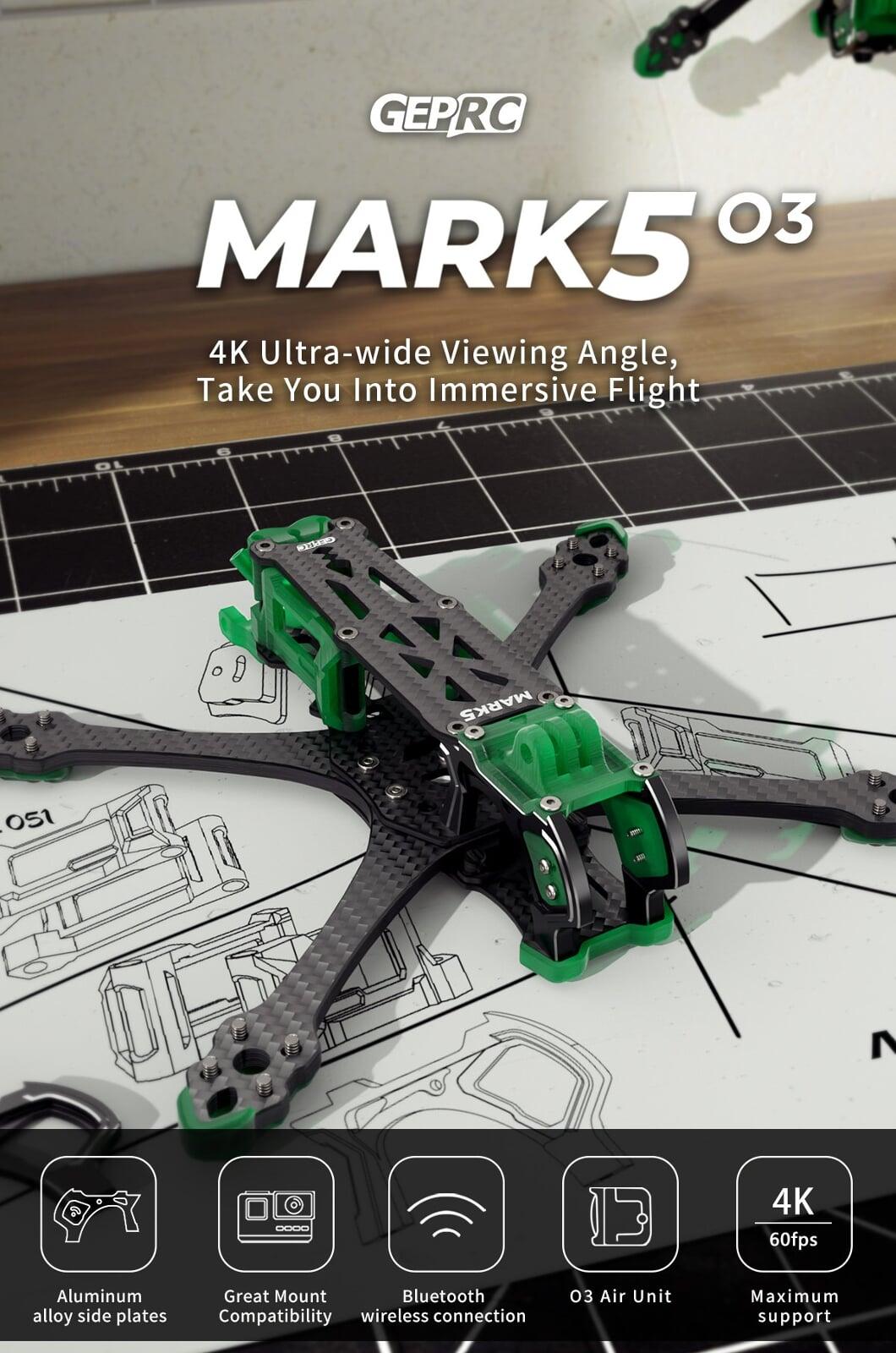

GEPRC GEP MK5X O3 Squashed X Frame Kit
₹4,849.00 ₹10,999.00
Out of stock
The GEPRC GEP MK5X O3 Squashed X Frame Kit is a robust and performance-oriented frame designed for FPV freestyle and cinematic flying. Its squashed X configuration enhances stability and protects vital electronics, while the durable carbon fiber construction ensures resilience during aggressive maneuvers. Ideal for pilots seeking a reliable and agile platform for their O3 Air Unit builds.
Product Details
Features:

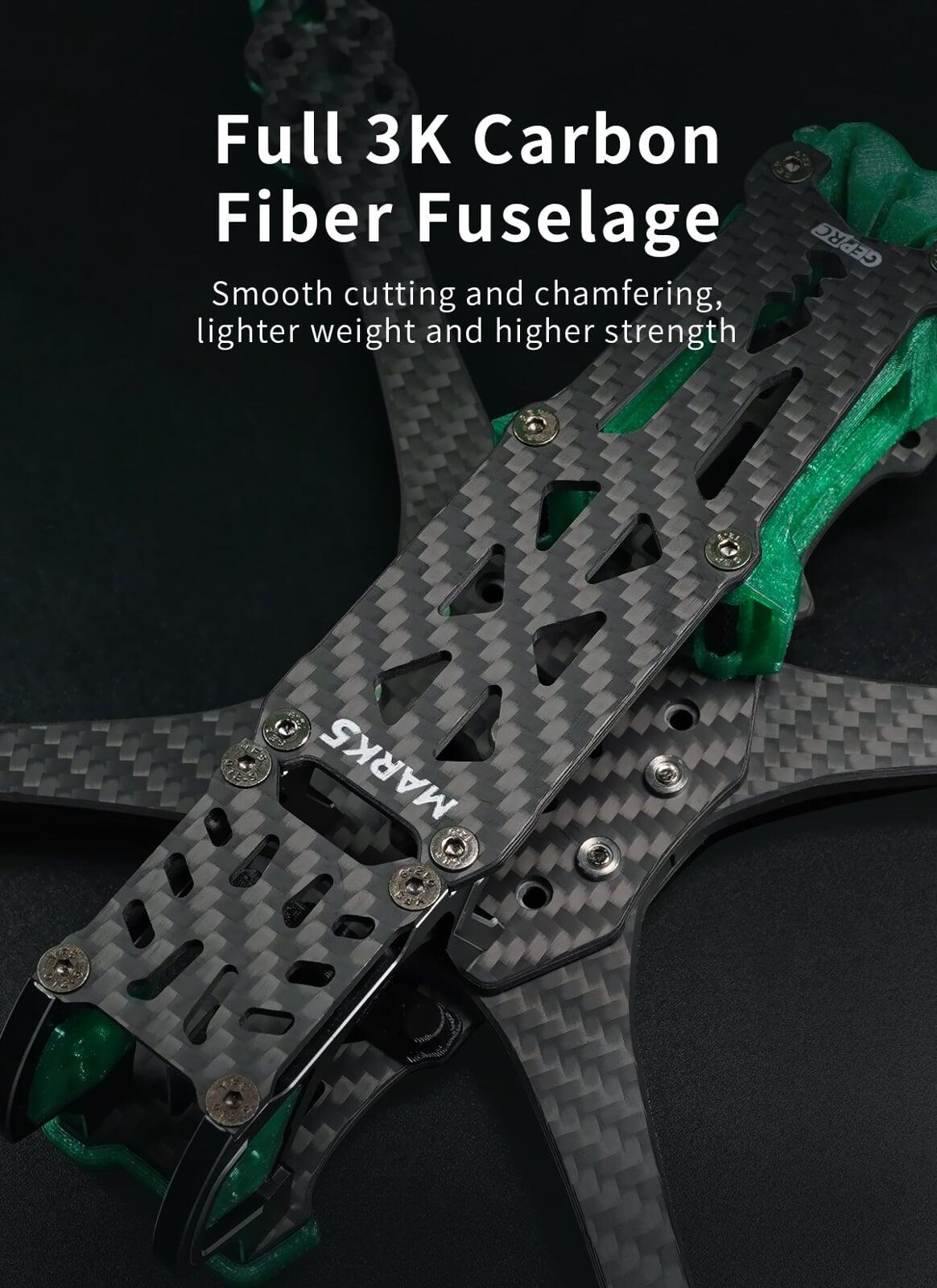

- Durable carbon fiber construction.

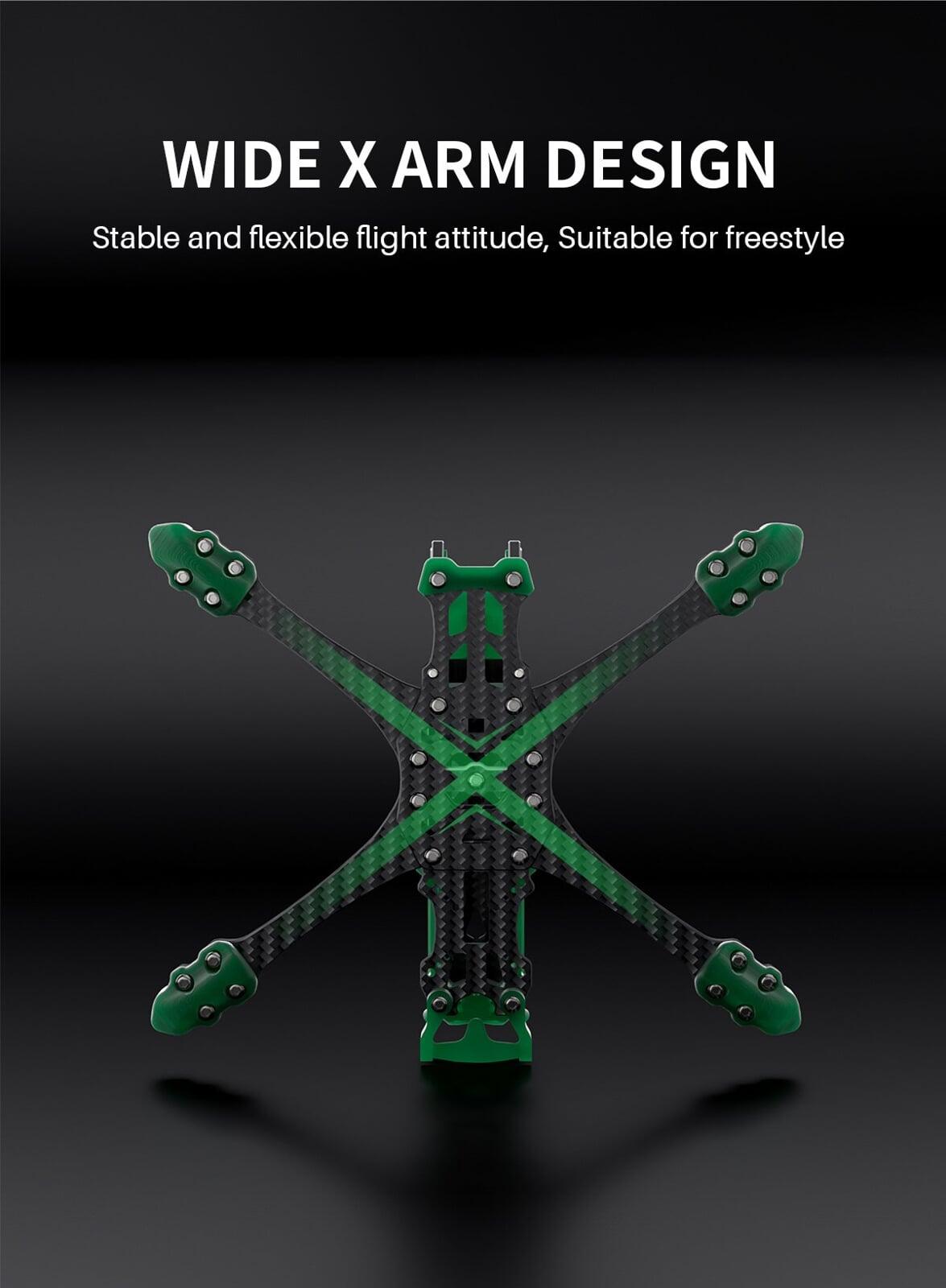

- Squashed X design enhances stability.
- Protects sensitive electronics.

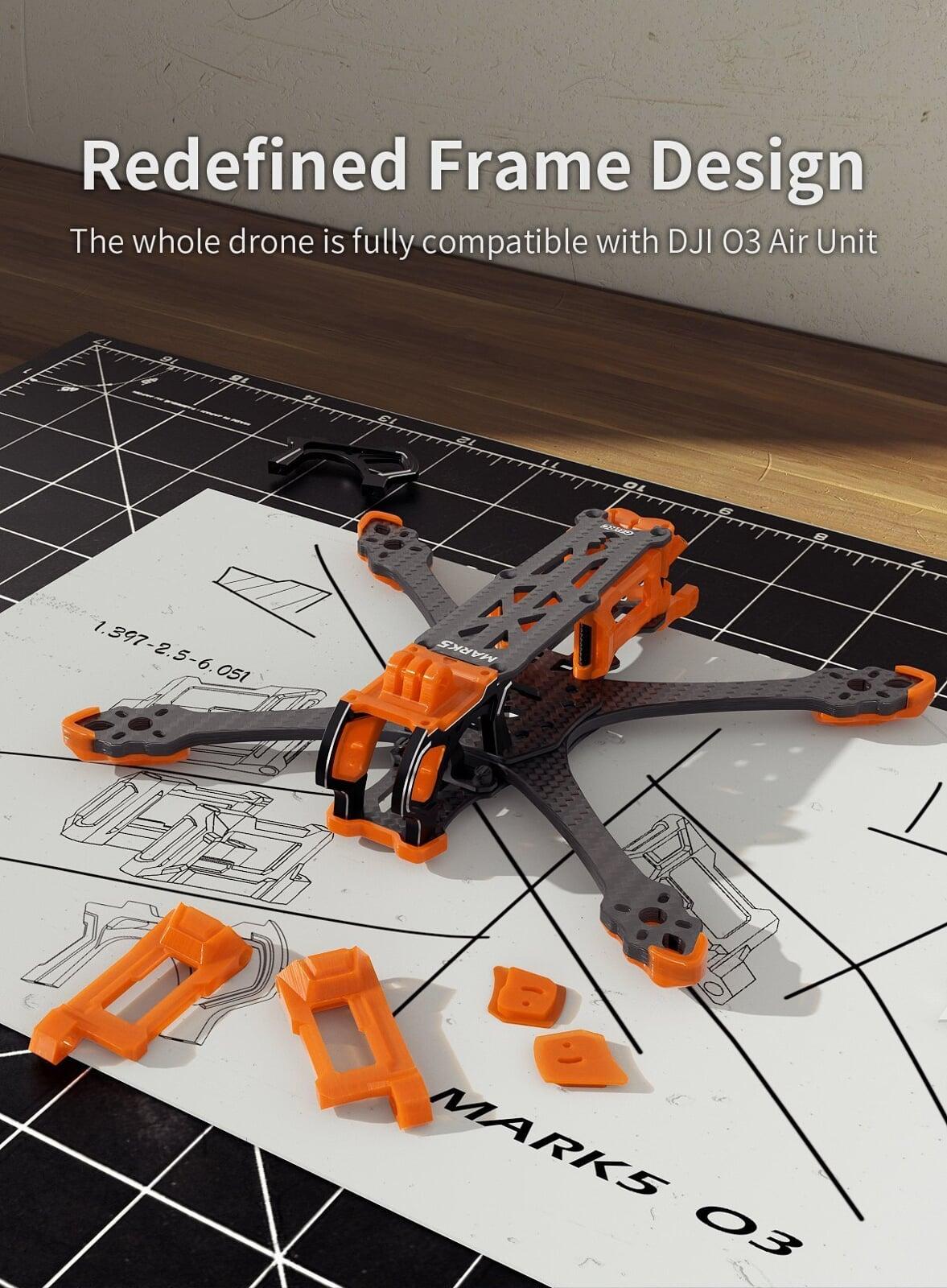

- Optimized for O3 Air Unit.
- Ideal for freestyle flying.
- High-quality hardware included.
- Lightweight for agile flight.
- Easy assembly process.

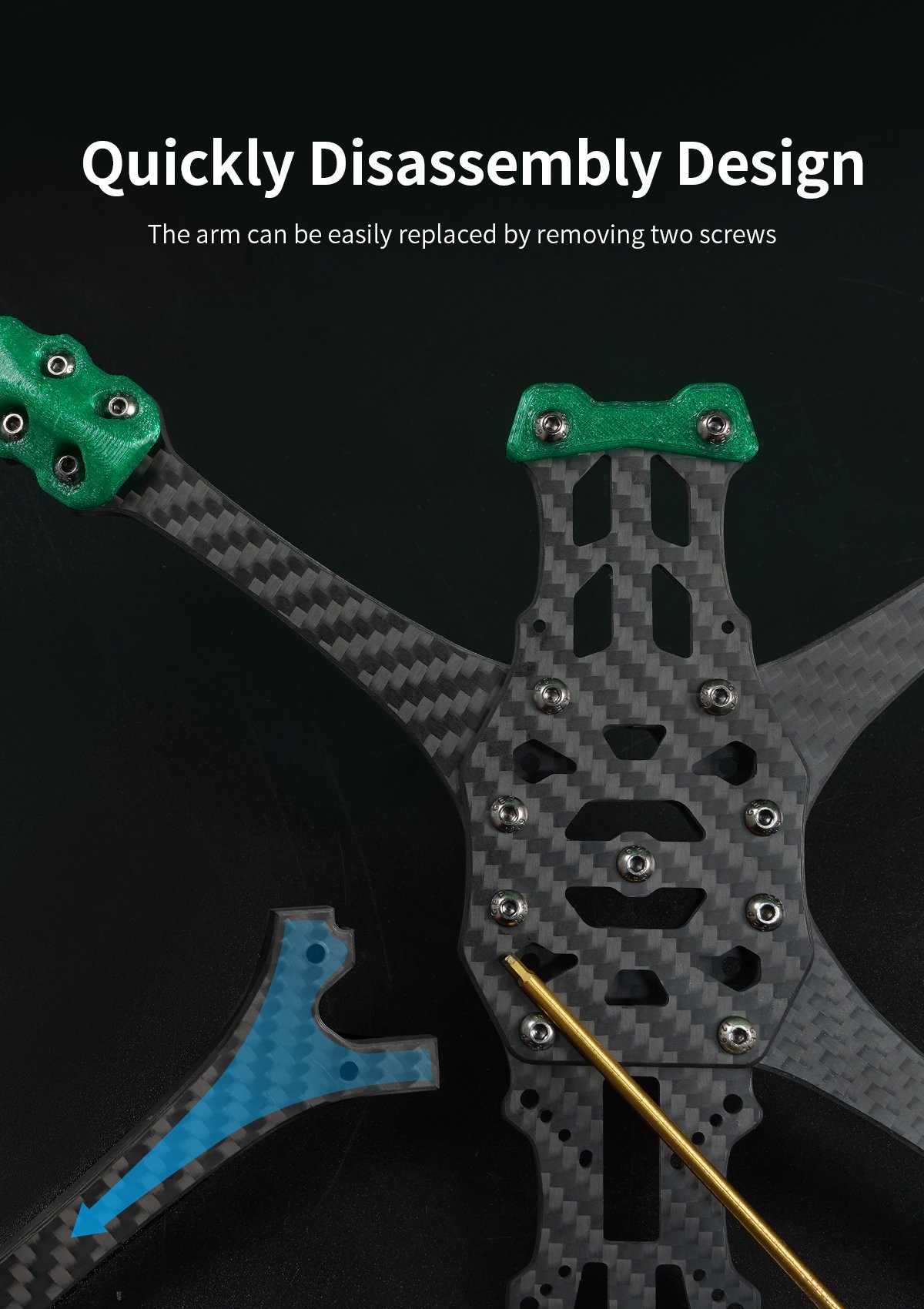

- Replacement parts available.
- Excellent vibration dampening.
Technical Details:

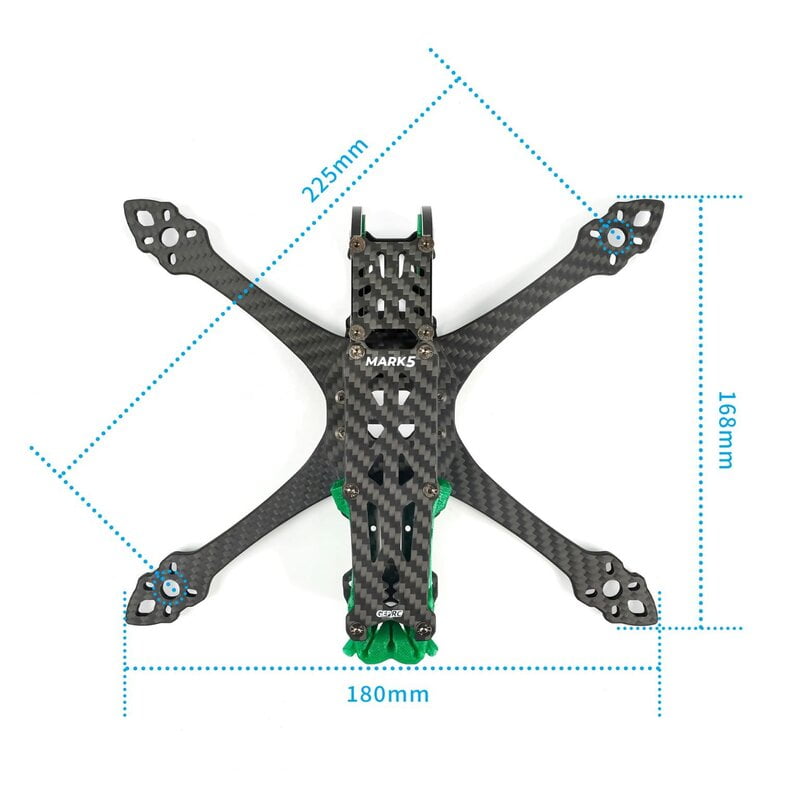

- Wheelbase: 225mm
- Top plate: 2.5mm
- Bottom plate: 2.5mm
- Arm plate: 5mm

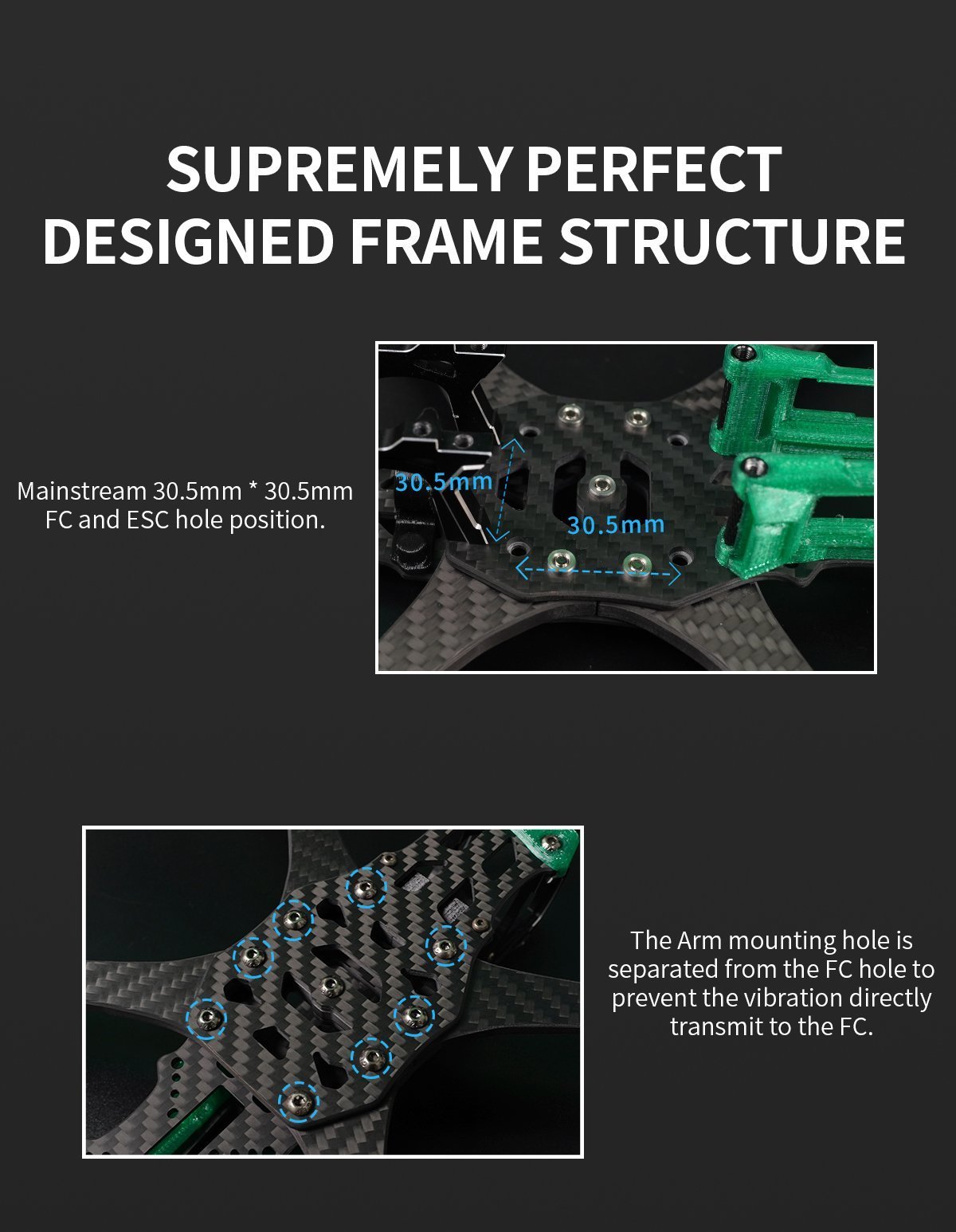

- FC mounting holes: 30.5mm x 30.5mm
- Camera installation space: 20mm
- Suitable propeller size: 5″propeller
- Dimension: 214mm x 168mm x 42mm
- Standard Version Weight: 141.9g
- Pro Version Weight: 156.1g
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: FPV Drone Frame, Quadcopter Frame, Freestyle Frame, Drone Kit, O3 Frame
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Freestyle Piloting, Cinematic Drone Builds, DIY Drone Enthusiasts, Racing Drones (depending on build), Pilots using DJI O3 Air Unit
Package Details:
include:
Frame:
- 1 x 2.0mm small top plate
- 1 x 2.5mm large top plate
- 1 x 2.5mm front bottom plate
- 1 x 2.5mm rear bottom plate

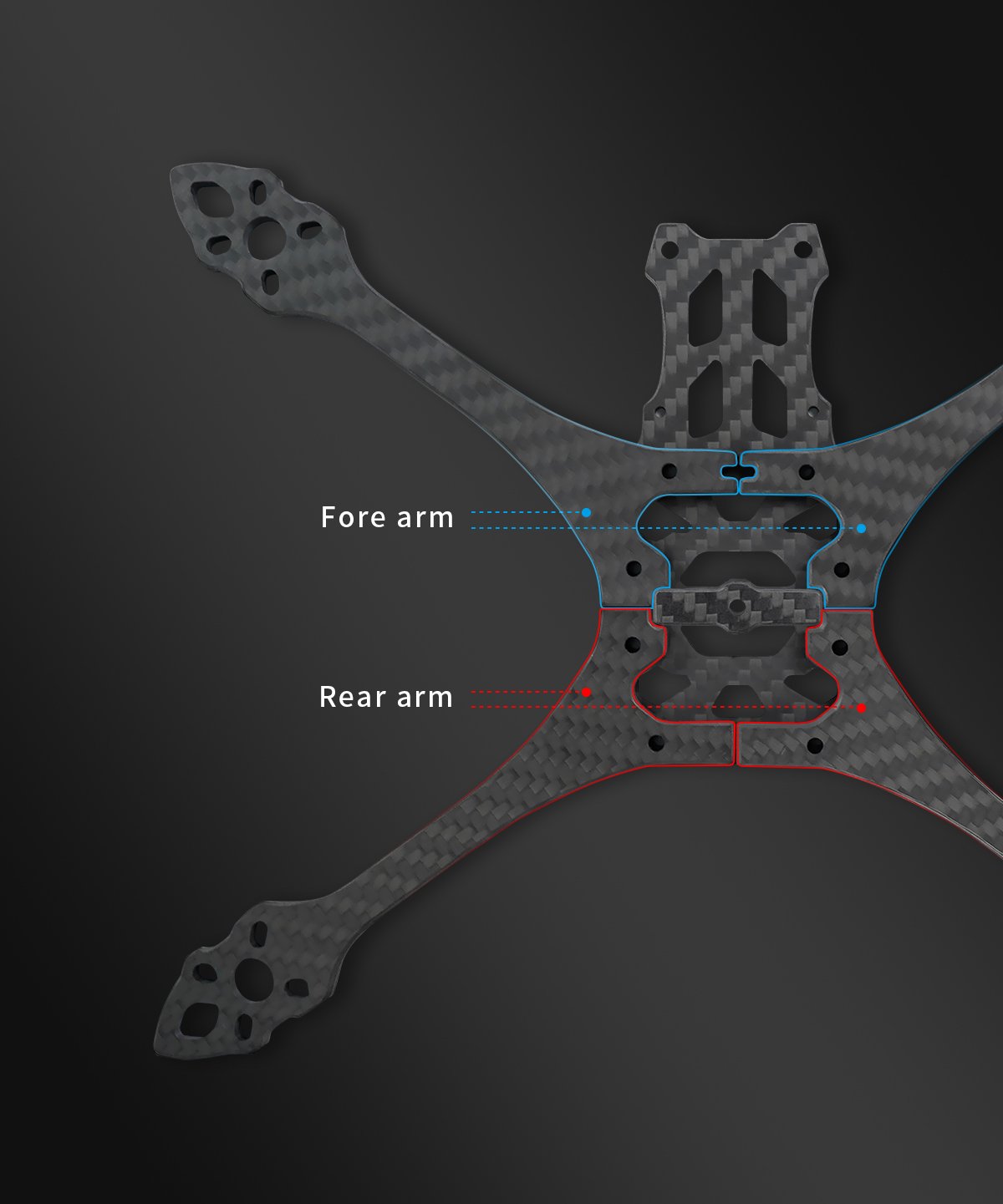

- 2 x 5.0mm front arms
- 2 x 5.0mm rear arms
- 1 x 5.0mm arm limit plate
- 1 x 2.0mm front protection plate

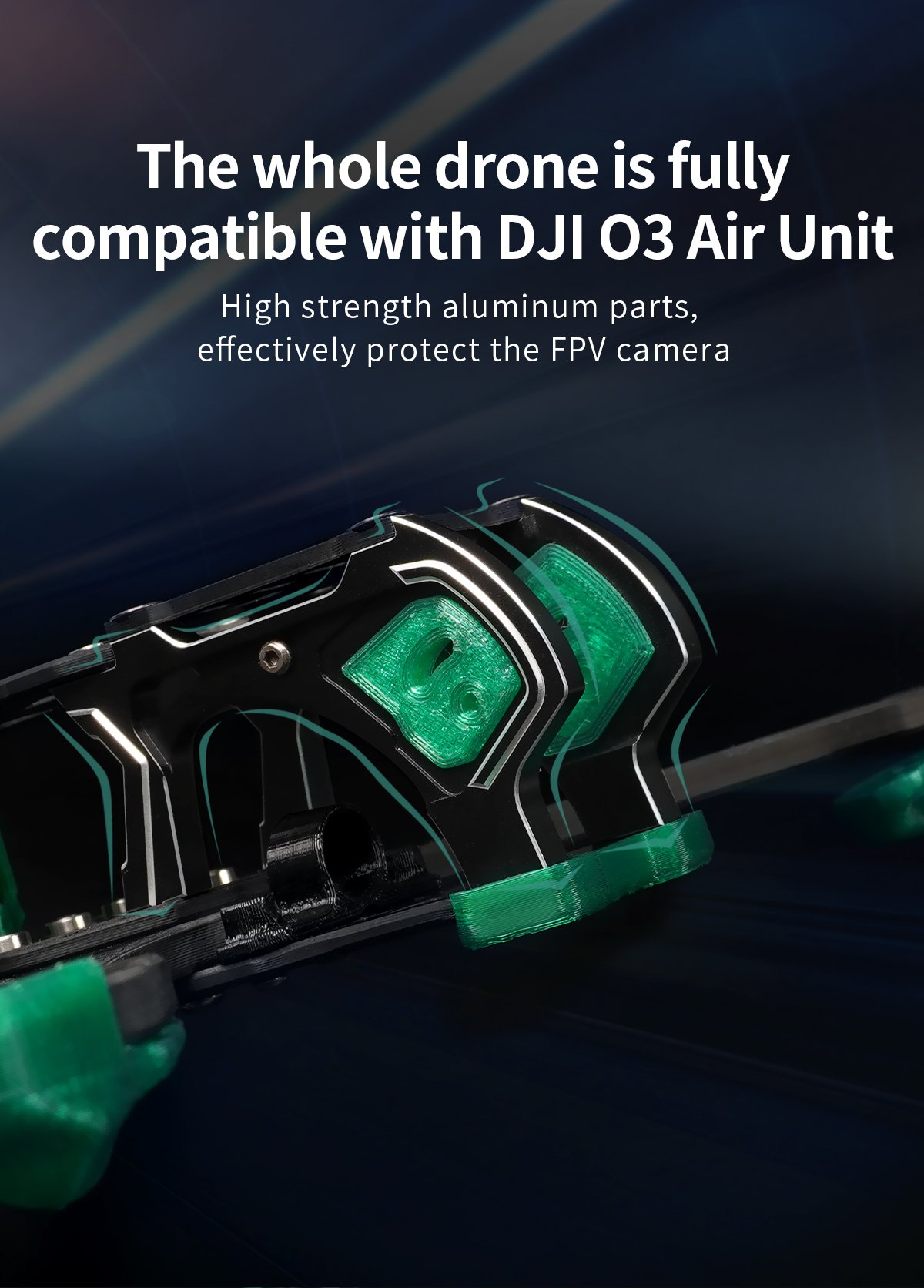

- 1 x Camera aluminum part
- 1 x Set of screws
3D printed parts:
- 1 x Camera vibration reduction mount
- 1 x O3 VTX mount
- 1 x VTX antenna mount
- 1 x TBS antenna mount
Accessories:
- 8 x M3x8 flight controller shock absorbing ball
- 4 x 10x50mm motor hubs
Other Accessories:
- 1 x M15x250 Batteries straps
- 2 x M20x250 Batteries straps
- 2 x Battery non-slip mat
- 8 x EVA tripod shock pads
- 1 x EVA camera base
- 1 x EVA camera base (with backrest)
- 1 x 3M double-sided tape
- 1 x 1.5mm L-type screwdriver
- 1 x 2.0mm L-type screwdriver
- 1 x Antenna fixed tube
Frequently Asked Questions:
Q1: Is this frame compatible with analog FPV systems?
A1: While primarily designed for the DJI O3 Air Unit, it may be possible to adapt analog FPV systems. However, specific mounting solutions and modifications might be required.
Q2: What size propellers does this frame support?
A2: The GEPRC GEP MK5X O3 Squashed X Frame Kit is designed to accommodate 5-inch propellers.
Q3: Does the kit include all necessary components to build a complete drone?
A3: No, this is a frame kit only. You will need to purchase motors, ESCs, flight controller, FPV system (like the O3 Air Unit), battery, receiver, and propellers separately to complete your drone build.
