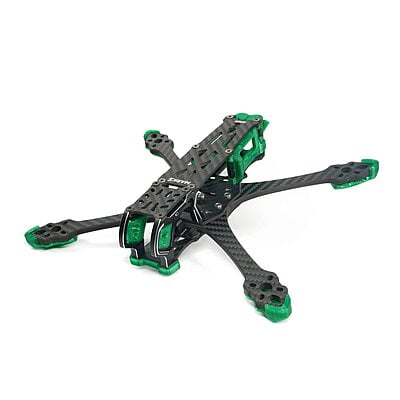

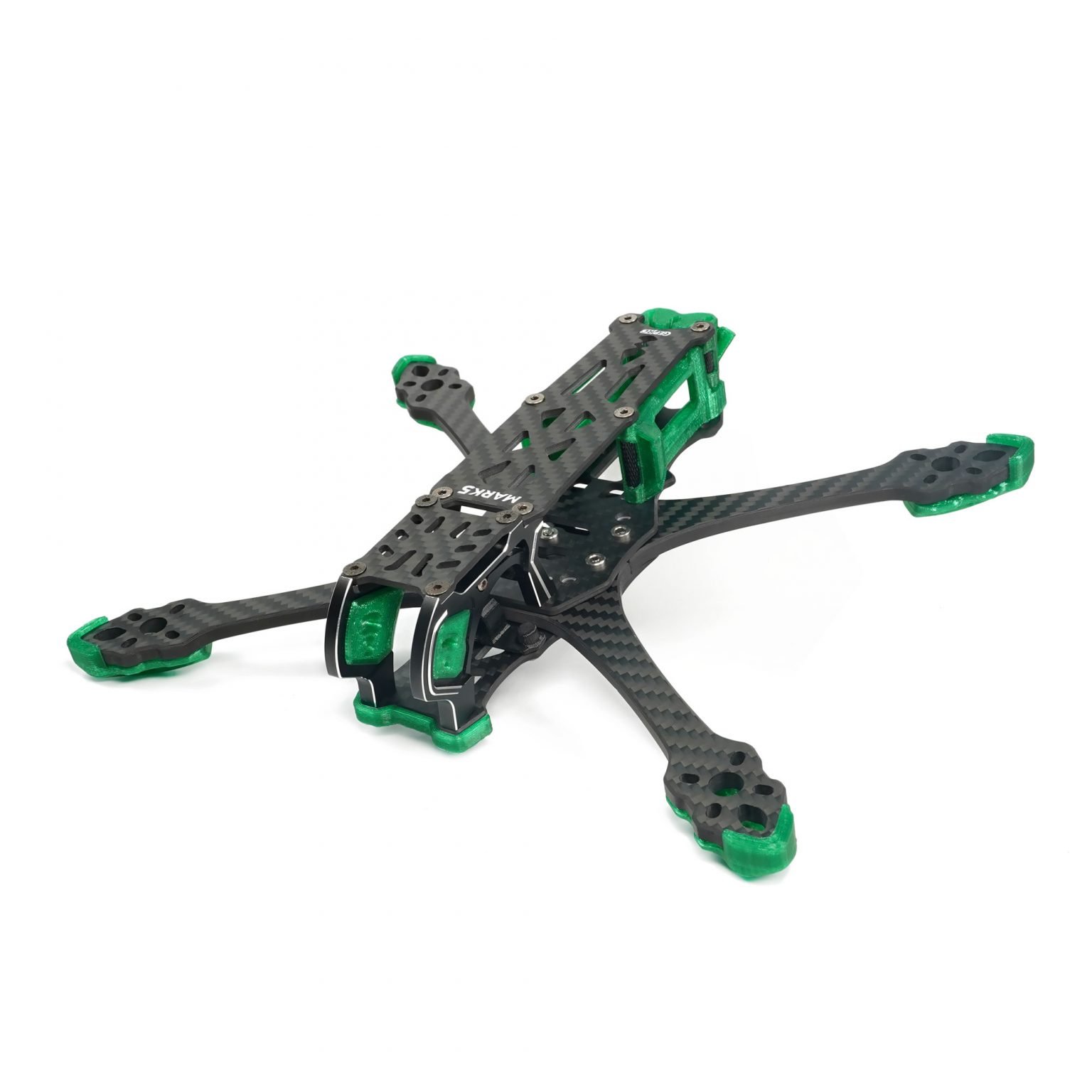

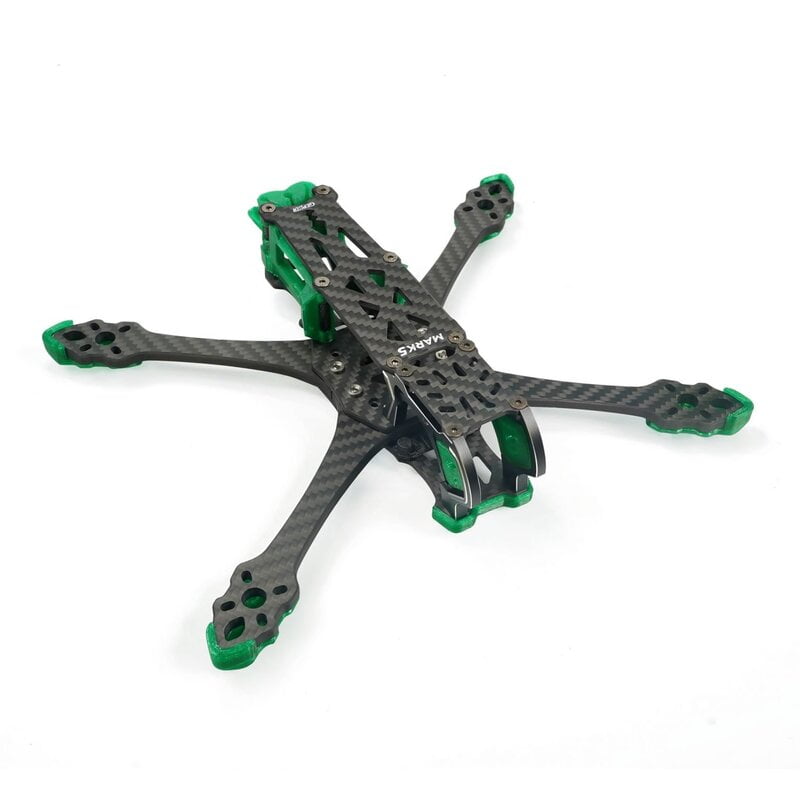

GEPRC GEP MK5X O3 Pro Squashed X Frame Kit

FEATURES:

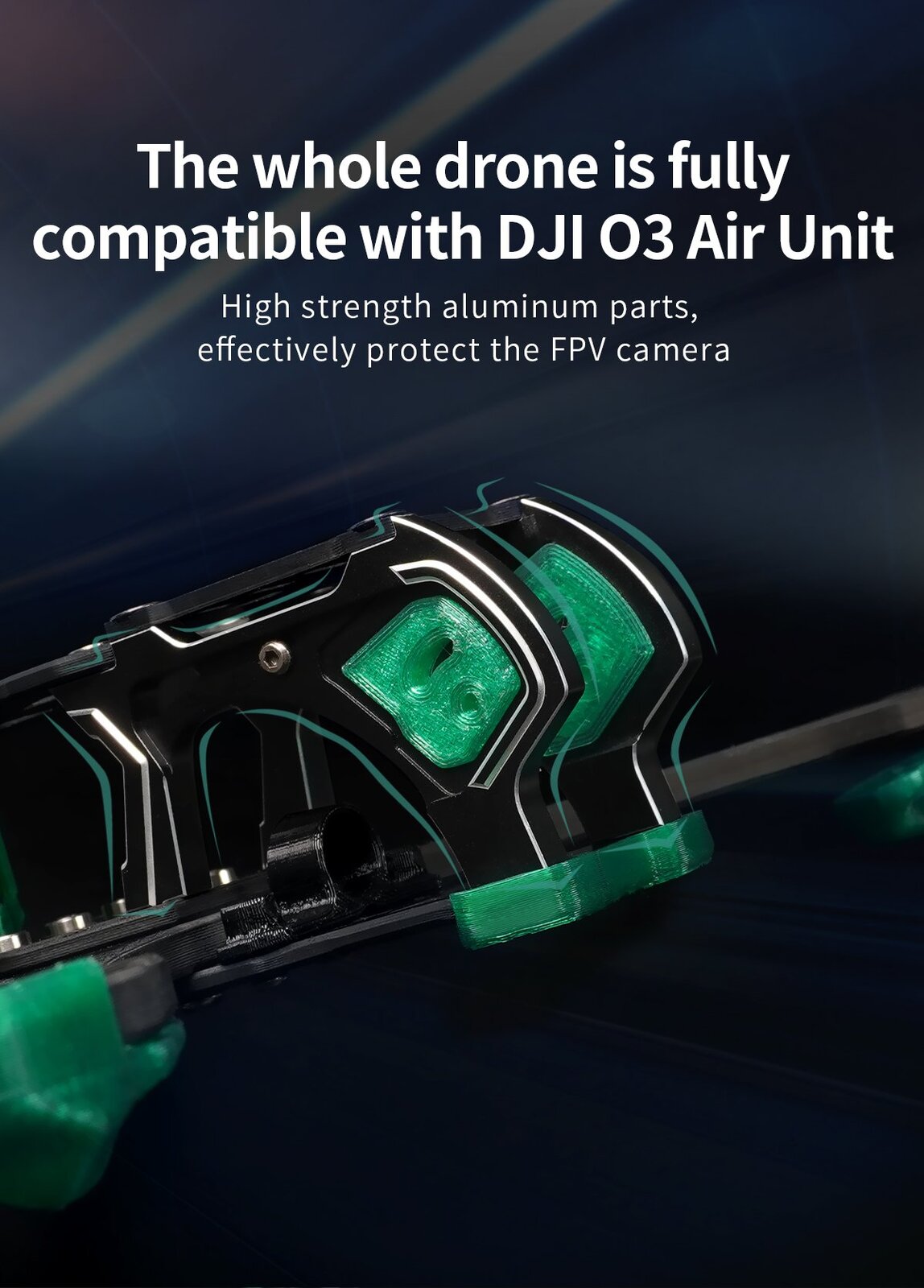

• Upgraded lens aluminum alloy side plate, durable and more visual impact

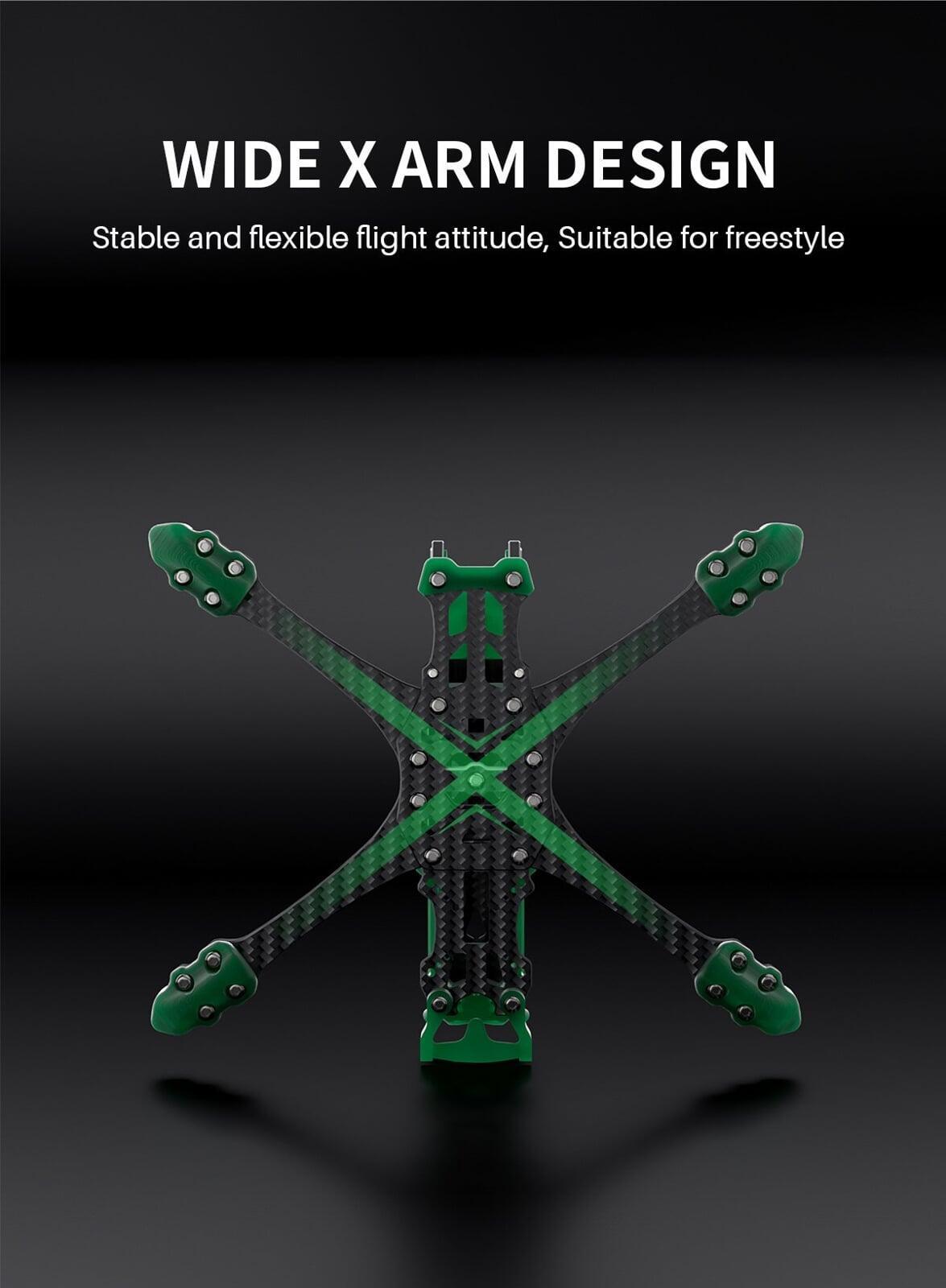

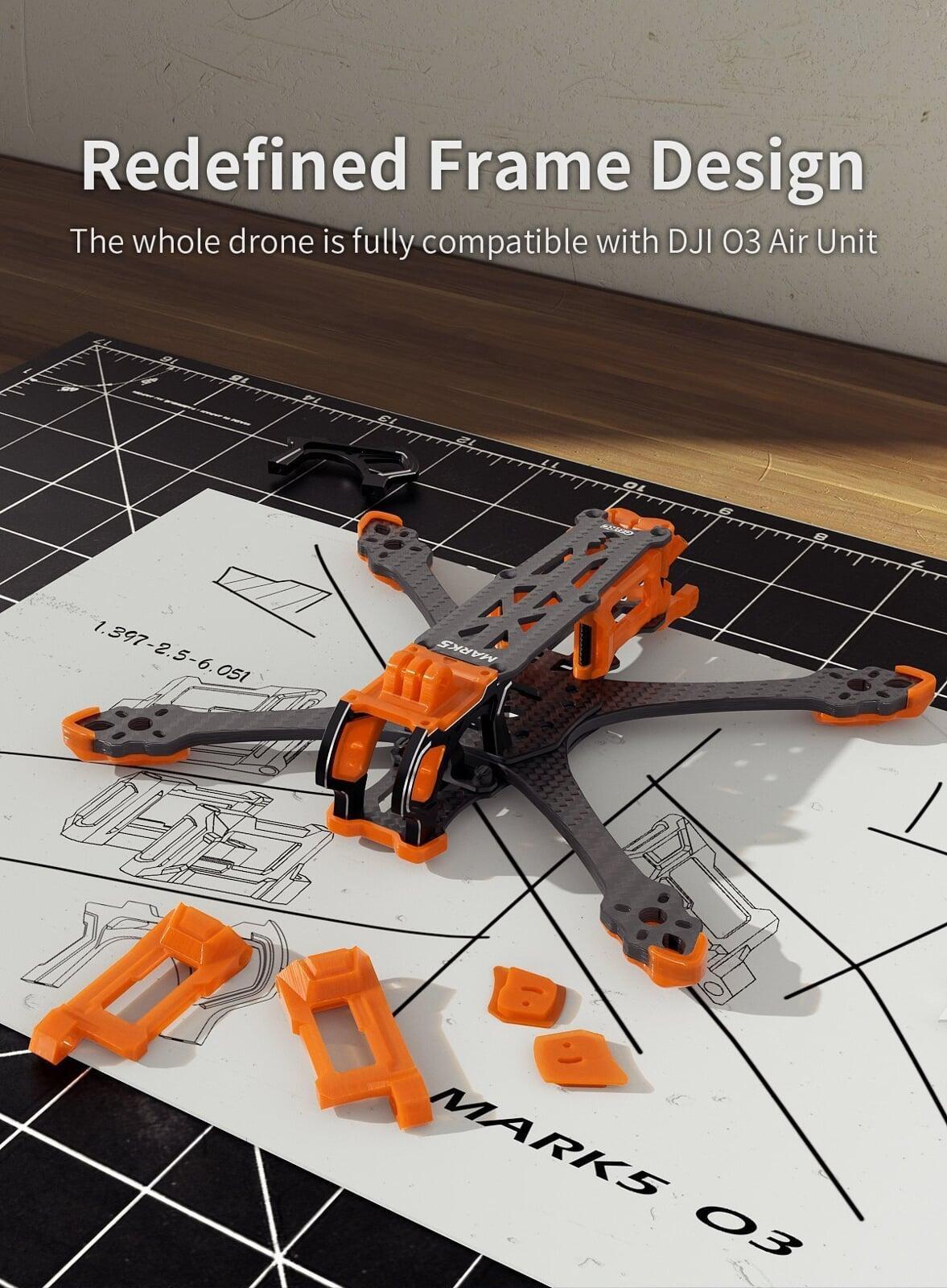

• Developed specifically for freestyle with squashed X arm design.

• Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment

• With independent capacitor and buzzer cabin, the operating environment of the whole drone is extremely stable, no shaking, no jitter

• Two kinds of 3D printing camera mounts are designed, which can be mounted with a full range of GP cameras, as well as Naked camera GP 8,Insta 360 GO2 and Caddx Peanut cameras. The shooting effect is stable and clear

•  Add coral orange and emerald green colors to the O3 version to add more colors to your flight.

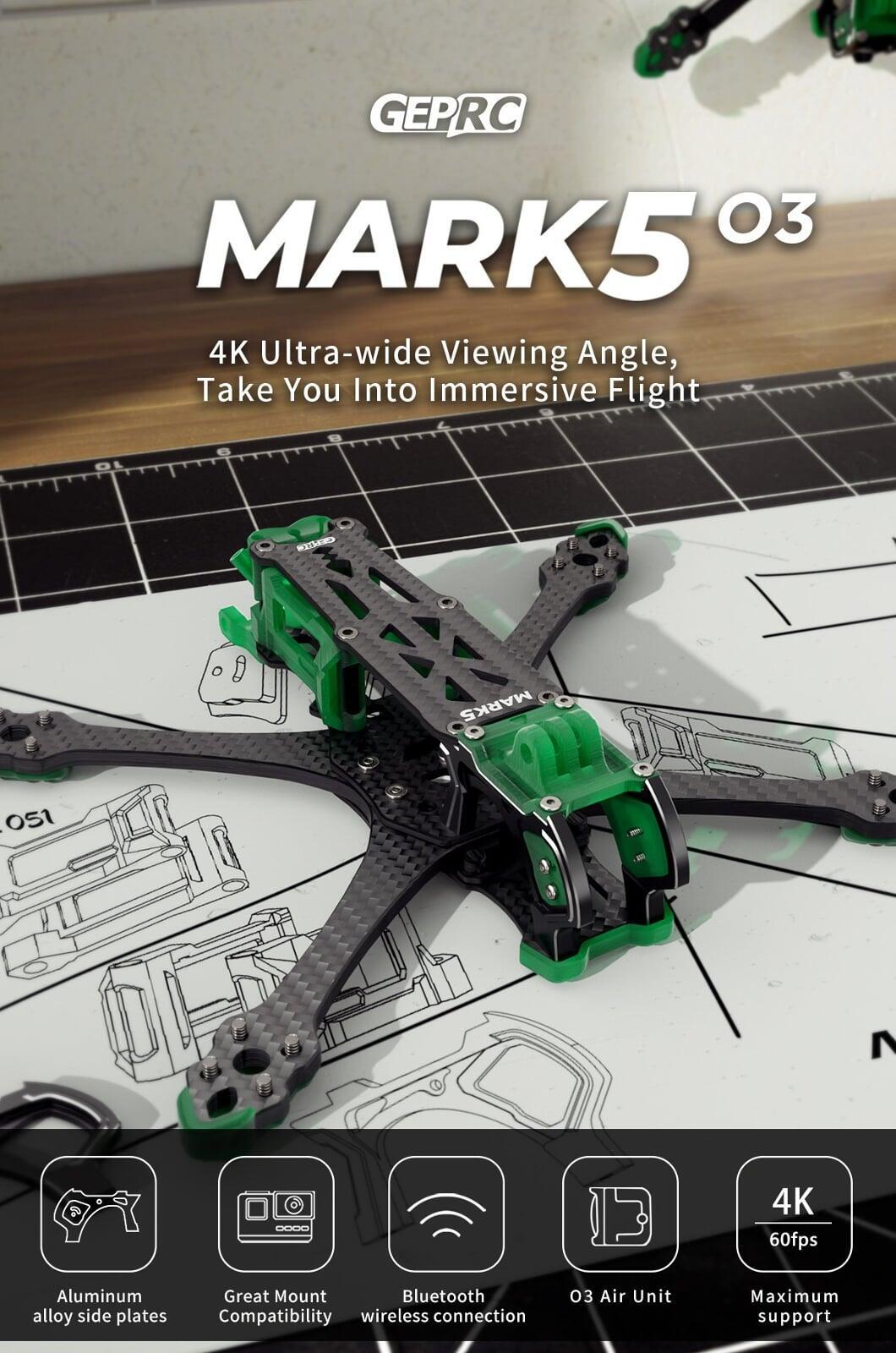

• MARK5 O3 is optimized for freestyle, with a smoother flight experience

SPECIFICATION:

• GEP-MK5X O3

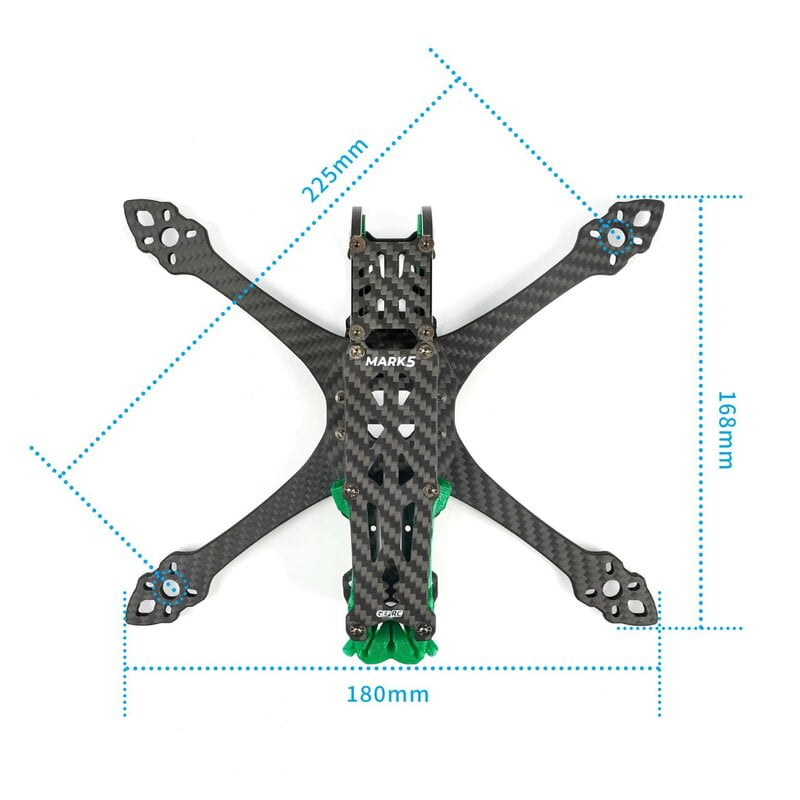

• FrameWheelbase: 225mm

• Top plate: 2.5mm

• Bottom plate: 2.5mm

• Arm plate: 5mm

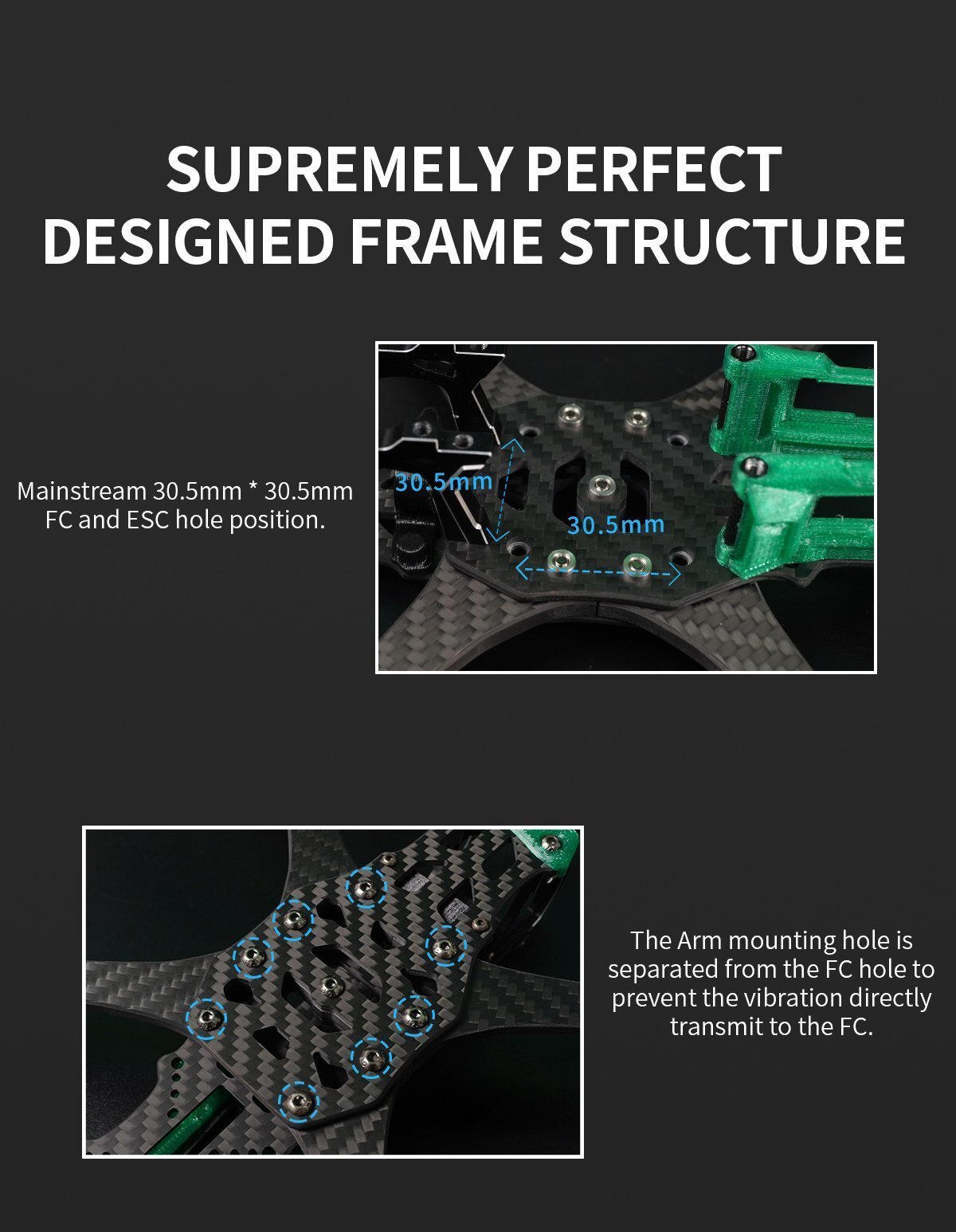

• FC mounting holes: 30.5mm x 30.5mm

• Camera installation space: 20mm

• Suitable propeller size: 5″propeller

• Dimension: 214mm x 168mm x 42mm

• Standard Version Weight: 141.9g

• Pro Version Weight: 156.1g

Specification:

GEP-MK5X O3 Frame:

• Wheelbase: 225mm

• Top plate: 2.5mm

• Bottom plate: 2.5mm

• Arm plate: 5mm

• FC mounting holes: 30.5mm x 30.5mm

• Camera installation space: 20mm

• Suitable propeller size: 5″propeller

• Dimension: 214mm x 168mm x 42mm

• Standard Version Weight: 141.9g

• Pro Version Weight: 156.1g


  GEP-MK5D O3 Frame:




• Wheelbase: 230mm

• Top plate: 2.5mm

• Bottom plate: 2.5mm

• Arm plate: 5mm

• FC mounting holes: 30.5mm x 30.5mm

• Camera installation space: 20mm

• Suitable propeller size: 5″propeller

• Dimension: 208mm x 193mm x 42mm

• Standard Version Weight: 168.0g

• Pro Version Weight: 197.0g

Additional Details:

• Manufacturer: GEPRC

• Brand: GEPRC

• Generic Name: FPV Drone Frame, Quadcopter Frame, Freestyle Frame, Carbon Fiber Frame

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV drone builders, freestyle pilots, cinematic FPV, and DIY drone projects.

Package Details:

• Includes

• Standard Edition List:

  Frame:

• 1 x 2.0mm small top plate

• 1 x 2.5mm large top plate

• 1 x 2.5mm front bottom plate

• 1 x 2.5mm rear bottom plate

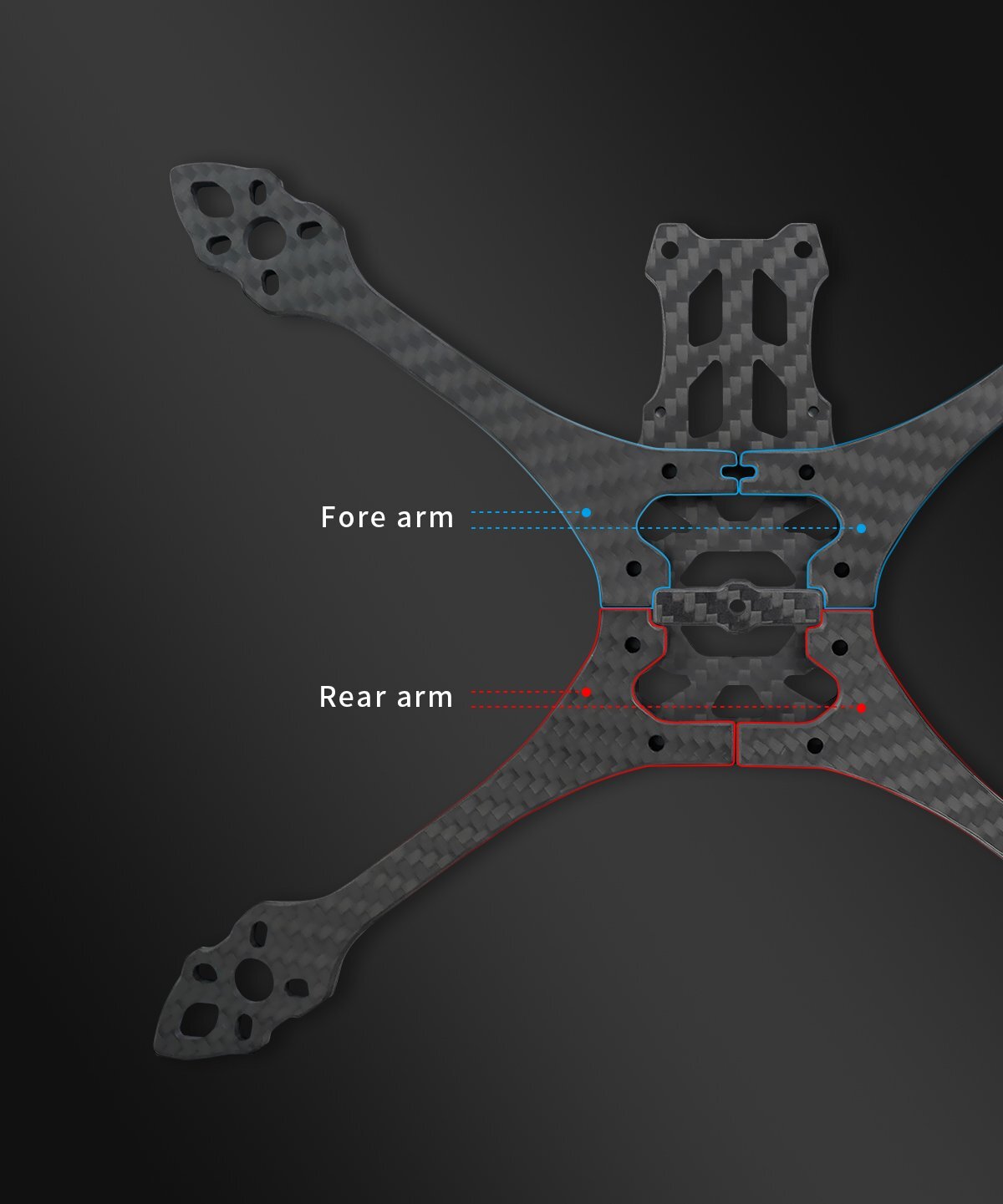

• 2 x 5.0mm front arms

• 2 x 5.0mm rear arms

• 1 x 5.0mm arm limit plate

• 1 x 2.0mm front protection plate

• 1 x Camera aluminum part

• 1 x Set of screws

•


  3D printed parts:




• 1 x Camera vibration reduction mount

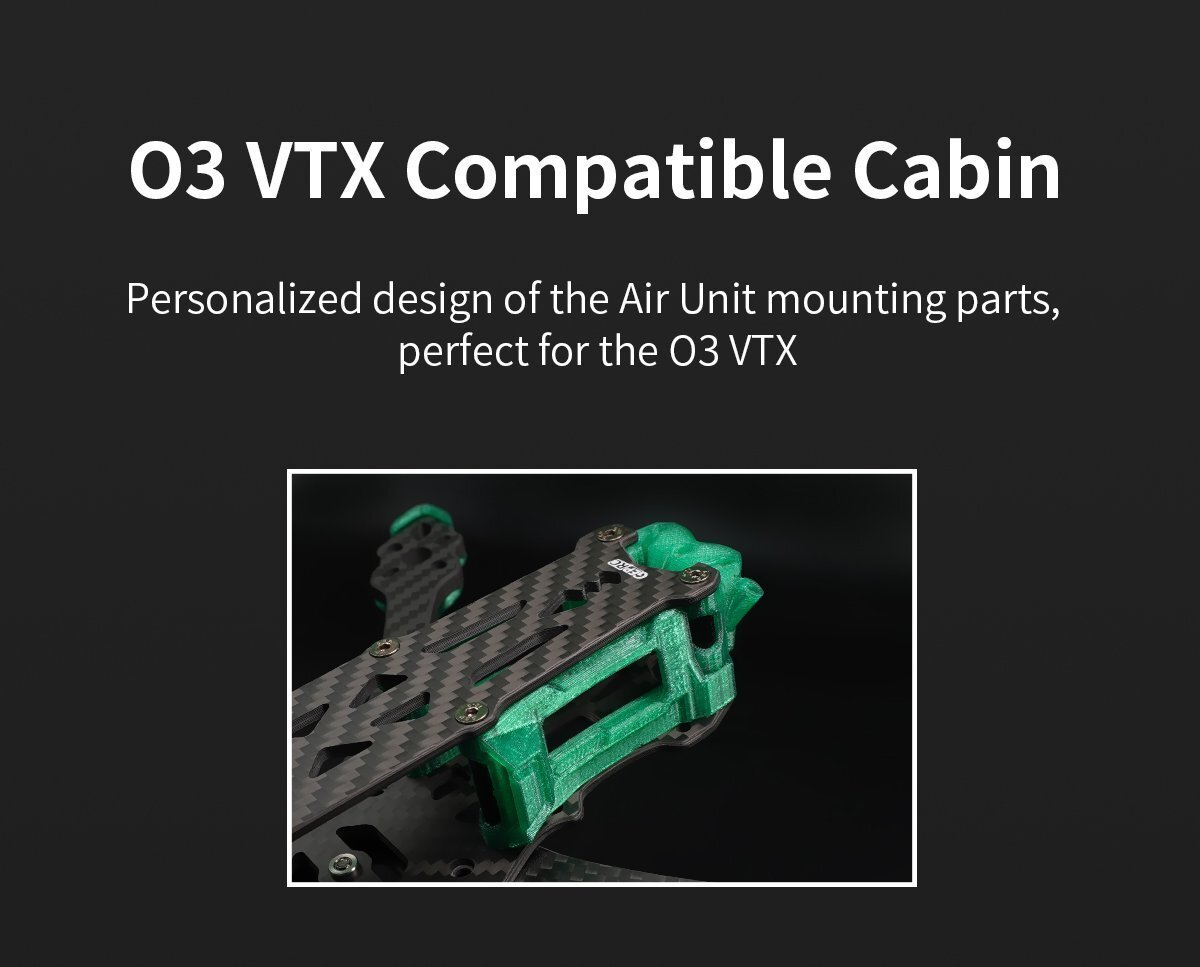

• 1 x O3 VTX mount

• 1 x VTX antenna mount

• 1 x TBS antenna mount




  Accessories:




• 8 x M3x8 flight controller shock absorbing ball

• 4 x 10x50mm motor hubs

Other Accessories:

• 1 x M15x250 Batteries straps

• 2 x M20x250 Batteries straps

• 2 x Battery non-slip mat

• 8 x EVA tripod shock pads

• 1 x EVA camera base

• 1 x EVA camera base (with backrest)

• 1 x 3M double-sided tape

• 1 x 1.5mm L-type screwdriver

• 1 x 2.0mm L-type screwdriver

• 1 x Antenna fixed tube

  Pro Edition List:

  Frame:

• 1 x 2.0mm small top plate

• 1 x 2.5mm large top plate

• 1 x 2.5mm front bottom plate

• 1 x 2.5mm rear bottom plate

• 2 x 5.0mm front arms

• 2 x 5.0mm rear arms

• 1 x 5.0mm arm limit plate

• 1 x 2.0mm front protection plate

• 1 x Camera aluminum part

• 1 x Set of screws




  3D printed parts:




• 1 x Front protector

• 4 x Motor shock pads

• 1 x Buzzer Holder

• 1 x VTX antenna mount

• 1 x TBS antenna mount

• 1 x GP camera mount

• 1 x Naked GP 8 camera Base

• 1 x Camera vibration reduction mount

  1 x O3 VTX mount




  Accessories:

• 8 x M3x8 flight controller shock absorbing ball

• 4 x 10x50mm Motor hubs




  Other Accessories:




• 1 x M15x250 Batteries straps

• 2 x M20x250 Batteries straps

• 2 x Battery non-slip mat

• 1 x EVA camera base

• 1 x EVA camera base (with backrest)

• 1 x 3M double-sided tape

• 1 x 1.5mm L-type screwdriver

• 1 x 2.0mm L-type screwdriver

• 1 x 3.0mm L-type screwdriver

• 1 x M8 Wrench

• 1 x Antenna fixed tube

Frequently Asked Questions:

Q1: Is this frame compatible with analog FPV systems?

ANS: Yes, while optimized for the DJI O3, it can accommodate analog systems as well.

Q2: What size motors are recommended for this frame?

ANS: This frame is designed for 2207 or 2306 size motors.

Q3: Does the kit include a camera or video transmitter?

ANS: No, this is a frame kit only. All electronics must be purchased separately.
