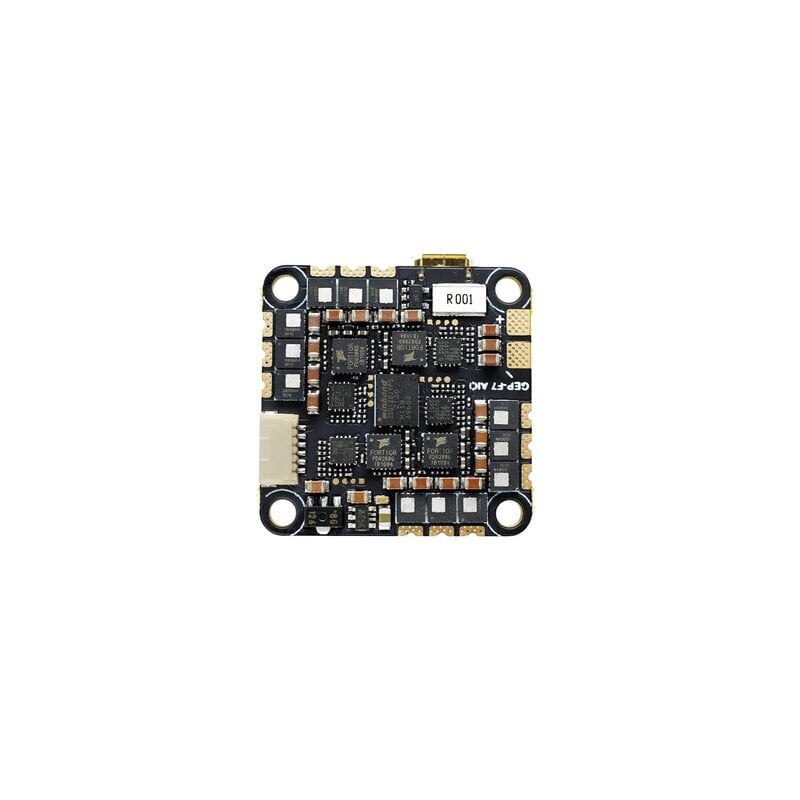

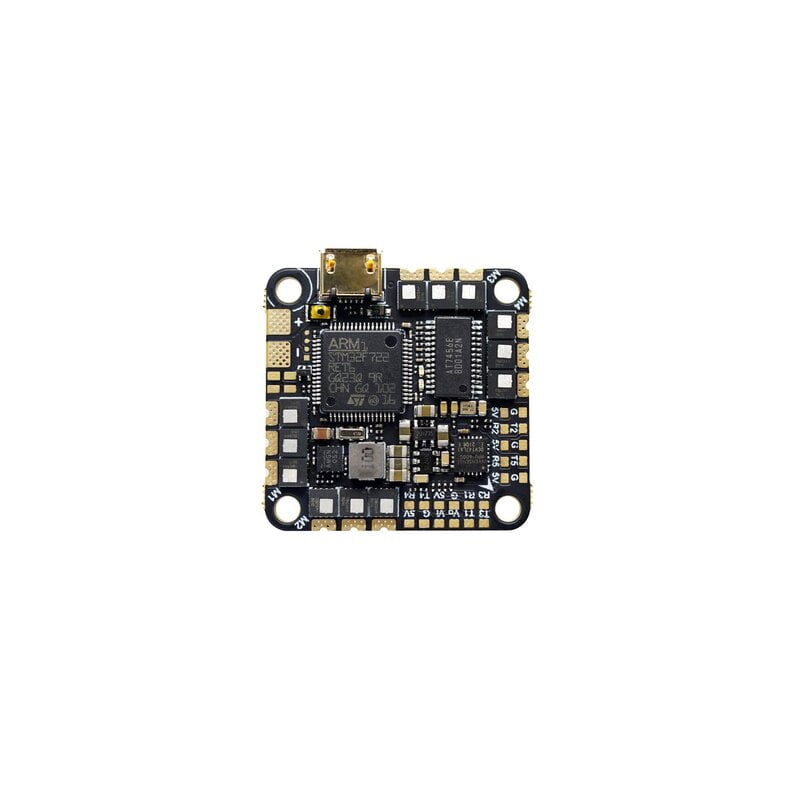

GEPRC GEP F722 45A AIO V2

Features :

• MCU:STM32F722,with strong performance and higher computing speed.

• It has 5 full UART ports, which can connect more external devices

• Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .

• The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.

• Support OSD parameter adjustment, buzzer, led and other functions.

• 8g ultra light weight

• 5mm * 25.5mm mounting hole, suitable for most frames

Technical Details:

• Model Name: GEP-F722-45A AIO V2

• MCU: STM32F722

• IMU: 42688 gyro/accelerometer(SPI)

• Firmware target: GEPRC_F722_AIO

• OSD: Betaflight OSD w/ AT7456Ev

• UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5

• Beeper: YES

• LED: YES

• USB: Micro USB

• BEC output: 5V@1A

• Intergrated LC Filter

• ESC MCU: 8BB21F16G

• Continuous current: 45A

• MAX current: 55A (10s)

• Input: 2~6S

• Supports: Dshot600,Oneshot,Multishot

• BlackBox: 16Mb

• Traget: G_H_30

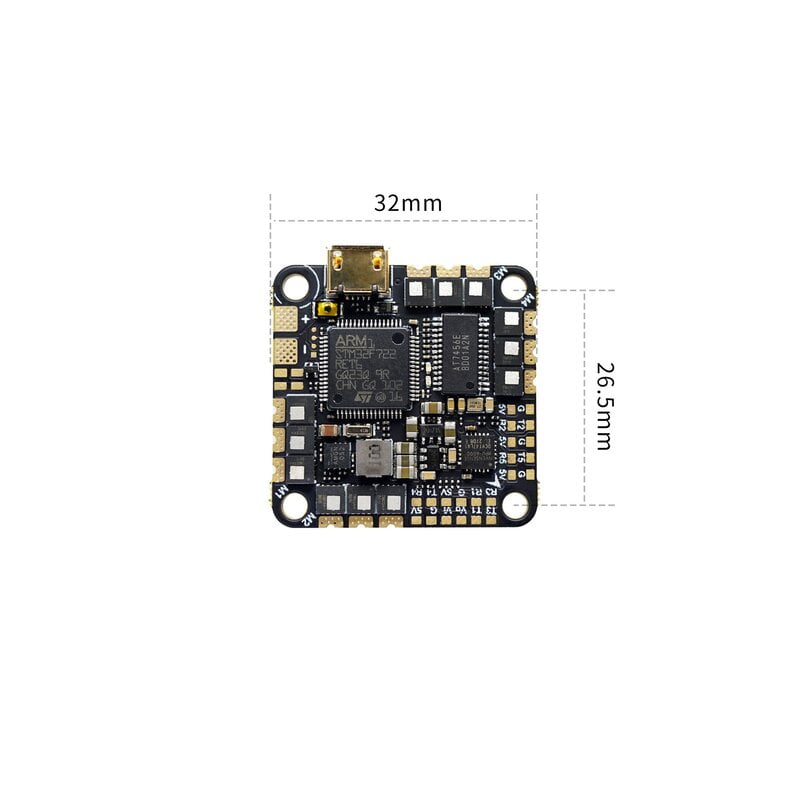

• Size: 32x32mm Board

• Mounting Hole: 25.5×25.5mm

• Weight: 8.8g

Additional Details:

• Manufacturer: GEPRC

• Brand: GEPRC

• Generic Name: Flight Controller || AIO Board || ESC || Drone Electronics || FPV Component || Quadcopter Board || FC ESC Stack || Drone Control Board || RC Electronics || Integrated Board

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Freestyle Drones || Cinewhoops || DIY Drone Builds || Small Quadcopters || 3-inch Drones || 4-inch Drones || 5-inch Drones || Digital FPV Systems || Analog FPV Systems

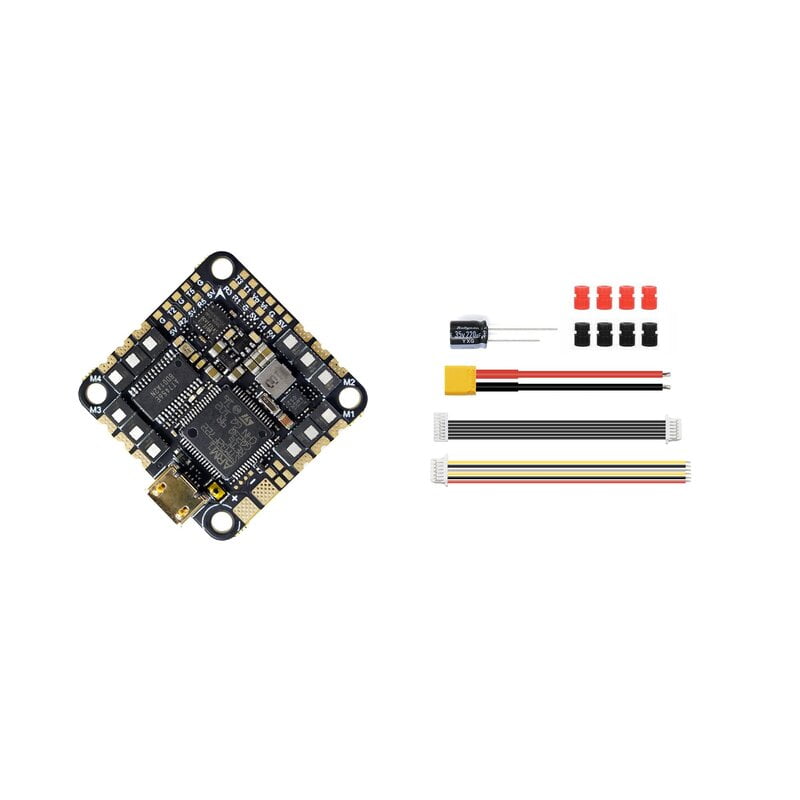

Package Details:

Includes:

• 1 x GEP-F722-45A AIO V2

• 1 x XT30-7CM-18AWG Power cables

• 1 x 35V220UF capacitor

• 1 x SH1.0-6Pin to GH1.25-8Pin cables

• 8 x M2*6.5mm Damping rings

Frequently Asked Questions:

Q1. What battery voltage range does this AIO support?

Ans. The GEPRC GEP F722 45A AIO V2 supports 2-6S LiPo input voltage.

Q2. Is this AIO board suitable for 5-inch FPV drones?

Ans. Yes, with its 45A ESC and F722 FC, it's highly suitable for 5-inch FPV freestyle and racing drone builds.

Q3. Does this board have a built-in OSD?

Ans. Yes, the GEPRC GEP F722 45A AIO V2 features an onboard AT7456E OSD chip for displaying flight data.
