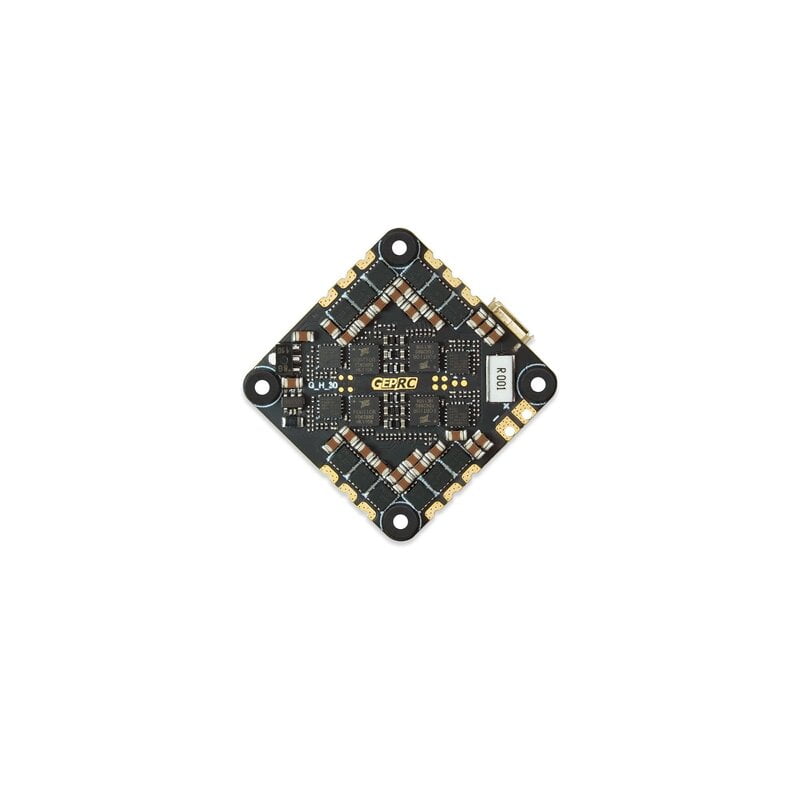

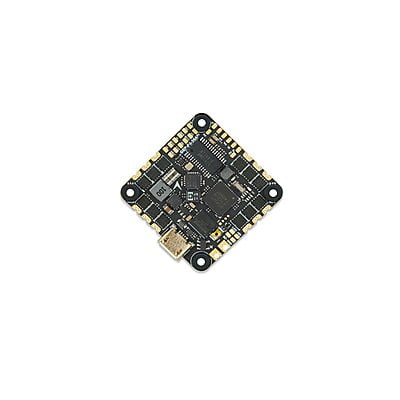

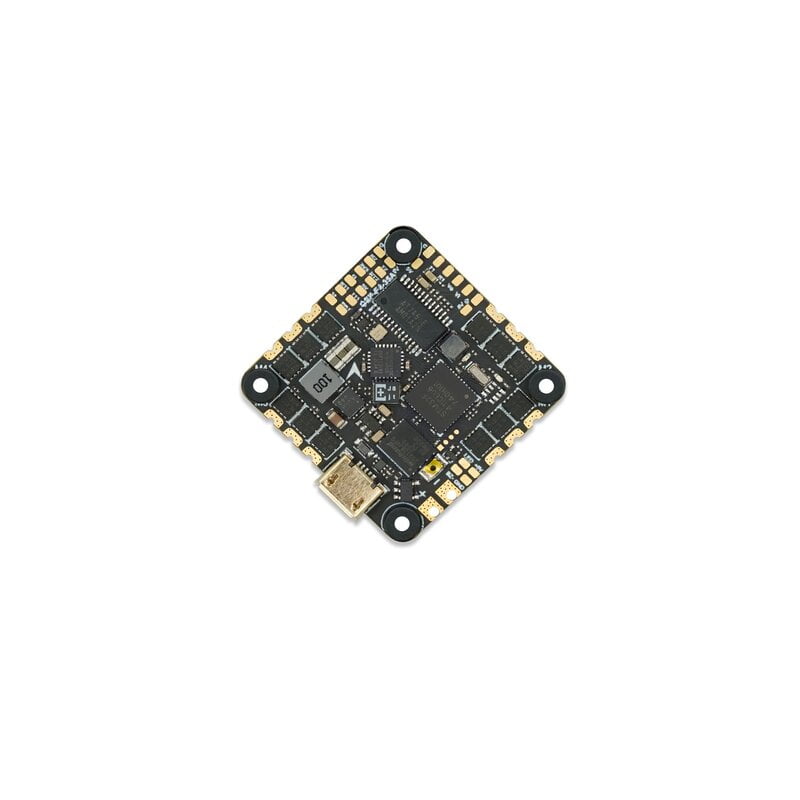

GEPRC-GEP F411 35A AIO (F411 FC 35A 2-6S 8bits BLS ESC 25.5mm)

Features:

• BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.

• Mainstream STM32F411 FC and runs stably.

• BMI270 gyroscope with 8K sampling frequency.

• Rich external ports, it supports buzzer and LED light function.

• 25.5mm * 25.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.

Technical Specifications:

• Model: GEP-F411-35A AIO

• MCU: STM32F411

• IMU: ICM42688-P(SPI)

• Target: GEPRC_F411_AIO

• OSD: Betaflight OSD w/ AT7456Ev

• UART Ports: T1 R1 / T2 R2

• Beep: YES

• LED: YES

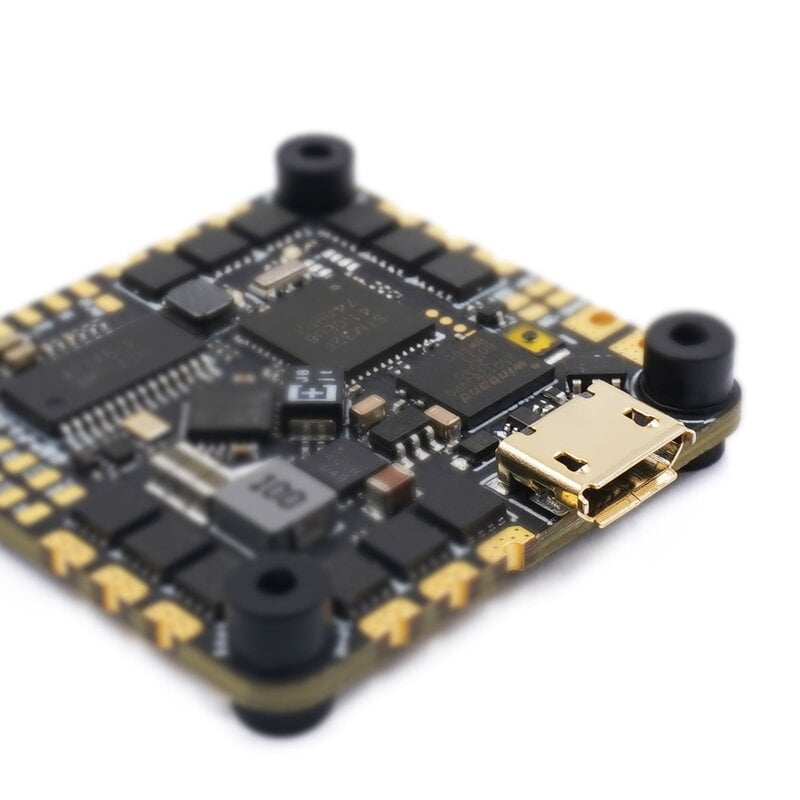

• USB Connector: micro USB

• ESC MCU: 8BB21F16G

• Intergrated LC Filter

• Continue Current: 35A

• Burst Current: 40A(10s)

• Input Voltage: 2~6S (LIPO Battery)

• ESC Protocol: Dshot300/600,Oneshot,Multishot

• Blackbox:16Mb

• ESC Target: G_H_30 BLS

• Size: 32x32mm Board

• Mount Holes: 25.5×25.5mm

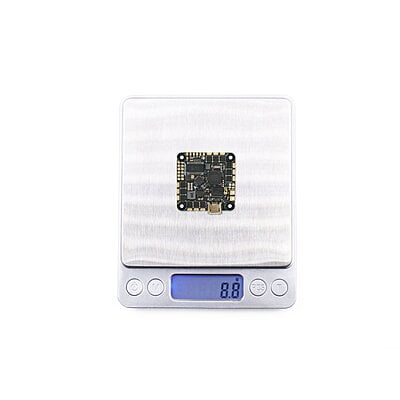

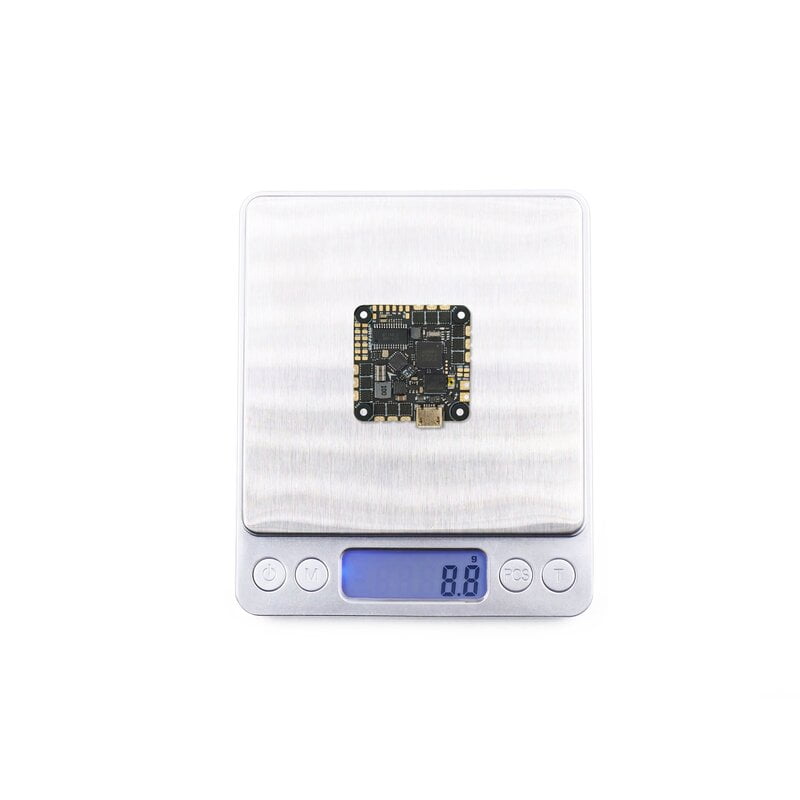

• Weight: 8.8g

Additional Details:

• Manufacturer: GEPRC

• Brand: GEPRC

• Generic Name: AIO Flight Controller || FPV All-in-One FC || Integrated FC ESC || F4 Drone Board || Micro Drone Stack || Quadcopter AIO || FPV Power Stack || Brushless AIO || FPV Brain Board || Compact FPV System

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: 3-inch FPV drones || Toothpick drones || Micro FPV racing drones || Lightweight freestyle drones || Cinewhoop builds (smaller variants) || Custom ultralight FPV builds || Beginner to intermediate FPV pilots || Small form factor builds || Whoop drones || Agile FPV setups

Package Details:

Includes:

• 1 x GEP-F4-35A-AIO

• 1 x XT30-7CM-18AWG cables

• 1 x 35V220UF capacitance

• 8 x M2*6.5mm Damping rings

Frequently Asked Questions:

Q1. What size drones is this GEPRC F411 35A AIO suitable for?

Ans. This AIO board with its 25.5x25.5mm mounting pattern and 35A ESC is ideally suited for lightweight FPV drones ranging from 3-inch to 5-inch propeller setups, as well as smaller toothpick and micro builds.

Q2. Does this AIO board support ESC telemetry?

Ans. Yes, the 8-bit BLS ESC typically supports ESC telemetry, allowing you to monitor motor RPM, temperature, and other data directly through your flight controller and OSD.

Q3. Can I connect an external GPS module to this AIO?

Ans. Yes, the GEPRC GEP-F411 35A AIO provides multiple UARTs, allowing you to connect external peripherals like a GPS module for advanced navigation features if your Betaflight firmware supports it.
