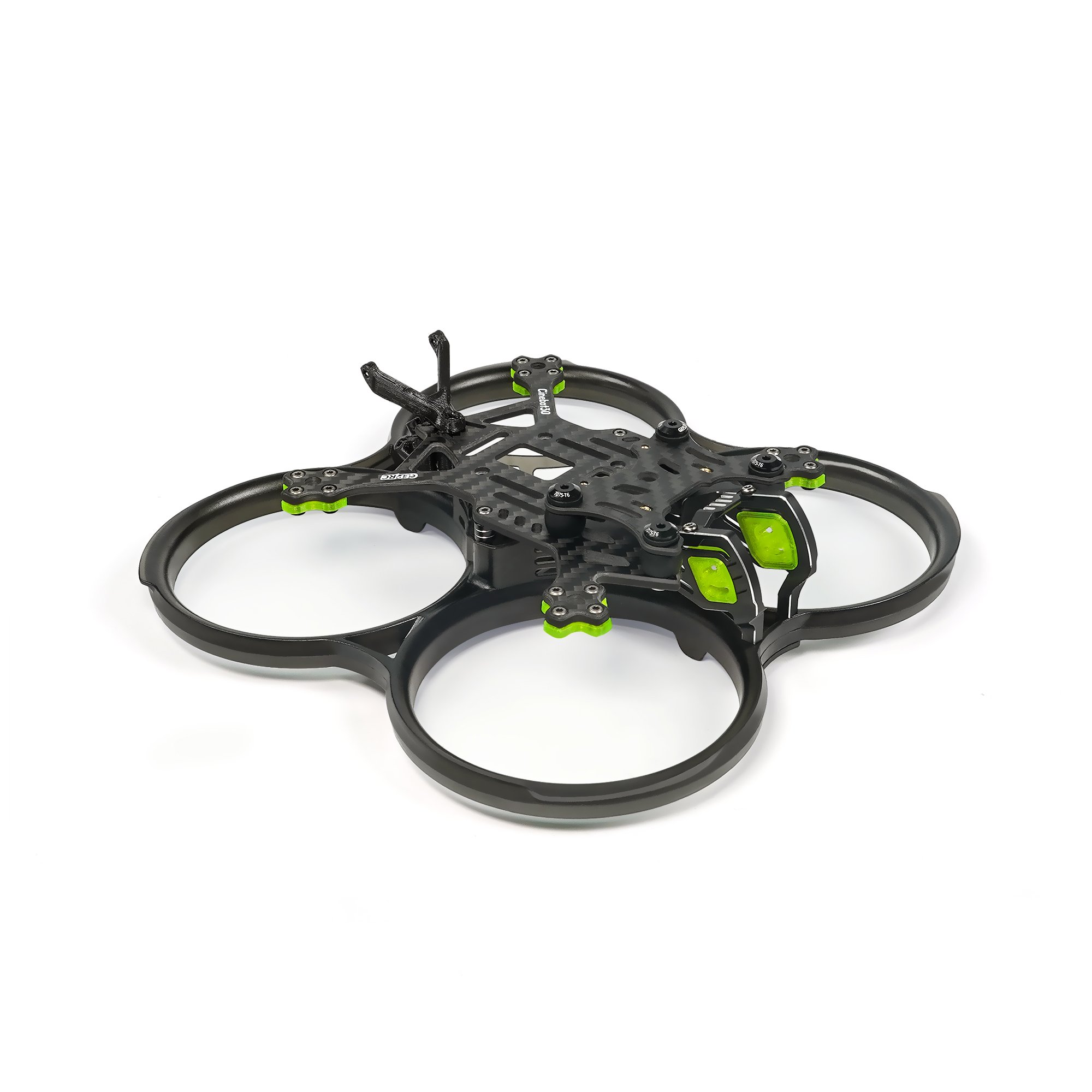

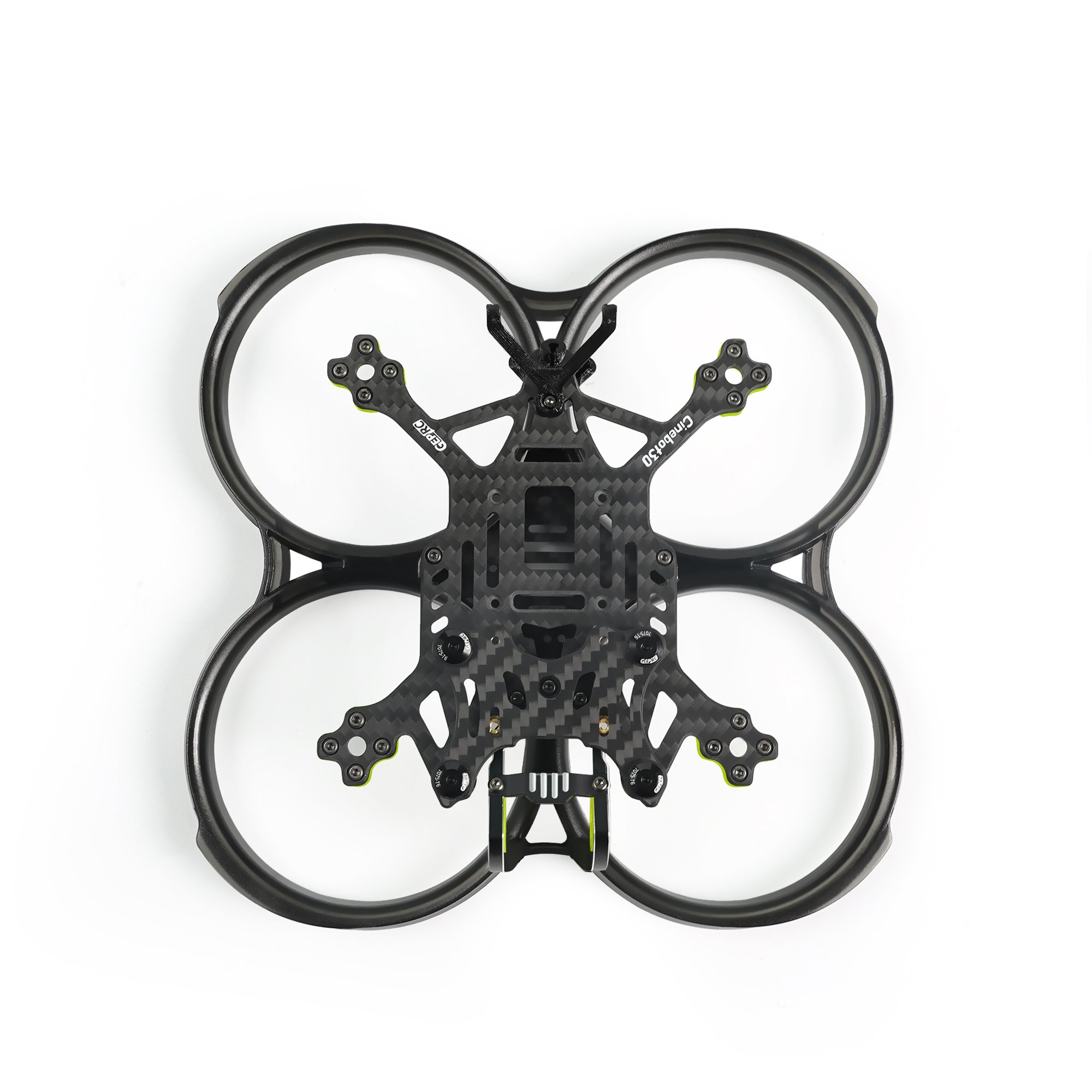

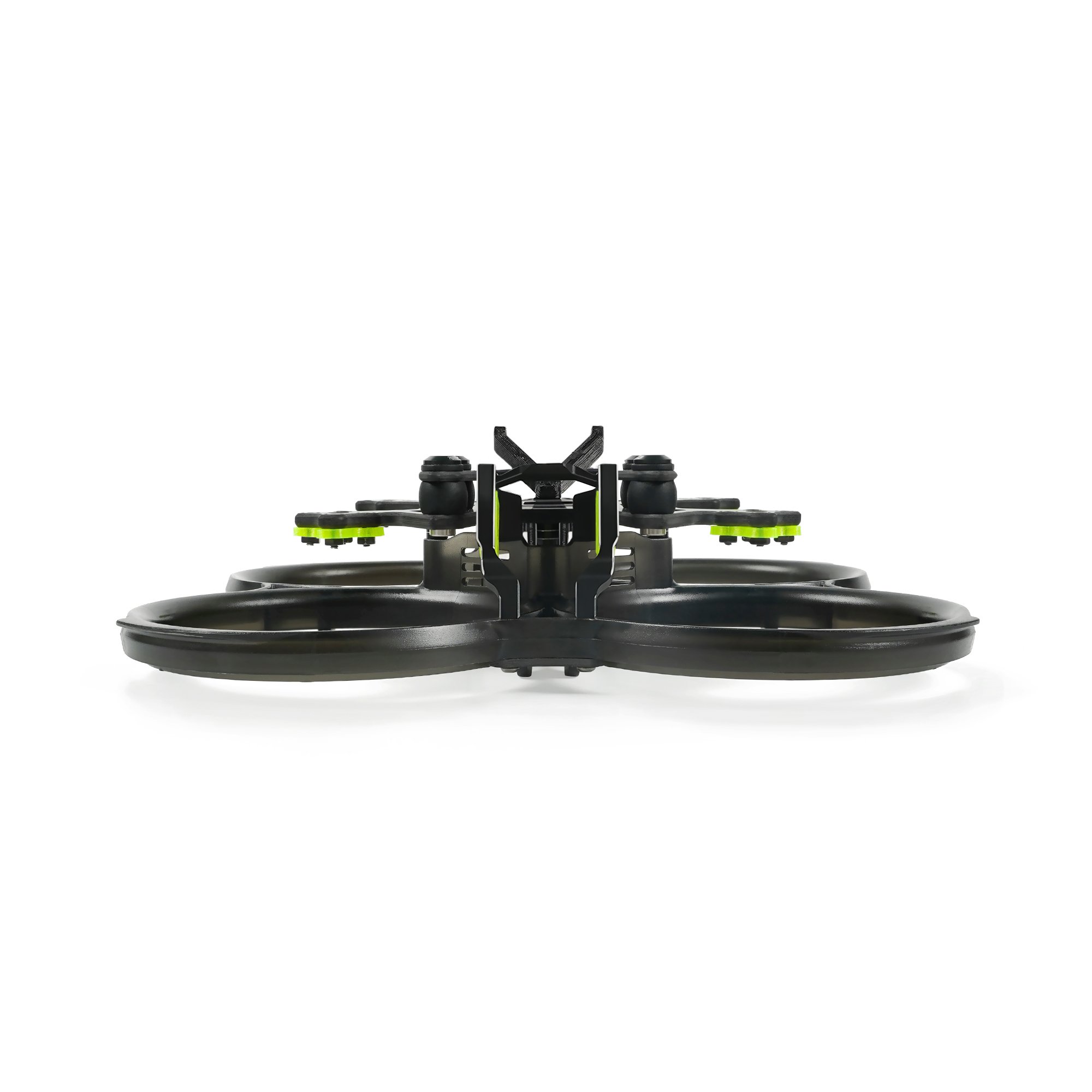

GEPRC GEP CT30 O3 COB Frame Kit
₹6,999.00
Out of stock
The GEPRC CT30 O3 COB Frame Kit is a durable and lightweight frame designed for cinematic FPV drones. Crafted from high-quality carbon fiber, it offers excellent crash resistance and stability for smooth, professional-grade aerial footage. Its compact design is ideal for agile flights, making it perfect for both freestyle and cinematic applications.
Product Details
Features:
- Design that combines engineering and aesthetics.
- Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
- Selected high-toughness and impact-resistant PC +PET material for injection molding.
- Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
- Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
- The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
- Compatible with a variety of fpv system with the program, choose to belong to your first-person view.
Technical Details:
- Brand: GEPRC
- Model: GEP-CT30 O3

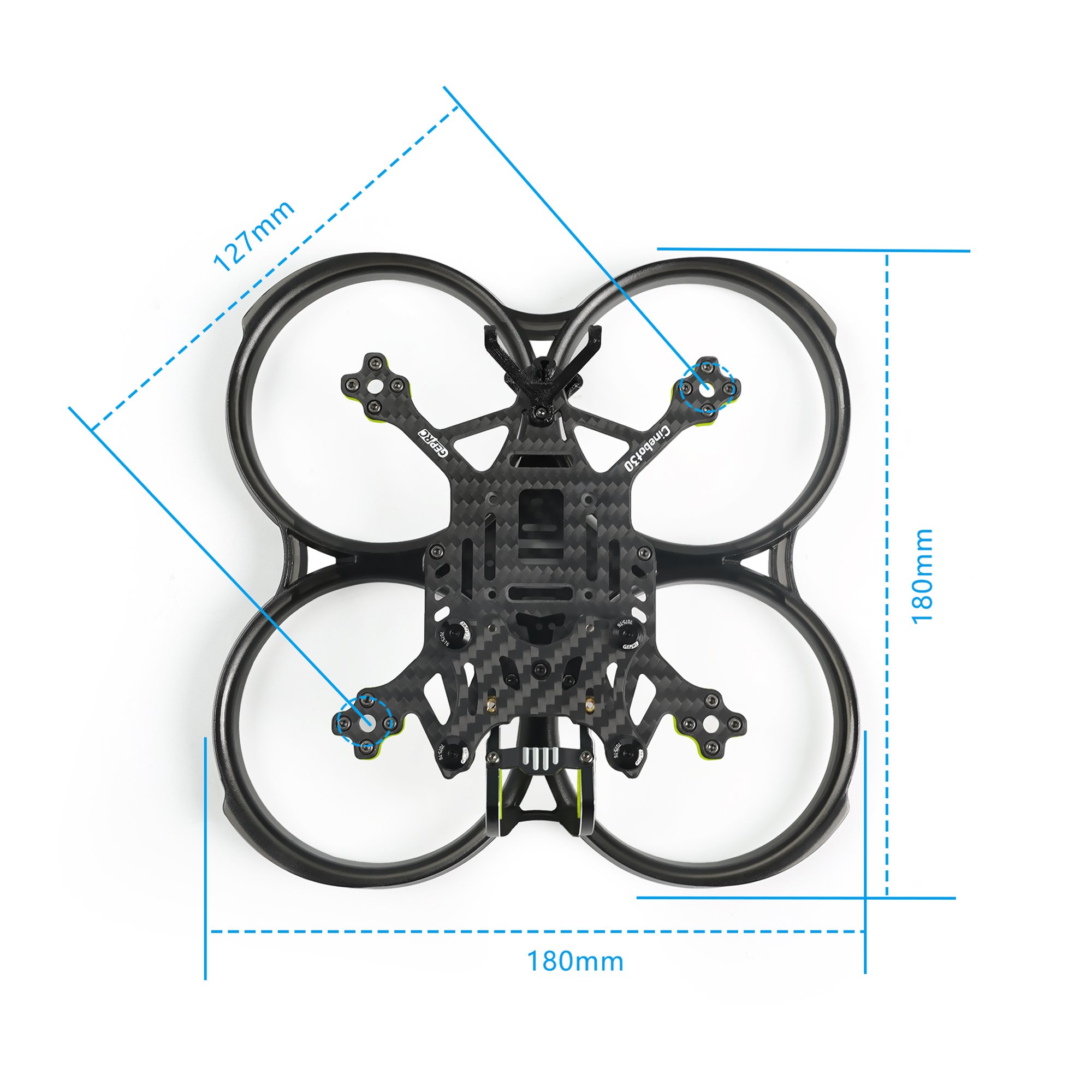

- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
- Bottom Plate: 1.5mm
- FC Mounting Hole: 25.5mm x 25.5mm
- VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
- Motor Mounting Hole: 12mm x 12mm
- FPV Camera Spacing : 20mm
- Suitable propeller size: 3 inch propeller

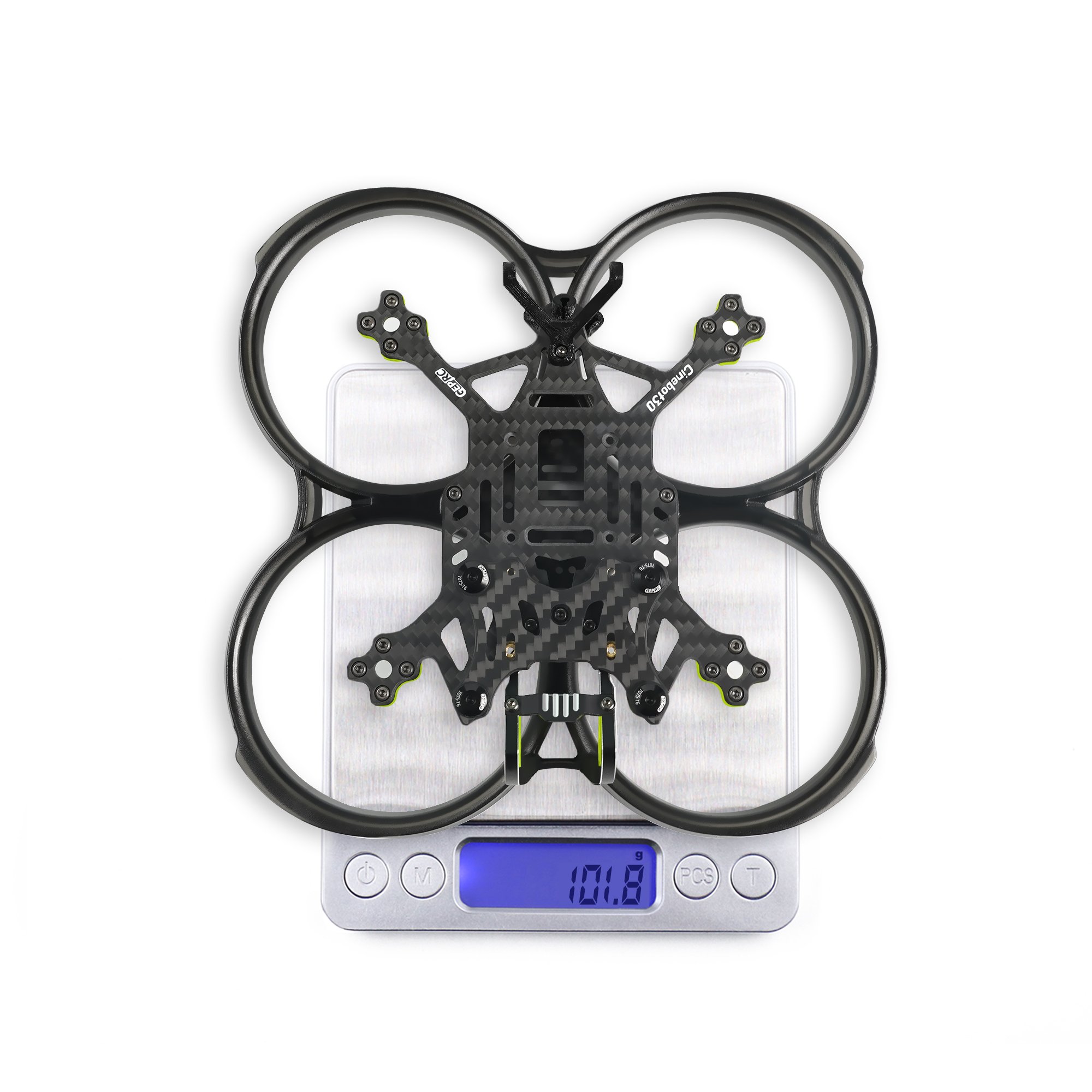

- Weight: 101.8g (without Led light strip) / 107.3g (with COB light strip)
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: FPV Drone Frame, Cinematic Drone Kit, Carbon Fiber Quadcopter Frame, Micro Drone Frame, O3 Compatible Frame
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Pilots, Cinematographers, Drone Builders, Freestyle FPV, Cinematic FPV

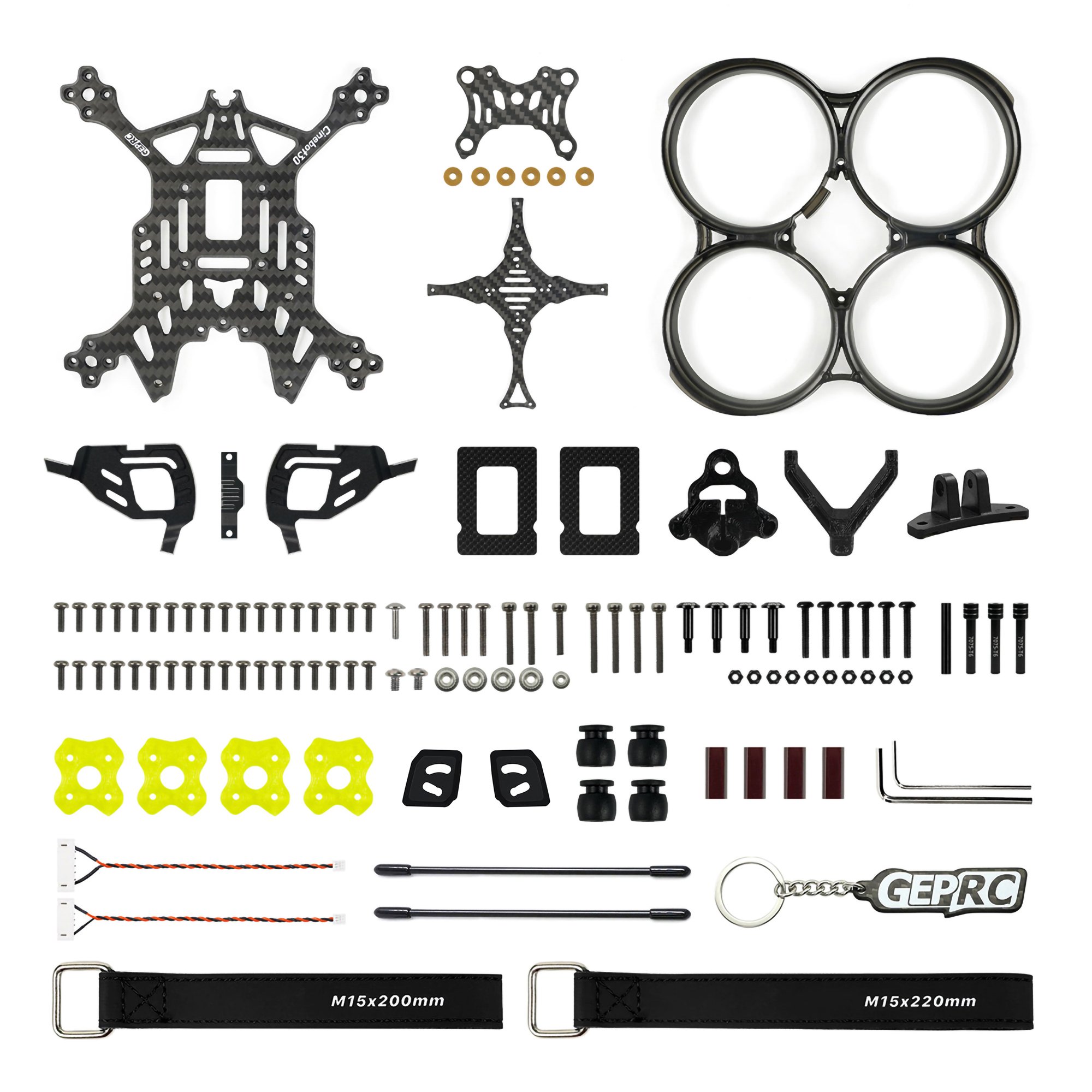

Package Details:
includes:
- 1 x Main Plate 3.0mm
- 1 x Bottom Plate 1.5mm
- 1 x Isolation Plate 2.0mm
- 1 x Set of Screws
- 1 x Bec Module (optional)
- 1 x Cob Light Strip (optional)
- 1 x Set of 3D Printed Parts
- 1 x 3 inch One-piece Injection-molded Propeller Guard
- 1 x Naked GP Camera Base Mount
- 2 x Battery Non-slip Mat
- 2 x Receiver Antenna Tube 100mm
- 1 x Battery Straps M15*200
- 1 x Battery Straps M15*220
- 1 x Naked GP Camera Power Cable 4S Balance Head
- 1 x Naked GP Camera Power Cable 6S Balance Head
- 1 x L-shaped Screwdriver 1.5mm
- 1 x L-shaped Screwdriver 2.0mm
- 1 x Carbon Fiber Keychain
- 2 x GEPRC Stickers
- 1 x Service Card
- 1 x Packaging Box
Frequently Asked Questions:
Q1: What components are compatible with the GEPRC CT30 O3 frame?
Ans: The frame is designed for DJI O3 Air Unit and supports 20x20mm and 25.5x25.5mm flight controllers/ESCs, and 3-inch propellers.
Q2: Is this frame suitable for beginners?
Ans: While durable, building a drone requires some technical knowledge. This frame is best suited for intermediate to advanced builders.
Q3: What is the recommended battery size for this frame?
Ans: For optimal performance and flight time, a 4S or 6S LiPo battery in the 850mAh-1300mAh range is generally recommended, depending on your build.
