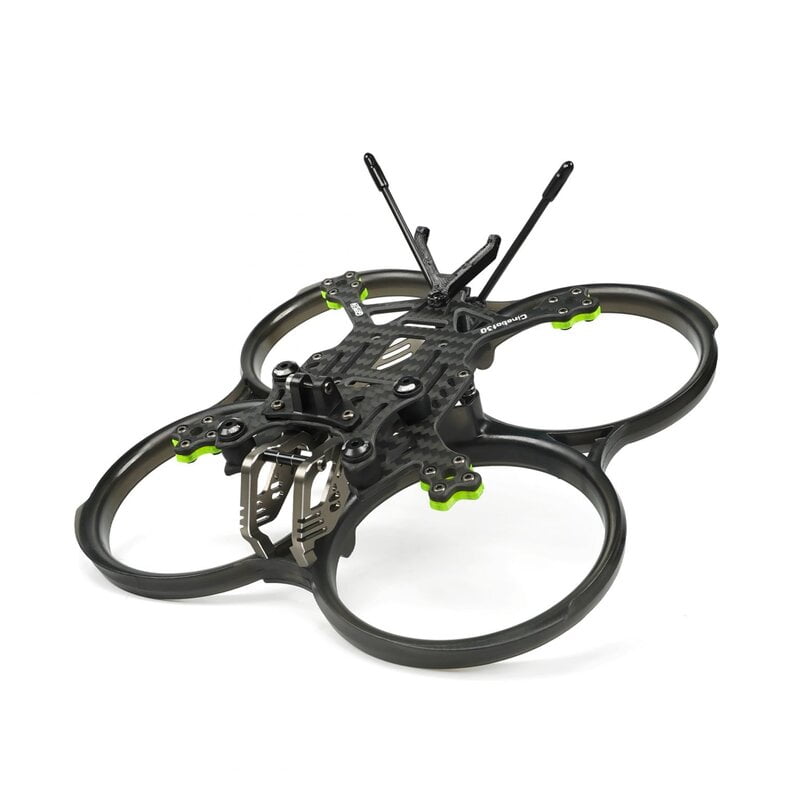

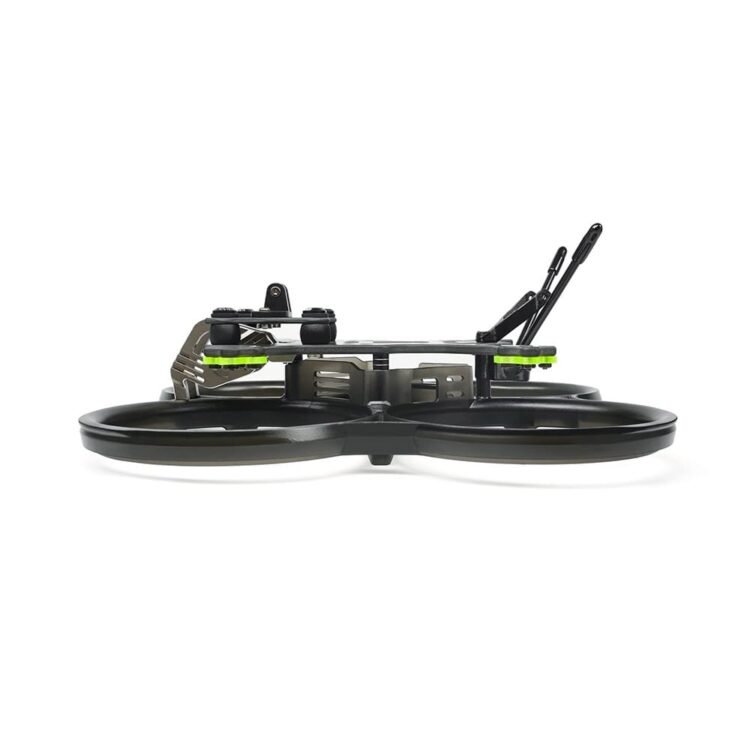

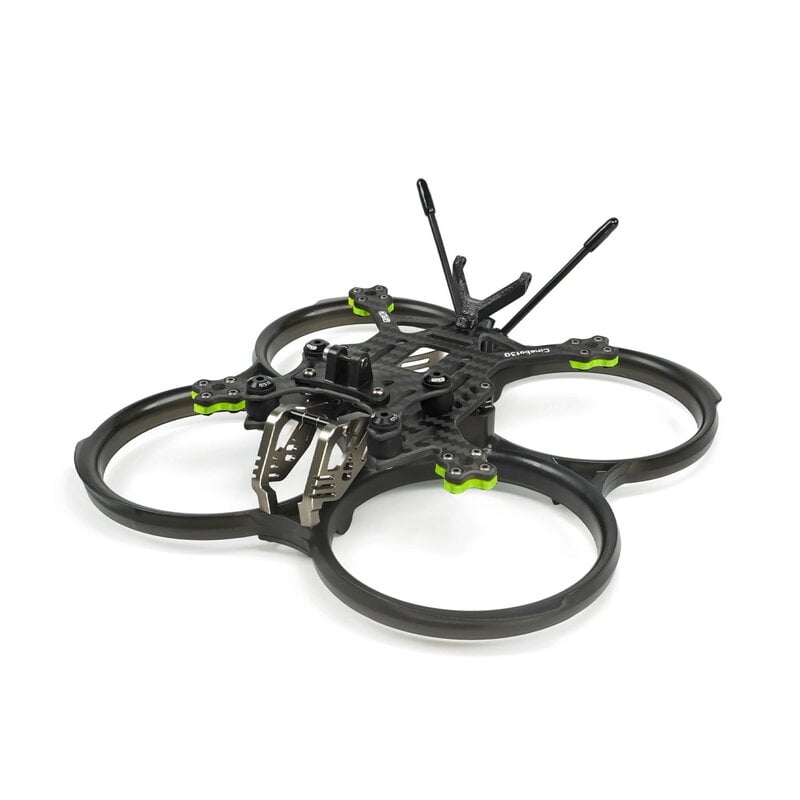

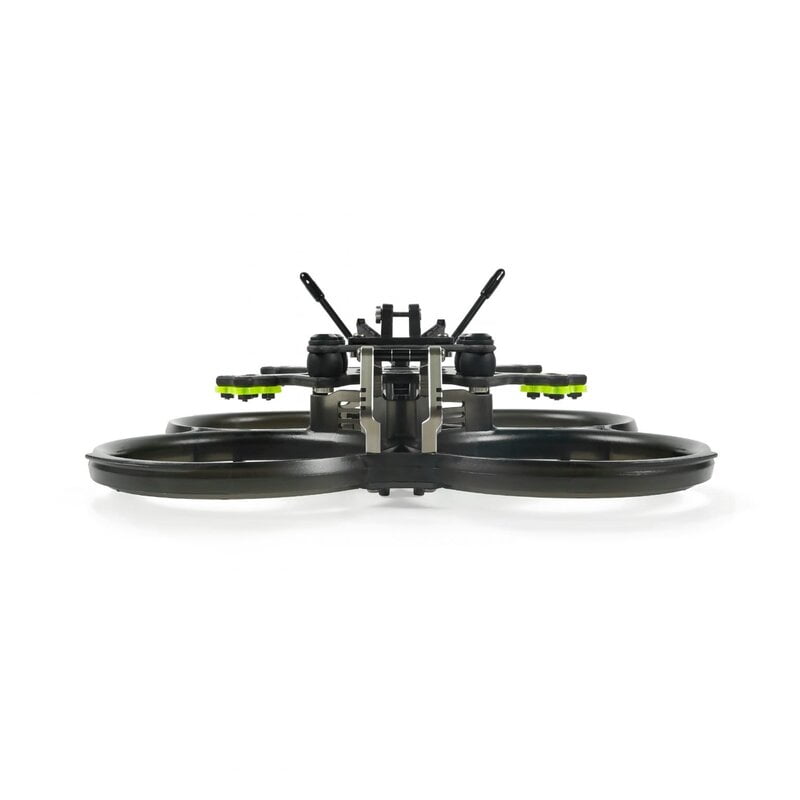

GEPRC GEP CT30 Frame Kit
- Brand: GEPRC
- Model: GEP-CT30
- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
Summary
The GEP-CT30 frame, specially developed by the GEPRC team for cinematic enthusiasts, is now officially released. As a cinematic FPV frame, the new series of GEP-CT30 frame uses a high-precision 7075-T aircraft-grade aluminum alloy bracket for FPV camera support. The newly polished gimbal damping module can easily fix high-frequency vibration and jello issues. It can be mounted with multiple action cameras that produce stable and clear images, making filming easier. The GEP-CT30 frame supports the installation of mainstream AIO flight controllers with 25.5mm25.5mm mounting holes and is compatible with various VTX mounting holes on the market, such as 20mm20mm and 25.5mm25.5mm. With 12mm12mm motor mounting holes, it can be installed with larger 15-18-20 series motors, providing strong power output with a 3-inch propeller. The ultra-light fuselage weight offers more confident flying.
The frame adopts a high-strength, one-piece injection-molded propeller guard made from high-toughness and impact-resistant PC material. A ring-shaped Cob light strip is embedded in the propeller guard, with carefully tuned lighting effects. Light strip kits are optional for flexible customization. The 7075-T aircraft-grade aluminum column and finely polished frame design allow for quick access; only six screws need to be removed to separate the aircraft’s top plate and propeller guard, making it easy to replace accessories as needed.
Tuned by GEPRC professionals with a high-quality production process, this frame opens up endless possibilities for cinematic flight filming. In the face of headwinds, we only go up against the wind, never with it. Salute to the filmmakers!
The frame adopts a high-strength, one-piece injection-molded propeller guard made from high-toughness and impact-resistant PC material. A ring-shaped Cob light strip is embedded in the propeller guard, with carefully tuned lighting effects. Light strip kits are optional for flexible customization. The 7075-T aircraft-grade aluminum column and finely polished frame design allow for quick access; only six screws need to be removed to separate the aircraft’s top plate and propeller guard, making it easy to replace accessories as needed.
Tuned by GEPRC professionals with a high-quality production process, this frame opens up endless possibilities for cinematic flight filming. In the face of headwinds, we only go up against the wind, never with it. Salute to the filmmakers!
Specification:
- Brand: GEPRC
- Model: GEP-CT30
- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
- Bottom Plate: 1.5mm
- FC Mounting Hole: 25.5mm x 25.5mm
- VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
- Motor Mounting Hole: 12mm x 12mm
- FPV Camera Spacing : 19mm
- Suitable Propeller Size: 3 inch propeller
- Weight: 103.2g (including propeller guard, 3D printed parts, Naked GP8 camera base mount, antenna tube)
Features:
- Design that combines engineering and aesthetics.
- Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
- Selected high-toughness and impact-resistant PC +PET material for injection molding.
- Aviation 7075-T aluminium alloy camera mounting bracket and fuselage aluminium column.
- Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
- The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
- Compatible with a variety of fpv system with the program, choose to belong to your first-person view.
Package Includes:
1 x Main Plate 3.0mm
1 x Bottom Plate 1.5mm
1 x Isolation Plate 2.0mm
1 x Set of Screws
1 x Bec Module (optional)
1 x Cob Light Strip (optional)
1 x Set of 3D Printed Parts
1 x 3 inch One-piece Injection-molded Propeller Guard
1 x Naked GP Camera Base Mount
2 x Battery Non-slip Mat
2x Receiver Antenna Tube 100mm
1 x Battery Straps M15*200
1 x Battery Straps M15*220
1 x Naked GP Camera Power Cable 4S Balance Head
1 x Naked GP Camera Power Cable 6S Balance Head
1 x L-shaped Screwdriver 1.5mm
1 x L-shaped Screwdriver 2.0mm
1 x Carbon Fiber Keychain
2 x GEPRC Stickers
1 x Service Card
1 x Packaging Box
