GEPRC GEP CT30 COB Frame Kit
₹5,249.00 ₹10,599.00
Out of stock
The GEPRC CT30 COB Frame Kit is a durable and lightweight frame designed specifically for 3-inch cinewhoop drones. Its innovative COB (Chip-on-Board) lighting system adds a unique visual flair for stunning FPV footage, while the robust carbon fiber construction ensures excellent flight performance and crash resistance, making it ideal for creative aerial videography.
Product Details
Features:
- Design that combines engineering and aesthetics.
- Quick-disassembly design, only need to remove 6 screws to upgrade or replace parts.
- Selected high-toughness and impact-resistant PC +PET material for injection molding.
- Aviation 7075-T aluminum alloy camera mounting bracket and fuselage aluminum column.
- Propeller guard embedded ring Cob light strip, carefully tuned light effect. Color brightness in the day and night can be clearly displayed.
- The newly developed gimbal shock absorption structure can disintegrate high frequency jitter and jello effect. Easily carry a variety of action cameras.
- Compatible with a variety of fpv system with the program, choose to belong to your first-person view.
Technical Details:
- Brand: GEPRC
- Model: GEP-CT30

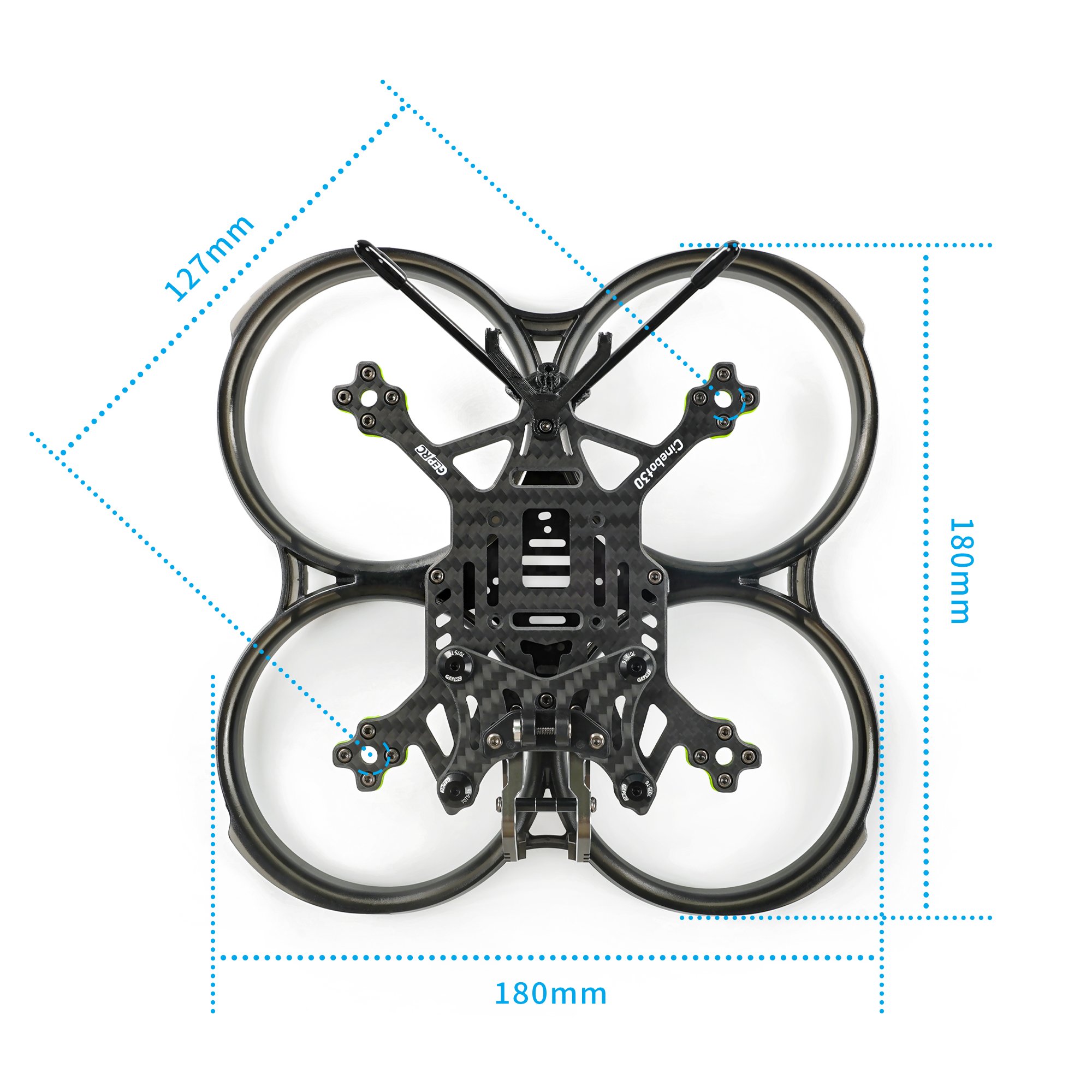

- Motor to Motor: 127mm
- Isolation Plate: 2.0mm
- Main Plate: 3.0mm
- Bottom Plate: 1.5mm
- FC Mounting Hole: 25.5mm x 25.5mm
- VTX Mounting Hole: 20mm x 20mm /25.5 x 25.5
- Motor Mounting Hole: 12mm x 12mm
- FPV Camera Spacing : 19mm
- Suitable Propeller Size: 3 inch propeller

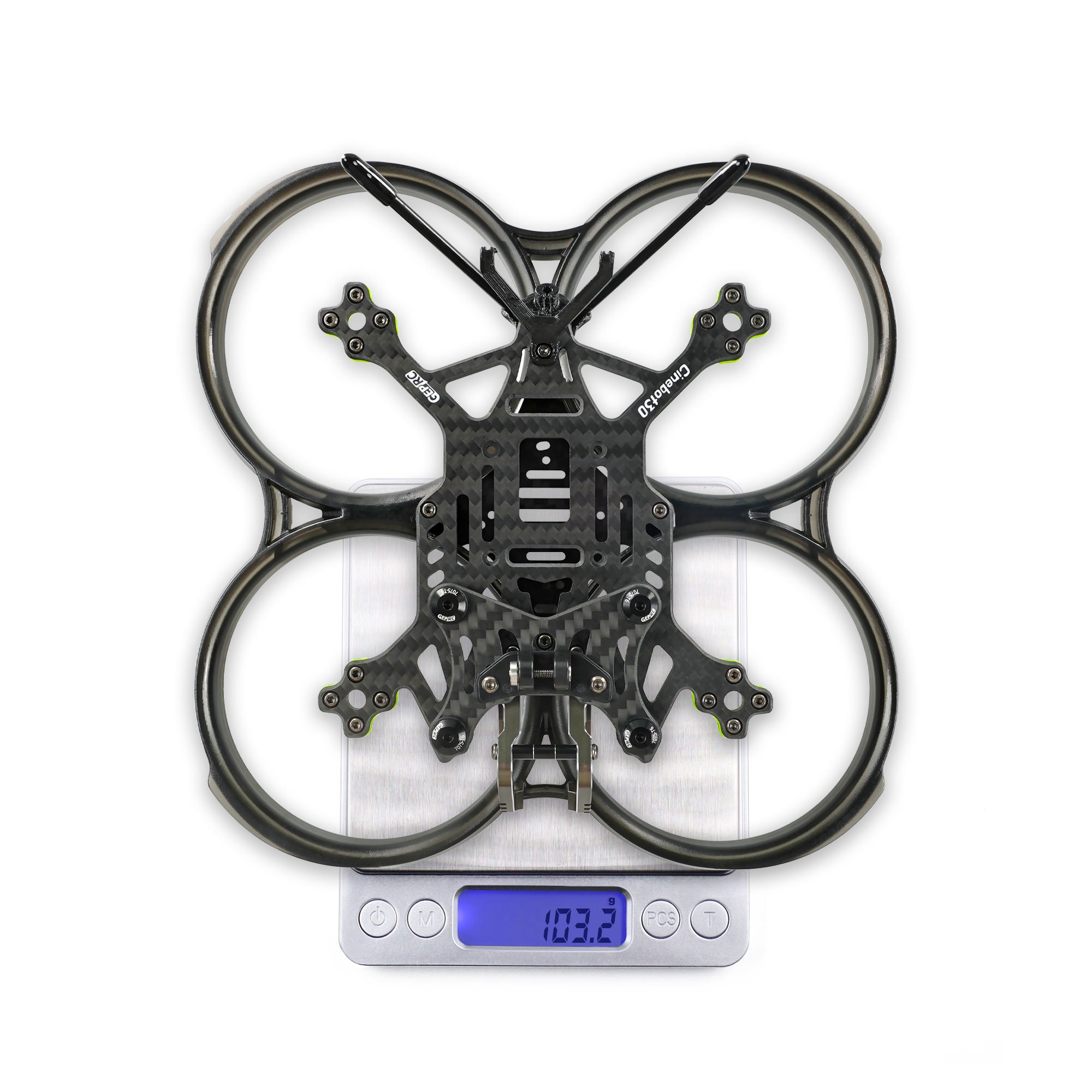

- Weight: 103.2g (including propeller guard, 3D printed parts, Naked GP8 camera base mount, antenna tube)
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: Drone Frame, FPV Frame, Cinewhoop Frame Kit, Quadcopter Frame
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Cinewhoop builds, FPV enthusiasts, aerial videography, drone DIY projects, freestyle flying.

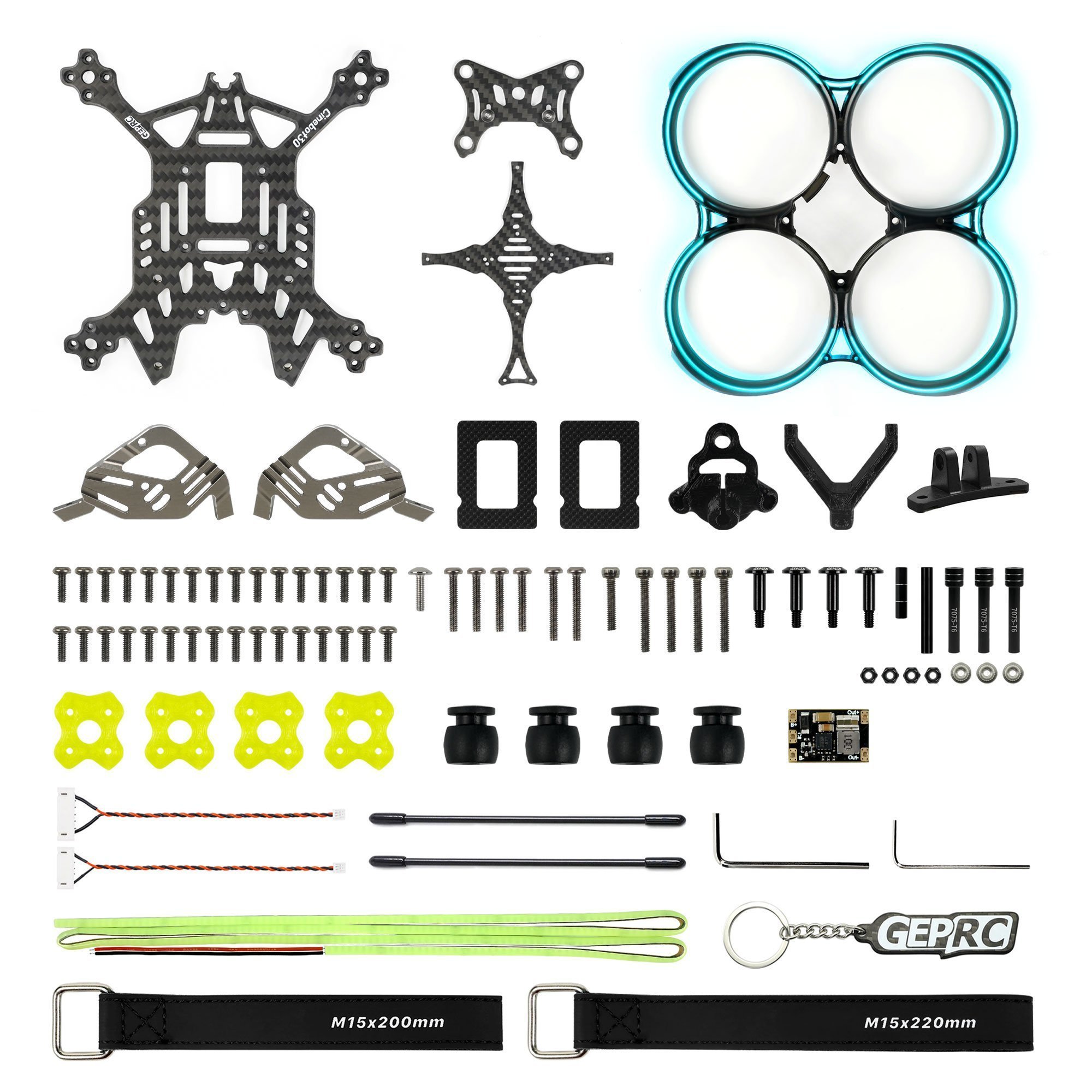

Package Details:
includes:
- 1 x Main Plate 3.0mm
- 1 x Bottom Plate 1.5mm
- 1 x Isolation Plate 2.0mm
- 1 x Set of Screws
- 1 x Bec Module (optional)
- 1 x Cob Light Strip (optional)
- 1 x Set of 3D Printed Parts
- 1 x 3 inch One-piece Injection-molded Propeller Guard
- 1 x Naked GP Camera Base Mount
- 2 x Battery Non-slip Mat
- 2x Receiver Antenna Tube 100mm
- 1 x Battery Straps M15*200
- 1 x Battery Straps M15*220
- 1 x Naked GP Camera Power Cable 4S Balance Head
- 1 x Naked GP Camera Power Cable 6S Balance Head
- 1 x L-shaped Screwdriver 1.5mm
- 1 x L-shaped Screwdriver 2.0mm
- 1 x Carbon Fiber Keychain
- 2 x GEPRC Stickers
- 1 x Service Card
- 1 x Packaging Box
Frequently Asked Questions:
Q1: What size propellers does this frame support?
A1: The GEPRC GEP CT30 COB Frame Kit is designed for 3-inch propellers.
Q2: Is this frame suitable for beginners?
A2: While assembly requires some technical knowledge, the robust design makes it forgiving for learning FPV piloting.
Q3: Does the kit include the COB LED lights?
A3: Yes, the frame kit comes with integrated COB LED lighting.
