GEPRC 2.4G Nano Receiver module
Non-returnable
₹1,799.00
Out of stock

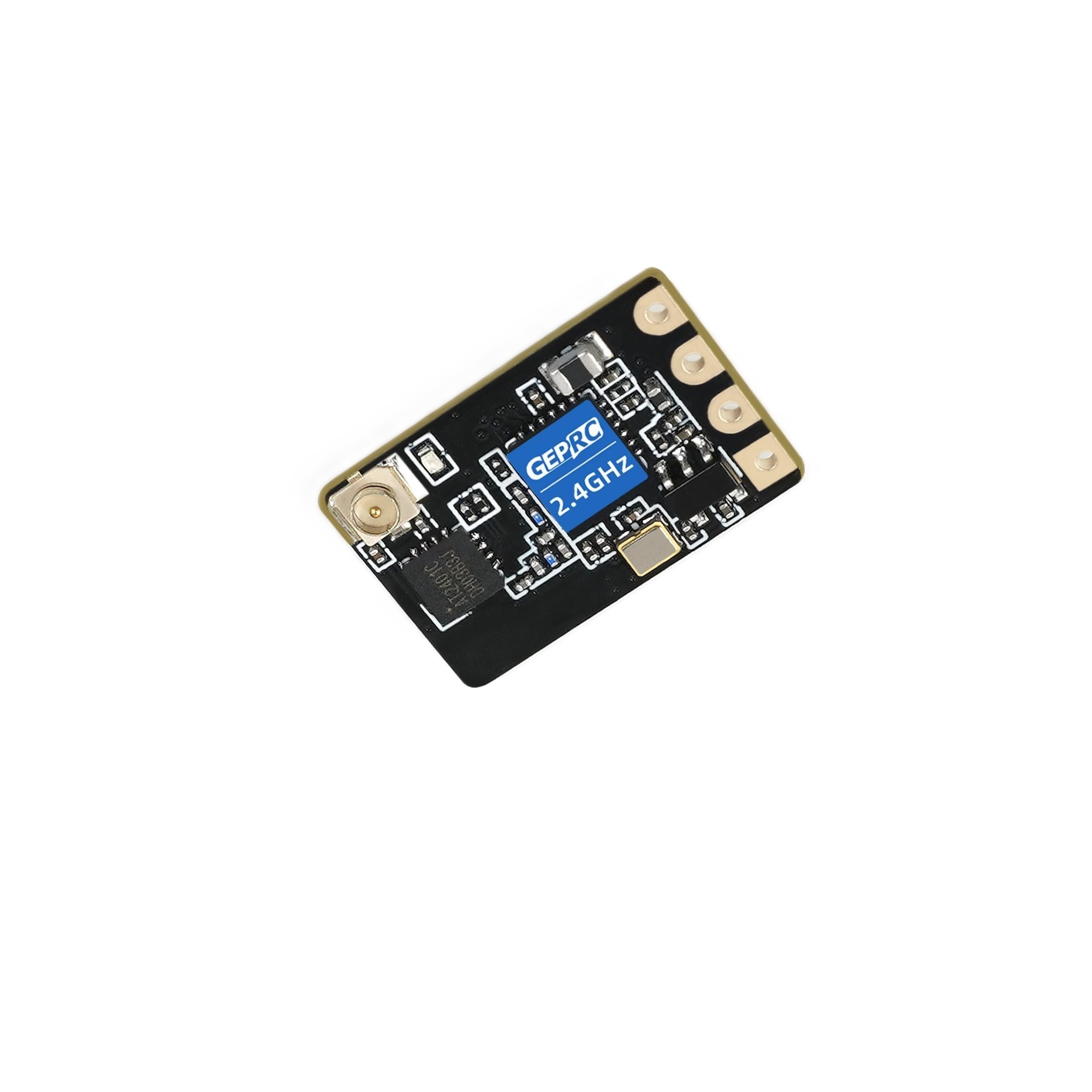

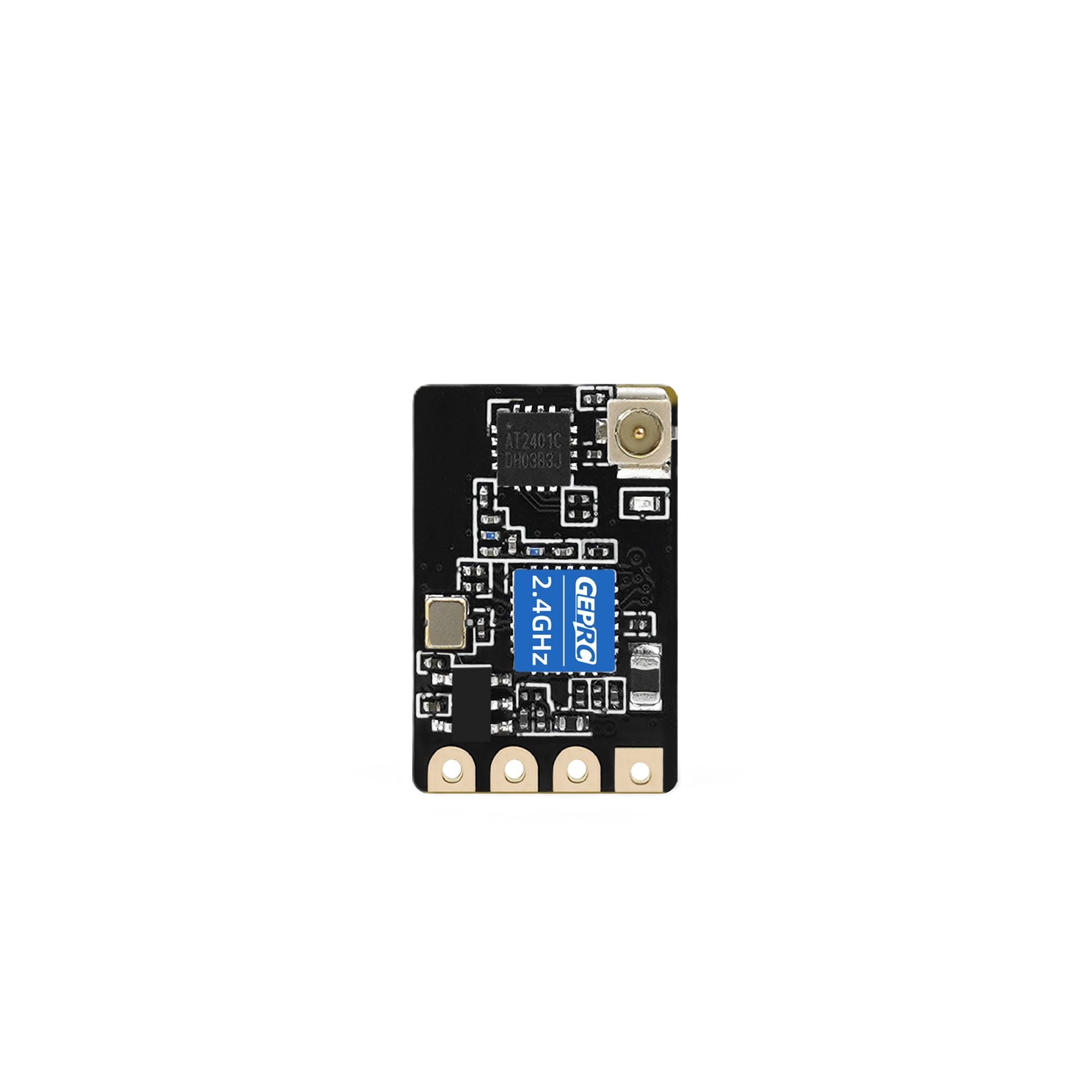

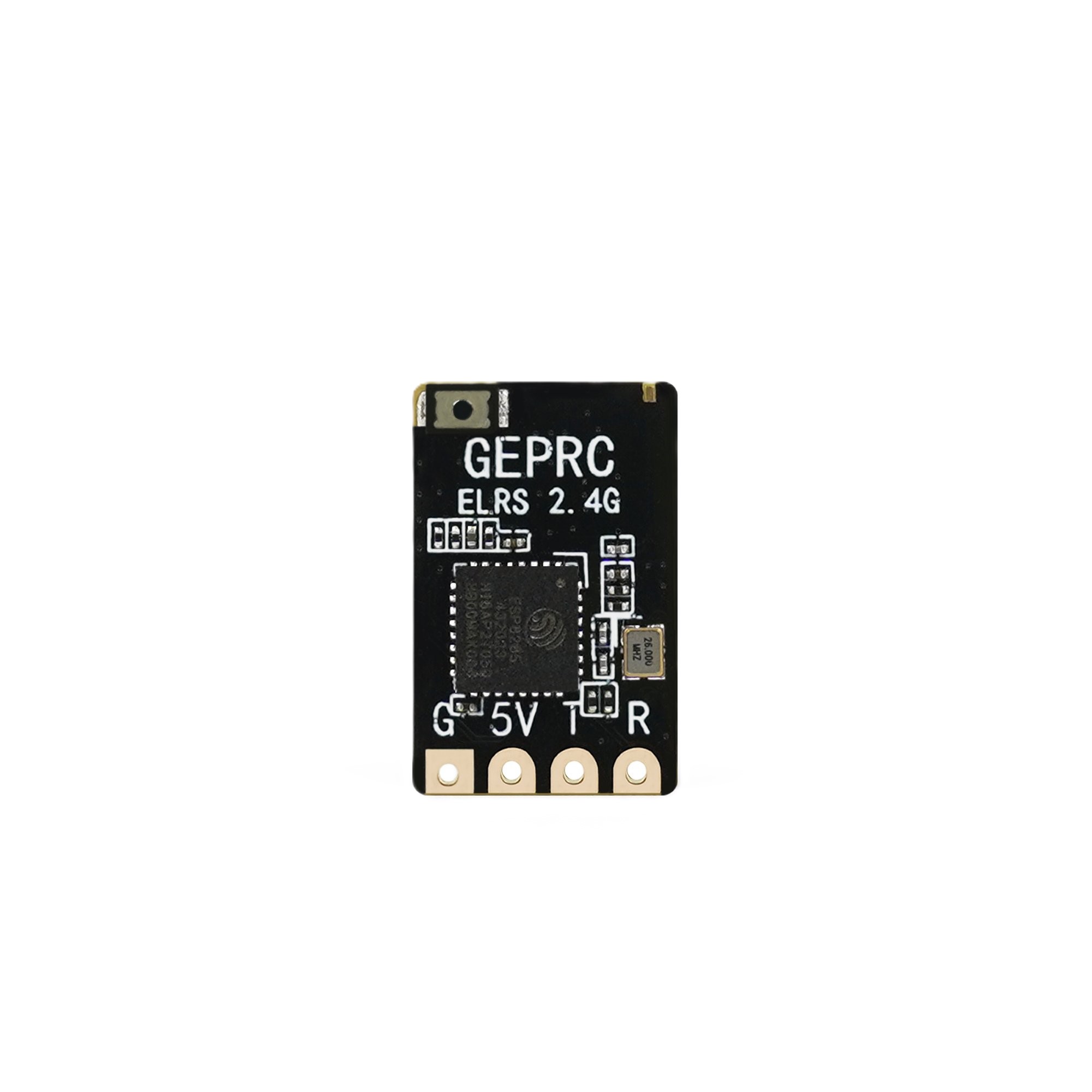

The GEPRC 2.4G Nano Receiver module is an ultra-compact and lightweight receiver designed specifically for RC drones. It offers reliable 2.4GHz signal reception, ensuring stable and responsive control for your FPV (First Person View) flying experience. Its small form factor makes it ideal for builds where space and weight are critical.
Product Details
Features:
- WIFI Upgrade firmware
- ELRS open source project, remote control
- Maximum refresh rate of 1000Hz
- The use of temperature-compensated crystal oscillator (TCXO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control
- Built-in PA + LNA, up to 100mW telemetry power
Technical Specifications:

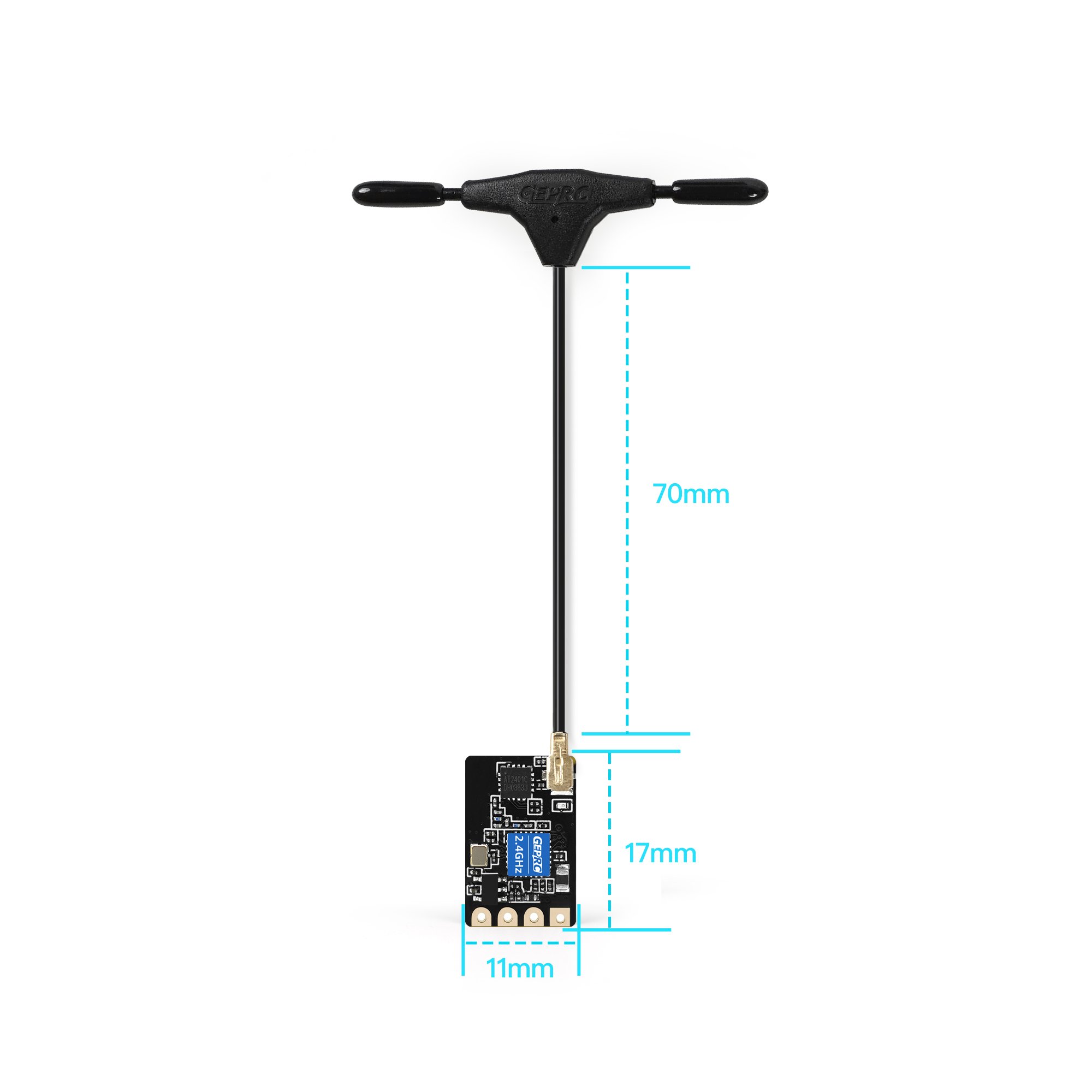

- Size: 17x11mm
- Weight: 0.7g (RX only)
- Chips: ESP8285, SX1281
- Crystal Oscillator: TCXO
- Frequency Band: 2.4GHz ISM
- Refresh Rate: 25Hz-1000Hz
- Input Voltage: 5V
- Antenna Connector: ipex1
- TLM Power: 100mW
- Firmware: GEPRC Nano 2.4GHz PA100 RX
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: RC Receiver, Drone Receiver, FPV Receiver, 2.4G Receiver, Nano Receiver
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Drones, Racing Drones, Freestyle Drones, Micro Drones, RC Aircraft
Package Details:

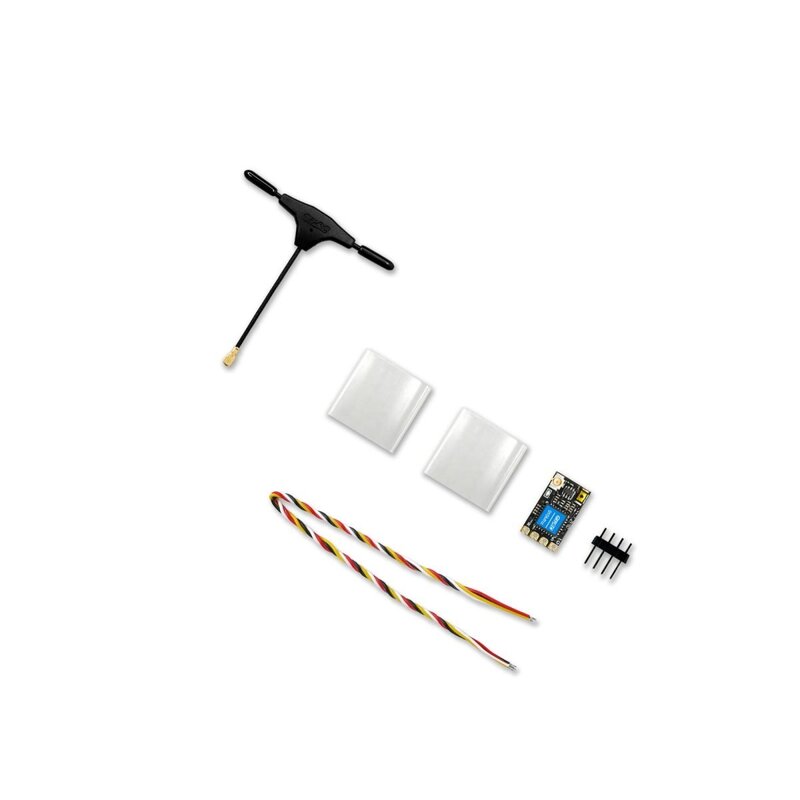

- includes: 1 x GEPRC 2.4G Nano Receiver module
Frequently Asked Questions:
Q1: What protocol does it use?
Ans: It uses the ExpressLRS (ELRS) protocol.
Q2: Is it compatible with any 2.4Ghz transmitter?
Ans: No, only with ExpressLRS 2.4Ghz transmitters.
Q3: How do I bind it?
Ans: Typically, power cycle it 3 times or set a matching binding phrase on your ELRS transmitter.
