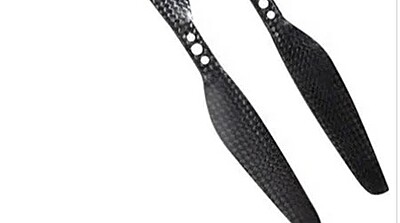

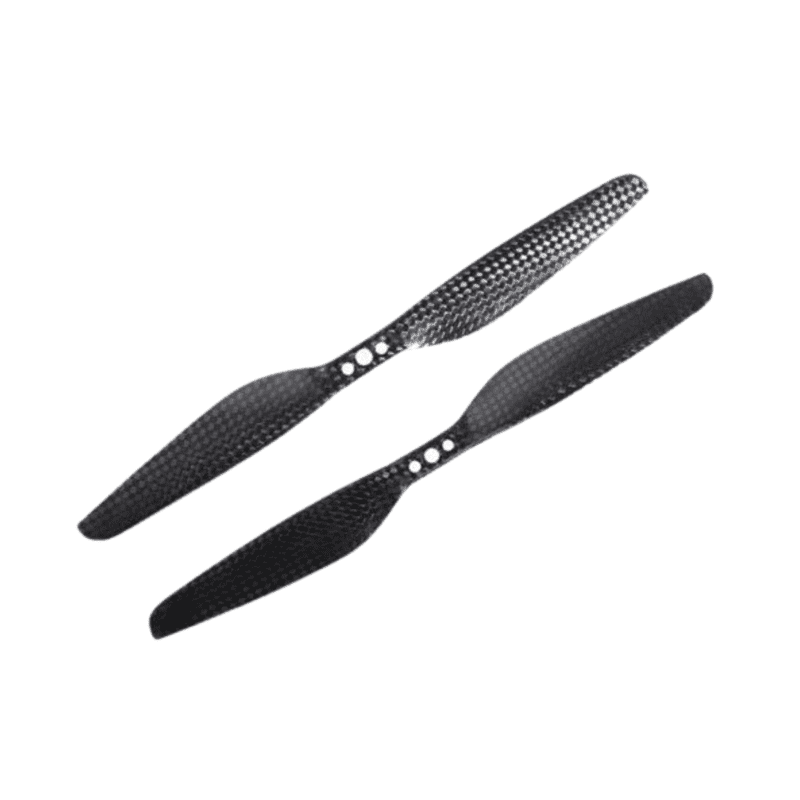

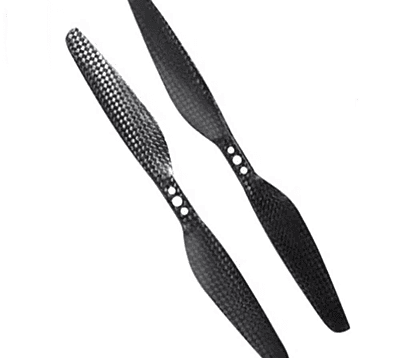

GEMFAN-1033L T-TYPE CARBON FIBER PROPELLER

Features:

• Premium carbon fiber construction.




• Efficient 10-inch diameter.




• Optimized 3.3-inch pitch.




• Secure T-type mounting.




• Counter-Clockwise (CCW) rotation.




• Extremely lightweight and rigid.




• Enhances flight efficiency.




• Ideal for long-range UAVs.




• Minimizes vibration for stability.




• Durable for demanding operations.

Technical Specifications:

• Model: GEMFAN 1033L T-Type

• Propeller Type: Fixed-pitch Multirotor Propeller

• Propeller Diameter: 10 inches (approx. 254 mm)

• Propeller Pitch: 3.3 inches (approx. 83.82 mm)

• Number of Blades: 2 (Two-Blade)

• Material: High-Modulus Carbon Fiber Composite

• Rotation: Left-hand / Counter-Clockwise (CCW)

• Mounting Type: T-Type / T-mount (Direct screw mounting to motor bell, typically 2 small screws).

• Mounting Holes: Standard T-mount bolt pattern, e.g., 9mm or 12mm apart.

• Weight (per prop): Specific weight needed, but for a 10-inch carbon fiber T-mount prop, typically 10-20g.

• Dynamic Balance: Factory balanced for smooth operation.

• Recommended Motor Type: Suited for low to medium KV (e.g., 200KV - 600KV) brushless motors designed for 10-inch propellers and T-mount systems, commonly found on larger FPV drones or smaller industrial UAVs.

• Application: Ideal for long-range FPV drones, aerial mapping and survey UAVs, endurance multirotors, and efficient custom drone builds.

Additional Details:

• Manufacturer: GEMFAN

• Brand: GEMFAN

• Generic Name: Carbon Fiber Propeller || T-Type Propeller || 10 Inch Propeller || Drone Propeller || Multirotor Prop || UAV Propeller || CCW Propeller || Lightweight Prop || Rigid Propeller || Long Range Prop

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Long-Range FPV Drones || Aerial Mapping UAVs || Endurance Multirotors || Custom Drone Builds (Efficiency Focus) || Professional Survey Drones || Drone Photography (Stable Platforms) || Scientific Research UAVs || High-Efficiency Drone Systems || T-Mount Motor Compatibility || Reducing Drone Weight

Package Details:

Includes:

• 1x GEMFAN 1033L T-Type Carbon Fiber Propeller (CCW Rotation)

Frequently Asked Questions:

Q1. What does "T-Type" mean for this GEMFAN 1033L carbon fiber propeller?

Ans. "T-Type" refers to the mounting style of the propeller, also known as "T-mount." Unlike traditional props that use a central nut on a threaded motor shaft, T-Type propellers mount directly to the motor's bell using two small screws. This design is common for lighter, more efficient setups, reducing rotational mass and simplifying prop changes.

Q2. What are the advantages of using a carbon fiber propeller like the GEMFAN 1033L?

Ans. Carbon fiber propellers like the GEMFAN 1033L offer significant advantages due to their material properties. They are extremely rigid, which minimizes flex under load, leading to more efficient power transfer and precise control. They are also very lightweight for their strength, reducing overall drone weight and improving flight time, while being highly durable against bending or minor impacts.

Q3. Is this 1033L propeller a Clockwise (CW) or Counter-Clockwise (CCW) rotation?

Ans. The "L" in "GEMFAN-1033L" specifically indicates that this is a Left-hand (L) or Counter-Clockwise (CCW) rotating propeller. For a quadcopter, you would typically need two CCW propellers (like this one) and two Right-hand (R) or Clockwise (CW) propellers (which would be a separate product, e.g., "GEMFAN-1033R") to achieve stable flight.
