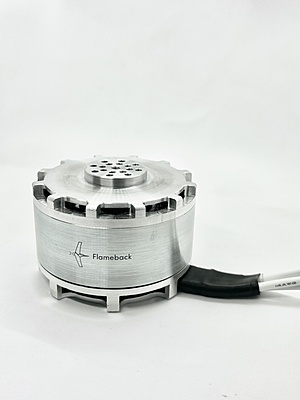

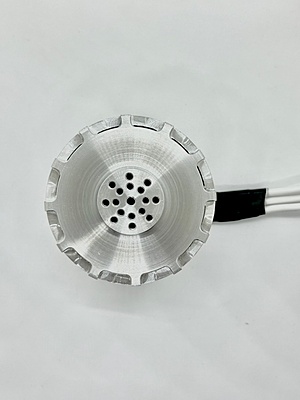

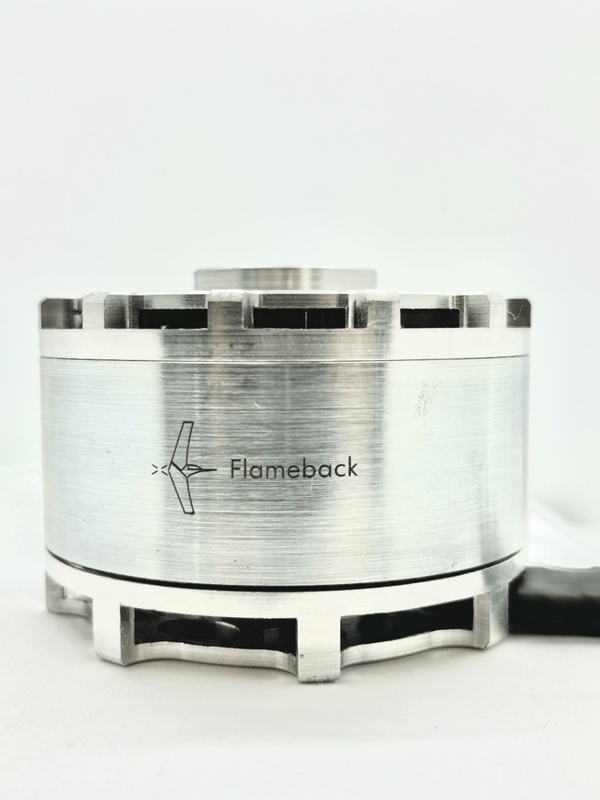

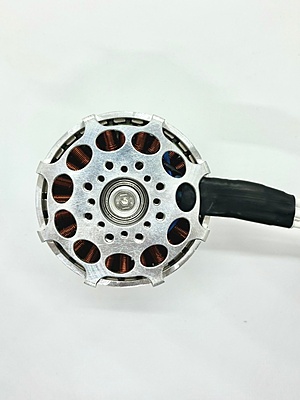

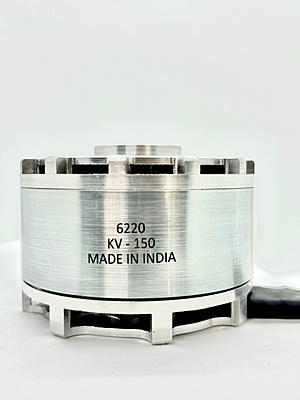

Made In India Flameback 6220 X6 plus kv 150 BLDC Motor
The Flameback 6220 KV150 BLDC Motor is built for endurance and power, tailored for heavy-lift UAVs in logistics, disaster response, and industrial missions. Delivering over 12 kg thrust with a 150 KV rating, 24N28P configuration, and 3000 W continuous output, it offers exceptional torque and efficiency for the most demanding aerial applications.
Features
High Thrust Output: Delivers >12 kg thrust for heavy-lift UAVs.
Optimized KV Design: 150 KV, 24N28P configuration for endurance and torque.
Powerful Delivery: 3000 W continuous power with 50 A max current.
Wide Battery Range: Supports 6-12S LiPo packs.
Thermal Management: Airflow cooling reduces overheating in long flights.
Rugged Durability: Impact-resistant structure for industrial-grade UAV use.
Advanced Materials: N45UH magnets, German bearings, and high-temp wire.
Recommended Setup: Works best with 60A ESC and 24×8 / 23×8.8 props.
Specifications
- Item Type Drone motor
- Model Type BLDC Motor
- Motor KV (RPM/V)150
- Motor Type Brushless Motor
- Max. Power (W)3000
- Maximum Thrust (gm)>12,000
- Current Rating (A)50
- Stator Height20 mm
- Stator Diameter62 mm
- Configuration24N28P
- Compatible Prop (inch)24 × 8.0, 23 × 8.8
- Compatible LiPo Batteries6–12S
- Operating Temperature (°C): -20 - 125°C
- Length (mm)70
- Width (mm)49
- Weight (g)485 (including cables)
Additional Details:
- Manufacturer: Flameback Tech Private Limited
- Brand: Flameback
- Generic Name: BLDC Motor, Brushless Motor, Heavy-Lift Drone Motor, High-Thrust UAV Motor, Outrunner Motor, Industrial Motor, Multirotor Propulsion.
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Agricultural Spraying Drones (Agri-Drones), Heavy-Lift Surveying UAVs, Logistics and Cargo Drones, Industrial Inspection Platforms, Custom Multi-Rotor Drones (MTOW 5-10 kg range).
Package Details

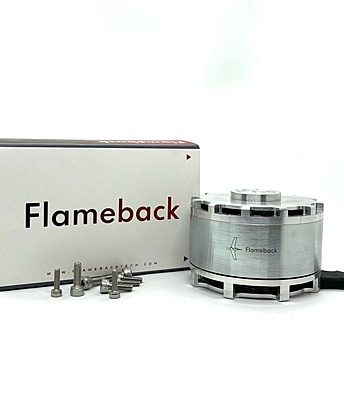

- 1 x Flameback 6220 KV 150 BLDC Drone Motor
Frequently Asked Questions:
Q1: Why is the 150 KV rating important for this motor?
ANS: The ultra-low 150 KV is critical for high voltage (12S) and massive propellers (24-inch). This combination maximizes torque and efficiency, essential for carrying large, heavy payloads for extended durations.
Q2: What is the maximum current draw of this motor, and why is a 60A ESC recommended?
ANS: The maximum continuous current is 50A. A 60A ESC is recommended to provide a crucial safety and thermal buffer, ensuring the ESC can handle short current spikes and run cool under continuous heavy load.
Q3: Is this motor suitable for all-weather operation?
ANS: The motor features an impact-resistant structure and is built with premium components like German bearings and high-temp wire for superior durability. While highly robust, check the official manual for a specific IP (Ingress Protection) rating for water and dust resistance.
