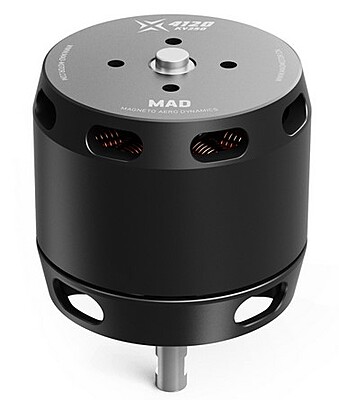

MAD MOTOR X4120 500KV - High Efficiency Brushless Motor for Fixed-Wing eVTOL Drones

The MAD MOTOR X4120 500KV sets an industry benchmark for industrial and commercial drone propulsion, offering uncompromised electrical efficiency and mechanical durability across extended operations. Featuring a lightweight yet rigid aviation-grade aluminum housing, this 500KV outrunner minimizes parasitic rotational weight while maximizing heat dissipation. By using premium low-impedance internal components, it maintains an exceptionally flat efficiency curve, ensuring commercial operators get the absolute maximum flight endurance out of their custom drone platforms.

Key Features :

• High-Torque Performance: Delivers superior torque density tailored for spinning larger, high-pitch propellers on heavy multirotor and fixed-wing airframes.

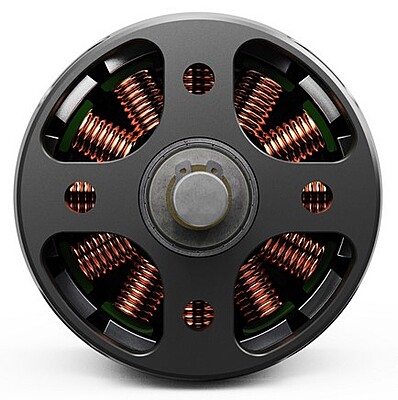

• Open Air Cooling Design: Optimized structural layout allows extensive airflow through the internal stator stack to prevent dangerous heat build-up.

• Industrial Voltage Ranges: Confidently supports high-voltage configurations from 6S up to 8S LiPo setups to lower overall current draws.

• Premium Balanced Core: Every outrunner bell undergoes strict factory dynamic balancing to fully reduce structural flight vibrations.

Use Cases :

• Primary propulsion systems for long-endurance commercial mapping and GIS photogrammetry fixed-wing drones.

• Vertical takeoff and transition lift motors for commercial hybrid eVTOL cargo multirotors.

• Heavy-duty power system upgrades for high-speed RC airplanes, 3D acrobatic flyers, and custom UAV trainer builds.

Technical Specifications :

Compatibility Information :

This premium outrunner motor interfaces perfectly with standard commercial drone ESCs. It is highly optimized for integration with industrial speed controllers like the Hobbywing Flyfun 80A or specialized T-Motor Flame series. It mounts seamlessly onto universal carbon fiber motor mounts and standard multi-hole airplane firewalls.

Frequently Ask Questions :

Q1 ) What is the recommended propeller sizing bracket for this MAD X4120 500KV motor?

Ans : When operating on a standard 6S LiPo setup, this 500KV outrunner performs at peak efficiency when paired with high-quality carbon fiber or composite propellers ranging from 14-inch to 15-inch diameters. If stepping up to an 8S configuration, scale down the propeller size slightly to prevent electrical over-amping.

Q2 ) Does this outrunner motor feature waterproof or dust-resistant environmental seals?

Ans : The X4120 utilizes an open-vent architecture optimized for maximum airflow and thermal management. While the internal copper wires receive an anti-corrosion coating, it is not fully sealed. Avoid flying in heavy downpours or high-grit sandstorms to protect the internal high-speed bearings.

Q3 ) Can I use this motor for high-speed FPV racing mini quadcopters?

Ans : No. The X4120 is a large, high-torque industrial motor designed to spin substantial propellers on large fixed-wings or commercial multirotors. FPV racing mini-quads require much smaller, higher-KV motors (typically 2000KV+ variants running 5-inch props).

Q4 ) What type of connectors are pre-installed on the motor leads?

Ans : The motor comes equipped with long, high-flex silicone wire leads pre-terminated with standard heavy-duty gold-plated male bullet connectors. The package includes the matching female bullet receptacles, allowing you to easily solder them directly to your preferred electronic speed controller lines.

Q5 ) How do I know when the internal bearings require routine maintenance or replacement?

Ans : During your pre-flight inspection checklist, manually spin the outrunner bell. If you notice any gritty friction sound, excessive lateral shaft play, or increased structural vibration logs in your flight controller telemetry, replace the internal shielded bearings immediately.
