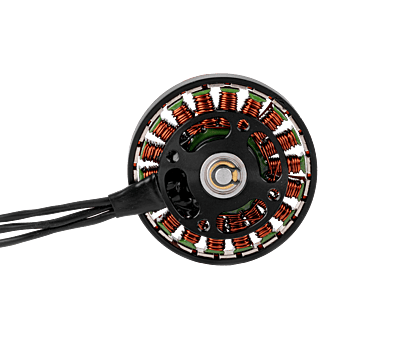

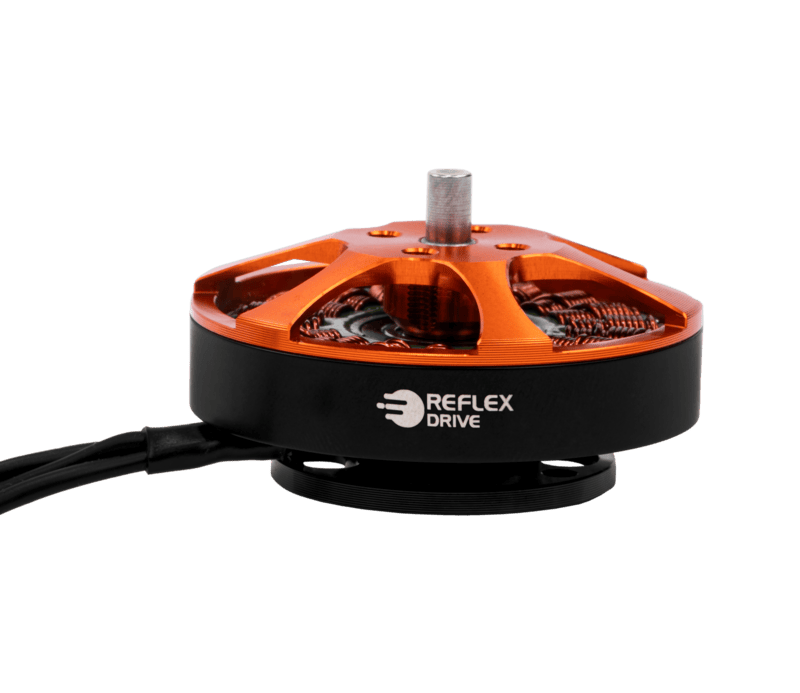

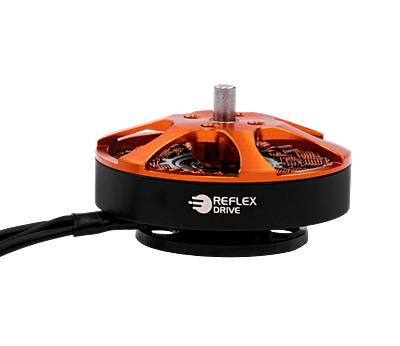

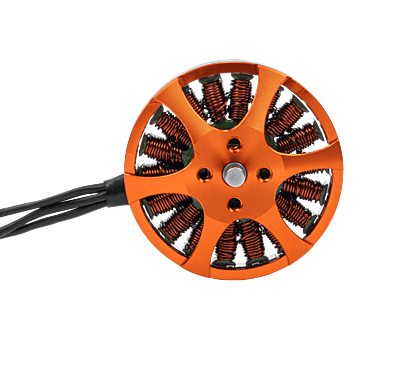

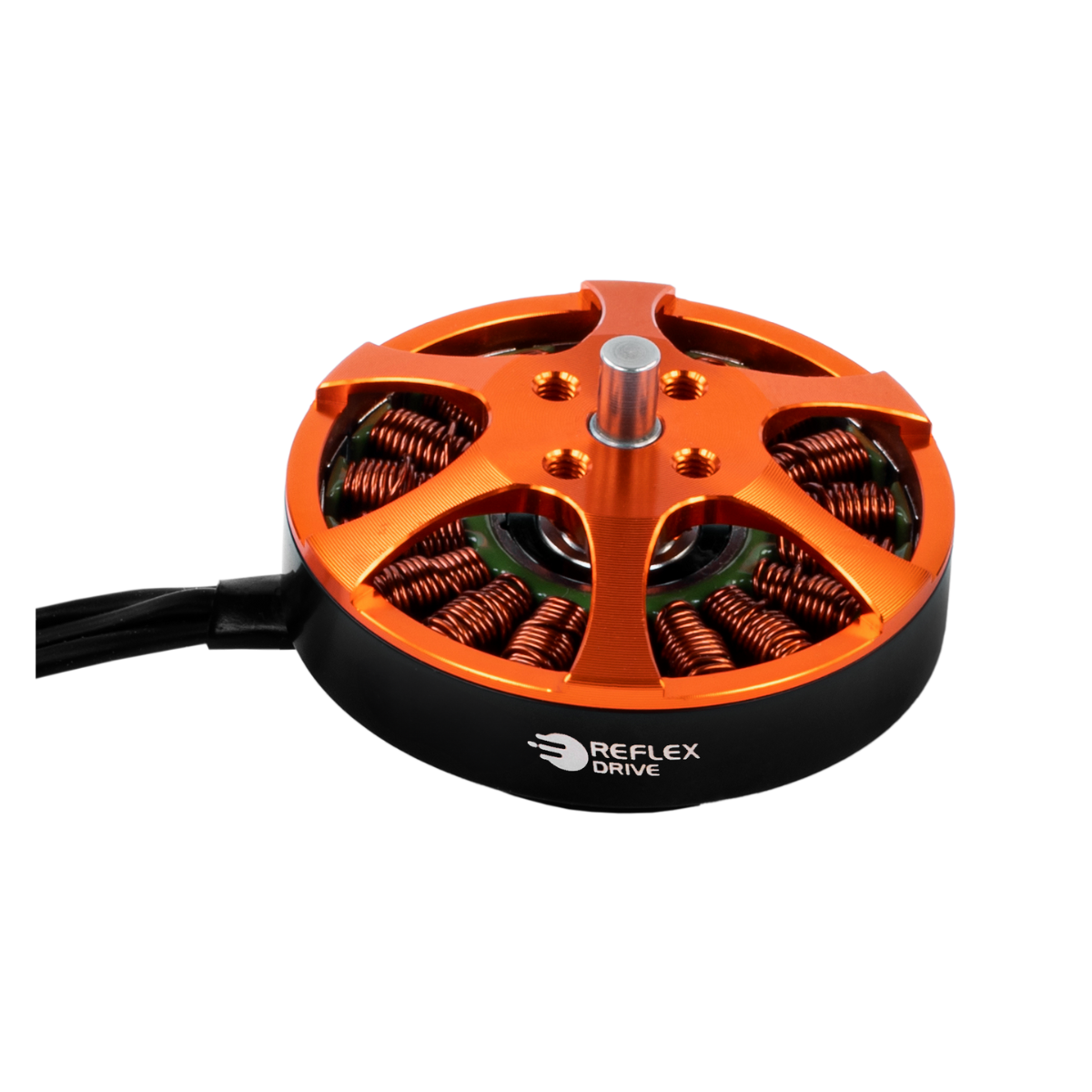

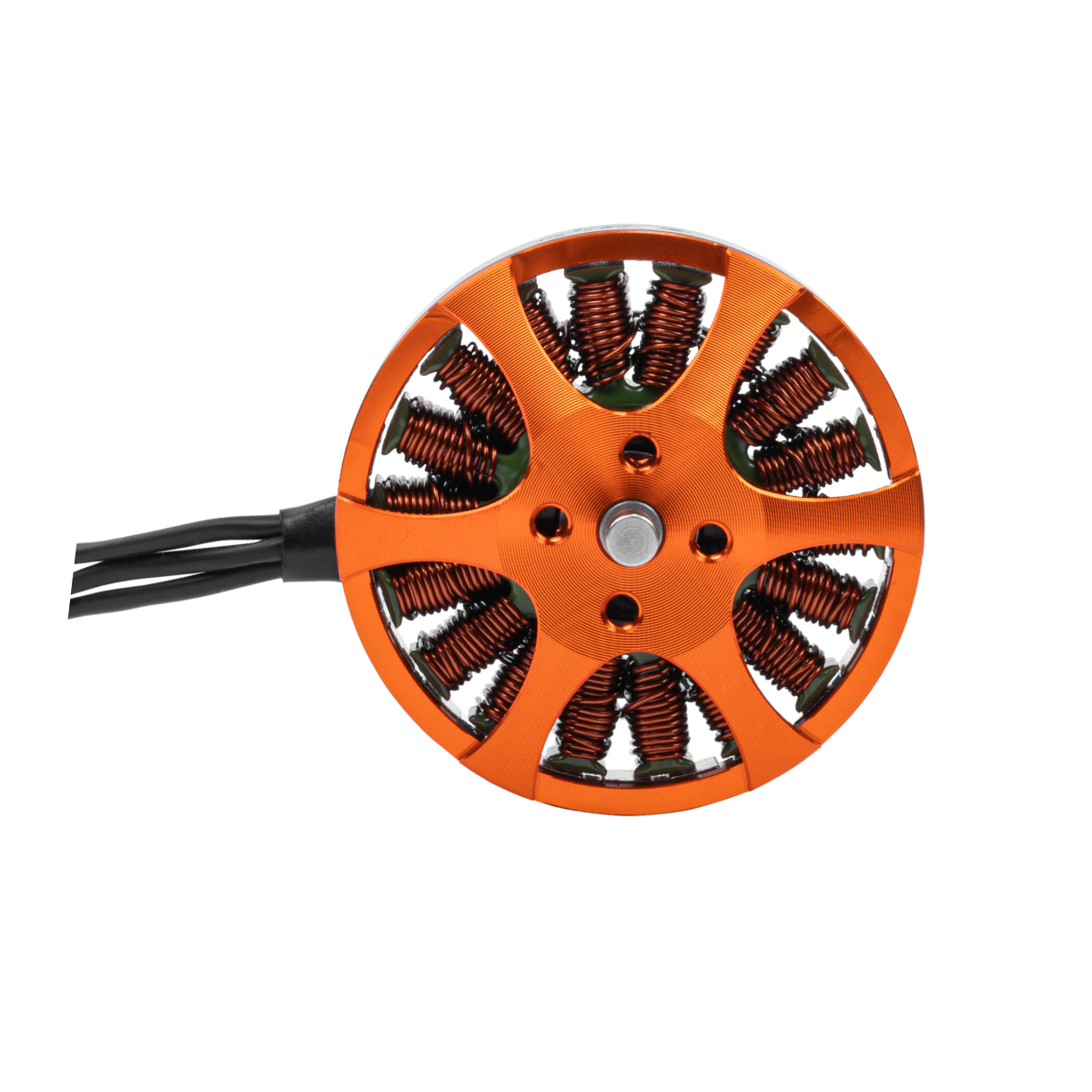

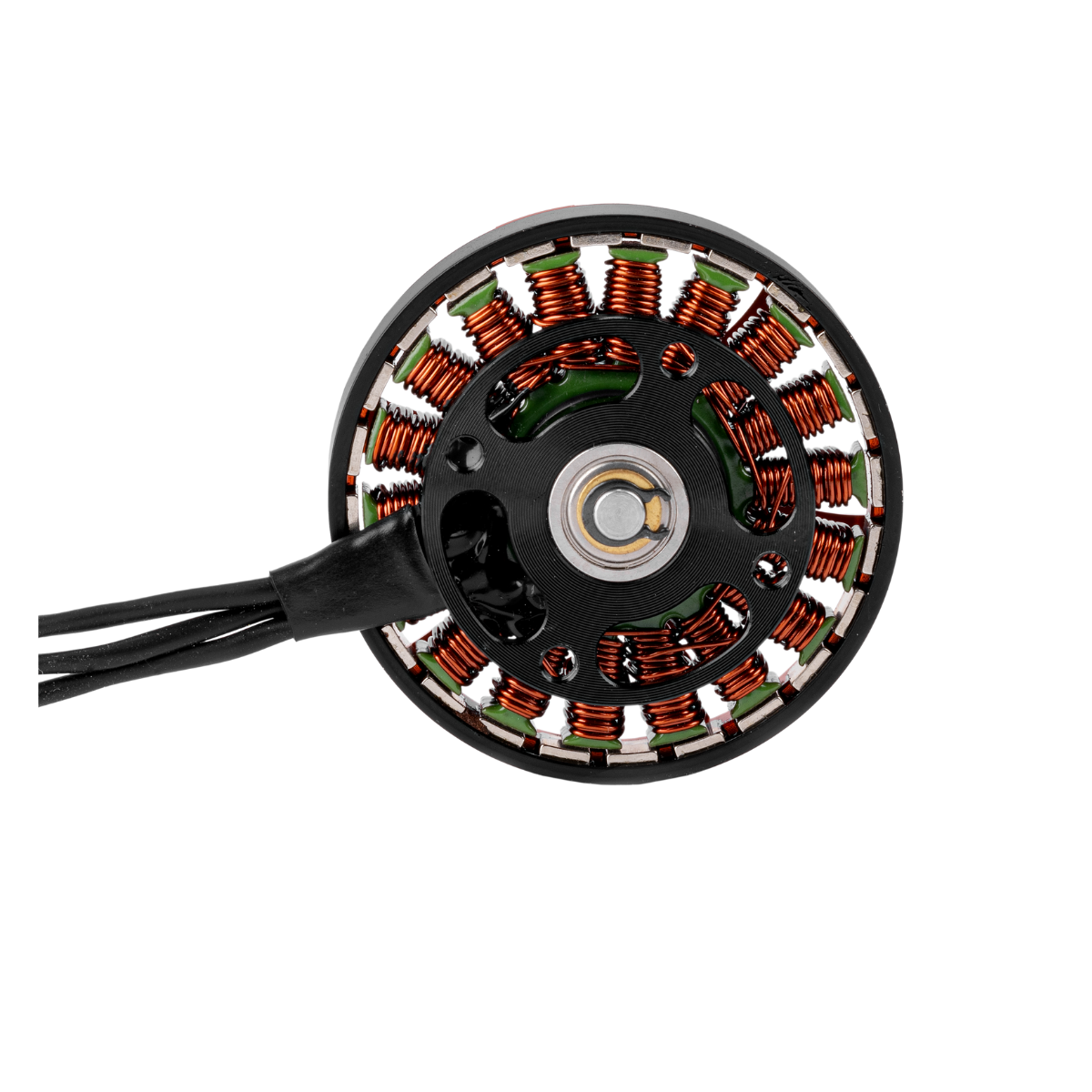

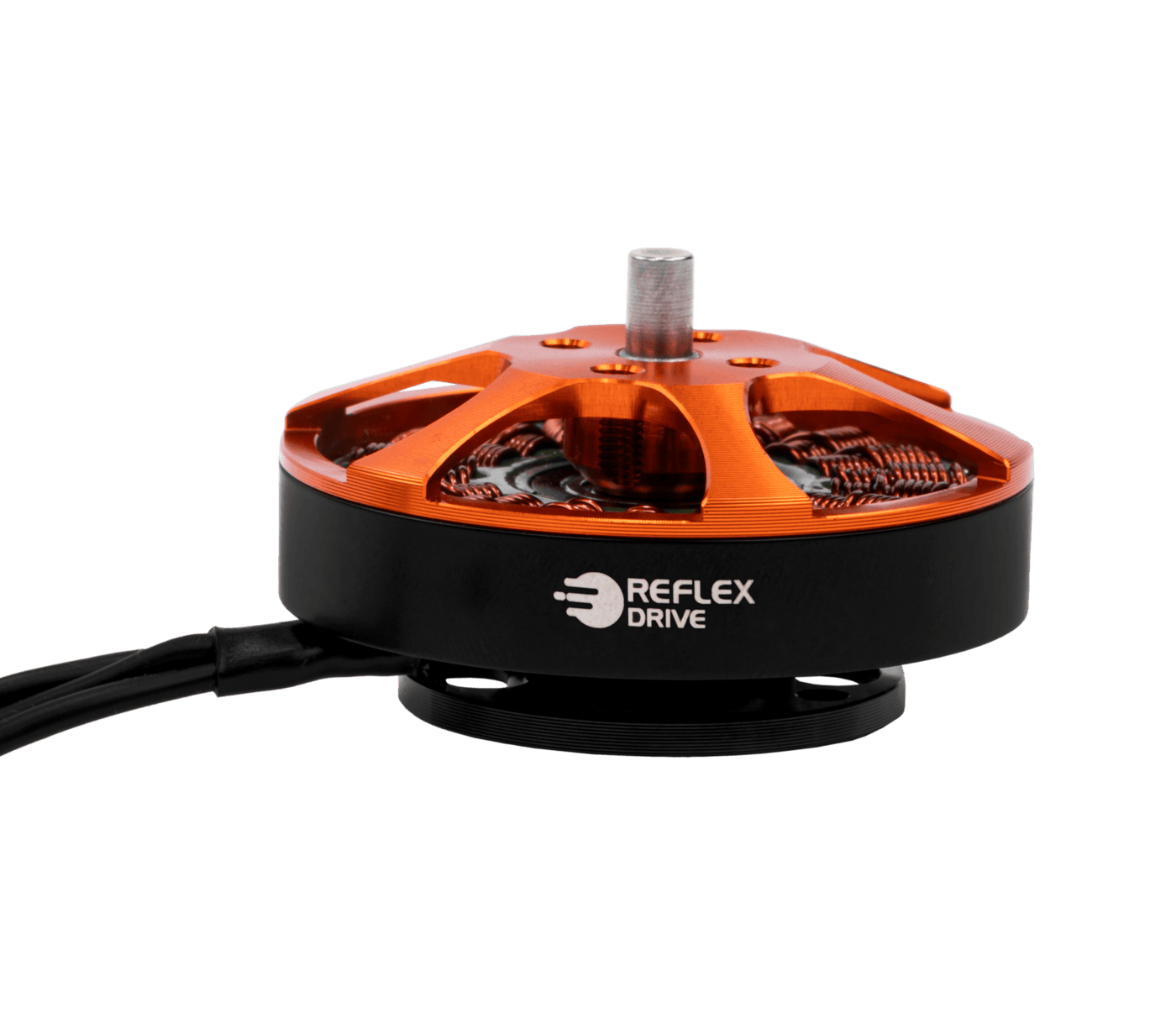

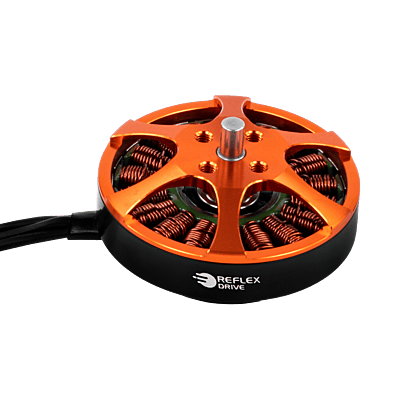

Made in India RD 4006 UAV BLDC Motor 6S 390KV
Non-returnable
₹8,299.00 ₹8,499.00
Out of stock
- Motor Type - Outrunner
- KV Rating - 390 KV
- Motor Efficiency - 90.99%
Product Details
Specification:
- Motor Type - Outrunner
- KV Rating - 390 KV
- Maximum Thrust - 2.3 KG
- Stator Poles / Magnet Poles - 18 / 24
- No load current - 0.8A
- Motor Efficiency - 90.99%
- Weight (Including Cable) - 69 grams
- Voltage Range - 4-6S
- Maximum Current (15Sec) - 27.5A
- Maximum Power (15Sec) - 660W
- Motor Dimensions - Ø44.4mm x 21mm
- Motor Torque Constant (9m.cm/A) - 276.75
- Cable Type / Length - 15AWG / 180mm
- Copper wire Temperature Rating - 90 ℃
- Winding material - 100% Copper
- IP Rating - IP34
- Maximum Operating Temperature - 150 ℃
- Recommended Propeller - 17*60 (Folding)
Perfomance Data:
- Motor - RD 4006 KV 390
- ESC - RD-T-TZ-040-06-E-BTC
- Operating Temperature - -20 °C ~ 85℃
- Recommended Propeller - 15*52 (Folding)
- Recommended ESC - RD-T-TZ-040-06-E-BTC
- Quad-copter - Maximum take-off weight for the drone: 3.76 KG
- Hex-copter - Maximum take-off weight for the drone: 5.78 KG
- Oct-copter - Maximum take-off weight for the drone: 7.56 KG
