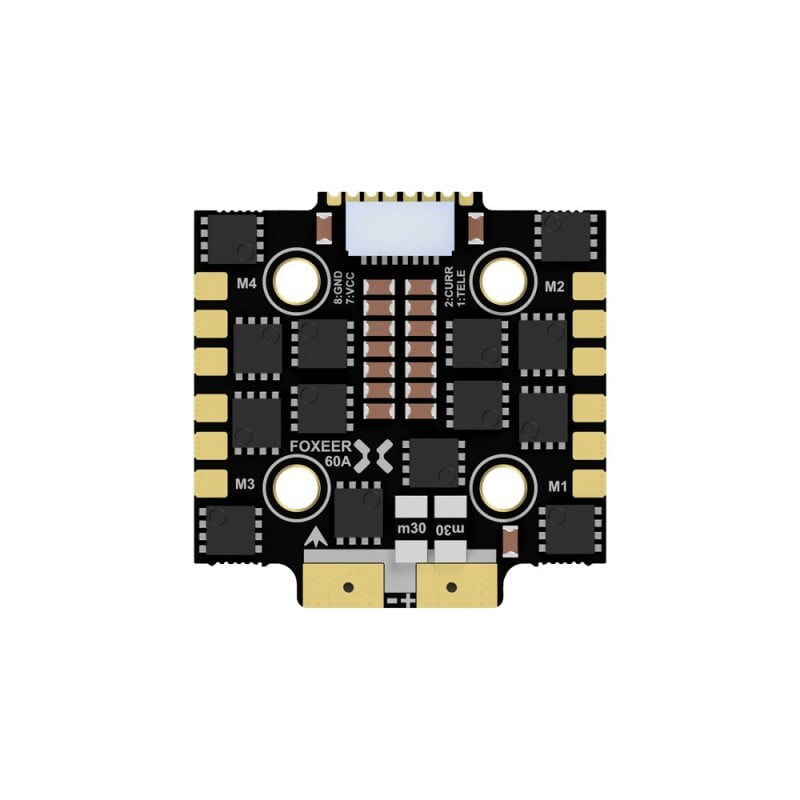

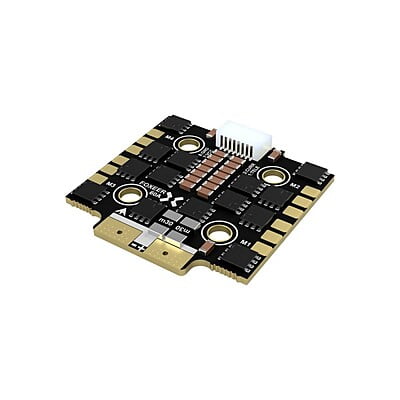

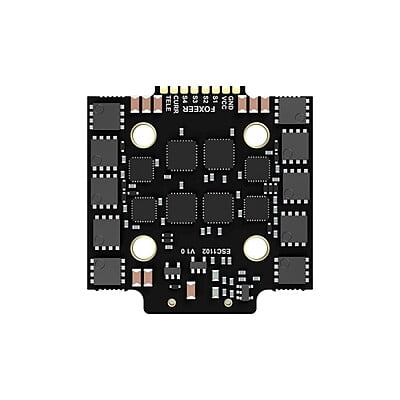

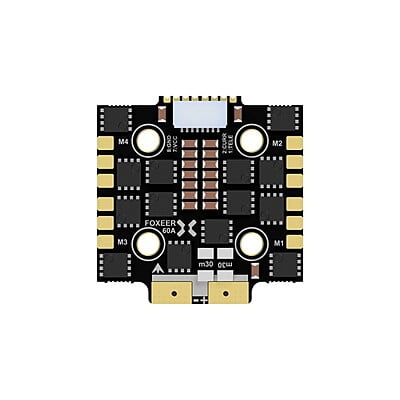

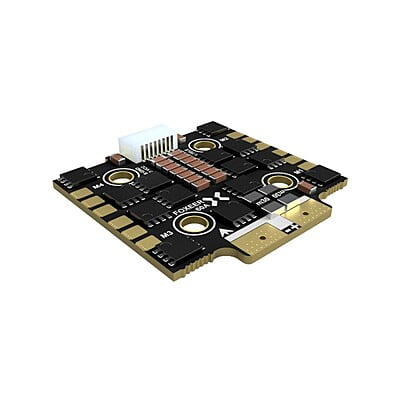

FOXEER Reaper F4 Slim Mini 60A 4in1 ESC

Features :

• 60 Amps continuous current per channel.

• Supports 3-6S LiPo battery input.

• Pre-flashed with cutting-edge BLHeli_32 firmware.

• Supports DShot1200, ProShot, and more.

• High-quality 32-bit processor for fast operation.

• Slim and mini form factor for compact builds.

• Excellent heat dissipation with integrated heatsink.

• Multiple protection features for enhanced safety.

• Integrated current sensor for real-time monitoring.

• Ideal for high-power FPV racing and freestyle.

Technical Specifications:

• Model: FOXEER Reaper F4 Slim Mini 60A 4in1 ESC

• Continuous Current: 60A per channel

• Burst Current: 100A per channel (for 10 seconds)

• Input Voltage: 3-6S LiPo

• BEC Output: No (OPTO)

• Firmware: FOXEER_ReaperM4IN1 (BLHeli_32)

• Processor: 32-bit ARM (likely AT32F421 or similar high-performance MCU)

• Telemetry: Yes (BLHeli_32 Telemetry)

• Current Sensor: Yes, integrated

• Mounting Holes: 20x20mm

• Dimensions: Approx. 31x31x6mm (L x W x H)

• Weight: Approx. 10.5g

• Capacitor: 35V 470uF included (or similar)

• Protection Features: Over-current protection, Over-temperature protection, Throttle signal loss protection.

Additional Details:

• Manufacturer: FOXEER

• Brand: FOXEER

• Generic Name: 4-in-1 ESC || Four in One ESC || FPV ESC || Drone ESC || Multirotor ESC || Brushless ESC || Electronic Speed Controller || Mini ESC || BLHeli_32 ESC || Race Drone ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: 3-inch FPV Drones || 4-inch FPV Drones || 5-inch FPV Drones (compact builds) || FPV Racing Drones || Freestyle Drones || Toothpick Drones (high power) || CineWhoops (high power) || Custom Drone Builds || High-Performance UAVs || Competitive FPV Pilots

Package Details:

Includes:

• 1x FOXEER Reaper F4 Slim Mini 60A 4in1 ESC

• 1x XT60 or XT30 Power Cable (depending on standard inclusion)

• 1x Electrolytic Capacitor (e.g., 35V 470uF)

• 1x ESC to FC Connection Cable

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What does "Slim Mini" mean for the FOXEER Reaper F4 Slim Mini 60A 4in1 ESC?

Ans. "Slim Mini" refers to the compact and reduced size of this 4-in-1 ESC. It is designed with a smaller footprint (typically 20x20mm mounting) and a lower profile, making it ideal for tight drone frames, lightweight builds, or any FPV drone where space and weight saving are critical, without compromising on high current capabilities.

Q2. What are the advantages of BLHeli_32 firmware on this 60A 4-in-1 ESC?

Ans. BLHeli_32 is an advanced 32-bit ESC firmware that provides numerous advantages. It offers higher resolution throttle steps, supports faster digital protocols like DShot1200 and ProShot, enables ESC telemetry for real-time data, and allows for extensive customization of motor timing and other parameters. This results in incredibly smooth, responsive, and efficient motor control for high-performance FPV drones.

Q3. Is 60A per channel enough for aggressive 5-inch FPV drone flying on 6S LiPo?

Ans. Yes, a 60A 4-in-1 ESC is generally considered more than sufficient for aggressive 5-inch FPV drone flying on 6S LiPo. This high current rating provides ample headroom for powerful motors and props, minimizing the risk of ESC desyncs or overheating even during demanding maneuvers and sustained full throttle bursts, making it a robust choice for competitive racing and freestyle.
