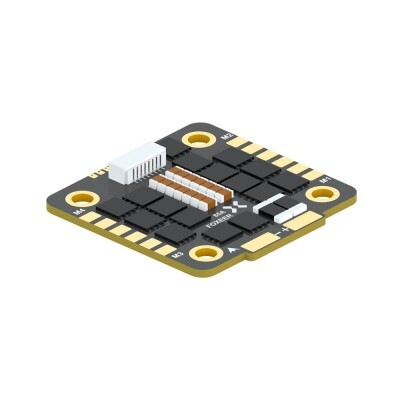

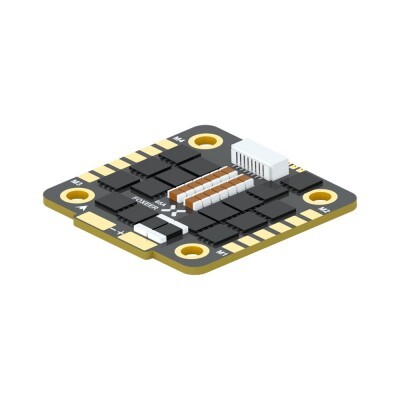

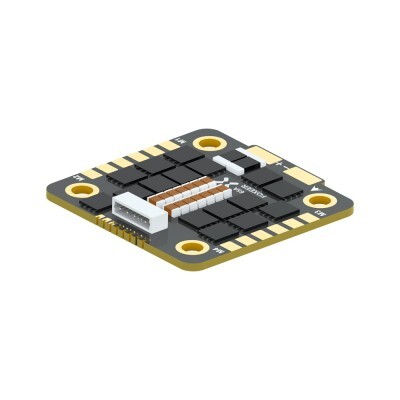

FOXEER Reaper F4 Mini 45A 4in1 ESC

Features :

• 45 Amps continuous current per channel.

• Supports 3-6S LiPo battery input.

• Pre-flashed with reliable BLHeli_S firmware.

• Supports DShot600, OneShot, MultiShot protocols.

• High-quality F4 processor for efficiency.

• Compact mini form factor (20x20mm mounting).

• Excellent heat dissipation for reliable operation.

• Integrated current sensor for real-time monitoring.

• Multiple protection features for enhanced safety.

• Ideal for performance-focused FPV drone builds.

Technical Specifications:

• Model: FOXEER Reaper F4 Mini 45A 4in1 ESC

• Continuous Current: 45A per channel

• Burst Current: 50A per channel (for 10 seconds)

• Input Voltage: 3-6S LiPo

• BEC Output: No (OPTO)

• Firmware: BLHeli_S

• Processor: F4 (likely a high-performance 8-bit or a basic 32-bit MCU for BLHeli_S, such as an EFM8BB21)

• Telemetry: No

• Current Sensor: Yes, integrated

• Mounting Holes: 20x20mm

• Dimensions: Approx. 31x31x6mm (L x W x H)

• Weight: Approx. 8.5g - 10g

• Capacitor: Typically includes a 35V 470uF or similar

• Protection Features: Over-current protection, Over-temperature protection, Throttle signal loss protection.

Additional Details:

• Manufacturer: FOXEER

• Brand: FOXEER

• Generic Name: 4-in-1 ESC || Four in One ESC || FPV ESC || Drone ESC || Multirotor ESC || Brushless ESC || Electronic Speed Controller || Mini ESC || BLHeli_S ESC || Race Drone ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: 3-inch FPV Drones || 4-inch FPV Drones || 5-inch FPV Drones (for balanced builds) || FPV Racing Drones || Freestyle Drones || Toothpick Drones (high power) || CineWhoops (for robust power) || Custom Drone Builds || Lightweight FPV Setups || Competitive FPV Pilots

Package Details:

Includes:

• 1x FOXEER Reaper F4 Mini 45A 4in1 ESC

• 1x XT60 (or XT30 depending on intended use) Power Cable

• 1x Electrolytic Capacitor (e.g., 35V 470uF)

• 1x ESC to FC Connection Cable (if not direct solder pads)

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What is the primary difference between a BLHeli_S ESC and a BLHeli_32 ESC, like the FOXEER Reaper F4 Mini 45A?

Ans. The primary difference lies in the processor. BLHeli_S ESCs (like this one) typically use an 8-bit MCU, offering great performance for most pilots with protocols like DShot600. BLHeli_32 ESCs use a more powerful 32-bit MCU, enabling faster digital protocols (DShot1200+), real-time ESC telemetry, and more advanced configurable features, often preferred by competitive pilots.

Q2. Is the 45A continuous current rating sufficient for a typical 5-inch FPV drone on 4S or 6S LiPo?

Ans. For many 5-inch FPV drones, a 45A continuous current rating per motor is generally sufficient, especially for 4S LiPo setups and even for balanced 6S freestyle flying. It can handle most common 22XX or 23XX motors. However, for extremely aggressive, high-power 6S racing builds with very high KV motors, a 55A or 60A ESC might offer more headroom.

Q3. Does this FOXEER Reaper F4 Mini 45A 4in1 ESC have a built-in current sensor?

Ans. Yes, the FOXEER Reaper F4 Mini 45A 4in1 ESC typically includes an integrated current sensor. This allows your flight controller to read and display real-time current consumption from your motors, which is crucial for monitoring battery usage, calculating remaining flight time, and diagnosing potential power system issues during flight.
