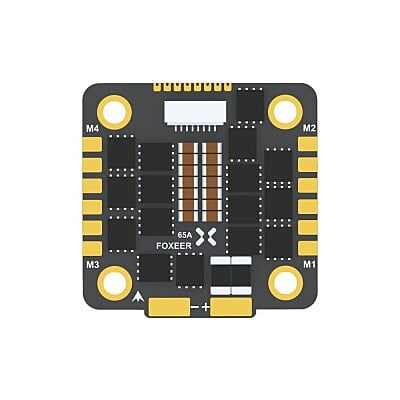

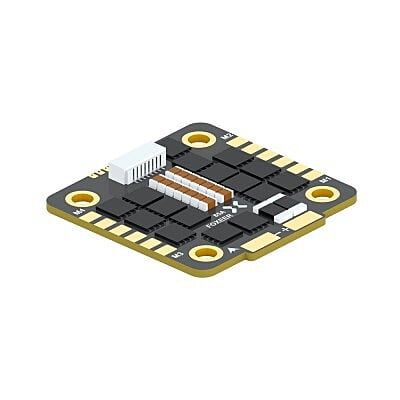

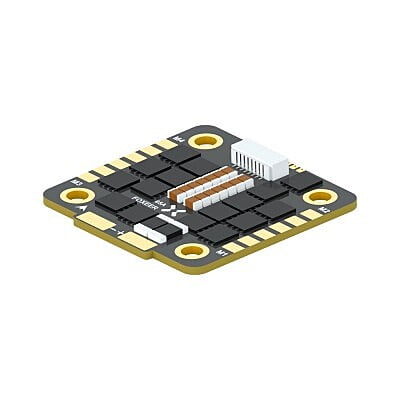

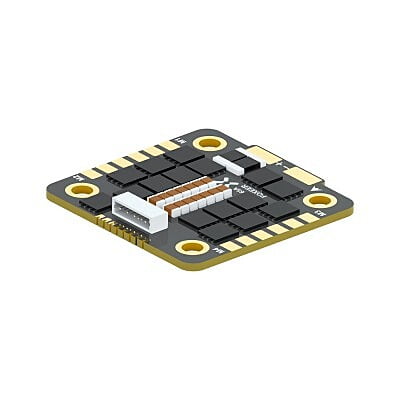

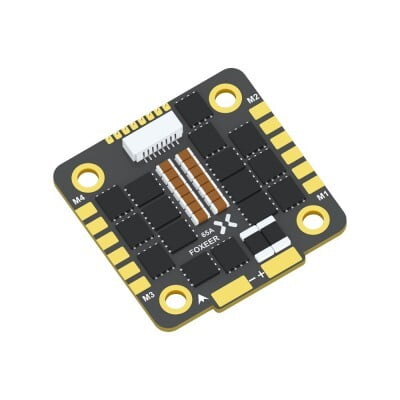

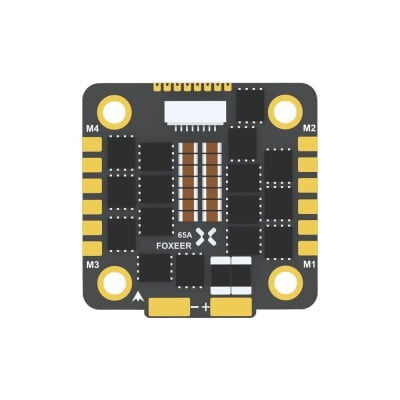

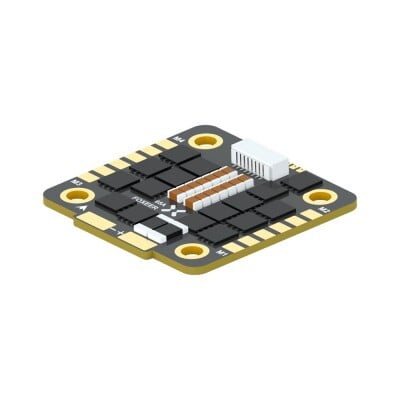

FOXEER Reaper F4 65A 4in1 ESC

Features:

• Powerful 32-bit STM32F4 processor.




• Robust 65A continuous current.




• High burst current of 80A.




• Supports 3-6S LiPo input voltage.




• 4-in-1 design simplifies wiring.




• Excellent heat dissipation.




• Supports various DShot protocols.




• Built-in current sensor.




• Compact size for easy installation.




• High quality MOSFETs.

Technical Specifications:

• Model: FOXEER Reaper F4 65A 4in1 ESC

• Firmware - FOXEER_Reaper4IN1_F4_65A

• Continuous /Burst Current - 65A*4 / 100A*4

• Input Voltage - DC 9V~40V (3-8S Lipo)

• BEC - No

• Telemetry - Supported

• ESC Programming - BLHeli32

• Current Scaling - 70

• Input Signal - DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.

• Working Temperature - -20℃ ~ +55℃

• Working Humidity - 20~95 %

• Storage Temperature - -20℃ ~ +70℃

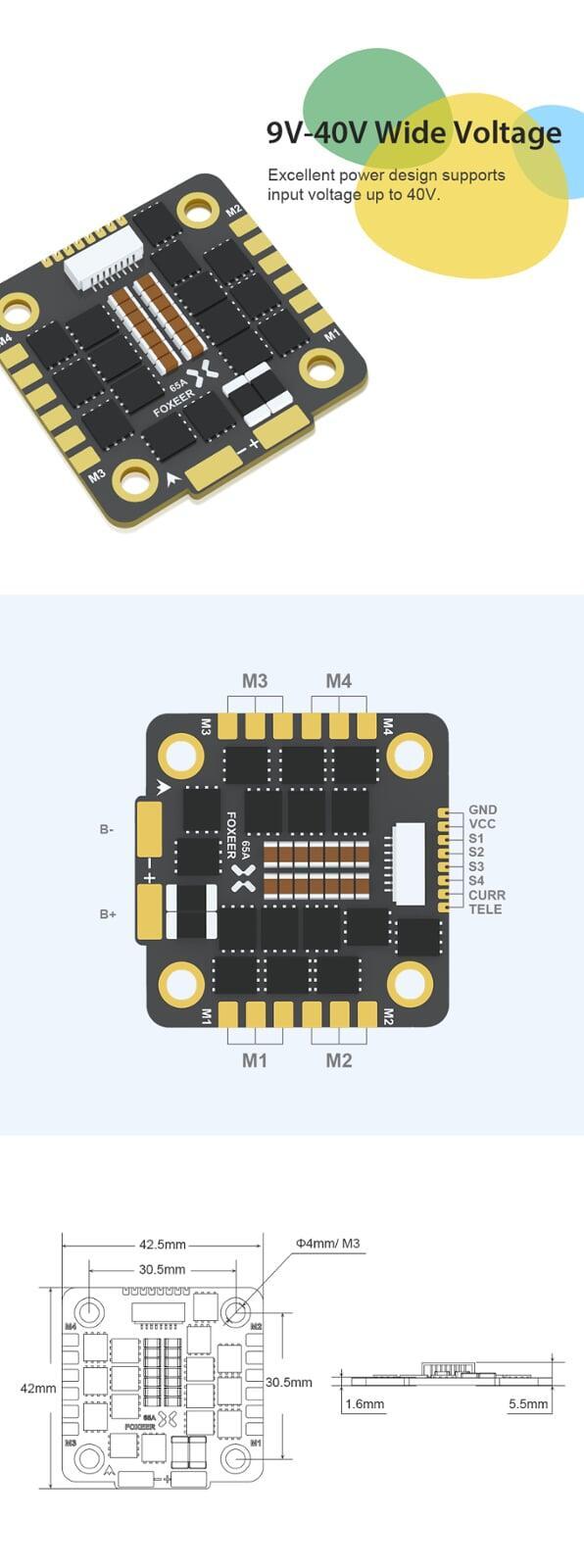

• Mounting Hole - 30.5X30.5mm,Φ4mm/M3

• Dimension - 42.5x42x5.5mm

• Weight - 14.8g

Additional Details:

• Manufacturer: Foxeer

• Brand: FOXEER

• Generic Name: 4in1 ESC || FPV ESC || Electronic Speed Controller || Drone ESC || Quadcopter ESC || BLHeli_32 ESC || Reaper ESC || Drone Component || ESC Board || FPV Electronics

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Freestyle FPV Drones || High-Performance Quadcopters || Custom Drone Builds || Drone Upgrades || Competitive FPV Pilots || Drone Enthusiasts || Aerial Cinematography || Professional FPV || FPV Drone Builders

Package Details:

Includes:

• 1x FOXEER Reaper F4 65A 4in1 ESC

Frequently Asked Questions:

Q1. What is the main benefit of a "4in1" ESC compared to four individual ESCs?

Ans. A 4in1 ESC integrates all four speed controllers onto a single board, which simplifies the drone's wiring, reduces weight, and creates a cleaner build. This design is highly beneficial for compact FPV racing and freestyle drones, as it reduces potential points of failure and makes the overall assembly process much more streamlined.

Q2. What is the importance of a 65A current rating for an FPV drone?

Ans. A high continuous current rating of 65A is important for powerful and aggressive FPV drone builds. This rating ensures that the ESC can handle the high current demands from larger motors and propellers used for high-throttle maneuvers, preventing overheating and a loss of power. It provides a safety margin for demanding flights like racing or acrobatic freestyle.

Q3. Is this ESC compatible with both 4S and 6S LiPo batteries?

Ans. Yes, the FOXEER Reaper F4 65A 4in1 ESC is designed for a wide voltage range, supporting 3S to 6S LiPo batteries. This versatility makes it compatible with most standard and high-performance FPV drone setups, allowing you to choose the battery that best suits your flight style and power requirements.
