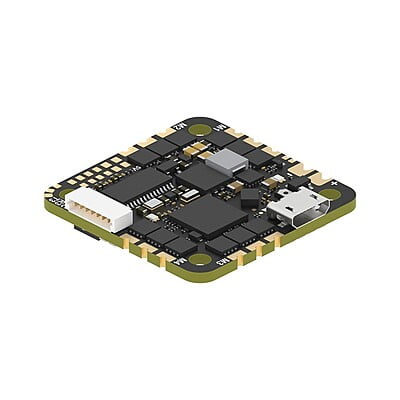

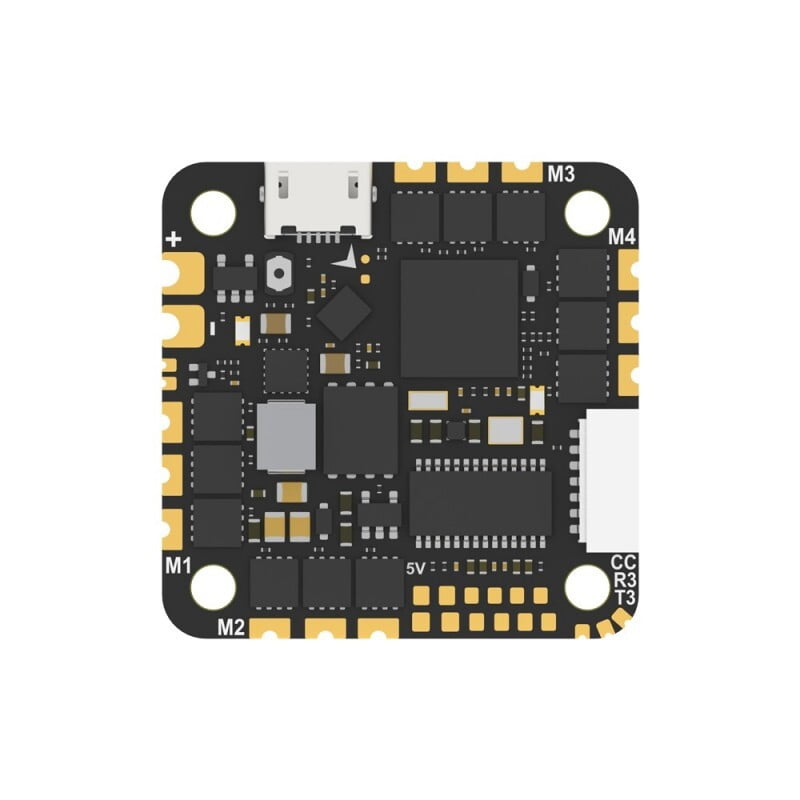

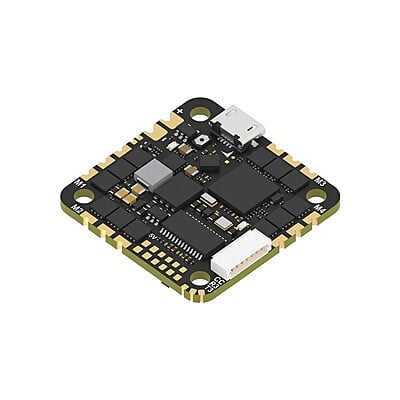

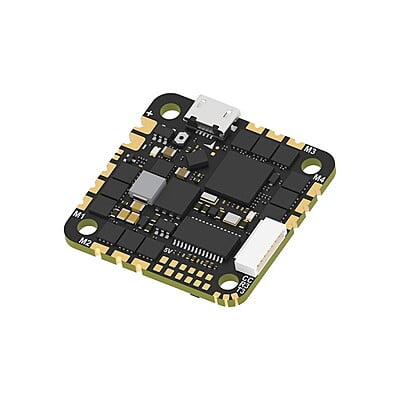

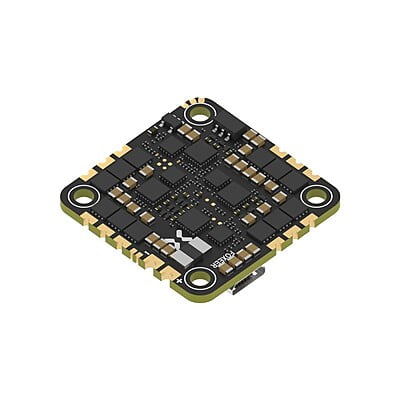

FOXEER Reaper AIO V2 F745 45A ESC

Features :

• Integrated F7 Flight Controller for superior processing.




• Built-in 45 Amps 4-in-1 ESC.




• Pre-flashed with reliable BLHeli_S firmware.




• Supports DShot600 and other digital protocols.




• Integrated Betaflight OSD for real-time data.




• Ultra-compact AIO board design.




• Robust 3-6S LiPo input voltage compatibility.




• Multiple UARTs for peripheral connectivity.




• Dedicated BEC for FPV camera and VTX.




• Excellent heat dissipation and protection.

Technical Specifications:

• Model: FOXEER Reaper AIO V2 F745 45A

• Flight Controller (FC) MCU: STM32F745 (typically 216MHz)

• IMU: MPU6000 (SPI)

• OSD: Integrated Betaflight OSD

• Barometer: No (typically for AIOs to keep compact)

• Blackbox: Yes, typically 16MB onboard Flash

• UART Ports: 5x UARTs (e.g., UART1, 2, 3, 4, 6)

• ESC Continuous Current: 45A

• ESC Peak Current: 50A (for 10 seconds)

• ESC Input Voltage: 3-6S LiPo

• ESC Firmware: BLHeli_S (32-bit capable, often comes with G-H-30 firmware target or similar)

• ESC Protocols: DShot300/600, OneShot125, MultiShot, PWM

• BEC Output: 5V/2.5A (for FC, Receiver, GPS), 9V/2.5A (for VTX, Camera)

• Mounting Pattern: 25.5x25.5mm (Micro size)

• Dimensions: Approx. 32mm x 32mm x 8mm (L x W x H)

• Weight: Approx. 8.5g - 10g (without wires)

• Target: FOXEERF745

• Current Sensor: Integrated

Additional Details:

• Manufacturer: FOXEER

• Brand: FOXEER

• Generic Name: AIO Flight Controller || All-in-One FC || FC ESC Combo || FPV Stack || Drone Electronics || Flight Controller Board || Micro FPV FC || Brushless AIO || FPV System || Integrated FC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: 3-inch FPV Drones || 4-inch FPV Drones || 5-inch FPV Drones || Micro FPV Builds || Cinematic CineWhoops || Toothpick Drones || Freestyle Drones || FPV Racing Drones || Custom Drone Builds || Lightweight UAVs

Package Details:

Includes:

• 1x FOXEER Reaper AIO V2 F745 45A ESC (Integrated FC & 4-in-1 ESC)

• 1x XT30 or XT60 power cable (depending on target build size/current)

• 1x Capacitor

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What does "AIO" mean for the FOXEER Reaper AIO V2 F745 45A ESC?

Ans. "AIO" stands for "All-In-One," meaning this single board integrates both the Flight Controller (FC) and the 4-in-1 Electronic Speed Controller (ESC). This design significantly simplifies wiring, reduces build complexity, saves space, and minimizes weight, making it ideal for compact FPV racing and freestyle drone builds.

Q2. Does this FOXEER AIO support Betaflight OSD, and how does it benefit FPV flying?

Ans. Yes, the FOXEER Reaper AIO V2 F745 45A includes an integrated Betaflight OSD (On-Screen Display). This feature allows pilots to view critical flight data such as battery voltage, current draw, flight mode, RSSI (Receiver Signal Strength Indication), and timer directly on their FPV video feed in real-time, greatly enhancing situational awareness during flight.

Q3. Is the 45A current rating sufficient for 5-inch FPV freestyle drones?

Ans. For many 5-inch FPV freestyle drones, a 45A 4-in-1 ESC with BLHeli_S firmware is generally sufficient. It can comfortably handle the current draw of common 22xx or 23xx motors (e.g., 2207, 2306) on 4S or even 6S LiPo, especially if the motors are not extremely power-hungry or if the pilot's flying style isn't overly aggressive with sustained full throttle. Always match the ESC amperage to your specific motor and propeller combination.
