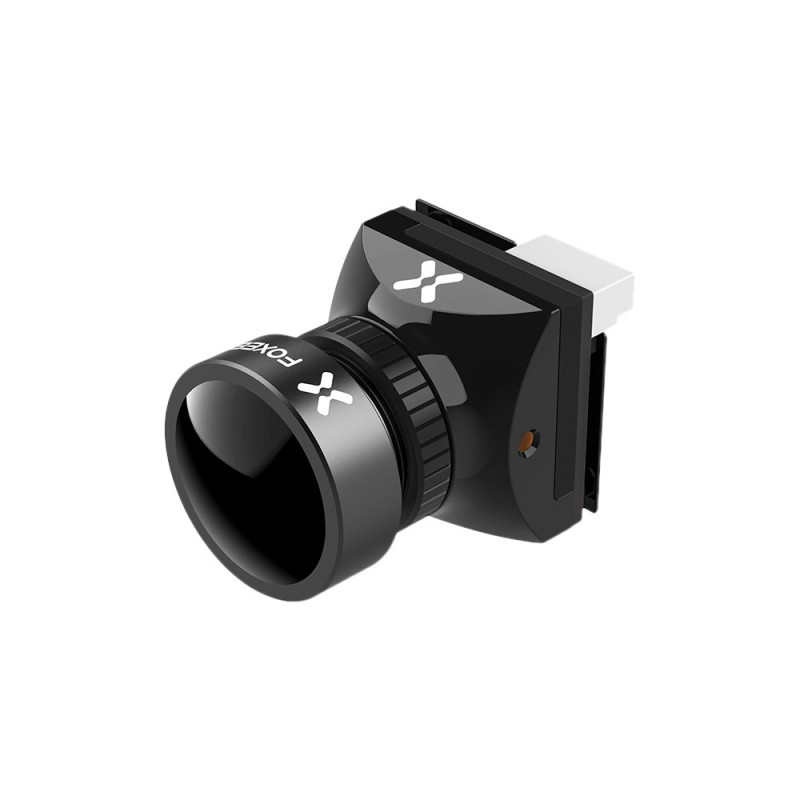

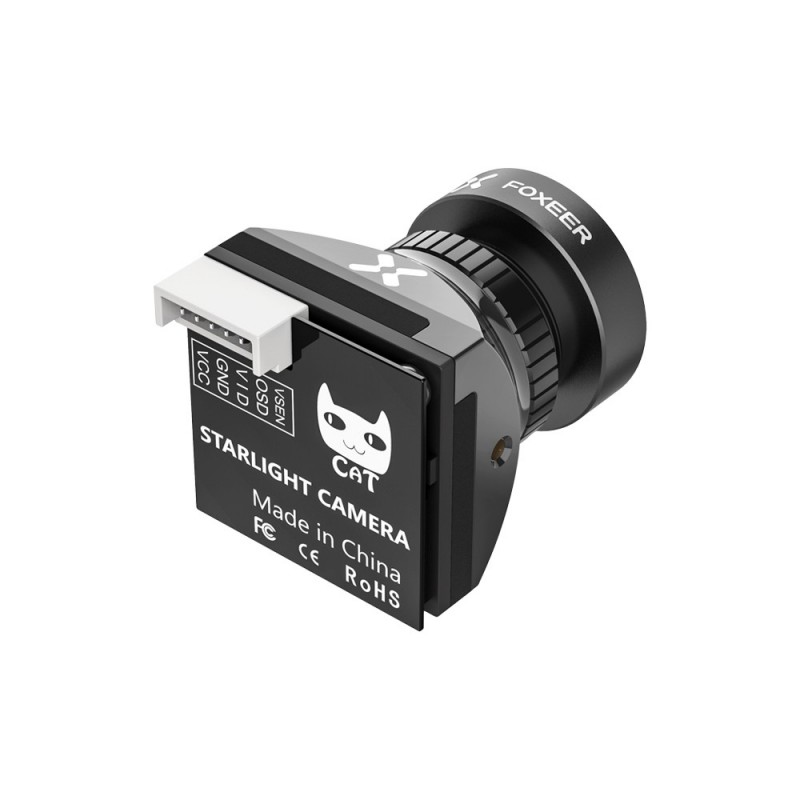

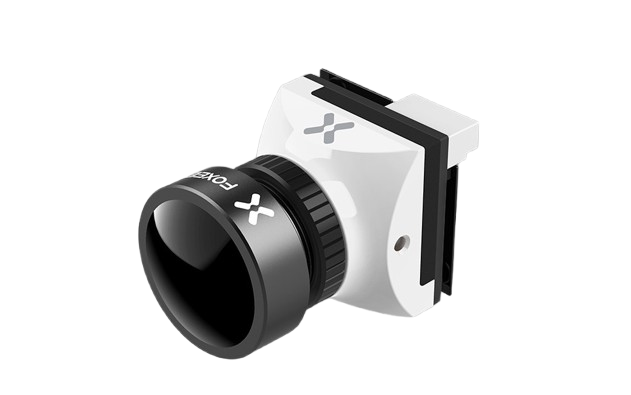

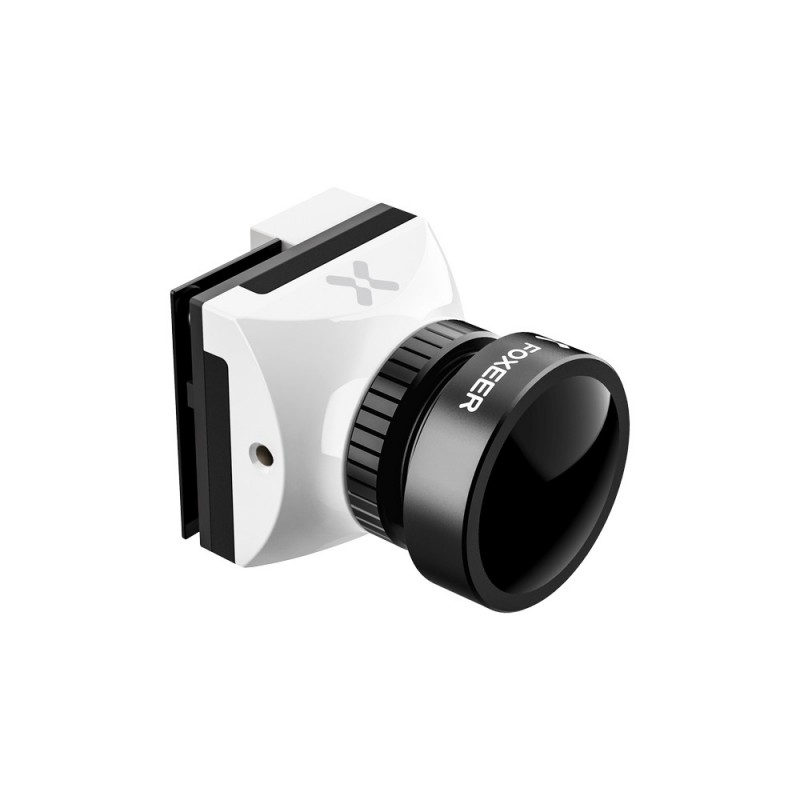

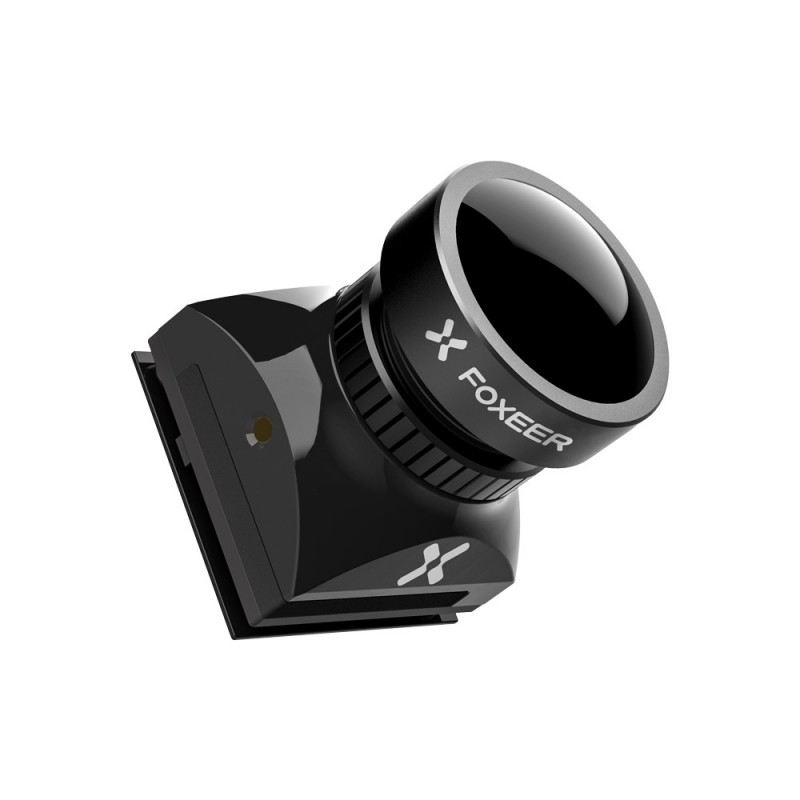

FOXEER Micro Cat 3 Super Low Light Night Camera
₹5,199.00 - ₹6,799.00
The Foxeer Micro Cat 3 is an analog FPV camera engineered for exceptional low-light performance. With a 1/3" Sony CMOS sensor, 1200TVL resolution, and 0.00001Lux sensitivity, it delivers clear, low-noise images for night flying. Its compact 19x19mm size, low latency, and switchable aspect ratio make it a versatile and reliable choice for FPV drones in challenging lighting conditions.
Colour
Product Details
Features:
- Super low light performance (0.00001Lux).
- 1/3-inch Sony CMOS Sensor.
- High 1200TVL resolution.
- Minimal noise for clear video.
- Low latency for responsive flying.
- Switchable 4:3 / 16:9 aspect ratio.
- Switchable PAL / NTSC TV system.
- Large aperture night vision lens (M12 2.1mm).
- Exclusive optimization for LED lighting.
- Supports OSD (On-Screen Display) with voltage/cam title/time.
Technical Specifications:
- Sensor Type: Sony 1/3" CMOS Sensor
- Scale: 4:3(Default)/16:9 Switchable
- Tv System: PAL(Default)/NTSC Switchable
- Resolution: 1200TVL
- Lens: M12 2.1mm Low Light Lens
- FOV: 4:3 FOV-H: 100° FOV-D:125°, 16:9 FOV-H: 100° FOV-D:115°
- Shutter Speed: PAL 1/25-1/10000 sec; NTSC 1/30-1/10000 sec
- Video Output: CVBS Analog Signal
- Minimum Illumination: 0.00001Lux
- White Balance: Auto
- DNR: 3DNR
- WDR: 100dB
- DAY/NIGHT: EXT/Auto/Color/B&W
- Flight OSD: Voltage/Cam Title/Time
- Input Voltage: 4.6V~20V
- Language: ENGLISH / 中文 / PYCCKNN / ESPANOL / ITALIANO /FRANCAIS/POLSKIM/ PORTUGUES / 日本語 / ΕΛΛΗΝΙΚΑ
- Working Temperature: -10°-50°C RH90% MAX
- Working Humidity: 20-80%
- Storage Temperature: -20°-70°C
- Consumption: 95mA±15% @ DC12V
- Dimension: 19*19mm
- Weight: 10.7g(Exclude cable)
Additional Details:
- Manufacturer: Foxeer
- Brand: Foxeer
- Generic Name: FPV Camera || Analog FPV Camera || Drone Camera || Micro FPV Camera || Night Vision Camera || Low Light FPV Camera || CMOS FPV Camera || Drone Component || Video Transmitter Camera || FPV Racing Camera
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Night FPV Flying || Low Light FPV || FPV Racing in dimly lit areas || Freestyle FPV Flying || Cinematic FPV (for low light shots) || Micro FPV Drone Builds || Pilots who need clear visuals in challenging lighting conditions || Urban Night Flying.
Package Details:
Includes:
1 x Foxeer Cat 3 Camera
4 x Bracket Screw
4 x Gasket Ring
1 x OSD Board
1 x 2-Pin OSD Cable
1 x Servo Cable
Frequently Asked Questions:
Q1. What is the main advantage of the Foxeer Micro Cat 3 camera for FPV pilots?
Ans. Its primary advantage is its exceptional performance in extremely low light conditions, with a sensitivity of 0.00001Lux, allowing pilots to fly clearly and confidently at night or in very dim environments.
Q2. Is the Foxeer Micro Cat 3 a digital or analog FPV camera?
Ans. The Foxeer Micro Cat 3 is an analog FPV camera, providing CVBS video output, making it compatible with standard analog FPV video transmitters and goggles.
Q3. Can I adjust settings like aspect ratio and TV system on the Foxeer Micro Cat 3?
Ans. Yes, the camera supports OSD (On-Screen Display) control, allowing you to easily switch between 4:3 and 16:9 aspect ratios, and PAL or NTSC TV systems to match your FPV setup preferences.
