FOXEER Mega (Aura) 5 O3 Freestyle Frame Kit
₹5,349.00 ₹12,699.00

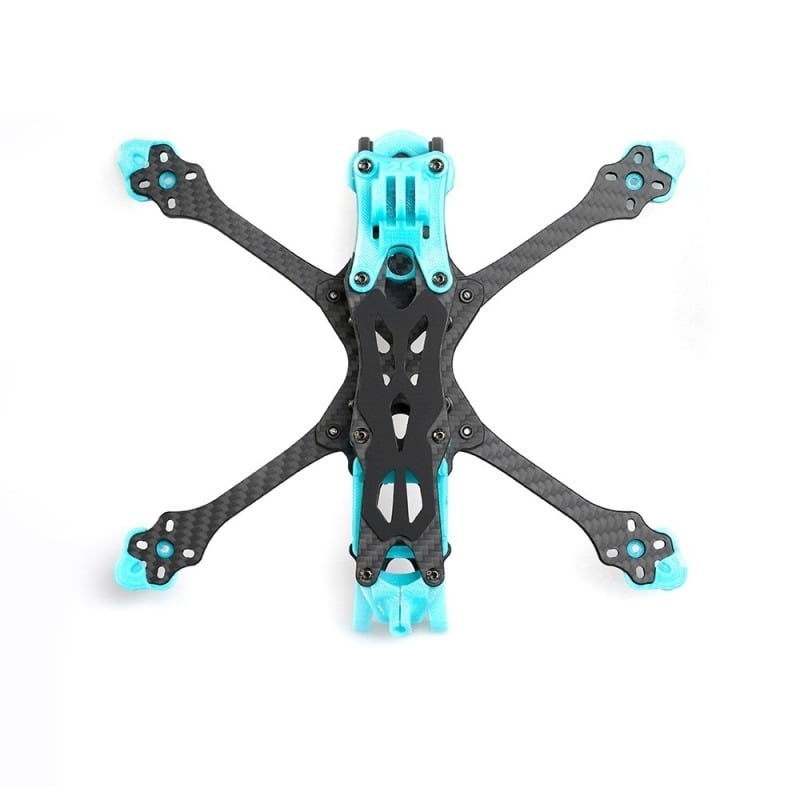

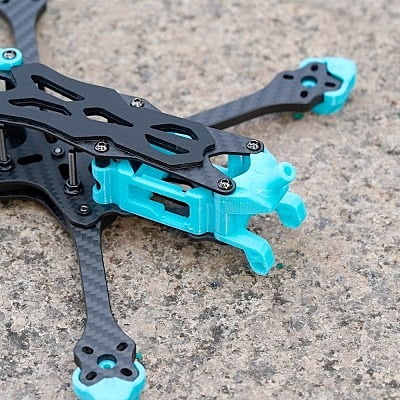

The FOXEER Mega (Aura) 5 O3 Freestyle Frame Kit is a robust and agile 5-inch frame designed for FPV freestyle enthusiasts. Crafted for durability and performance, it offers excellent maneuverability and compatibility with the DJI O3 Air Unit, making it ideal for capturing stunning aerial footage and pushing the limits of acrobatic flight.
Choose Quantity
Product Details
Features:
- Durable carbon fiber construction.
- Optimized for freestyle flight.
- Supports DJI O3 Air Unit.
- Excellent maneuverability and control.
- Lightweight design enhances agility.
- Spacious for component installation.
- Vibration dampening for smooth video.
- Robust arms resist impacts.
- Easy to assemble and maintain.
- Provides superior flight experience.
Technical Details:
- Material: Toray T700 carbon with silky coating
- Wheelbase: 220mm
- Middle Mouting Hole: 30.5×30.5mm
- Rear Mouting Hole: 20×20/25.5*25.5/30.5×30.5mm
- Camera Size: 19×19/20x20mm
- Weight: 129g(Excluded TPU)
Additional Details:
- Manufacturer: FOXEER
- Brand: FOXEER
- Generic Name: FPV Drone Frame, Freestyle Quadcopter Frame, Drone Chassis, Racing Drone Frame
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Freestyle Piloting, Aerial Cinematography, Drone Racing Enthusiasts, DIY Drone Builders
Package Details:
includes:
- 5mm Arm 16~19mm mounting – 4
- 2mm Top Plate – 1
- 2.5mm Middle Plate – 1
- 2.5mm Bottom Plate – 1
- CNC Side Plate – 2
- Aluminum Column M3*Φ5.5*23 – 4
- SMA Antenna Mount – 1
- Bottom Plate Front Protective Mount – 1
- M5 Gopro Mount – 1
- Arm Guard – 4
- 915 Rx Antenna Mount – 1
- Isolation Column – 2
- Capacity Supporter – 1
- DJI O3 VTx Mount – 1
- UFL Antenna Mount – 1
- Cam Spacer – 2
- M5 Nut – 1
- M5*20 Screw – 1
- Battery Anti-slip Mat -1
- 250*20mm Strap – 1
- 220*20mm Strap – 1
Frequently Asked Questions:
Q1: Is this frame compatible with other FPV video transmission systems besides DJI O3?
Ans: While primarily designed for the DJI O3 Air Unit, with some modifications or specific mounting solutions, it might be possible to adapt other VTX systems. However, optimal fit and performance are guaranteed with the O3.
Q2: What size propellers are recommended for this frame?
Ans: This 5-inch frame is designed to accommodate 5-inch propellers for optimal freestyle performance.
Q3: Does the kit include motors or flight controllers?
Ans: No, the FOXEER Mega (Aura) 5 O3 Freestyle Frame Kit includes only the frame components. Motors, flight controllers, ESCs, and other electronics are sold separately.
