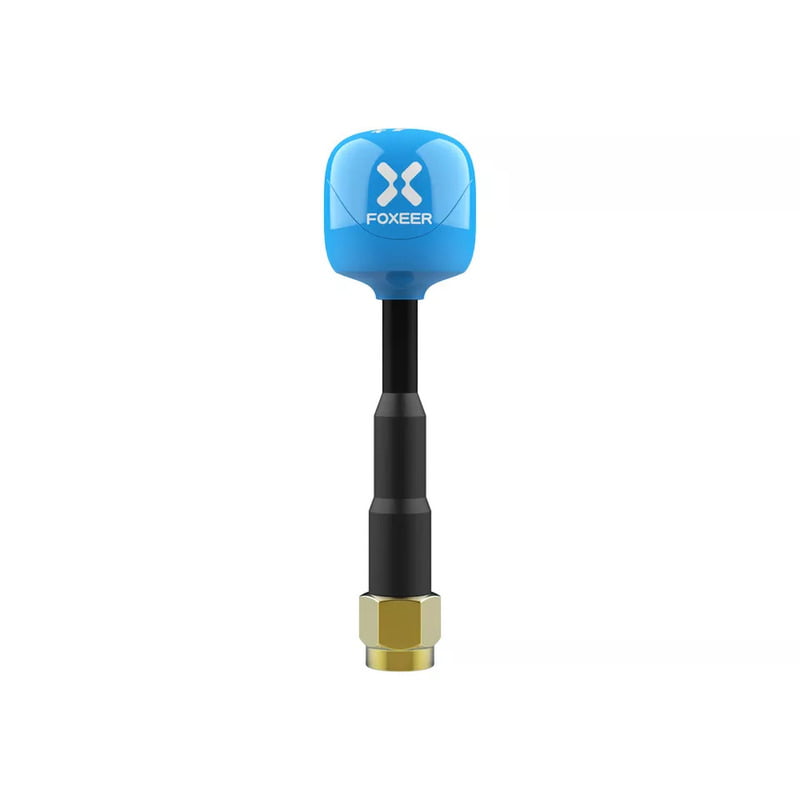

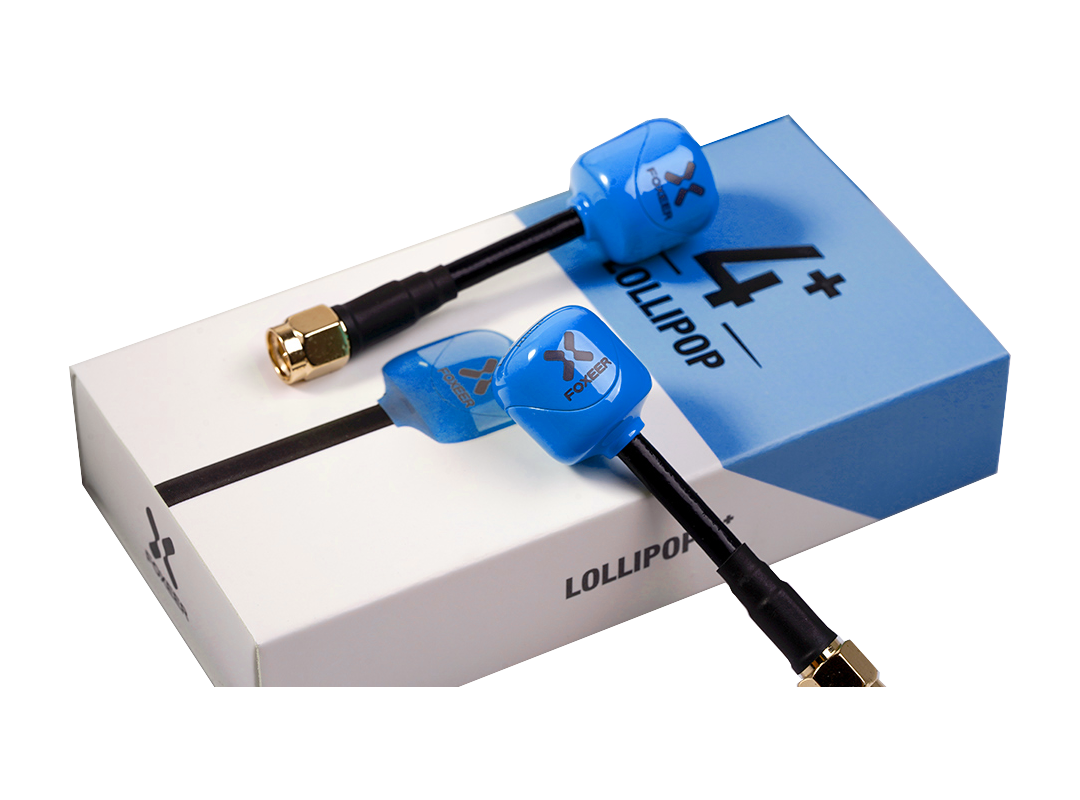

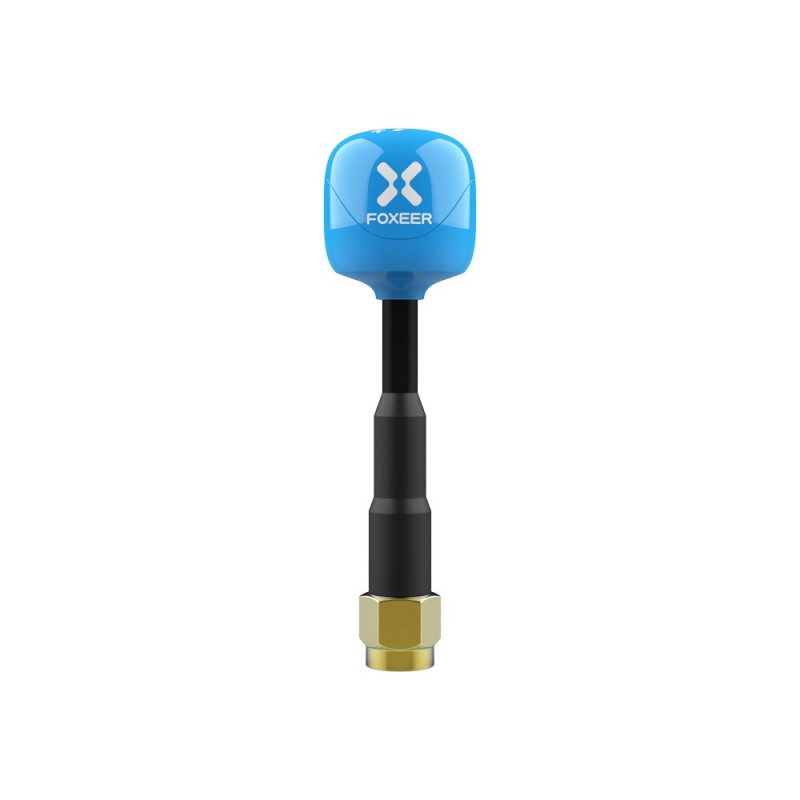

FOXEER Lollipop 4 Plus 5.8G 2.6dBi FPV Antenna
FEATURES
- high quality material & oxidation resistance
- all connectors with 48hs salt spray testing
- All feeders adjust to the best signal
- elegant curve
- streamline design
Technical Details
- Center Frequency5.75GHz
- Gain2.6dBi
- Axial RatioClose to 1
- Band Width5.5G~6GHz
- Radiation Efficiency98%
- SWR1.07 at Center Frequency
- PolarizationRHCP/LHCP
- Case MaterialPC+ABS
- WeightSMA/RPSMA: 7.8g
- Straight MMCX: 4.4g
- Angle MMCX: 4.5g
- SMA-10CM: 9.7g
- Angle SMA-15CM: 13.9g
- UFL : 2.8g
- UFL Tube Short: 2.9g
- UFL Tube Long: 3.8g
- Angle MMCX Tube Short: 4.8g
- Angle MMCX Tube Long: 6.8g

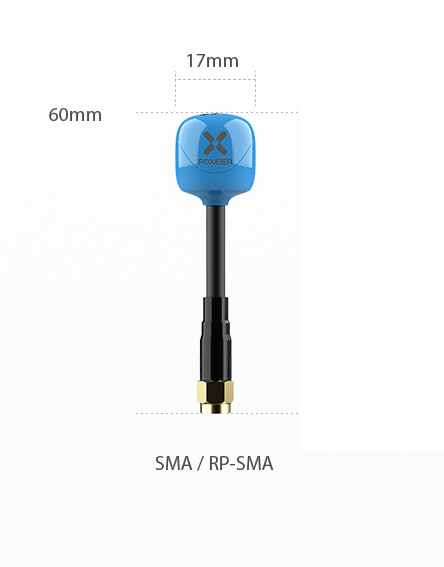

- Connector & LengthSMA/RPSMA/Straight MMCX/Angle MMCX: Φ11*60mm
- UFL: Φ11*85mm
- UFL Tube Short/ Angle MMCX Tube Short: Φ11*95mm
- SMA-10CM: Φ11*100mm
- SMA 15CM Angle: Φ11*150mm
- UFL Tube Long/ Angle MMCX Tube Long: Φ11*165mm
Additional Details
- Manufacturer: Foxeer
- Brand: Foxeer
- Generic Name: FPV Antenna, 5.8GHz Circular Polarized Antenna, Drone Video Antenna, Omnidirectional Antenna
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV racing drones, freestyle quadcopters, small fixed-wing aircraft, and FPV goggles/receivers requiring a 5.8GHz circular polarized antenna.
Package Details:
- Include
- FOXEER Lollipop 4 Plus 5.8G 2.6dBi FPV Antenna
Frequently Asked Questions
Q1: Is this antenna compatible with my FPV goggles?
ANS: It is compatible with any 5.8GHz FPV system, but you must select the correct connector type (e.g., SMA, RP-SMA) and matching polarization (RHCP or LHCP) for your goggles/receiver.
Q2: What does a 2.6dBi gain antenna mean for my flying?
ANS: The 2.6dBi gain, combined with its high axial ratio, provides a more efficient and uniform omnidirectional signal, which typically translates to improved video clarity and longer range compared to stock antennas.
Q3: Is the Lollipop 4 Plus durable enough for FPV racing?
ANS: Yes, it features an upgraded, injection-molded PC+ABS crash-resistant casing that is specifically designed to withstand the high impacts common in FPV racing and freestyle flying.
