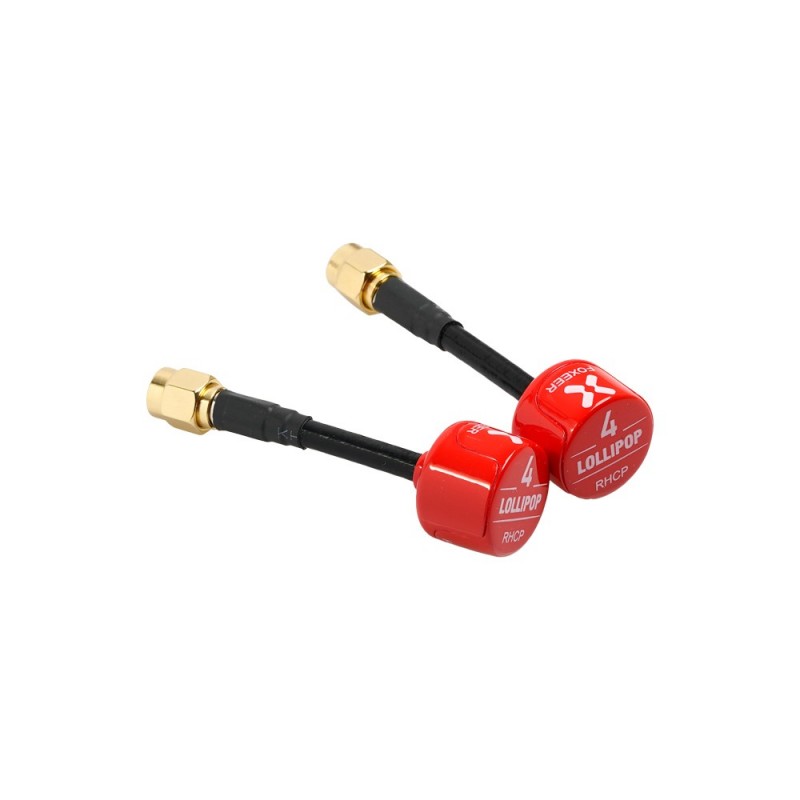

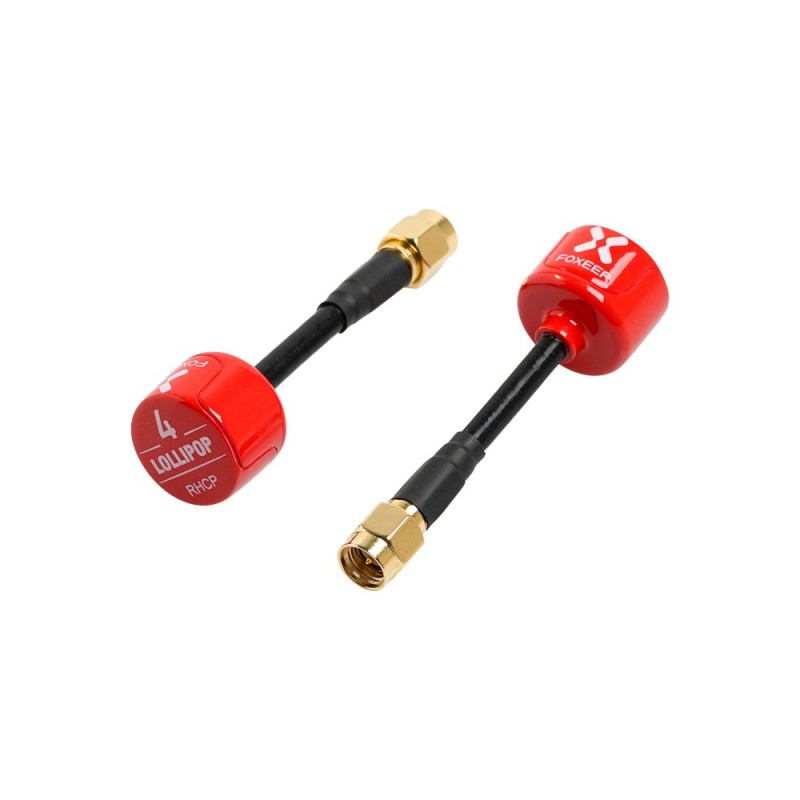

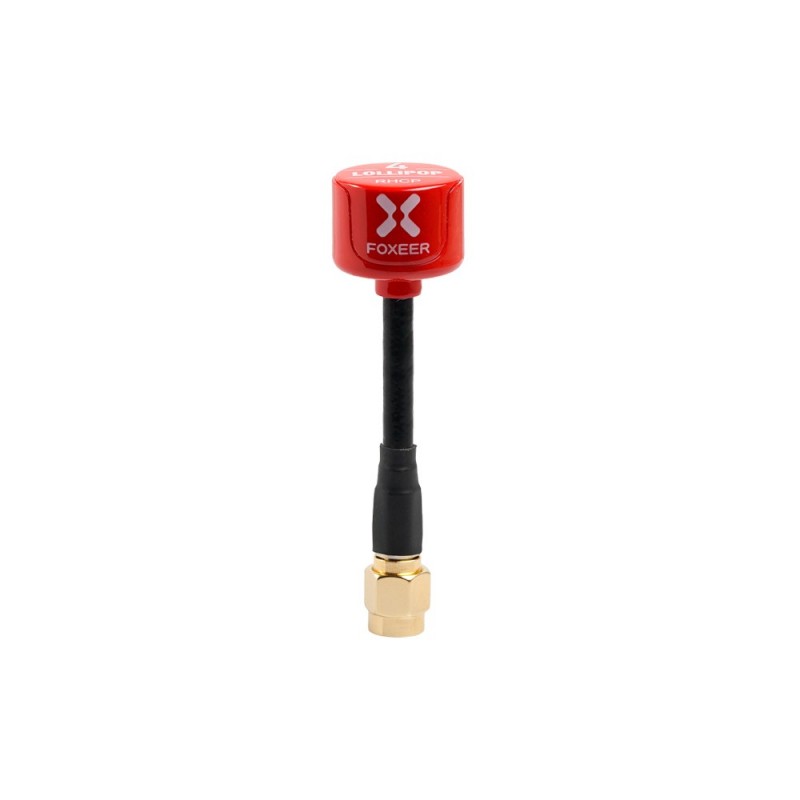

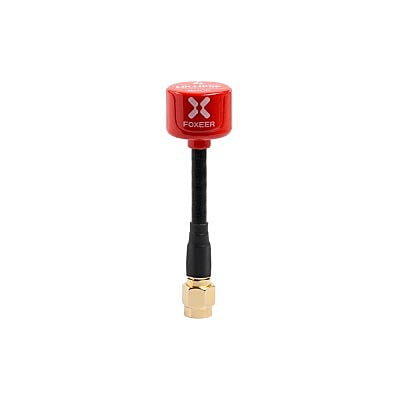

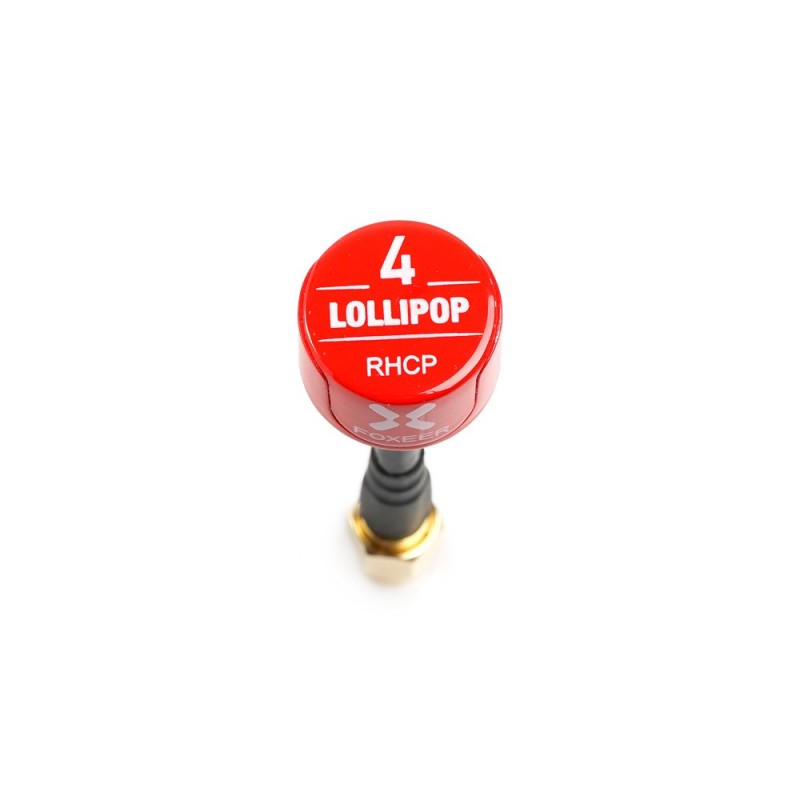

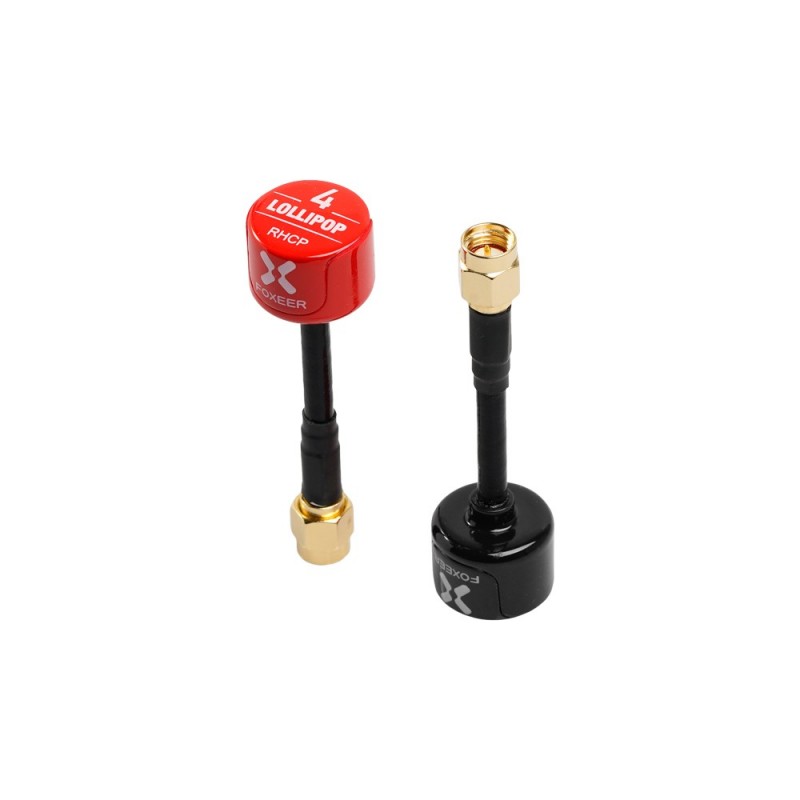

FOXEER Lollipop 4 5.8G FPV Antenna
₹1,899.00 ₹6,280.00
Out of stock
The FOXEER Lollipop 4 is a high-performance 5.8GHz omnidirectional FPV antenna, offering a 2.6dBi gain for exceptional range and signal stability.Its durable, impact-resistant PC+ABS body and low SWR ensure reliable video transmission for drone racing and freestyle flying. Available in multiple connector types.
Product Details
FEATURES:
- Good Plating
- high quality material & oxidation resistance
- all connectors with 48hs salt spray testing
- All feeders adjust to the best signal
- Highly Durable
Technical Details:
- Center Frequency: 5.75GHz
- Gain: 2.6dBi
- Axial Ratio Close to 1
- Band Width: 5.5G~6GHz
- Radiation Efficiency: 98%
- SWR: <1.07 at Center Frequency
- Connector: SMA/RPSMA
- Dimension: 17*23mm
- Polarization: RHCP/LHCP
- Case Material: PC+ABS
- Additional Details
- Manufacturer: FOXEER
- Brand: FOXEER
- Generic Name: FPV Antenna, Omni-directional Antenna, 5.8Ghz Antenna
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: FPV Racing Drones, Freestyle Quadcopters, FPV Goggles, Whoop Drones
Package Details:
- Include
- FOXEER Lollipop 4 5.8G FPV Antenna
Frequently Asked Questions:
Q1: What is the difference between RHCP and LHCP polarization, and which one should I choose?
ANS: RHCP (Right-Hand) and LHCP (Left-Hand) polarization must match between your VTX (Video Transmitter) and VRX (Video Receiver/Goggles) antennas to avoid signal cancellation. Most FPV setups use RHCP; only use LHCP if your video receiver antenna is also LHCP.
Q2: Can this antenna be used on both FPV goggles and a drone's video transmitter (VTX)?
ANS: Yes, the Foxeer Lollipop 4 is a versatile omnidirectional antenna suitable for both the FPV drone's VTX and the receiver/goggles, though specialized patch antennas are often paired with omni antennas on goggles for better range.
Q3: How durable is the Lollipop 4 antenna, especially regarding crash resistance?
ANS: The antenna features a shell made from high-strength PC+ABS material and a reinforced root design, offering significantly improved impact resistance over older antenna designs.
