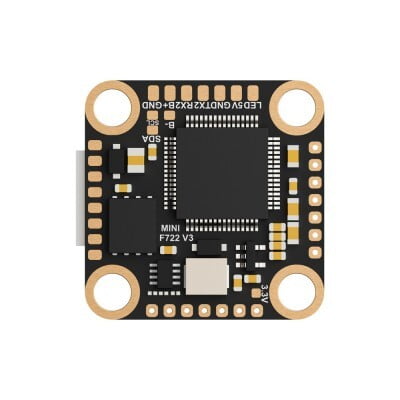

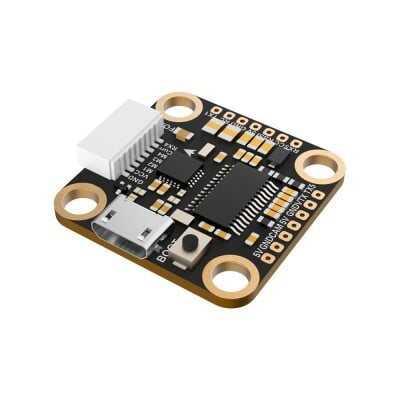

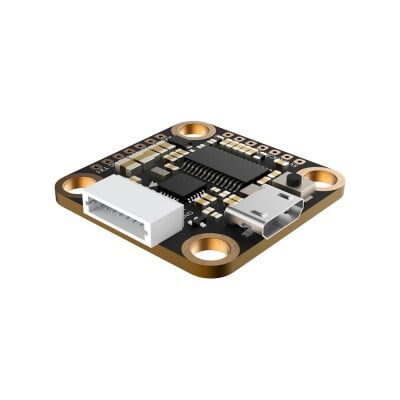

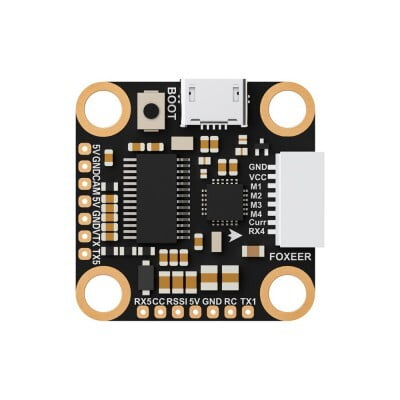

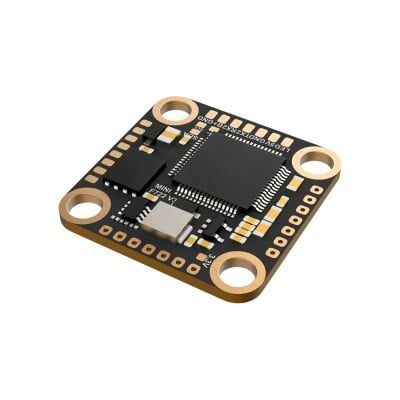

FOXEER F722 V3 Mini Flight Controller

Features:

• High-performance STM32F722RET6 CPU for rapid processing.

• Wide power supply range of 2~6S LiPo (6.5V~30V).

• Integrated BEC output: DC5V/3A; DC9V/3A for powering peripherals.

• Built-in Betaflight OSD (BF OSD) for real-time flight data display.

• 16M Flash Memory (Black Box) for comprehensive flight data logging.

• 4 sets of UARTs for extensive peripheral connectivity.

• ESC Telemetry (RX4) for detailed ESC feedback.

• Buzzer support for audible warnings and alerts.

• Smart Audio support for VTX control.

• LED output: 1 Set 2812 LED for customizable lighting.

• Type-C USB port for easy firmware updates and configuration.

• Compact size of 28.5mm x 28.5mm with 20x20mm mounting (Φ4mm).

• Lightweight design at just 4.4g.

• Wide operating temperature range: -20℃ to +55℃.

Technical Specifications:

• Model: Mini F722 V3

• CPU: STM32F722RET6

• Power Supply: 2~6S Lipo (6.5V~30V)

• BEC Output: DC5V/3A

• OSD: BF OSD

• Black Box: 16M Flash Memory

• UART: 4 Set

• ESC Telemetry: RX4

• Buzzer: YES

• Smart Audio: YES

• LED: 1 Set 2812 LED

• USB: Micro USB

• Firmware: FOXEERF722V3

• Size: 26x26mm

• Mounting Hole: 20x20mm, Φ4mm

• Weight(g): 4g

• Working Temperature: -20℃ ~ +55℃

• Working Humidity: 20~95%

• Storage Temperature: -20℃ ~ +70℃

• Package Includes: 1FC, 4Rubbers Columns

Additional Details:

• Manufacturer: FOXEER

• Brand: FOXEER

• Generic Name: Flight Controller || FPV FC || Drone Controller || Mini FC || F7 Flight Controller || Quadcopter Brain || RC Drone Part || UAV Controller Board || Betaflight FC || Freestyle FC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV racing drones || Freestyle FPV builds || Cinewhoops || Mini FPV drones || Micro FPV drones || Custom drone builds || Beginner FPV pilots (with guidance) || Experienced FPV pilots || Small cinematic drones || FPV practice setups

Package Details:

Includes:

• 1 x Foxeer Mini F722 V3 Pro (Flown By BMS) FPV Flight Controller W/ Built-In Pit PASS – 20x20mm

• 4 x Rubber Grommets

Frequently Asked Questions:

Q1. What is the main advantage of an F7 processor in this FC?

Ans. The F7 processor (STM32F722RET6) offers superior processing power compared to F4 or F3 chips, allowing for faster loop times, more complex filtering, and generally better performance, especially in demanding FPV applications.

Q2. Is this flight controller suitable for both racing and freestyle drones?

Ans. Yes, with its powerful F7 processor, robust BEC, and versatile connectivity, the FOXEER F722 V3 Mini is an excellent choice for both high-speed FPV racing and agile freestyle drone builds.

Q3. What size drones is this Mini FC designed for?

Ans. This Mini FC features a 20x20mm mounting pattern, making it perfectly sized for mini and micro FPV drone frames, typically ranging from 2.5-inch to 5-inch prop setups.
