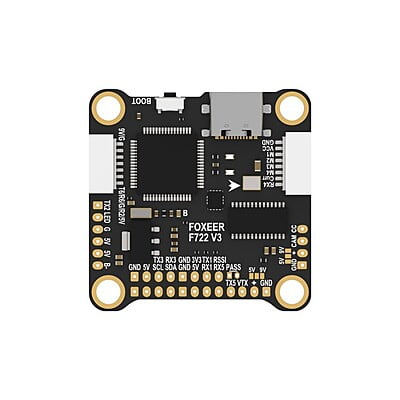

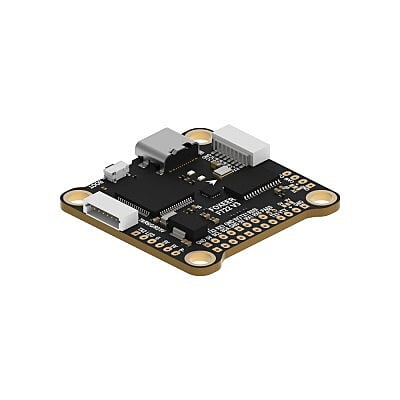

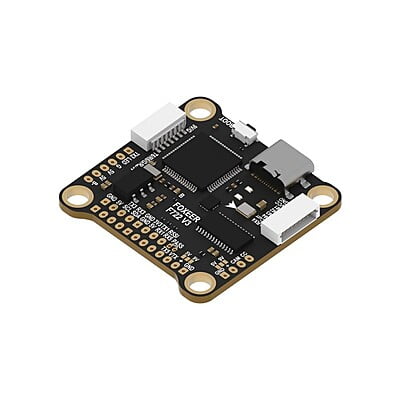

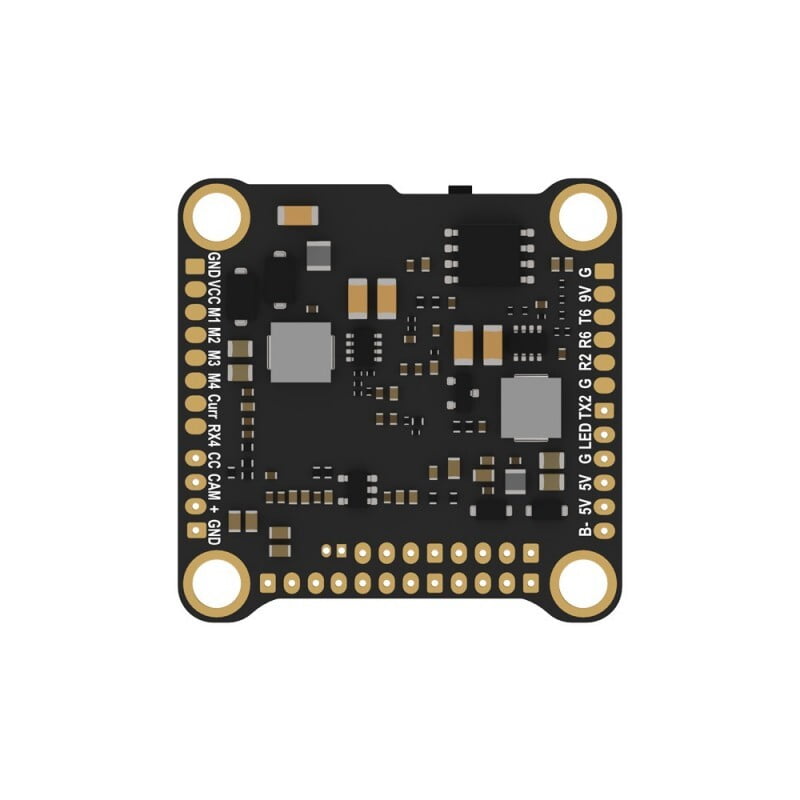

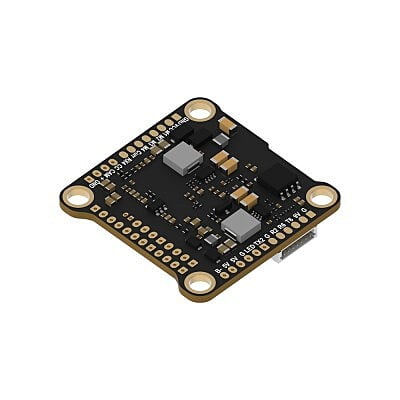

FOXEER F722 V3 Flight Controller High-Performance FPV Quadcopter Autopilot Board
The FOXEER F722 V3 Flight Controller is an advanced 30.5x30.5mm autopilot board designed for FPV drone pilots, freestyle acrobats, and cinematic quadcopter builders. It solves latency, control jitter, and voltage noise issues by integrating a high-speed STM32F722RET6 MCU and clean onboard filtering. Compatible with Betaflight, INAV, analog video setups, and digital HD systems (like DJI O3, Walksnail, and HDZero), this flight controller ensures ultra-precise gimbal-like handling during high-speed maneuvers. FPV pilots and commercial UAV operators choose the FOXEER F722 V3 for its robust solder pads, multi-UART connectivity, dual BEC outputs, and dependable flight stability across demanding flight environments.
The FOXEER F722 V3 Flight Controller is a high-speed processing autopilot board engineered for FPV pilots and UAV custom builders who demand fast loop rates and precise sensor handling. It exists to solve processing bottlenecks and video telemetry noise common in complex multirotor configurations. Compatible with 3S to 6S LiPo power inputs, digital HD video transmitters, and major receiver protocols (such as ELRS, TBS Crossfire, and SBUS), it delivers consistent processing responsiveness. Built with clean power filtering and robust layout traces, this flight controller helps builders achieve smooth motor response and reliable sensor telemetry across freestyle, racing, and aerial recording missions.
Key Features :
High-speed STM32F722 processor allows full 8kHz loop rates for ultra-responsive stick feel.
Onboard dual BEC outputs supply clean, regulated power to digital HD VTXs and camera systems.

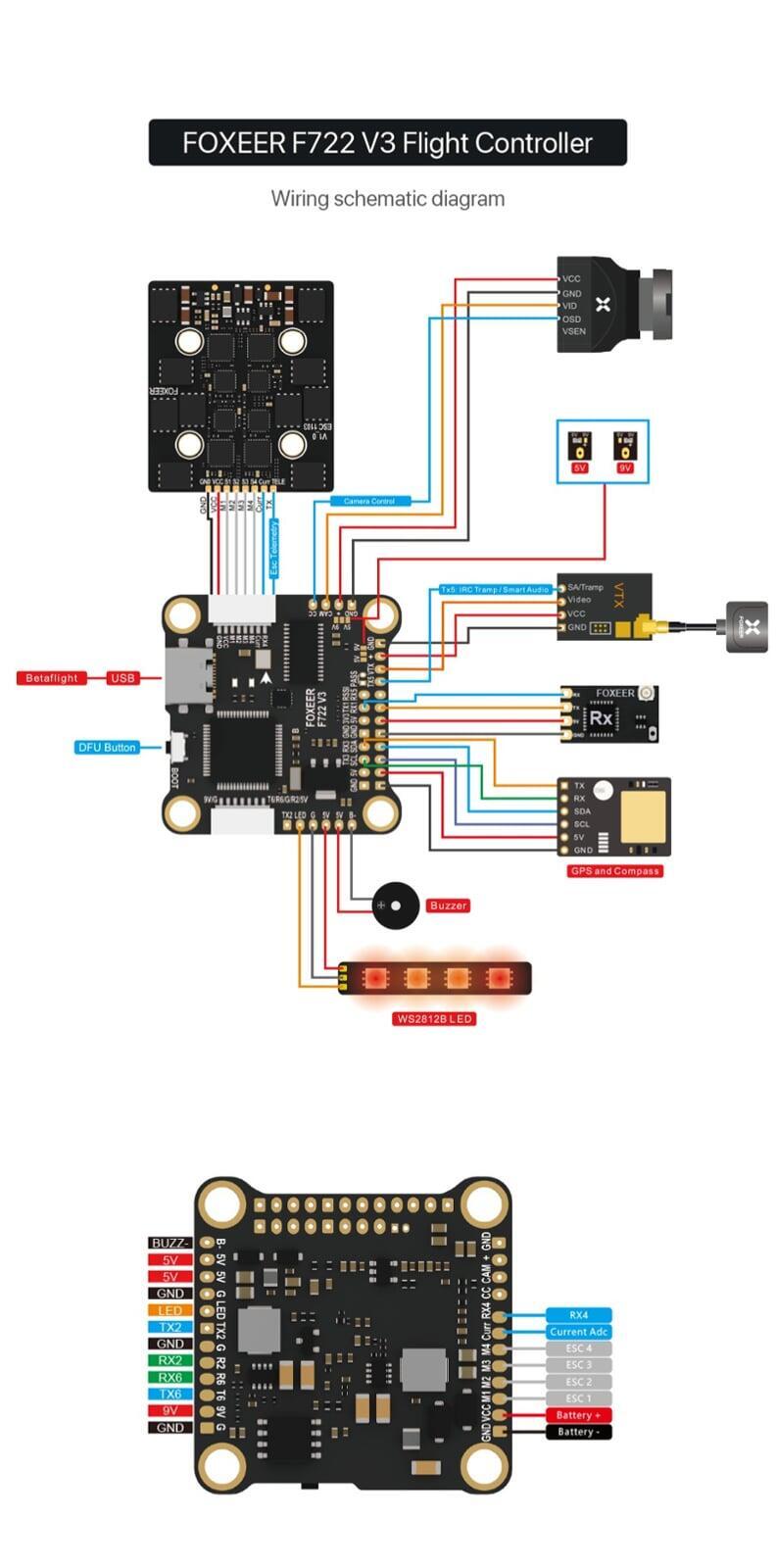

Direct plug-and-play port simplifies wiring with modern ESC stacks and digital video transmitters.
Built-in multi-UART support provides ample connection options for GPS modules, telemetry, and LED controls.
Use Cases :
The FOXEER F722 V3 Flight Controller is widely used in FPV freestyle quadcopters by pilots who require immediate gyro feedback and precise motor control during high-G maneuvers. In cinematic aerial videography, cinewhoop and long-range drone builders rely on its clean power filtering to feed vibration-free video signals to digital HD systems like DJI O3. Commercial drone developers and UAV hobbyists across India use this FC to build custom GPS-guided mapping and rescue rigs running INAV or Betaflight software. Furthermore, FPV racing competitors deploy this controller for its minimal processing latency and stable voltage regulation under high current draw.
Technical Specifications :
| Specification | Details |
| Product Name | FOXEER F722 V3 Flight Controller |
| Brand | FOXEER |
| MCU Processor | STM32F722RET6 |
| Gyroscope / IMU | MPU6000 / ICM42688-P (Depending on Batch) |
| Input Voltage Range | 3S – 6S LiPo (11V – 26V) |
| BEC Output | 5V / 2A and 9V / 2A (or 10V) Dual Regulators |
| OSD Chip | AT7456E (Analog Betaflight OSD) |

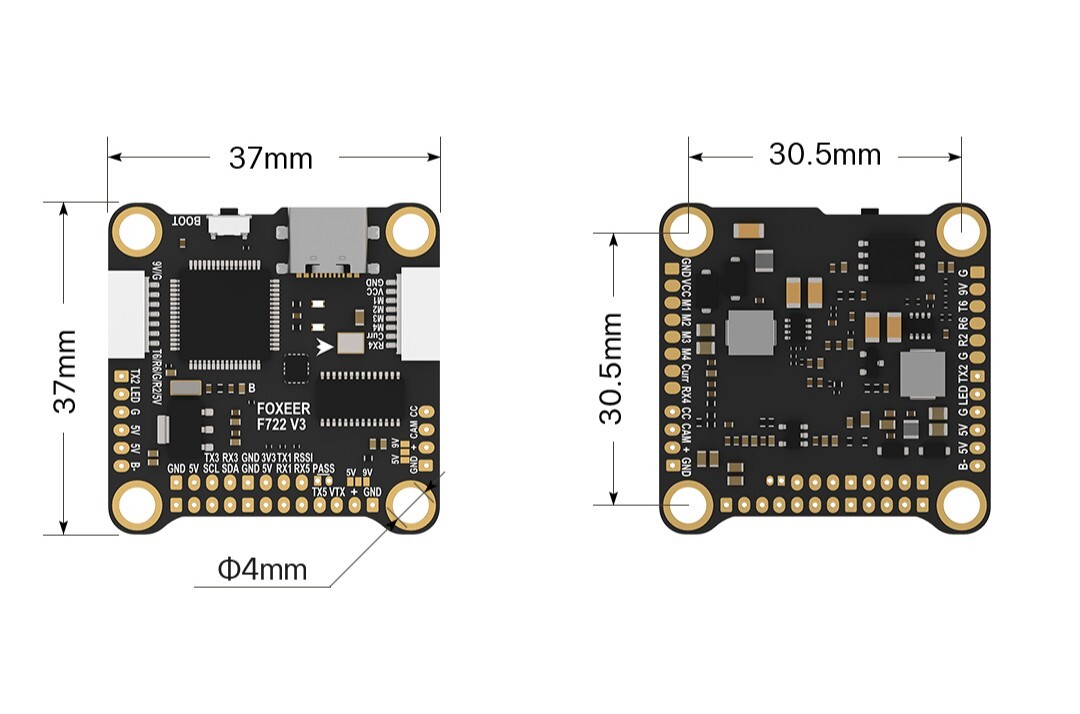

| Mounting Pattern | 30.5 mm × 30.5 mm (Φ4mm with grommets to Φ3mm) |
| UART Ports | 5 × Hardware UARTs |
| Firmware Target | FOXEERF722V3 (Betaflight / INAV Supported) |
| Blackbox Memory | 16MB Onboard Flash |
| Connector Type | 8-Pin ESC Harness Port & Direct Solder Pads |
| Net Weight | ~8.5 g |
| Package Contents | 1 × FOXEER F722 V3 FC, Anti-Vibration Grommets, Wiring Harnesses |
5. Frequently Asked Questions
Q1) What is this product used for?
Ans: The FOXEER F722 V3 Flight Controller is the central processing unit of an FPV drone. It reads orientation data from its onboard gyro sensors and runs control algorithms to keep the drone stable and responsive to pilot commands.
Q2) Which drones, systems, or devices is it compatible with?

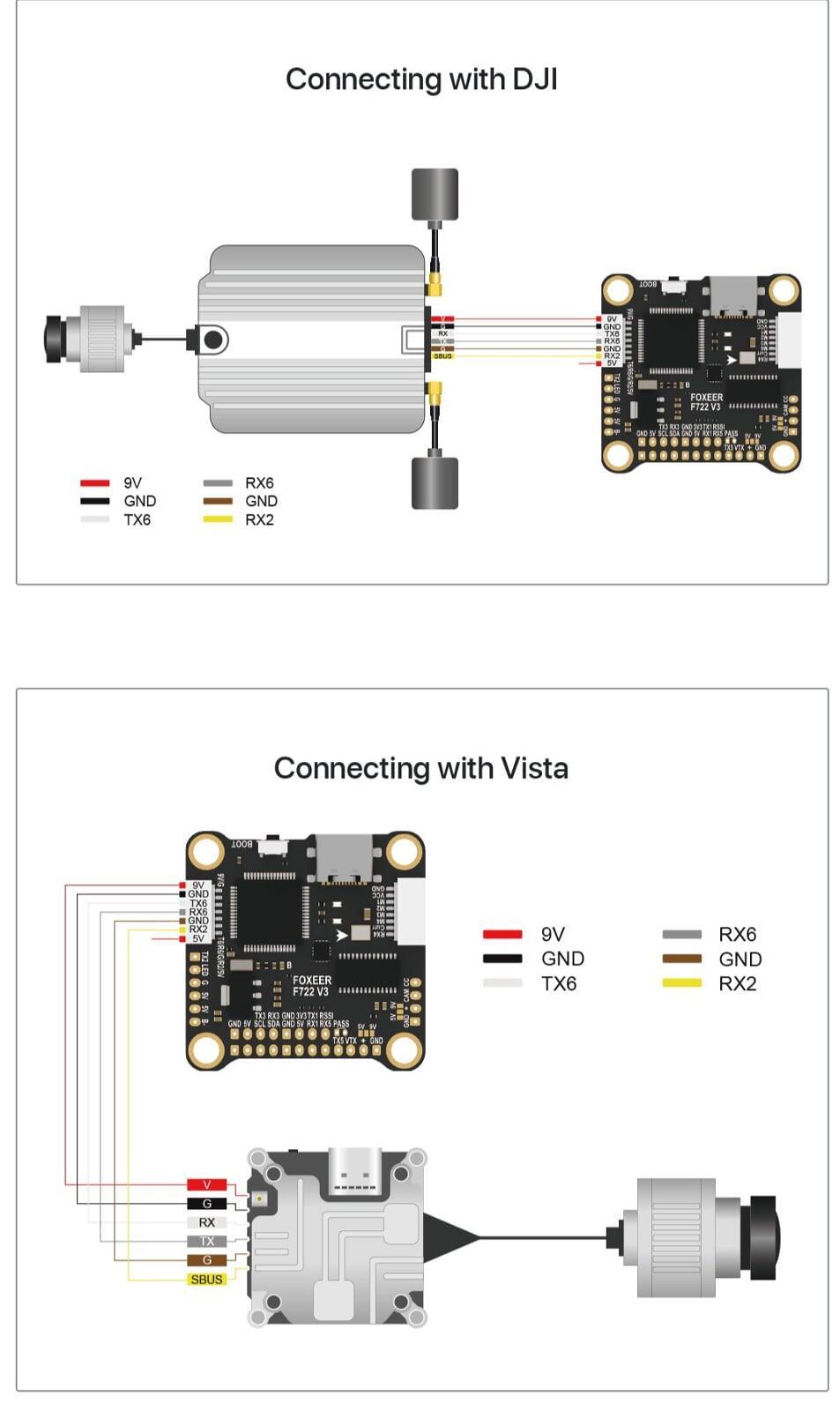

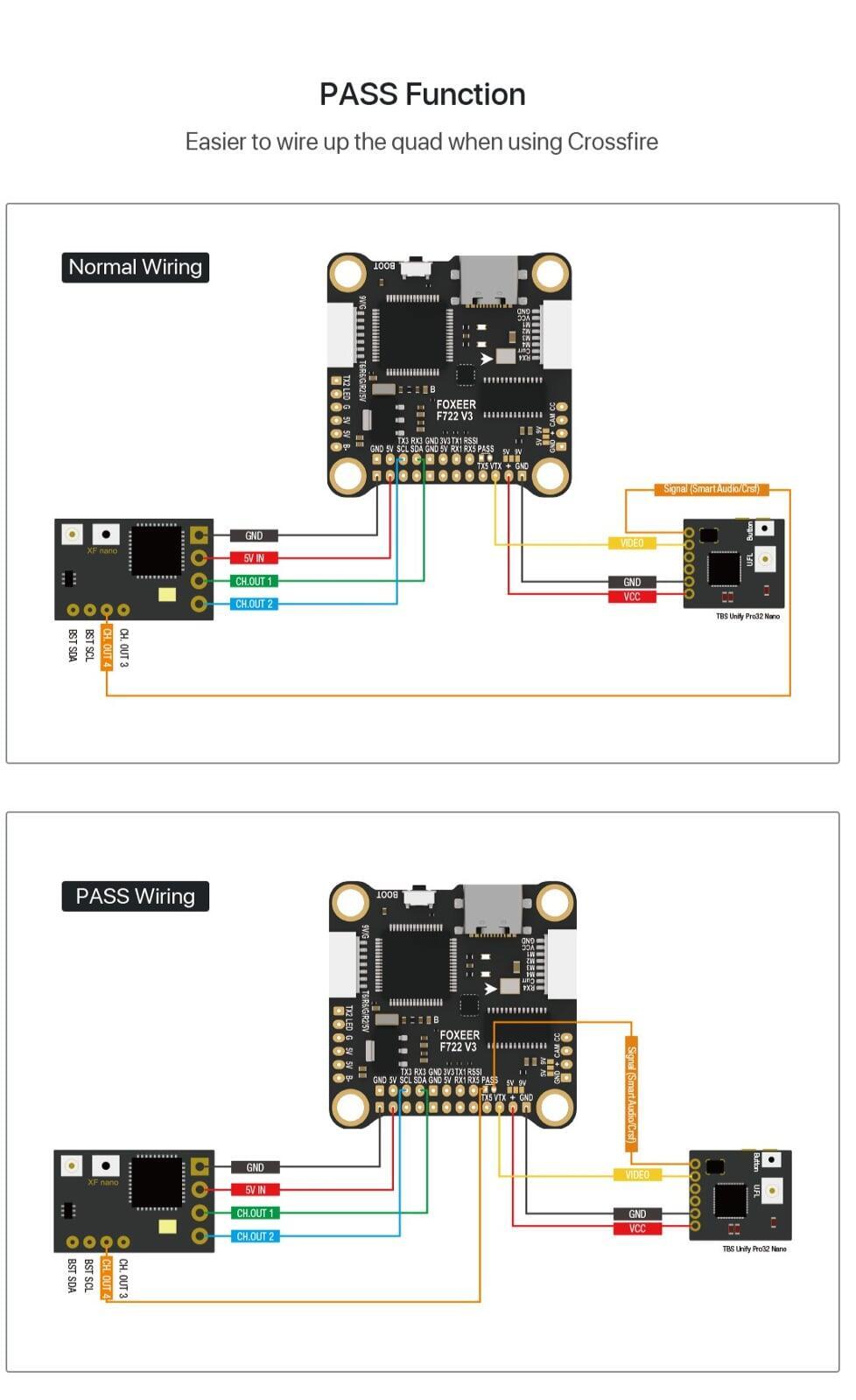

Ans: It is compatible with 3" to 10" FPV quadcopters, 4-in-1 ESCs, analog video systems, and digital HD VTX units (DJI O3, Walksnail, HDZero). It supports major radio receivers including ELRS, TBS Crossfire, and FrSky SBUS.
Q3) Is this product suitable for beginners or professionals?
Ans: It is suitable for intermediate to advanced pilots and drone builders. While beginners can use it, setting up the flight controller requires basic soldering skills and familiarity with Betaflight or INAV configuration software.
Q4) How does this product improve performance or solve problems?
Ans: It eliminates control lag and gyro noise using an F7 processor and clean voltage regulation. The dual BEC setup isolates video transmitters from motor voltage spikes, preventing line noise and video dropouts during flight.
Q5) What should buyers check before purchasing this product?
Ans: Buyers should confirm that their drone frame supports a 30.5×30.5mm mounting pattern and that their ESC stack supports 3S to 6S voltage. They should also verify their required UART count for external peripherals like GPS.
