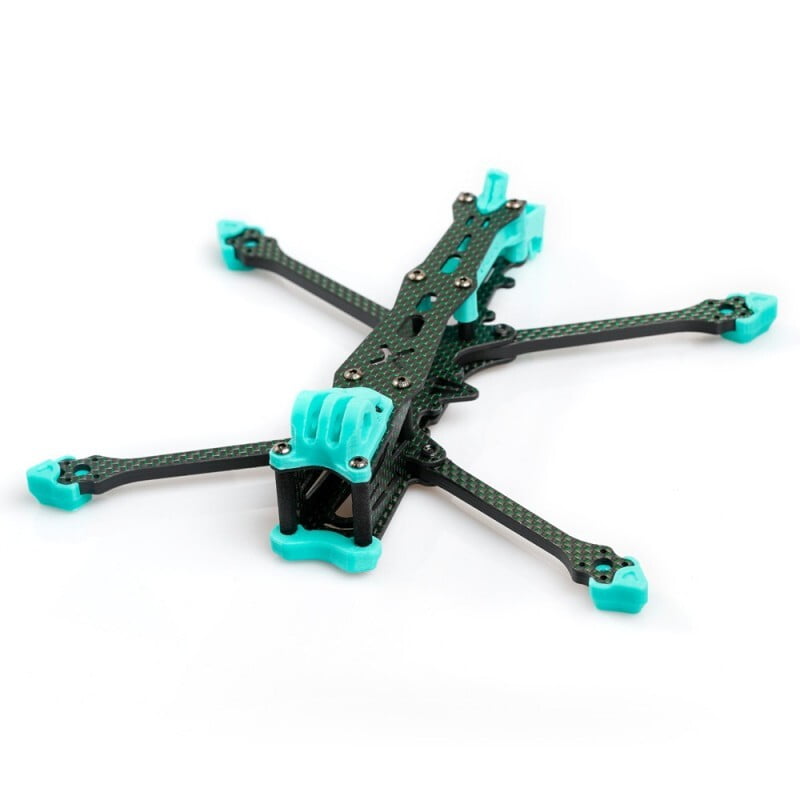

FOXEER Aura LR T700 Long Range Frame Kit
₹4,059.00 ₹10,299.00
- Material - Toray T700 green carbon with silky coating
- Camera size - 19x19mm Micro Size
- System - Analog Cam/ HD Vista digital system
- GPS Mount - BN180
- Recommend Motor - 2104~2105.5 12*12mm
Choose Quantity
Product Details
SPECIFICATION:
| Material | Toray T700 green carbon with silky coating |
| Wheelbase | 210mm |
| Mouting hole | 20×20/25.5×25.5 M2 |
| Camera size | 19x19mm Micro Size |
| System | Analog Cam/ HD Vista digital system |
| GPS Mount | BN180 |
| Weight | Around 71g(excluded TPU Kit) |
| Recommend Motor | 2104~2105.5 12*12mm |
| Packing List | |
| 5mm Arm 12*12 mm mounting – 4 | |
| 1.5mm Top Plate – 1 | |
| 1.5mm Cam Mount – 2 | |
| 2mm middle plate – 1 | |
| 2mm Bottom Plate – 1 | |
| Aluminum Column M3*18 – 6 | |
| Aluminum Column M3*25 – 2 | |
| TPU Receiver & Antenna Mount – 1 | |
| TPU Arm guard/Motor Mount – 4 | |
| TPU UFL Antenna Mount – 1 | |
| TPU Bottom Plate Front Protective Mount – 1 | |
| TPU GPS Mount – 1 | |
| M3*6 Screw – 10 | |
| M3*10 Screw – 2 | |
| M3*12 Screw – 4 | |
| M3*14 Screw – 4 | |
| M3 Spacer Screw – 4 | |
| M3 Self-clinching Nut – 4 | |
| M5*20 7075 column – 1 | |
| M5 Nut – 1 | |
| Battery Anti-slip Mat -1 | |
| 220*20mm Strap – 1
|
