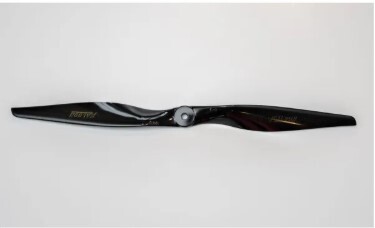

FALCON Carbon Electric 22x11 Propeller

Features:

• Premium carbon fiber construction.




• Large 22-inch diameter.




• High 11-inch pitch for speed.




• Extremely lightweight and rigid.




• Excellent dynamic balance.




• Maximizes thrust and efficiency.




• Minimizes vibration and noise.




• Durable for demanding operations.




• Ideal for powerful electric motors.




• Enhances fixed-wing flight performance.

Technical Specifications:

• Model: FALCON Carbon Electric 22x11 Propeller

• Propeller Diameter: 22 inches (approximately 558.8 mm)

• Propeller Pitch: 11 inches

• Number of Blades: 2

• Material: High-modulus Carbon Fiber Composite

• Construction: Typically hollow core carbon fiber blade for optimal strength-to-weight ratio.

• Hub Type: Generally pre-drilled for specific shaft sizes (e.g., 10mm, common for larger Falcon Electric props). May require an adapter for other shaft sizes. Verify exact hub bore with product image/specifications.

• Weight: Carbon fiber props of this size are very light for their strength. Specific weight needs to be verified; typically around 120-180g for this size.

• Dynamic Balance: Precision balanced from the factory to minimize vibration, crucial for smooth flight and clear imagery.

• Recommended Motor Type: High-torque, low-KV brushless motors (e.g., 80-200 KV) suitable for electric fixed-wing aircraft demanding high speed and efficiency.

• Application: Optimized for electric-powered large fixed-wing UAVs, long-endurance aircraft, FPV wings, and high-speed RC planes.

• Max RPM: Varies by specific design and manufacturing. Carbon fiber allows for higher RPMs than wood/plastic, but always adhere to manufacturer's specified maximum RPM for safety.

• Operating Temperature: Wide operating range typical for composite materials.

Additional Details:

• Manufacturer: Falcon Propellers

• Brand: FALCON

• Generic Name: Carbon Fiber Propeller || Electric Propeller || Fixed-Wing Propeller || UAV Propeller || Large Drone Prop || High Pitch Prop || 2-Blade Propeller || Carbon Prop || High Performance Prop || Aerodynamic Propeller

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Large Electric Fixed-Wing Drones || Long-Endurance UAVs || High-Speed RC Airplanes || FPV Fixed-Wing Aircraft || Aerial Mapping Platforms || Surveillance Drones (fixed-wing) || Professional Drone Operations || Custom High-Performance Drone Builds || VTOL Aircraft (for forward flight) || Aerodynamic Research Platforms

Package Details:

Includes:

• 1x FALCON Carbon Electric 22x11 Propeller

Frequently Asked Questions:

Q1. What performance benefits does the 22x11 size offer to fixed-wing UAVs?

Ans. The 22x11 size offers significant performance benefits to fixed-wing UAVs by providing a powerful combination of thrust and speed. The large 22-inch diameter generates substantial thrust for efficient take-offs and carrying heavier payloads, while the 11-inch pitch ensures that this thrust translates into high forward velocity, enabling faster cruise speeds and efficient long-distance flight, which are crucial for professional mapping or surveillance missions.

Q2. How does the carbon fiber material affect the propeller's durability?

Ans. Carbon fiber construction significantly enhances the propeller's durability due to its exceptional strength-to-weight ratio and rigidity. Unlike plastic or wood, carbon fiber is highly resistant to bending, twisting, and breaking under the immense forces of high RPM and aerodynamic loads. This results in a more robust propeller that maintains its integrity and performance over time, even in demanding flight conditions, reducing the need for frequent replacements.

Q3. Can this propeller be used for both pushing and pulling configurations on an aircraft?

Ans. This FALCON Carbon Electric 22x11 Propeller, as a standard "electric" propeller, is typically designed for a pulling (tractor) configuration. For a pushing (pusher) configuration, you would need a "pusher" propeller which has the blades angled in the opposite direction for reversed rotation while still providing forward thrust. While some specialized props can be used in both, for optimal efficiency and performance, it's best to use a dedicated pusher prop for a pushing setup.
