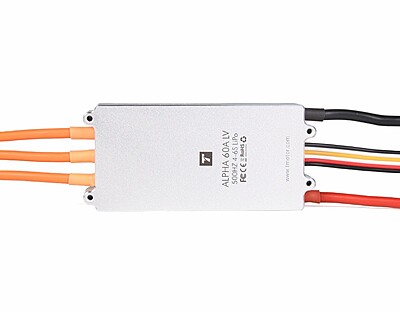

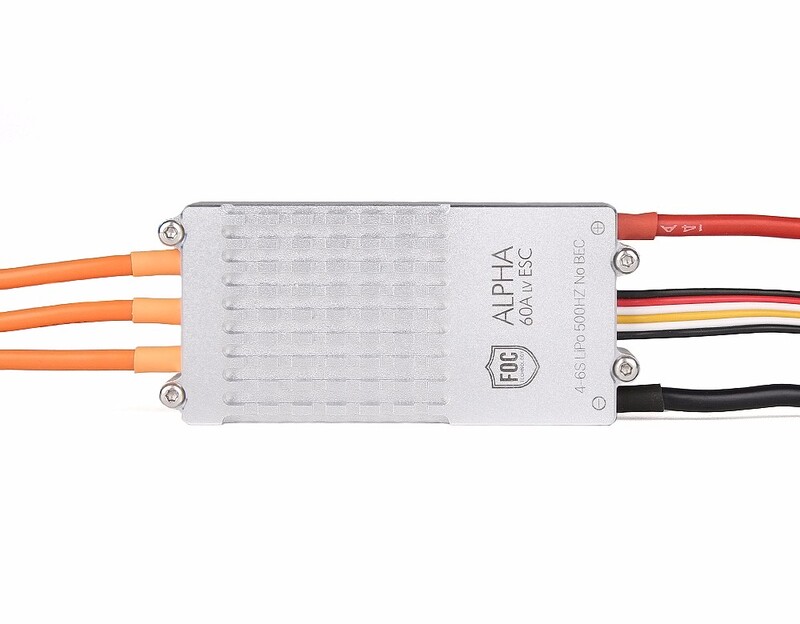

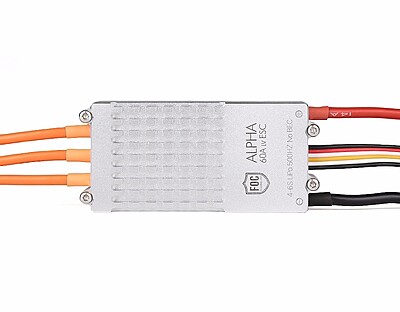

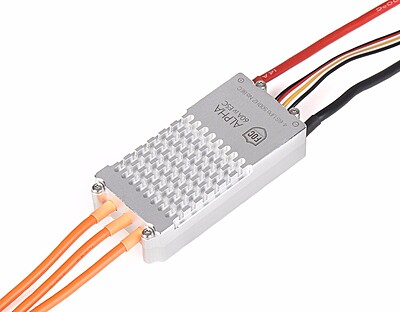

T- Motor C-ALPHA-60A-6S ESC

Features :

• Supports 6S LiPo battery input (18-25.2V).




• 40 Amps continuous, 60 Amps peak current.




• OPTO design, no built-in BEC.




• Rapid 500Hz throttle refresh frequency.




• Precise 50ms throttle response speed.




• High-quality silicone power and motor wires.




• Durable and compact form factor.




• Efficient heat dissipation for reliability.




• Designed for high-performance RC models.




• Includes dedicated programming cable.

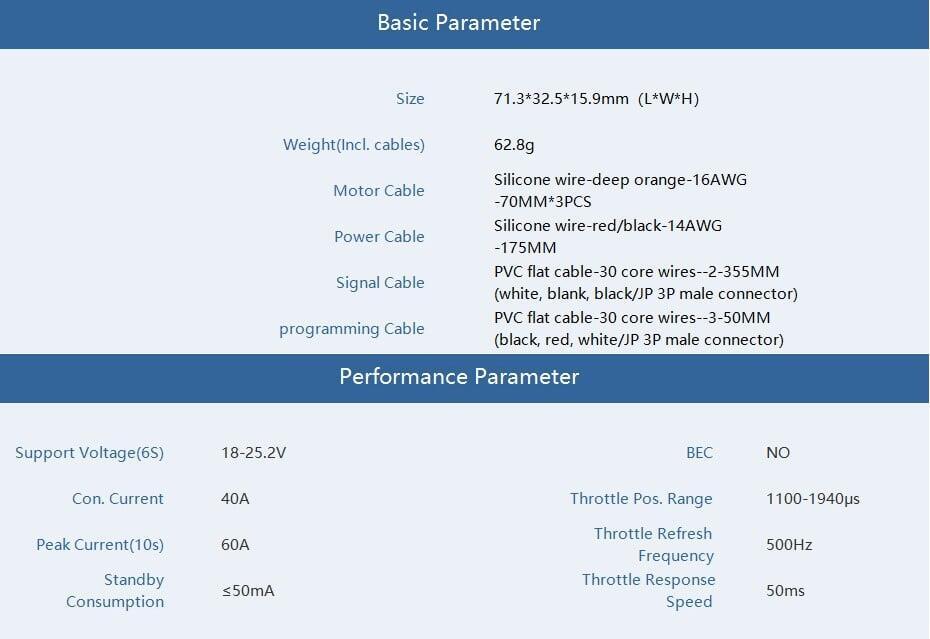

Technical Specifications:

• Size: 71.3 x 32.5 x 15.9mm (L x W x H)

• Power Cable: Silicone wire - red/black - 14AWG - 175mm

• Weight (Incl. cables): 62.8g

• Signal Cable: PVC flat cable - 30 core wires - 2-355mm (white, blank, black/JP 3P male connector)

• Motor Cable: Silicone wire - deep orange - 16AWG - 70mm x 3PCS

• Programming Cable: PVC flat cable - 30 core wires - 3-50mm (black, red, white/JP 3P male connector)

• Support Voltage: 6S LiPo (18-25.2V)

• BEC: NO (OPTO ESC)

• Continuous Current: 40A

• Throttle Position Range: 1100-1940μs

• Peak Current (10s): 60A

• Throttle Refresh Frequency: 500Hz

• Standby Consumption: ≤50mA

• Throttle Response Speed: 50ms

Additional Details:

• Manufacturer: T-Motor

• Brand: T-Motor

• Generic Name: Electronic Speed Controller || ESC || Brushless ESC || 6S ESC || OPTO ESC || Motor Controller || Speed Controller || RC ESC || Drone ESC || High Performance ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: High-Performance RC Airplanes || Larger RC Helicopters || Multi-Rotor Drones || Fixed-Wing UAVs || Custom Drone Builds || Sport RC Models || Trainer Aircraft (high power) || RC Jets || Robotics Projects || Electric Propulsion Systems

Package Details:

Includes:

• 1x T-Motor C-ALPHA-60A-6S ESC

• 1x Programming Cable

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What does "C-ALPHA-60A-6S" signify for this T-Motor ESC, particularly the 60A part?

Ans. The "C-ALPHA" is the series name. "6S" indicates it supports 6-cell LiPo batteries (18-25.2V). The "60A" in the model name usually refers to the peak or burst current rating for 10 seconds, while the continuous current for this specific ESC is 40A. Always refer to the detailed technical specifications for both continuous and peak current ratings.

Q2. Since this T-Motor C-ALPHA ESC is an "OPTO" type, how do I power my receiver and flight controller?

Ans. As an "OPTO" ESC, the T-Motor C-ALPHA 60A 6S does not have a built-in Battery Eliminator Circuit (BEC). You will need a separate, external BEC or a flight controller with an integrated BEC to provide the necessary regulated 5V or other voltage to power your RC receiver, flight controller, and any servos or other low-power electronics.

Q3. Is the 500Hz throttle refresh frequency important for this ESC?

Ans. Yes, a 500Hz throttle refresh frequency is a significant advantage, especially for RC models requiring precise and rapid motor response, such as high-performance drones and helicopters. A higher refresh rate means the ESC receives and processes throttle commands more frequently, leading to smoother, more responsive, and accurate motor control.
