Made in India Axl Orbit-N GPS
Non-returnable
₹10,266.00
Out of stock

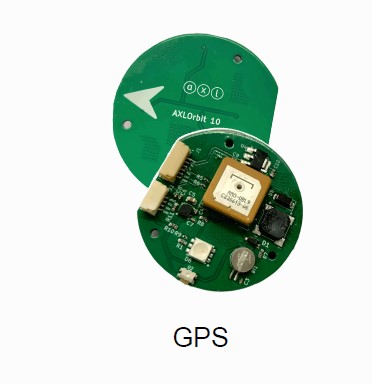

The Axl Orbit-N GPS is a Made-in-India high-precision GNSS module designed for drones and robotics. Supporting GPS, GLONASS, Galileo, and BeiDou, it delivers fast satellite acquisition, accurate positioning, stable heading data, and reliable performance in extreme environments and high-altitude operations.
Product Details
Features:
Technical Specifications:
- Quad-constellation GNSS for superior global positioning accuracy
- Fast satellite reacquisition in challenging signal environments
- High-precision compass for accurate heading determination
- Stable navigation performance at high altitudes
- Low signal tracking for improved reliability
- Compact circular design for easy drone integration
- High refresh rate for smooth real-time navigation
- Industrial-grade components for harsh environments
- Efficient power consumption for extended flight time
- Made in India with reliable build quality
Technical Specifications:
- GNSS Systems: GPS, GLONASS, Galileo, BeiDou
- Satellite Bands: GPS L1 C/A, GLONASS L1OF, BeiDou B1C, Galileo E1B/C
- Sensitivity: Tracking & Navigation -165 dBm, Reacquisition -158 dBm
- Navigation Update Rate: Maximum 5 Hz (Four GNSS)
- Horizontal Accuracy: 1.5 m
- Heading Accuracy: 0.3°
- Compass: IST8310
- Maximum Altitude: 80,000 m
- Input Voltage: 4.7 – 5.2 V
- Current Consumption: 200 mA
- Operating Temperature: -40°C to 85°C
- Diameter: 47.2 mm
- Port Type: JST-GH-06 & JST-GH-04
Additional Details:
- Manufacturer: Axl Robotics (India)
- Brand: Axl
- Generic Name: GNSS Module, Drone GPS, UAV Navigation Module
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Drones, UAVs, robotics, autonomous vehicles, aerial mapping systems
Package Details:
- Includes: 1 x Made in India Axl Orbit-N GPS
Frequently Asked Questions:
Q1. What makes the Axl Orbit-N GPS different from standard drone GPS modules?
Ans. The Axl Orbit-N GPS supports four GNSS constellations—GPS, GLONASS, Galileo, and BeiDou—simultaneously, providing faster satellite lock, higher accuracy, and more stable navigation. It also includes a high-precision IST8310 compass, making it ideal for professional UAV and autonomous applications.
Q2. Is the Axl Orbit-N GPS compatible with popular drone flight controllers?
Ans. Yes, the Axl Orbit-N GPS is compatible with most common drone flight controllers used in UAVs and robotics. With JST-GH-06 and JST-GH-04 ports, it integrates easily with standard autopilot systems, ensuring smooth navigation and heading data.
Q3. Can this GPS module be used in extreme environments and high-altitude flights?
Ans. Absolutely. The Axl Orbit-N GPS is built for industrial-grade performance, operating reliably from -40°C to 85°C and supporting altitudes up to 80,000 meters. This makes it suitable for high-altitude drones, research missions, and harsh environmental conditions.
